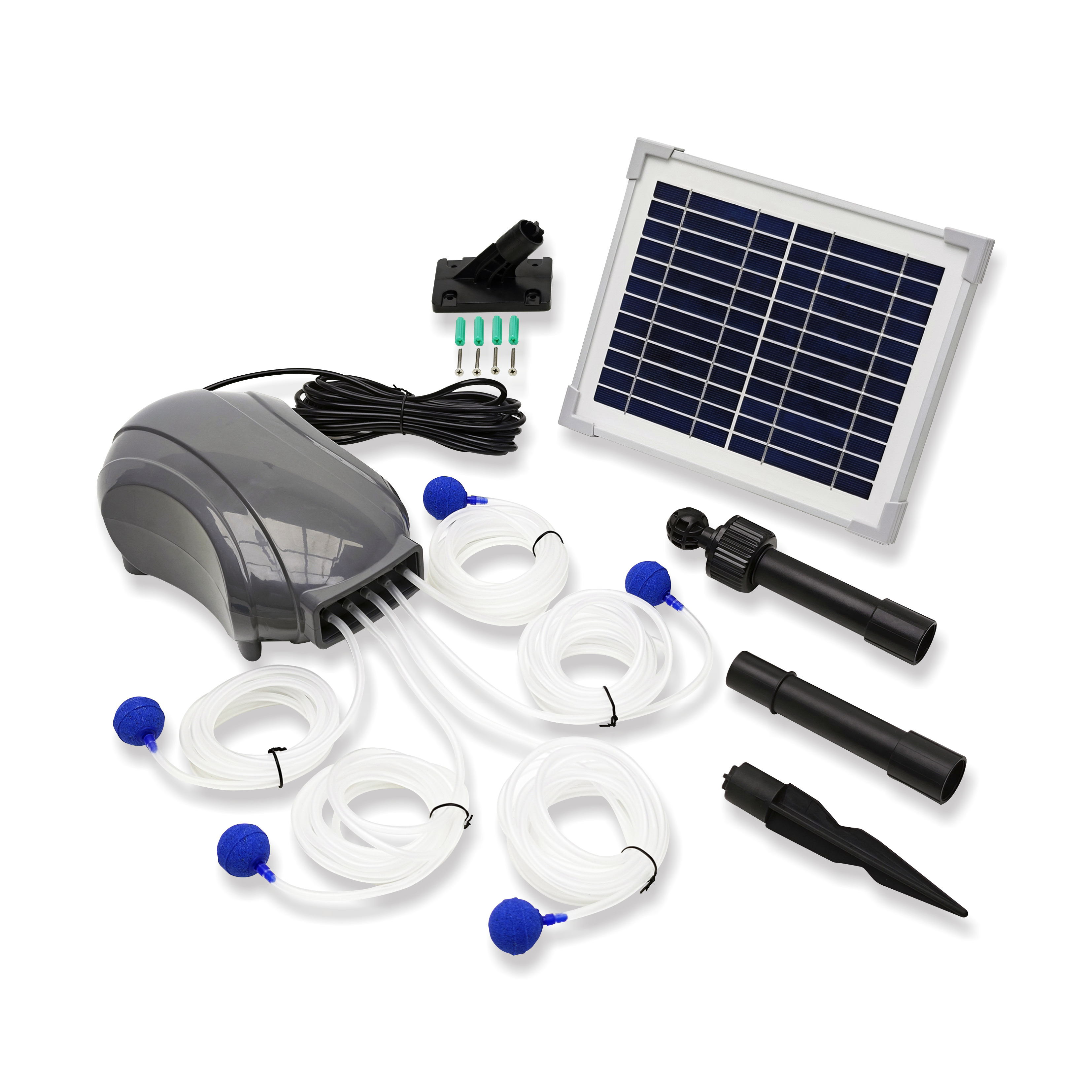

10LPM and 250mmHg Pressure Five Head Solar Air Pump with Brushless Motor for Pond Oxygenation_SAP5-10

10LPM and 250mmHg Pressure Five Head Solar Air Pump with Brushless Motor for Pond Oxygenation_SAP5-10

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Five air flow outlets designed to work separately can distribute the air in water more evenly even when the air stones are placed at different water deepths.

*Robust and durable brushless motor.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Five air flow outlets designed to work separately can distribute the air in water more evenly even when the air stones are placed at different water deepths.

*Robust and durable brushless motor.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

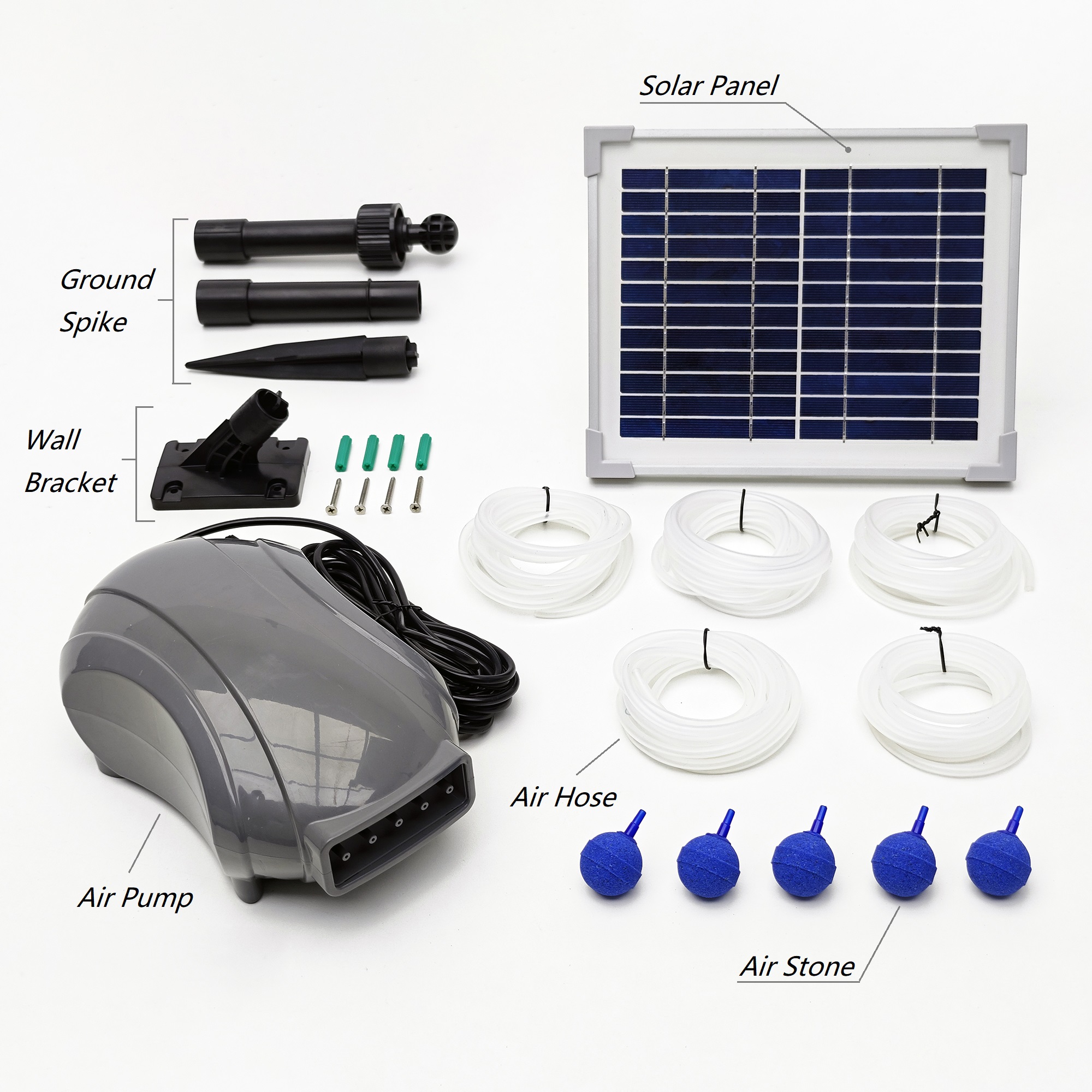

Components

Parameters

Air pump Item No.
AP10-5
Maximum pressure
250 mmHg
Maximum flow rate
2*5 LPM
Operating voltage
DC 12 V
Pump cable length
5 M (16.4 FT)
Air stone
30 mm * 5 pcs
Hose length
3 M * 5 pcs
Material
Plastic

Engineering Drawings



Parameters

Item No.
GSP5-24
Peak power
5 W
Peak power voltage
12.24 V
Peak power current
0.41 A
Open-circuit voltage
14.88 V
Short-circuit current
0.43 A
Material
Polycrystalline

Engineering Drawings

A. Dimension:

B. Angle adjustment:

 1. Ground installation:

 2. Wall installation:
