*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Robust and durable brushless motor.
*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.
*RoHs, REACH and CE, UKCA certified.
*1 year warranty.
*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Robust and durable brushless motor.
*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.
*RoHs, REACH and CE, UKCA certified.
*1 year warranty.

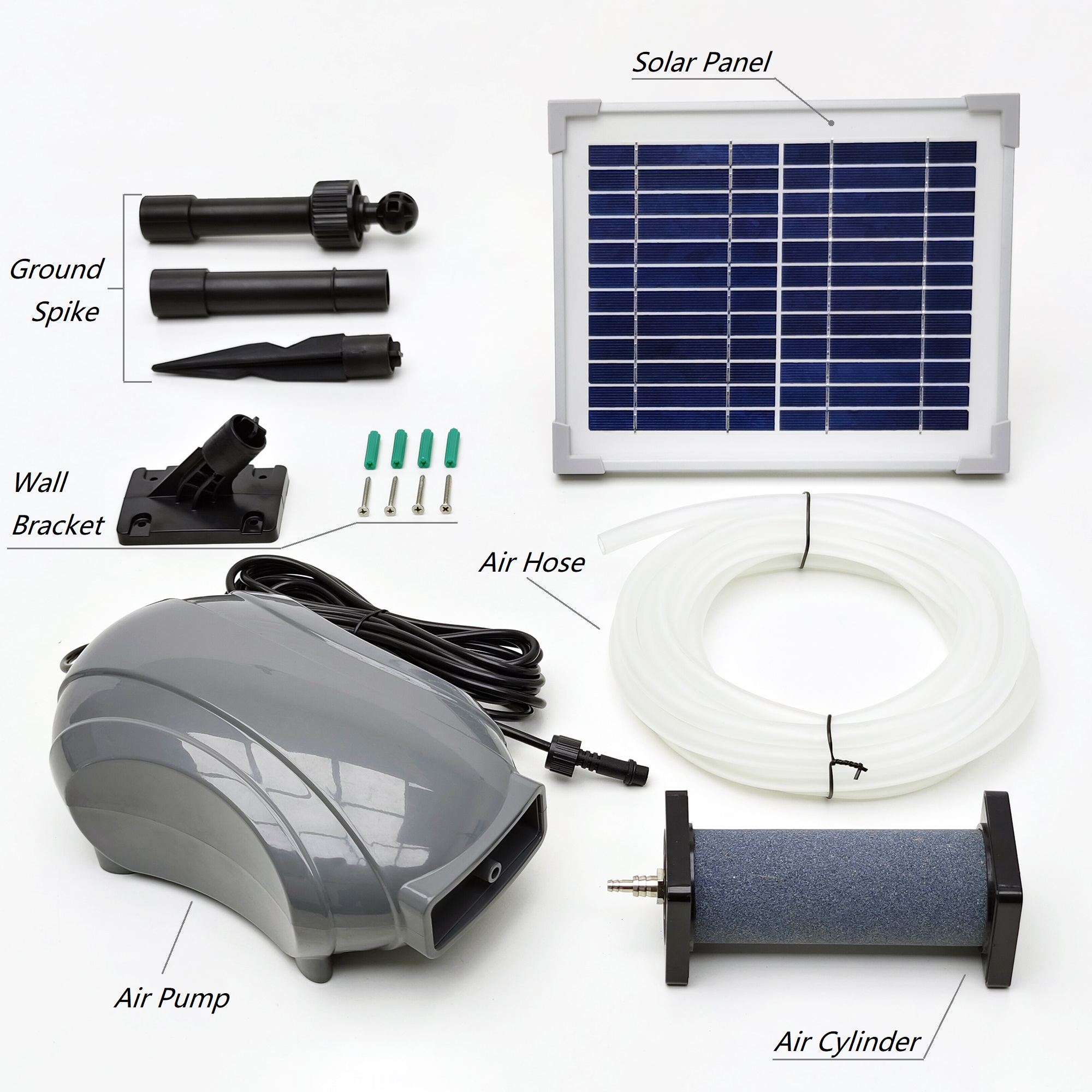

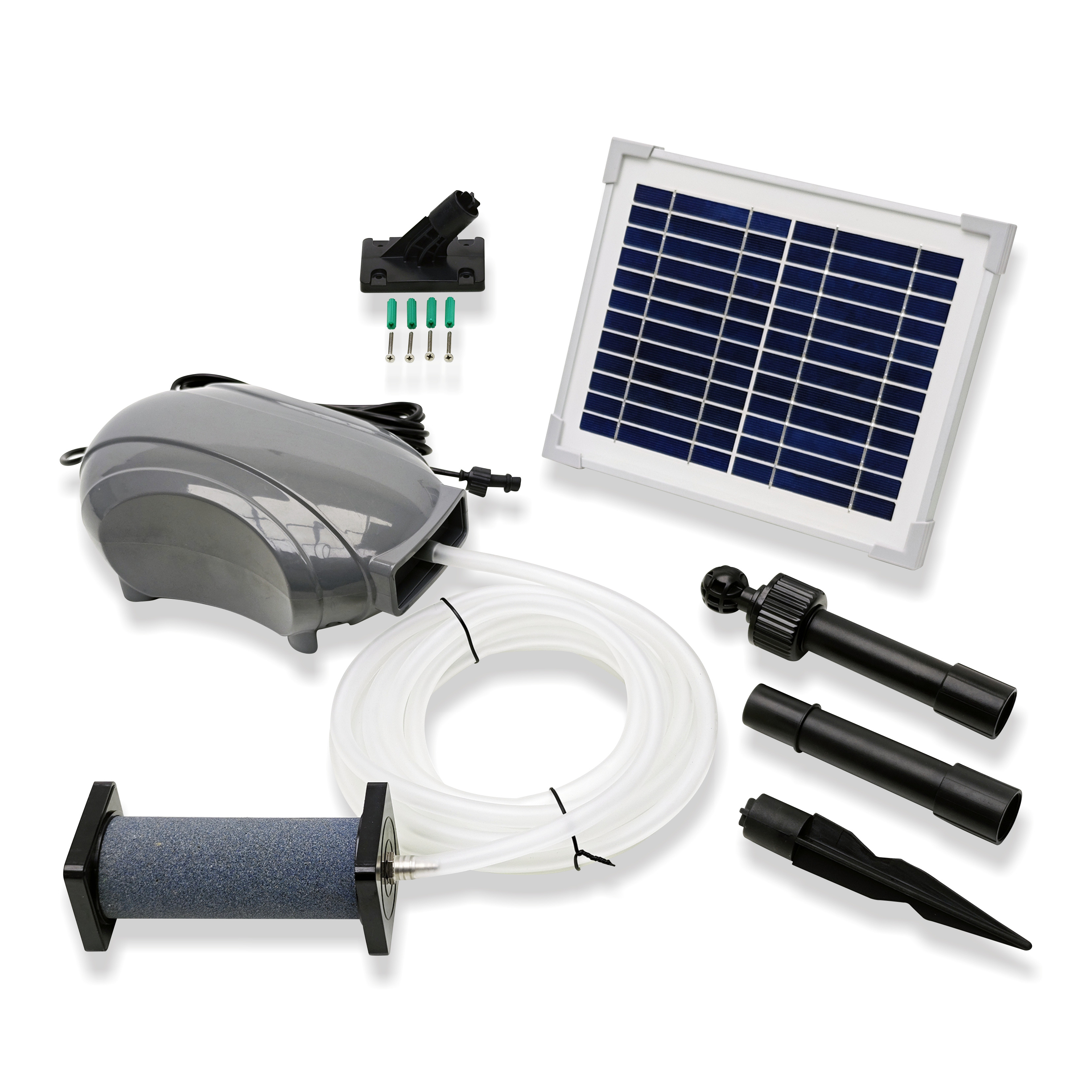

Components
Parameters
Item No. | AP10-1 |
Maximum pressure | 250 mmHg |
Maximum flow rate | 10.0 LPM |
Working voltage | DC 12V |
Pump size | 239*147*102 mm |
Pump cable length | 5 M (16.4 FT) |
Air cylinder | 50*150 mm |
Hose length | 5 M (16.4 FT) |

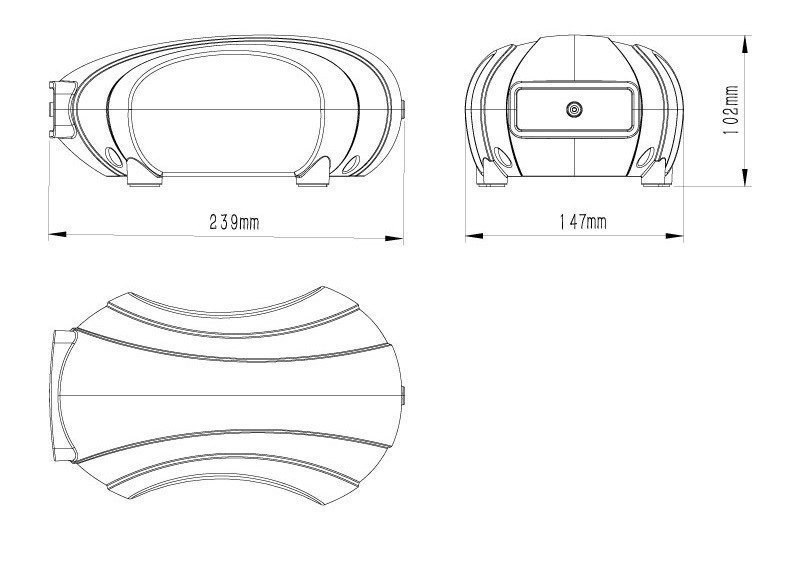

Engineering Drawings
Parameters
Item No. | GSP5-24 | |||
Peak power | 5 W | |||
Peak power voltage | 12.24 V | |||
Peak power current | 0.41 A | |||
Open-circuit voltage | 14.88 V | |||
Short-circuit current | 0.43 A | |||
Material | Polycrystalline |
Engineering Drawings
A. Dimension:
B. Angle adjustment:
1. Ground installation:

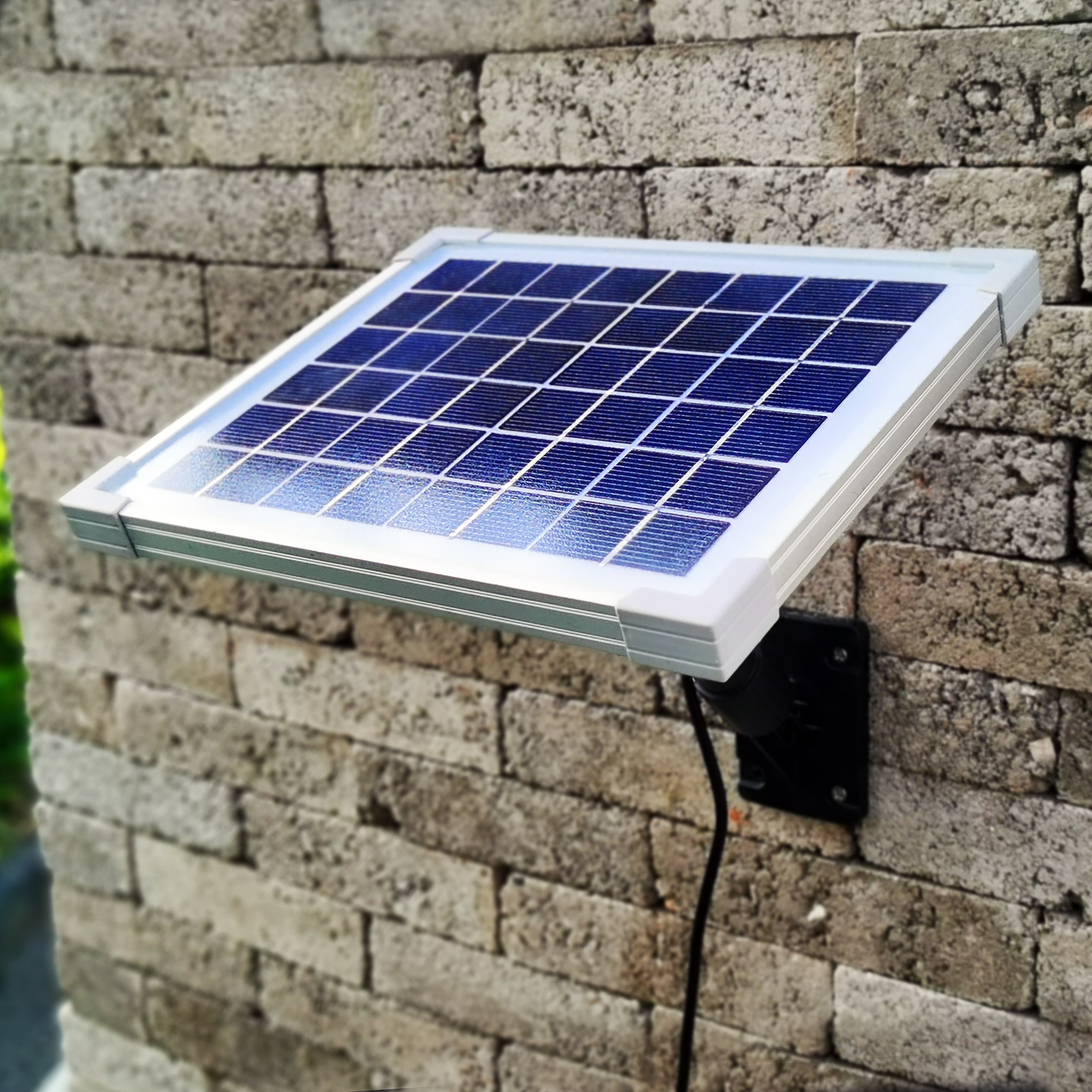

2. Wall installation:
