*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with built-in LiFe battery and can work on demand on overcast days or at nights.
*Economical brush motor.
*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.
*RoHs, REACH and CE, UKCA certified.
*1 year warranty.
*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with built-in LiFe battery and can work on demand on overcast days or at nights.
*Economical brush motor.
*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.
*RoHs, REACH and CE, UKCA certified.
*1 year warranty.

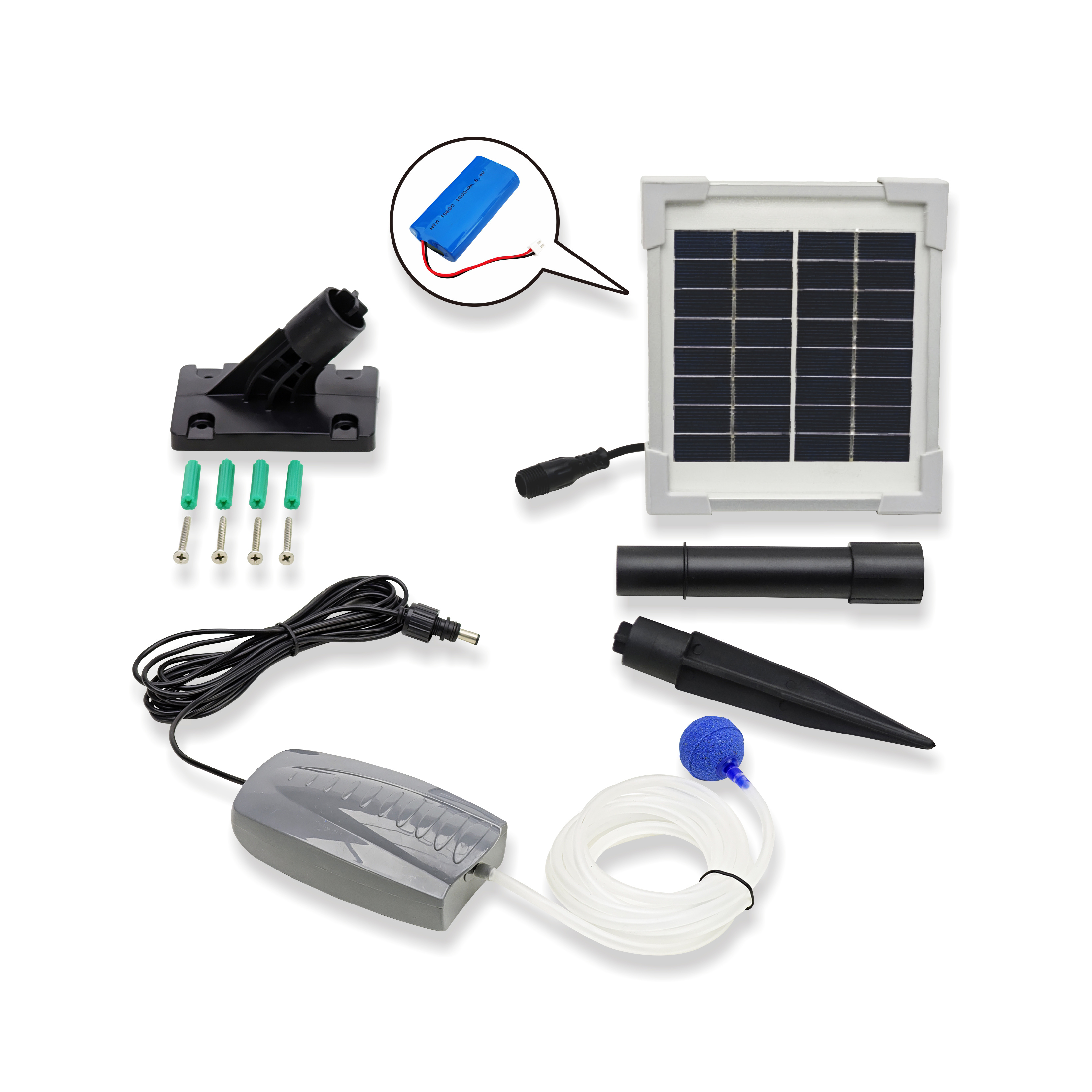

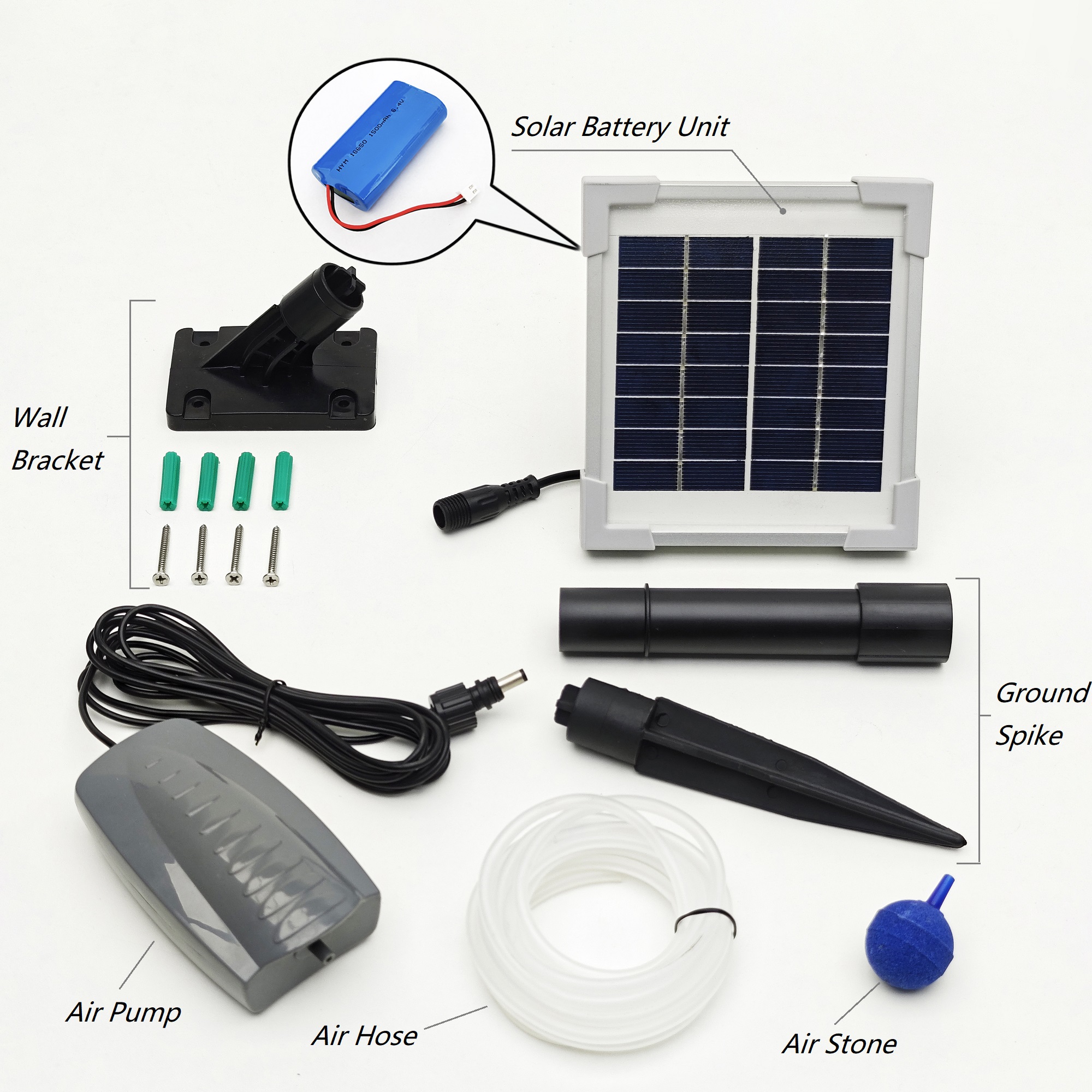

Components
Parameters
Item No. | MAP2-1 |
Maximum pressure | 500mmHg |
Maximum flow rate | 2.0 LPM |
Working voltage | DC 6.4 V |
Pump size | 120*65*42mm |
Connection outlet | 4mm |
Weight | 0.17 KG |
Cable length | 3 M (9.8 FT) |
Air stone | 30mm |
Hose length | 2 M (6.6 FT) |
Engineering Drawings
Parameters
Item No. | GSP1.5-16 |
Peak power | 1.5 Watt |
Peak power voltage | 8.16 V |
Peak power current | 0.18 A |
Rechargeable battery | Li-Fe, 6.4V, 500mAh |
Min.running time with fully charged battery | 7 hours |
Average running time per sunny day | 15 hours |

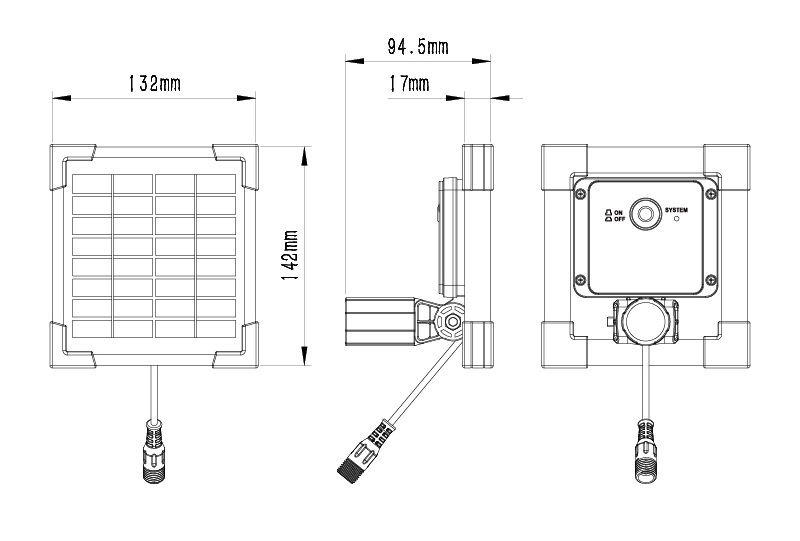

Engineering Drawings
A. Dimension:
B. Angle adjustment:
1. Ground installation:
2. Wall installation:
