3LPM and 500mmHg Pressure Solar Battery Air Pump with Brush Motor for Pond Oxygenation SMAPB3-3

3LPM and 500mmHg Pressure Solar Battery Air Pump with Brush Motor for Pond Oxygenation SMAPB3-3

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with built-in LiFe battery and can work on demand on overcast days or at nights.
*Two air flow outlets can distribute the air in water more evenly.

*Economical brush motor.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.


￥ 0.00
0.00
Item Number：

Product overview

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with built-in LiFe battery and can work on demand on overcast days or at nights.
*Two air flow outlets can distribute the air in water more evenly.

*Economical brush motor.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

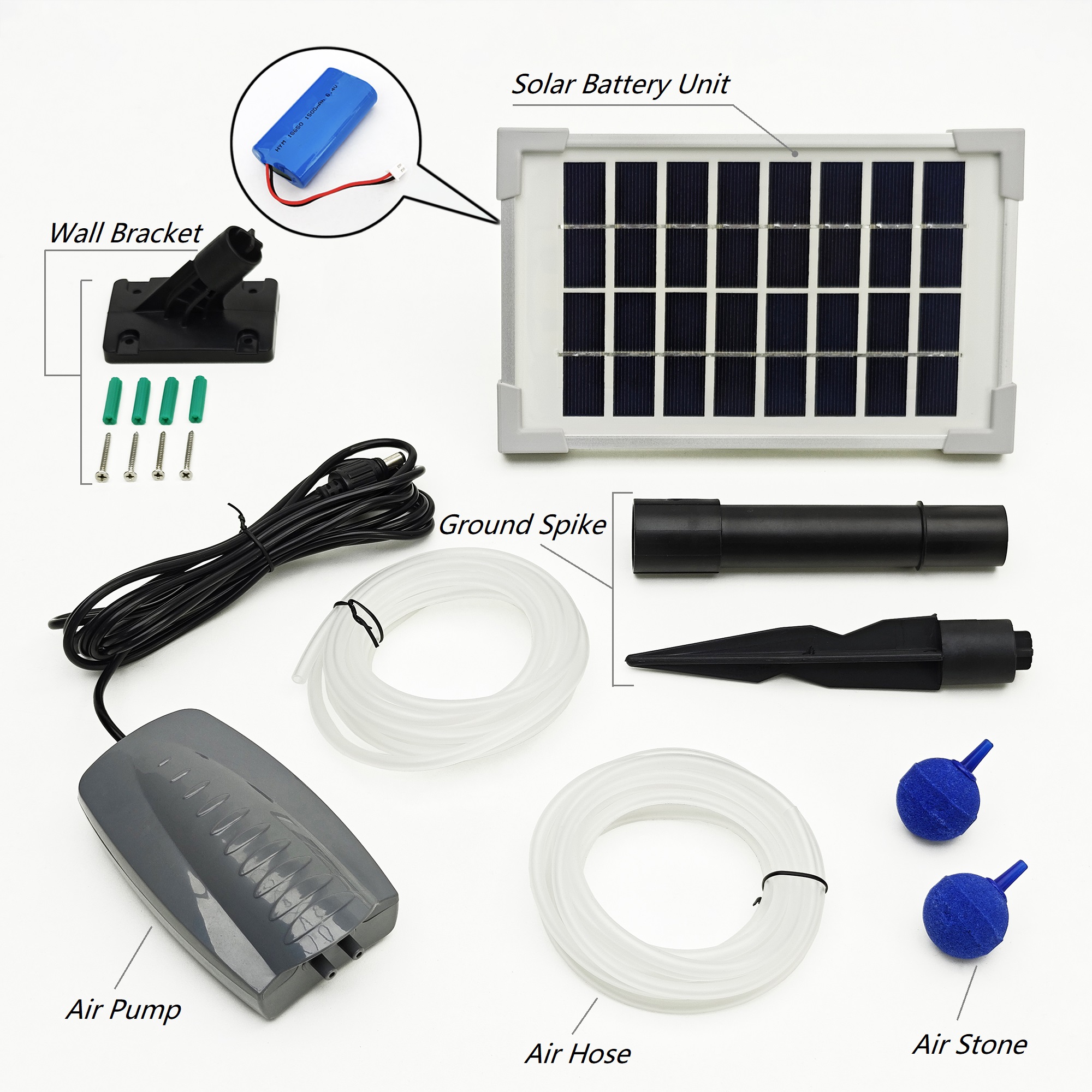

Components

Parameters

Item No.

MAP3-2

Maximum pressure

500 mmHg

Maximum flow rate

3.0 LPM

Working voltage

DC 6.4 V

Pump size

127*70*42 mm

Pump cable length

3 M (9.8 FT)

Air stone

30 mm * 2 pcs

Hose length

2 m * 2 pcs

Engineering Drawings



Parameters

Item No.

GSP3-16

Peak power

3 Watt

Peak power voltage

9.92 V

Peak power current

0.32  A

Rechargeable battery

Li-Fe, 6.4V, 1500mAh

Min. running time with fully charged battery

7.5 hours

Average running time per sunny day

14.5 hours

Engineering Drawings

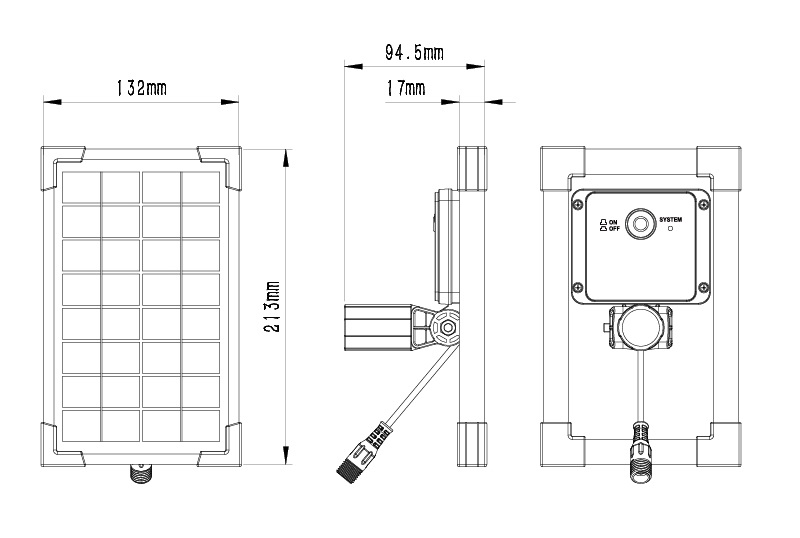

A. Dimension:

B. Angle adjustment:

1. Ground installation:

 2. Wall installation:
