2LPM and 500mmHg Pressure Solar Battery Built-in Air Pump with Brushless Motor for Pond Oxygenation SAPB4-2

2LPM and 500mmHg Pressure Solar Battery Built-in Air Pump with Brushless Motor for Pond Oxygenation SAPB4-2

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with built-in LiFe battery and can work on demand on overcast days or at nights.

*Robust and durable brushless motor.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.


￥ 0.00
0.00
Item Number：

Product overview

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with built-in LiFe battery and can work on demand on overcast days or at nights.

*Robust and durable brushless motor.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

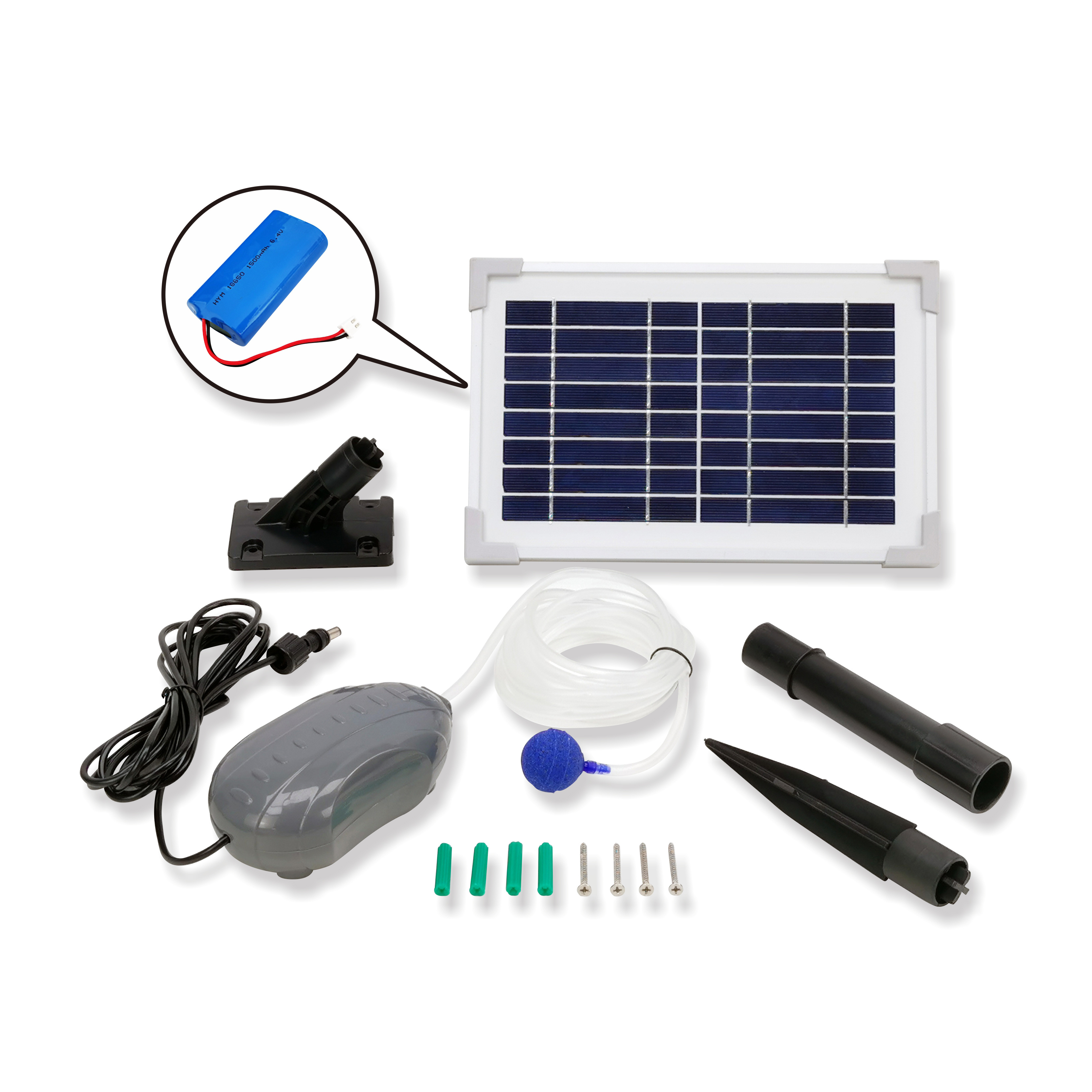

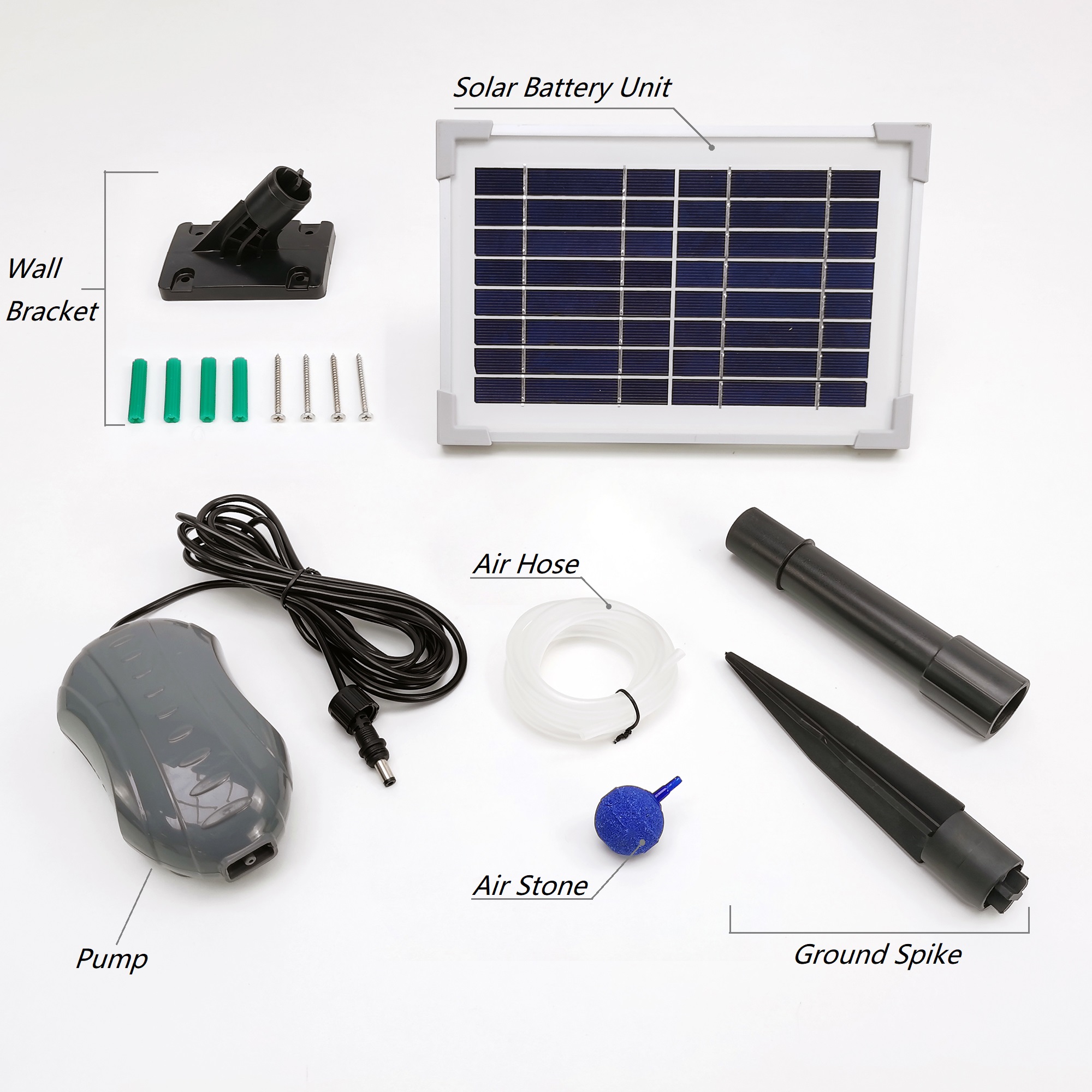

Components

Parameters

Air pump Item No.
AP2-1
Maximum air pressure
500 mmHg
Maximum flow rate
2 LPM
Working voltage
DC 6.4 V
Pump cable length
3 M (9.8 FT)
Air stone
30 mm
Hose length
2 M (6.6 FT)

Engineering Drawings



Parameters

Item No.

GSP4-16

Peak power

4 Watt

Peak power voltage

8.16 V

Peak power current

0.49  A

Rechargeable battery

Li-Fe, 6.4V, 1500mAh

Min.running time with fully charged battery

8.5 hours

Average running time per sunny day

16.5 hours

Engineering Drawings

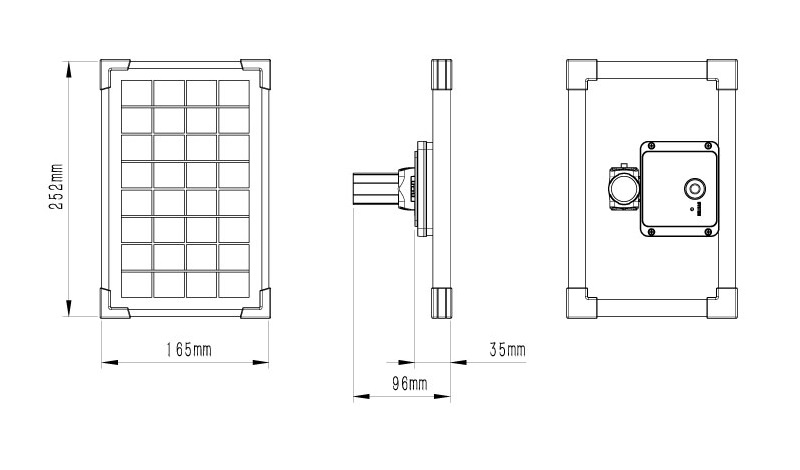

A. Dimension:

B. Angle adjustment:

1. Ground installation:

 2. Wall installation:
