3LPM and 500mmHg Pressure Two Head Solar Air Pump with Brushless Motor for Pond Oxygenation_SAP3-3

3LPM and 500mmHg Pressure Two Head Solar Air Pump with Brushless Motor for Pond Oxygenation_SAP3-3

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Two air flow outlets designed to work separately can distribute the air in water more evenly even when the two air stones are placed at different water deepths.

*Brushless motor, robust and durable.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Two air flow outlets designed to work separately can distribute the air in water more evenly even when the two air stones are placed at different water deepths.

*Brushless motor, robust and durable.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

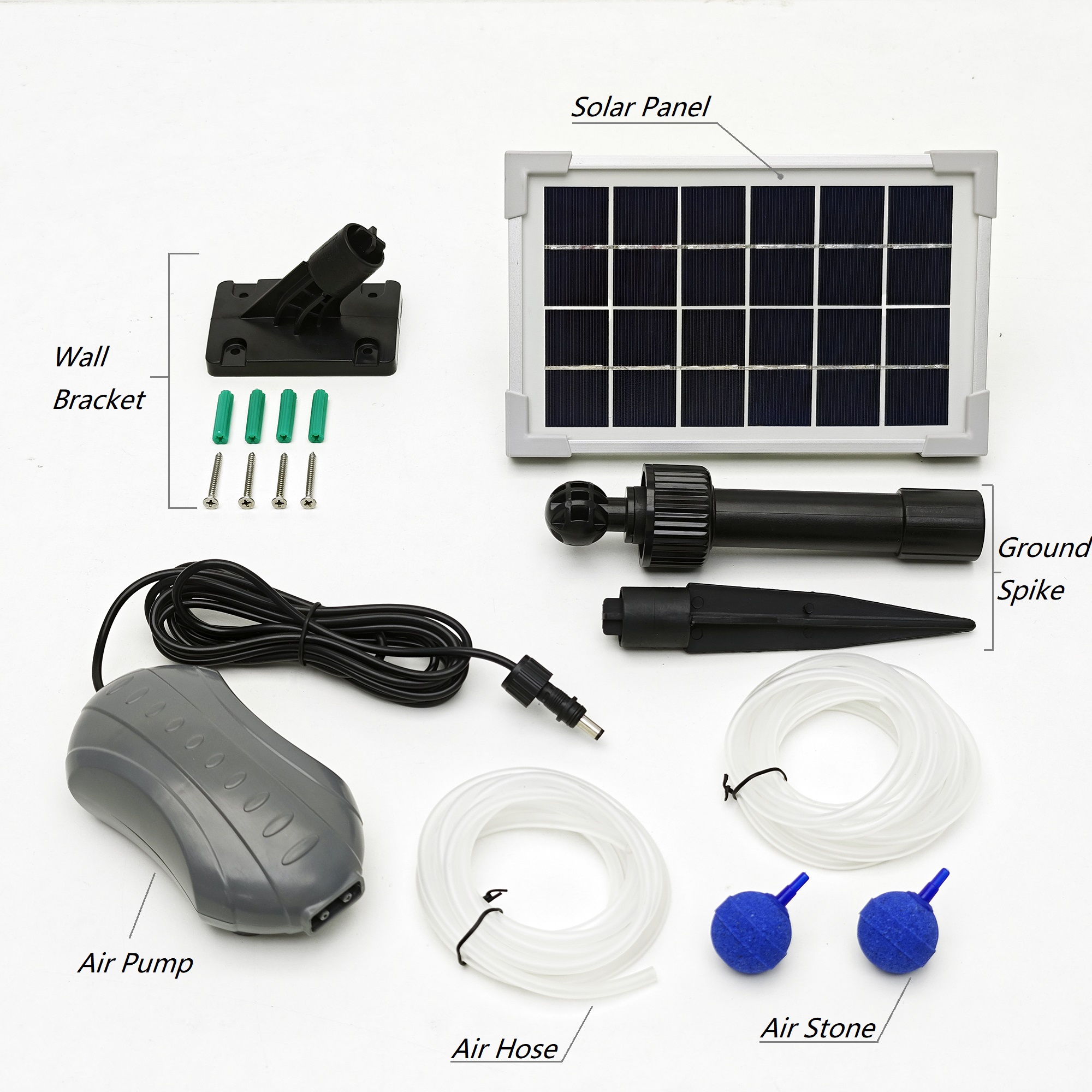

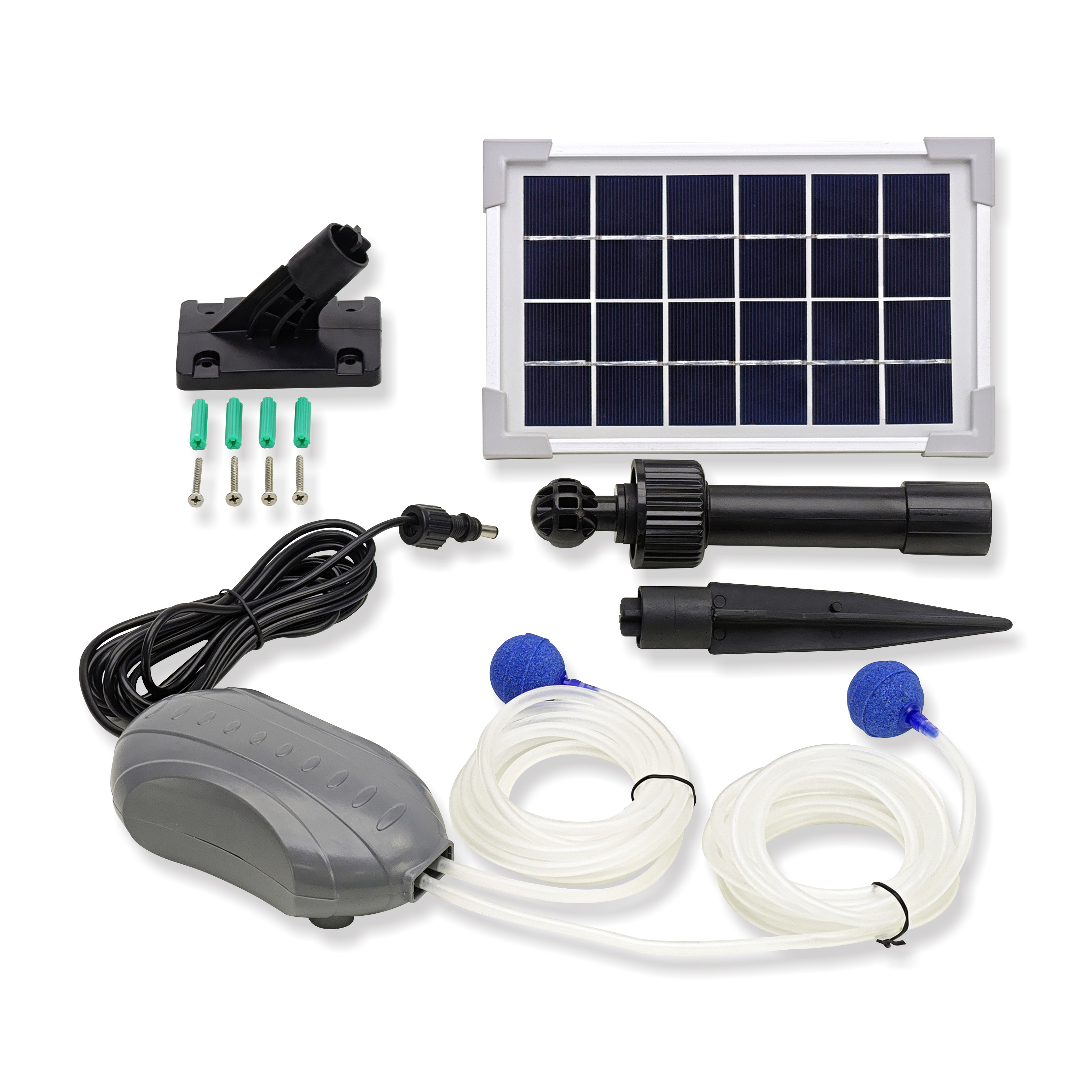

Components

Parameters

Item No.

AP3-2

Max. air pressure

500 mmHg

Max. flow rate

1.5LPM x 2

Working voltage

DC 6V

Pump size

139*74*52 mm

Pump cable length

3 M (9.8 FT)

Air stone

30 mm * 2pcs

Hose length

2 M * 2pcs

Engineering Drawings



Parameters

Item No.

GSP3-16

Peak power

3 Watt

Peak power voltage

8.16 V

Peak power current

0.31  A

Open-circuit voltage

9.92 V

Short-circuit current

0.32 A

Material

Polycrystalline

Engineering Drawings

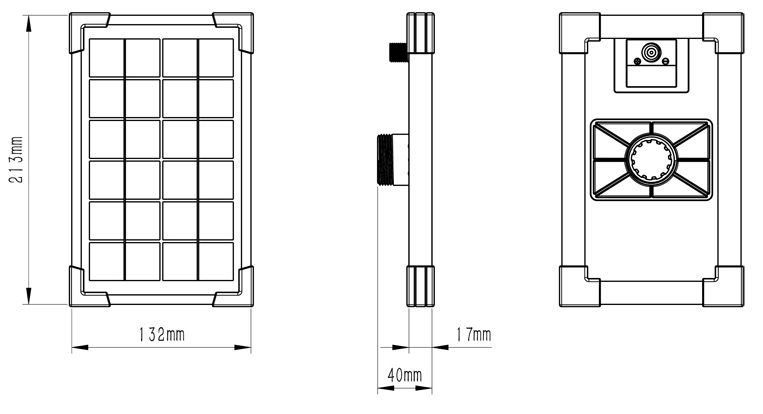

A. Dimension:

B. Angle adjustment:

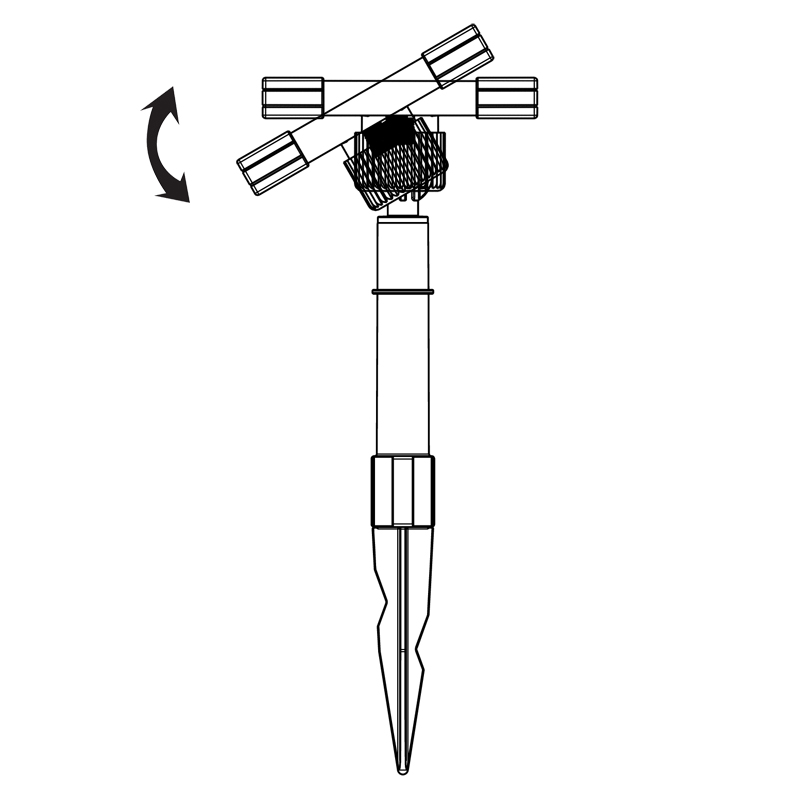

 1. Ground installation:

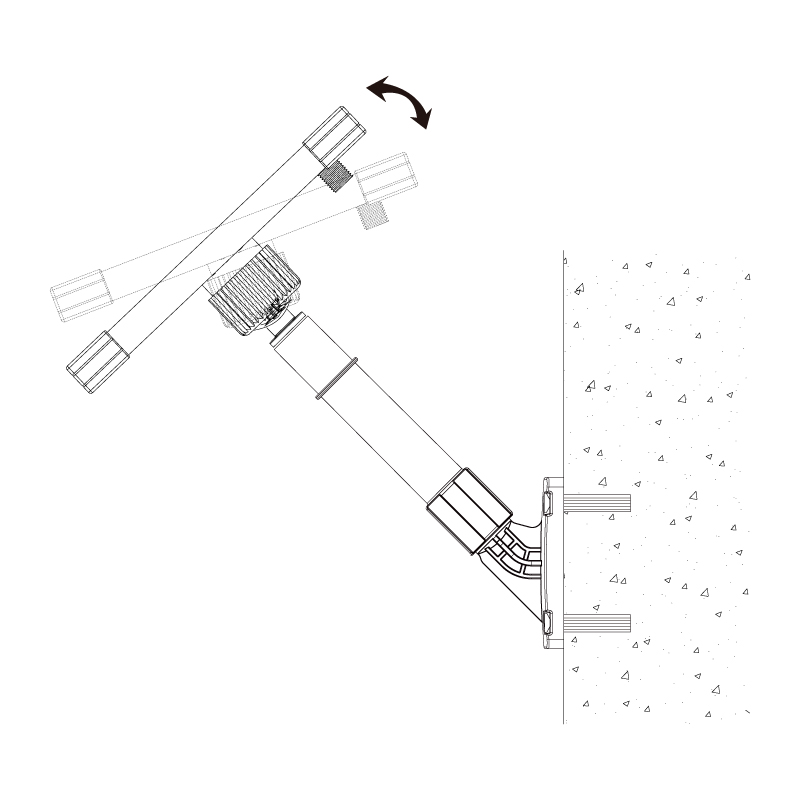

 2. Wall installation:
