2LPM and 500mmHg Pressure Solar Air Pump with Brushless Motor for Pond Oxygenation_SAP1.8-2

2LPM and 500mmHg Pressure Solar Air Pump with Brushless Motor for Pond Oxygenation_SAP1.8-2

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor, maintenance free with a robust and long service life.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.


￥ 0.00
0.00
Item Number：

Product overview

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor, maintenance free with a robust and long service life.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

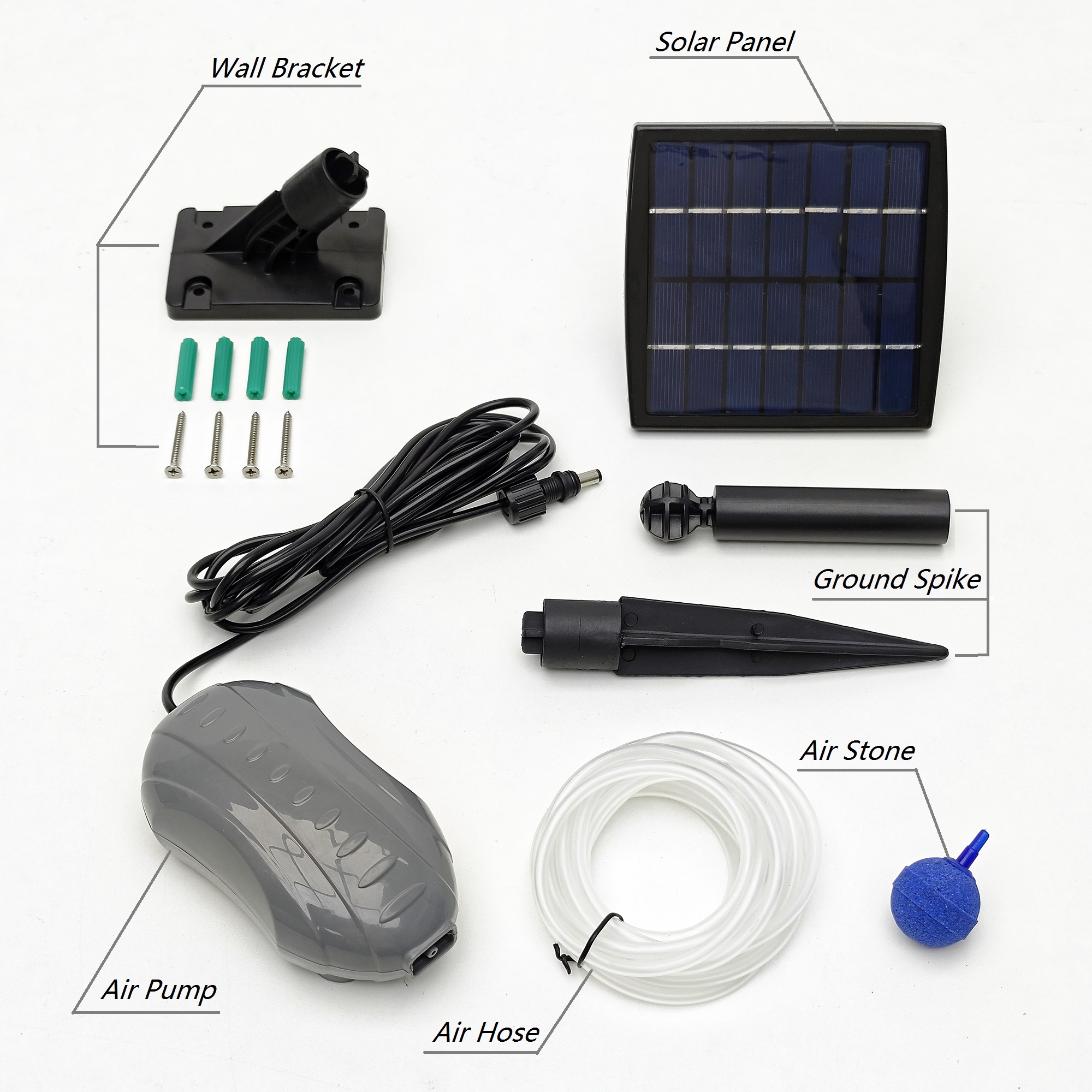

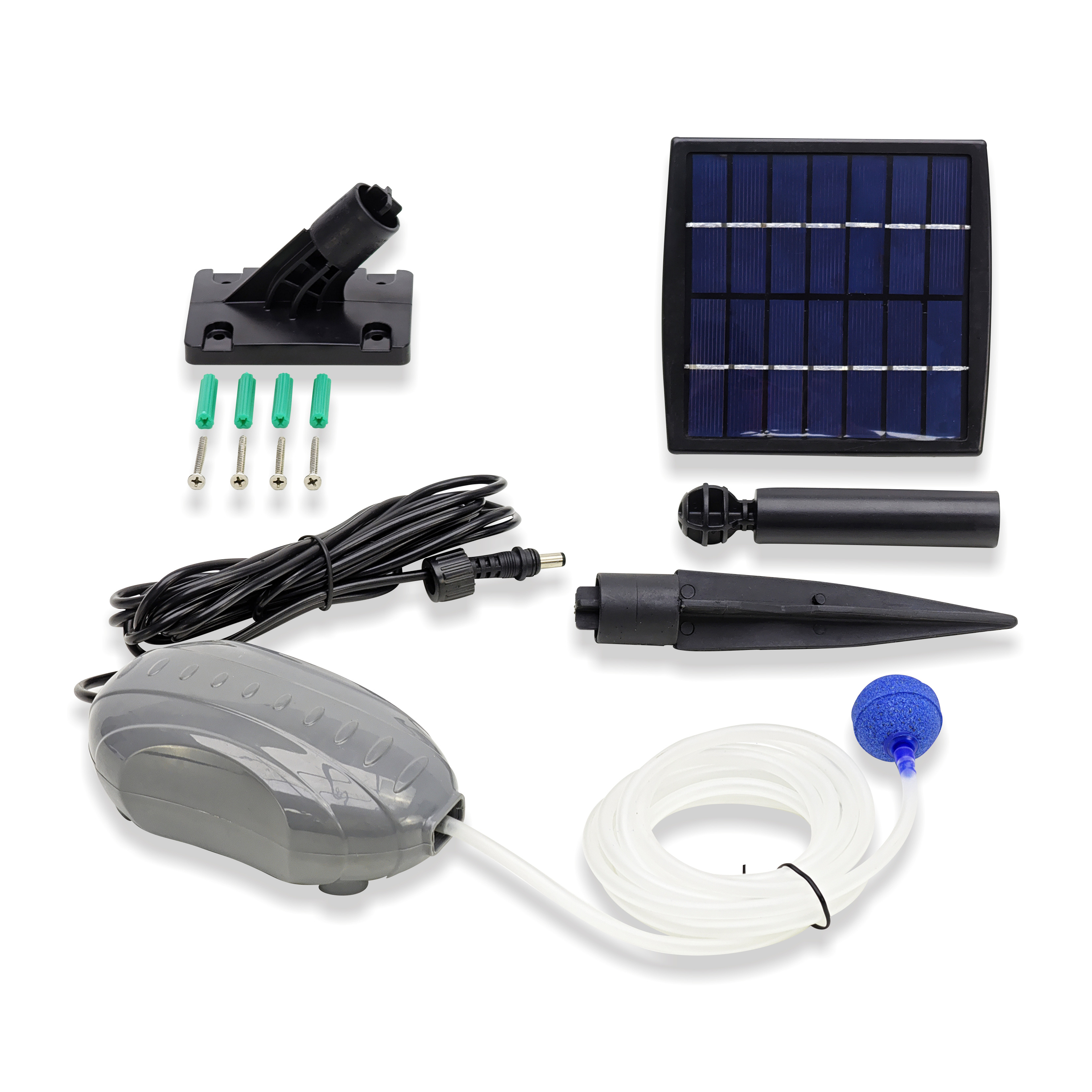

Components

Parameters

Item No.

AP2-1

Maximum pressure

500mmHg

Maximum flow rate

2.0LPM

Working voltage

6.12V

Pump size

132*72*51mm

Cable length

3 M (9.8 FT)

Air stone

30mm

Hose length

2m

Engineering Drawings



Parameters

Item No.

GSP1.8-12

Peak power

1.8 Watt

Peak power voltage

6.12 V

Peak power current

0.25  A

Open-circuit voltage

7.44 V

Short-circuit current

0.26 A

Material

Polycrystalline

Engineering Drawings

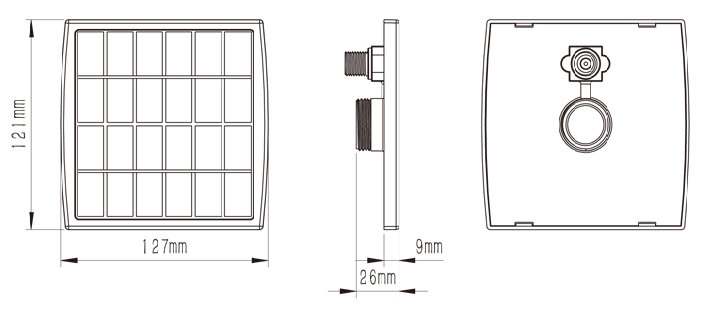

A. Dimension:

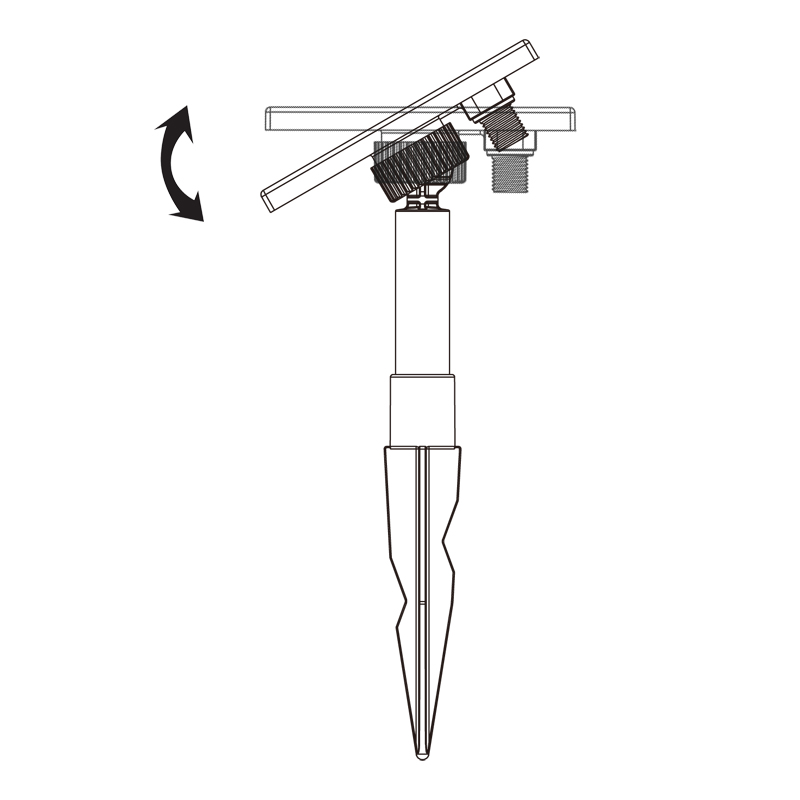

B. Angle adjustment:
