3LPM and 500mmHg Pressure Two Head Solar Air Pump with Brush Motor for Pond Oxygenation SMAP2-3

3LPM and 500mmHg Pressure Two Head Solar Air Pump with Brush Motor for Pond Oxygenation SMAP2-3

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Two air flow outlets can distribute the air in water more evenly.

*Economical brush motor.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.



￥ 0.00
0.00
Item Number：

Product overview

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Two air flow outlets can distribute the air in water more evenly.

*Economical brush motor.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

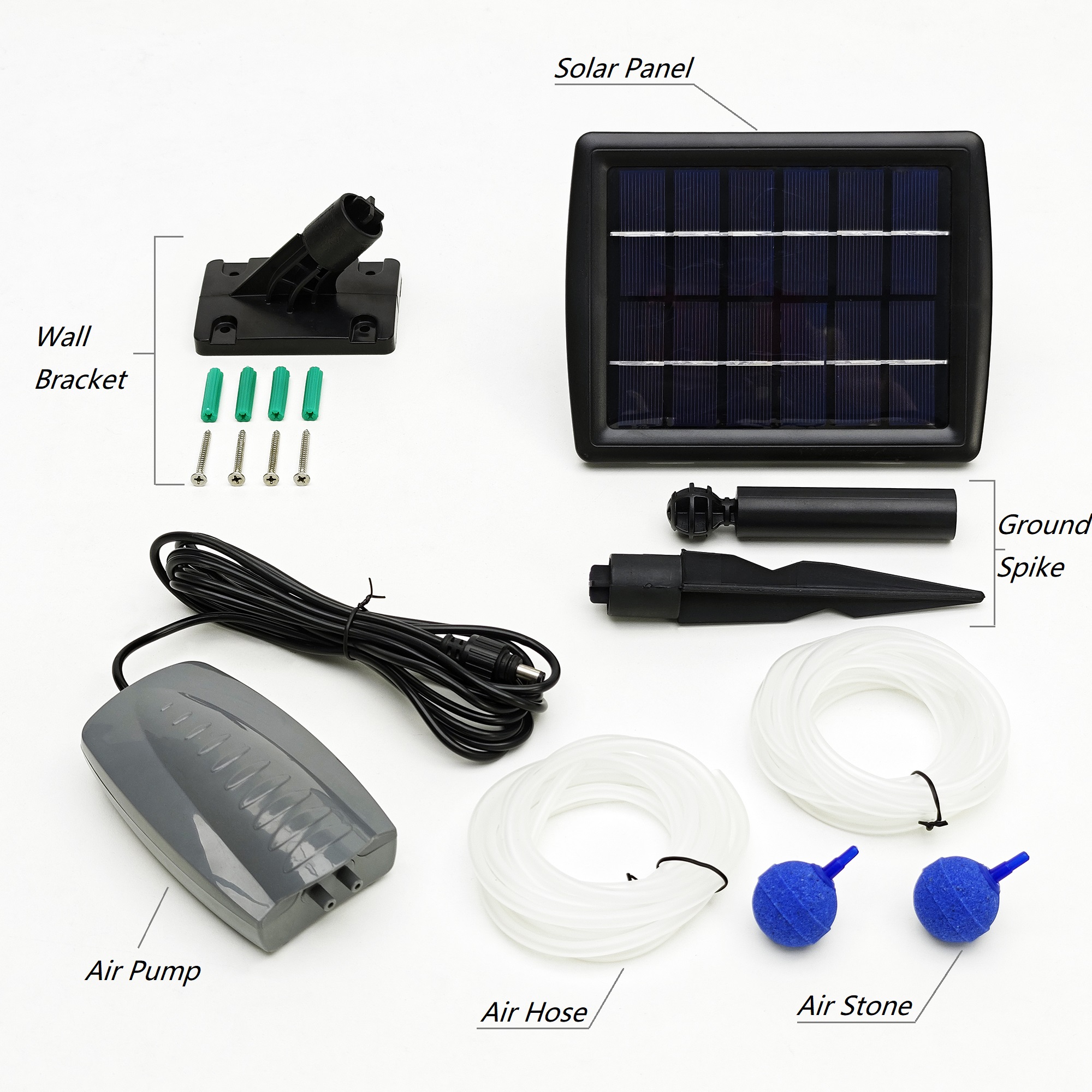

Components

Parameters

Item No.

MAP3-2

Maximum pressure

500mmHg

Maximum flow rate

3.0 LPM

Working voltage

DC 6V

Pump size

127*70*42mm

Cable length

3 M (9.8 FT)

Air stone

30mm*2pcs

Hose length

2m*2pcs

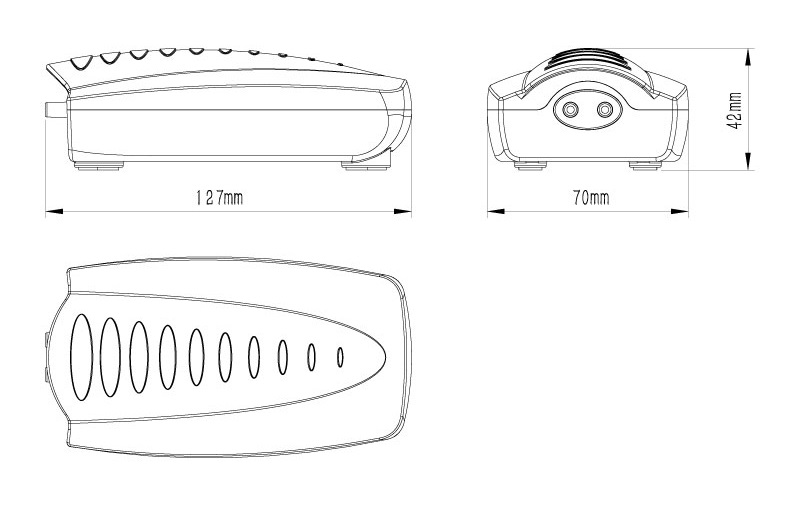

Engineering Drawings



Parameters

Item No.

GSP2-12

Peak power

2 Watt

Peak power voltage

6.12 V

Peak power current

0.33  A

Open-circuit voltage

7.44 V

Short-circuit current

0.34 A

Material

Polycrystalline

Engineering Drawings

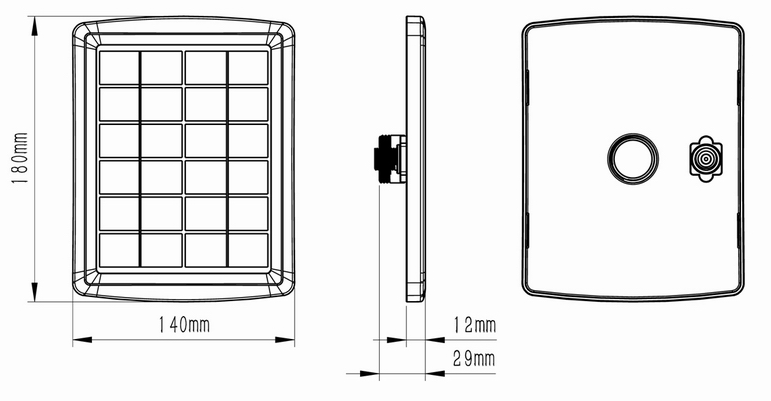

A. Dimension:

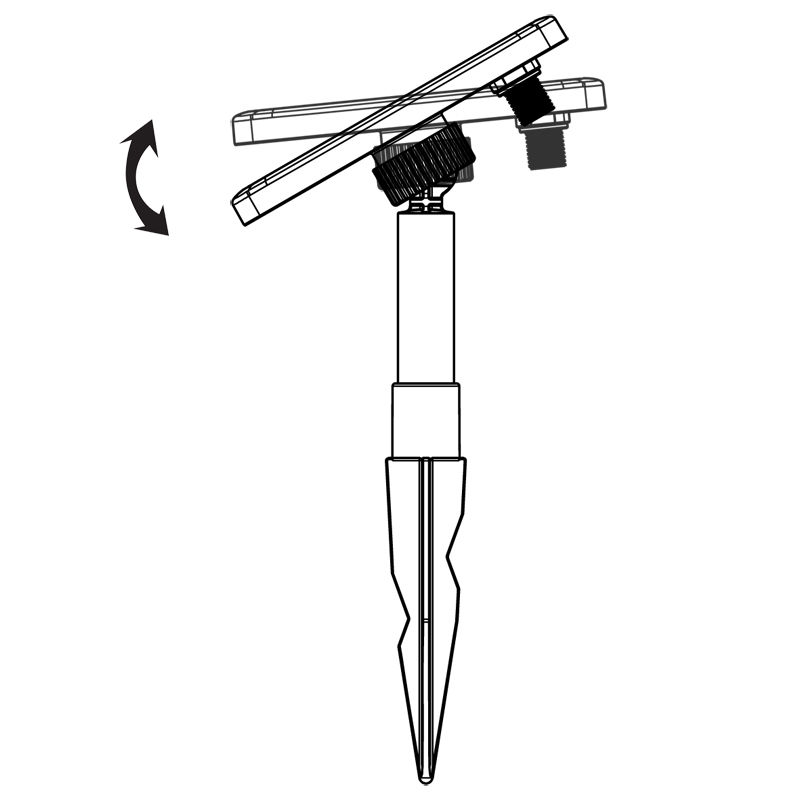

B. Angle adjustment:
