2LPM and 500mmHg Pressure Solar Air Pump with Brush Motor for Pond Oxygenation SMAP1-2

2LPM and 500mmHg Pressure Solar Air Pump with Brush Motor for Pond Oxygenation SMAP1-2

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Economical brush motor.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.


￥ 0.00
0.00
Item Number：

Product overview

*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Economical brush motor.

*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

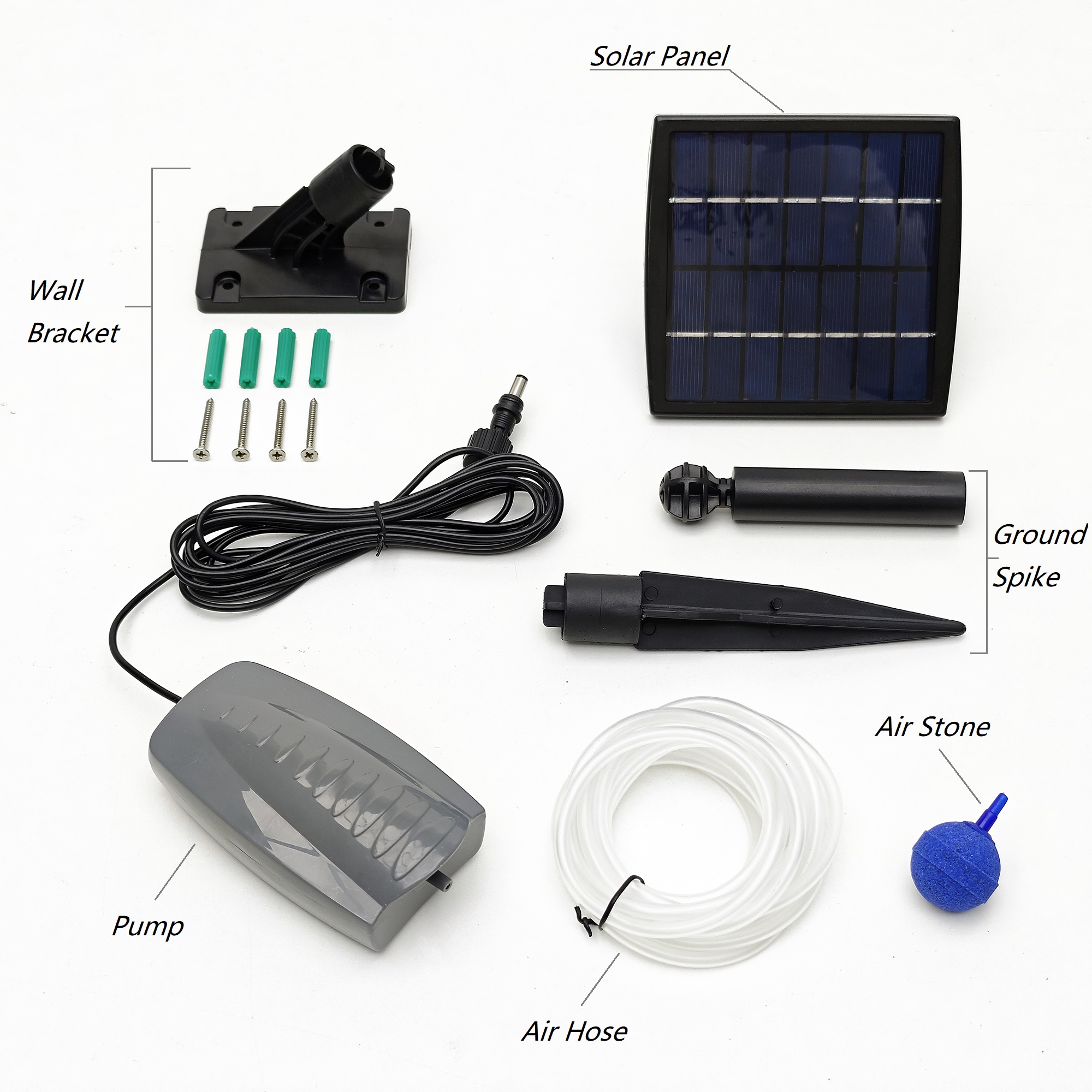

Components

Parameters

Item No.

MAP2-1

Maximum pressure

500mmHg

Maximum flow rate

2.0 LPM

Working voltage

DC 6V

Pump size

120*65*42mm

Connection outlet

    4mm

Weight

    0.17 KG

Cable length

3 M (9.8 FT)

Air stone

30mm

Hose length

2 M  (6.6 FT)

Engineering Drawings



Parameters

Item No.

GSP1-12

Peak power

1 Watt

Peak power voltage

6.12 V

Peak power current

0.16  A

Open-circuit voltage

7.44 V

Short-circuit current

0.17 A

Material

Polycrystalline

Engineering Drawings

A. Dimension:

B. Angle adjustment:
