4150LPH Flow 1.8M Head E-type Solar Dry Run Protected Battery Pond Pump with LED_SPBL100-801830E

4150LPH Flow 1.8M Head E-type Solar Dry Run Protected Battery Pond Pump with LED_SPBL100-801830E

*Ideal for pumping water for waterfalls, large garden fountains and water features as well as pond filtration and circulation.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Works longer on a daily basis with lead acid battery and can work on demand on overcast days or at nights.

*Decorative fountain LED automatically switches on at night.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.

*Electrically safe, thanks to its low working voltage.

*Ceramic shaft, runs steadily and quietly.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.


0.00
0.00
Item Number:

Product overview

*Ideal for pumping water for waterfalls, large garden fountains and water features as well as pond filtration and circulation.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Works longer on a daily basis with lead acid battery and can work on demand on overcast days or at nights.

*Decorative fountain LED automatically switches on at night.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.

*Electrically safe, thanks to its low working voltage.

*Ceramic shaft, runs steadily and quietly.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

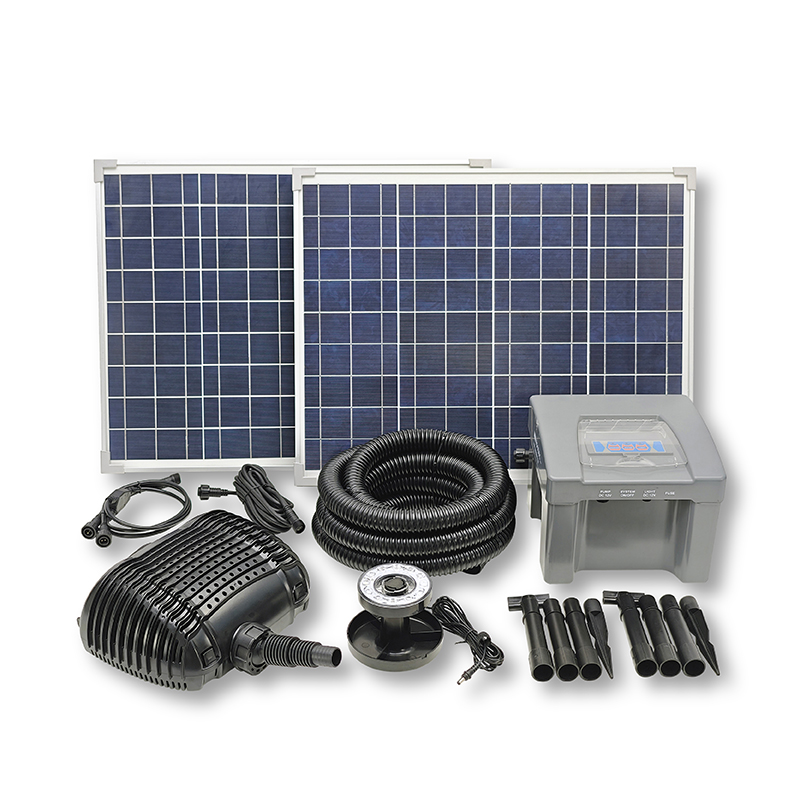

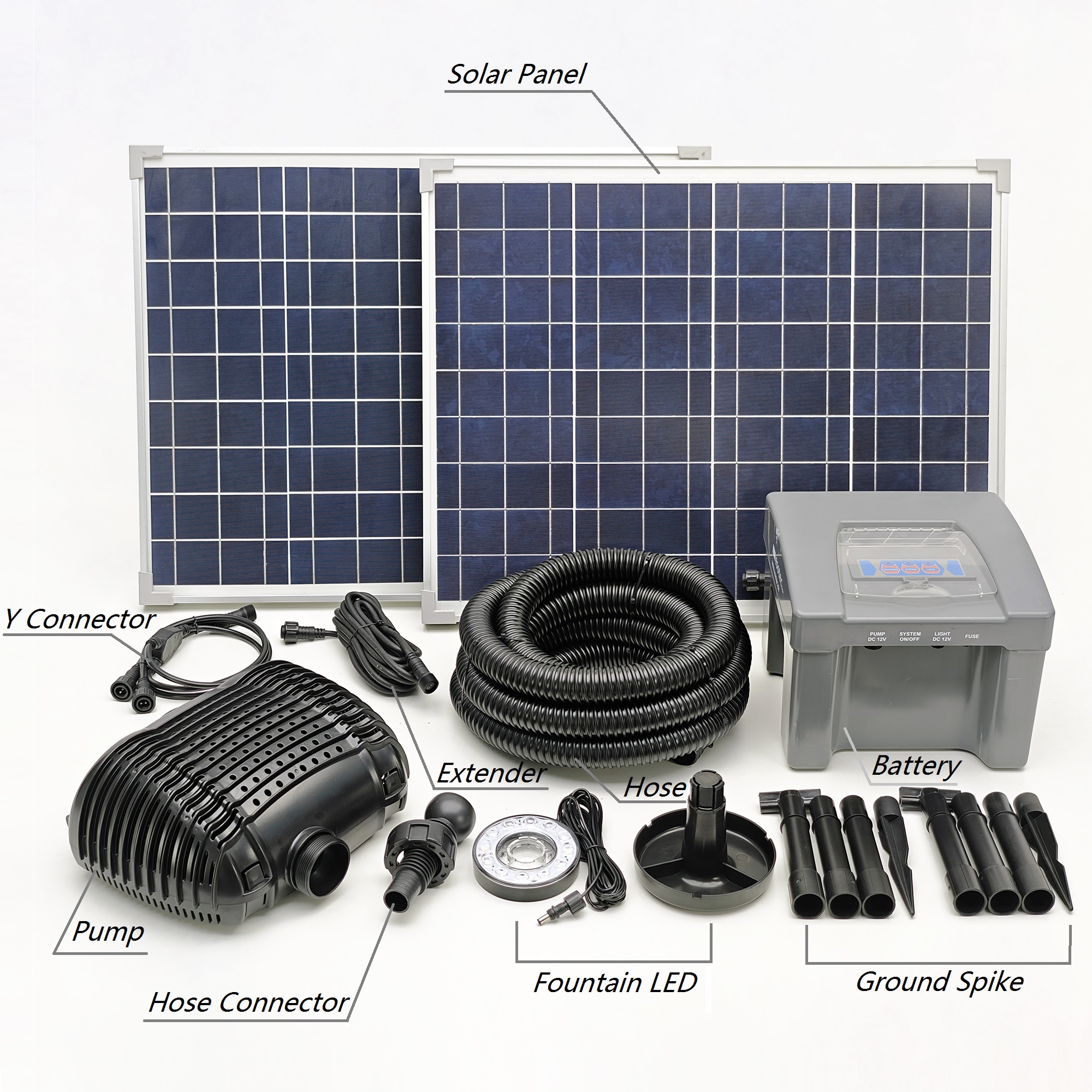

Components

Parameters

Item No.

BP801830E

Maximum pump head

1.8 M (5.9 FT)

Maximum flow rate

4150 LPH (1096.4GPH)

Working voltage

18 V

Maximum power

24 W

Pump outlet

26mm / 32mm / 38mm

Net weight

2.95 kgs

Cable length

5 M (16.4 FT)

Material

Plastic

Engineering Drawings

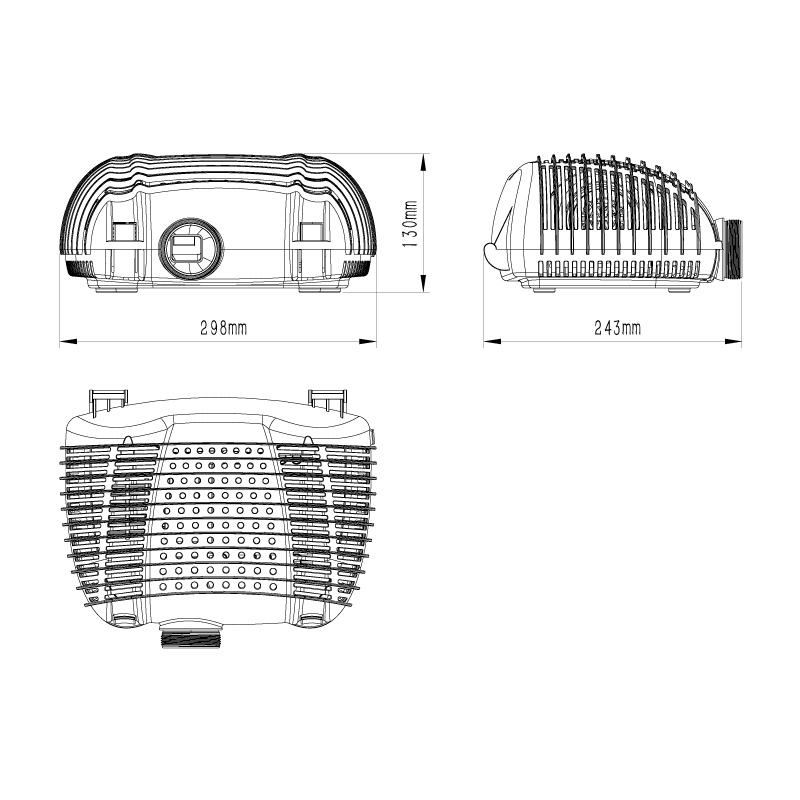

A. Dimension:

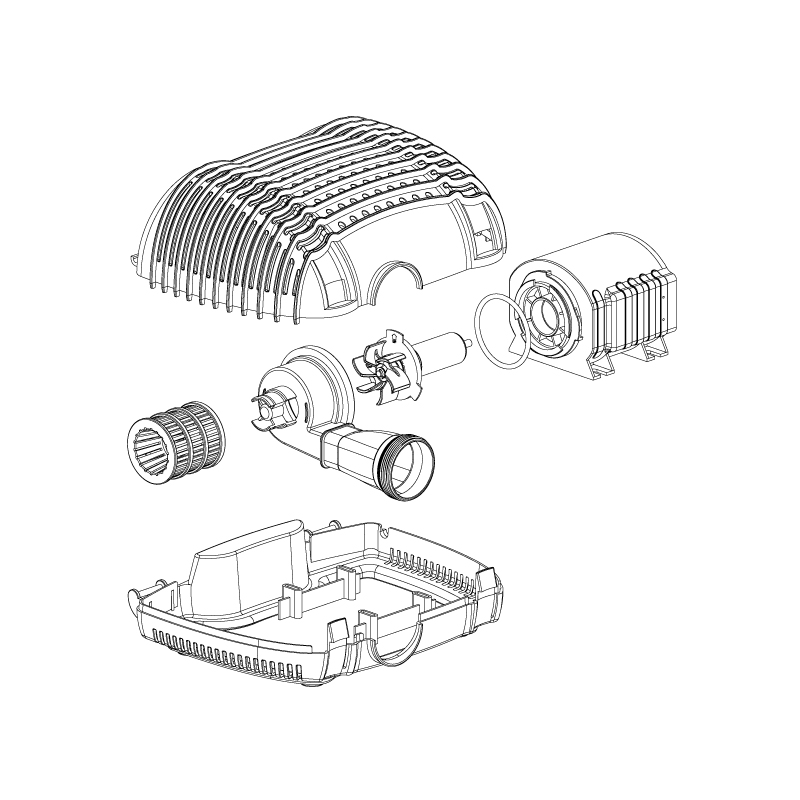

B. Explosive:

Parameters

Item No.

GSP50-36

Peak power

100W (50W*2)

Peak power voltage

18.36 V

Peak power current

5.44 A

Open-circuit voltage

22.32 V

Short-circuit current

5.68 A

Material

Polycrystalline

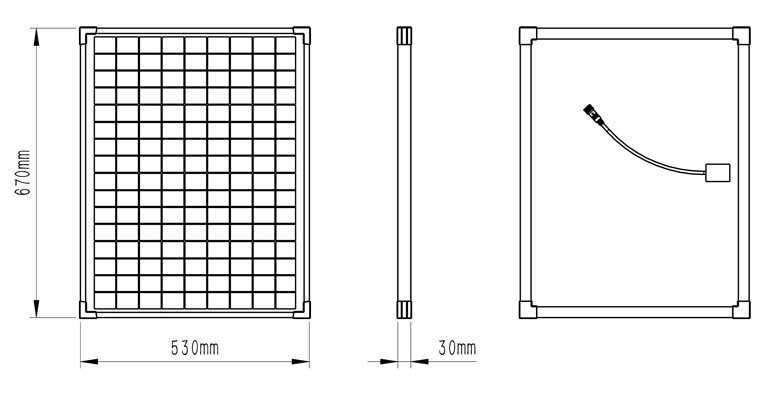

Engineering Drawings






Parameters

 Item No.

SBB12.8-24F

    Rechargeable  battery type

LiFePO4

    Rechargeable   battery capacity

  12.8V, 24Ah

    Charging     voltage

   DC 15V to 18V

   Output voltage

  DC 12V

    Maximum input power

   150 W

    Maximum power for pump output port

   48 W

    Maximum power for light output port

   12 W

    Maximum power for universal output port

   12 W

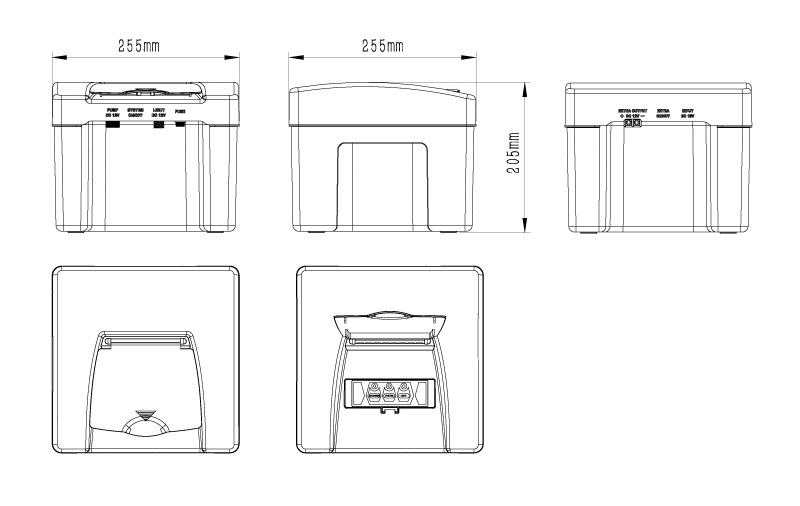

Engineering Drawing

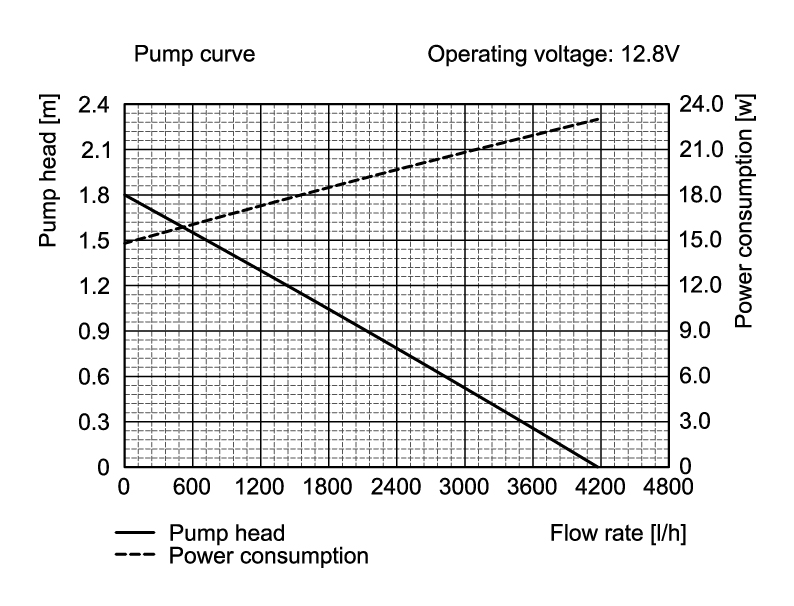

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.3m

@0.6m

@1.2m

@1.5m

@1.8m

Max. height

12.8V

4150LPH

3600LPH

2760LPH

1440LPH

750LPH

0

1.8M
