*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with built-in FeLi battery and can work on demand on overcast days or at nights.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*1 year warranty.
*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with built-in FeLi battery and can work on demand on overcast days or at nights.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*1 year warranty.

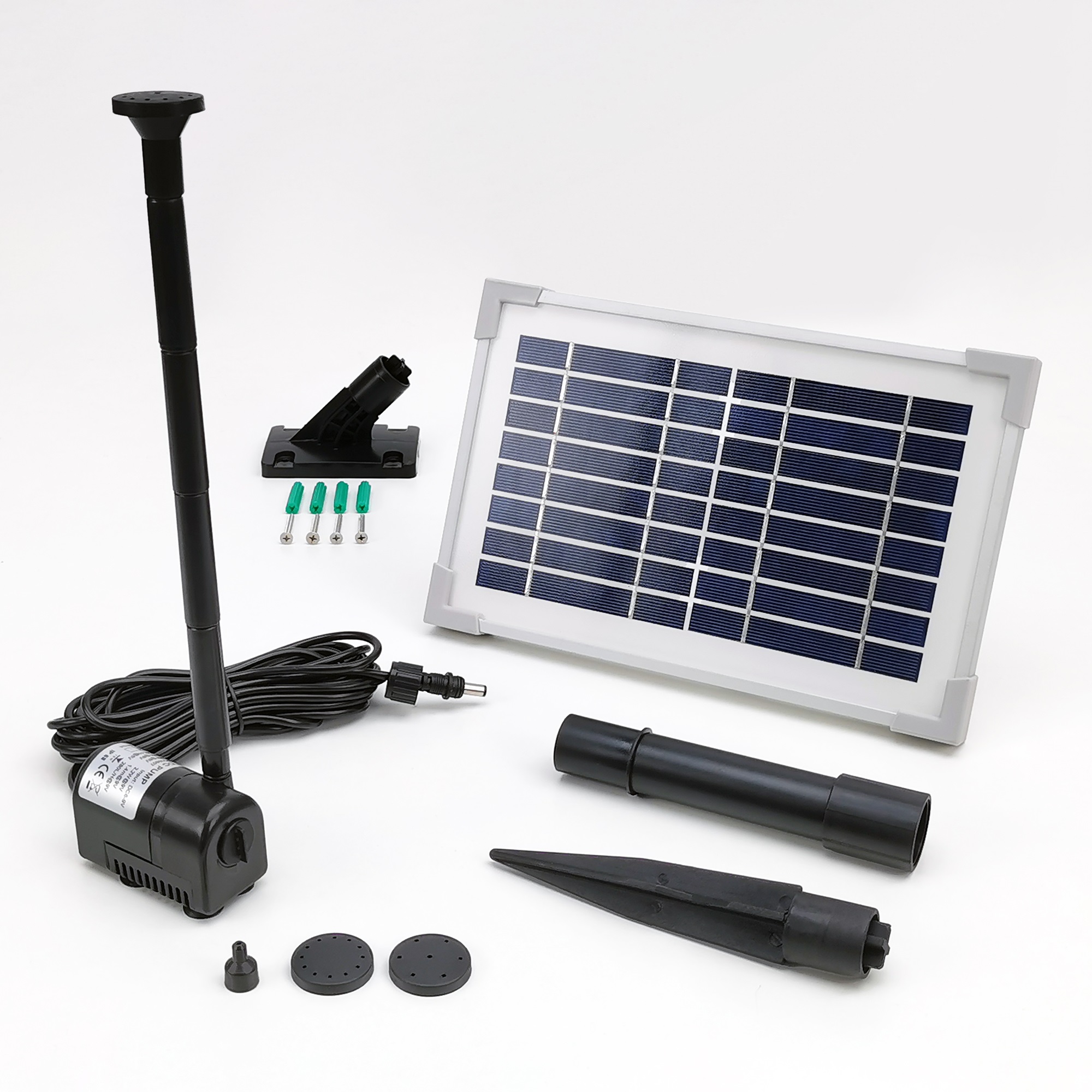

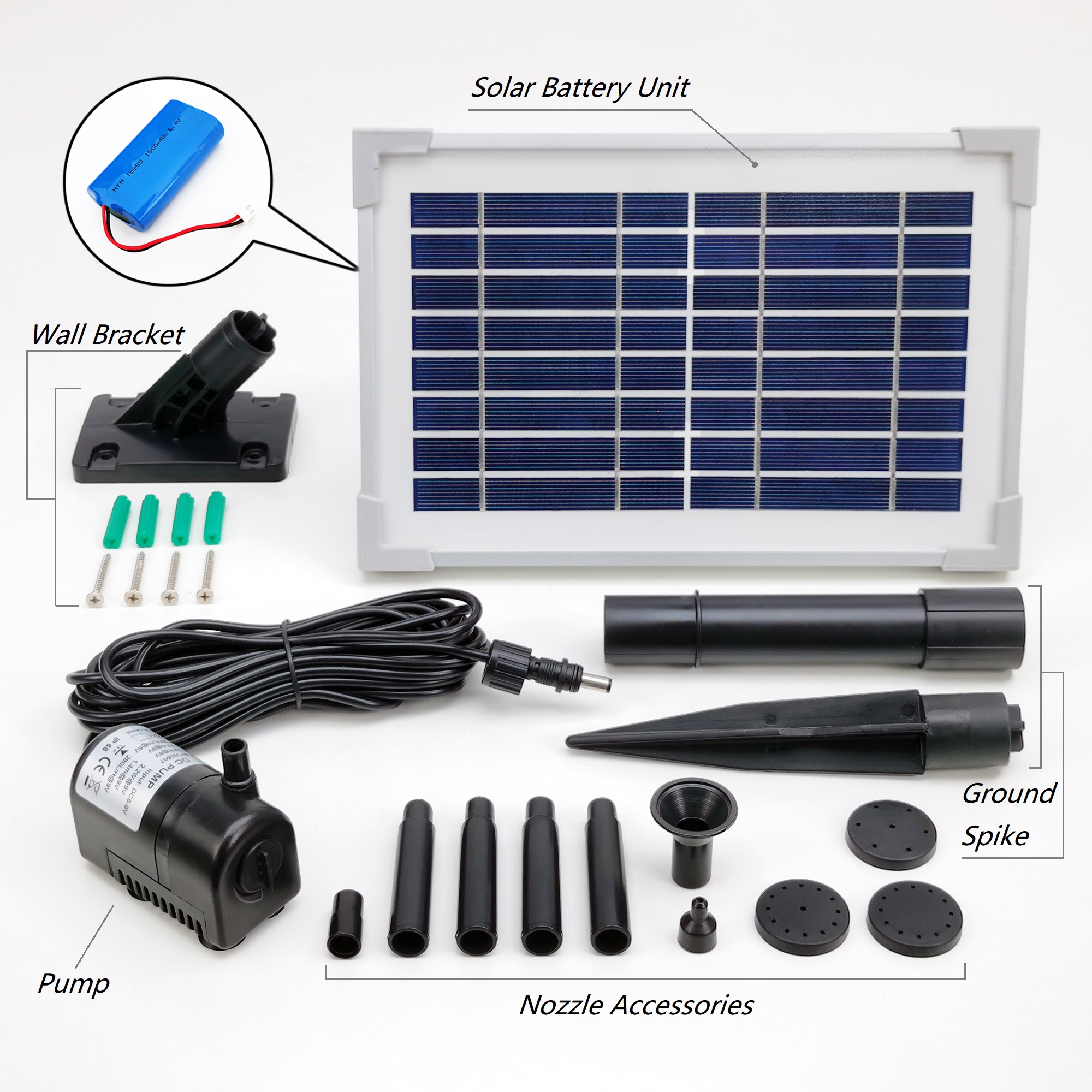

Components
Parameters
Item No. | BP320607 |
Maximum pump head | 0.75 M (2.5 FT) |
Maximum flow rate | 220 LPH (58.0 GPH) |
Working voltage | 6.4 V |
Maximum power | 1 W |
Cable length | 5 M (16.4 FT) |
Material | Plastic |
Engineering Drawings
A. Dimension:
B. Explosive:
Parameters
Item No. | GSP4-16 |
Peak power | 4 W |
Peak power voltage | 8.16 V |
Peak power current | 0.49 A |
Rechargeable battery | Fe-Li, 6.4V, 1500mAh |
Min.running time with fully charged battery | 10 hours |
Average running time per sunny day | 18 hours |
Material | Polycrystalline |
Engineering Drawings
A. Dimension:
B. Angle adjustment:
1. Ground installation:
2. Wall installation:
Litres per hour - At various pumping heights (Pump head)
Operating Voltage | @0m | @0.1m | @0.3m | @0.4m | @0.5m | @0.6m | Max. height |
6.4V | 220LPH | 195LPH | 140LPH | 115LPH | 85LPH | 55LPH | 0.75M |
