140LPH Flow 0.65M Head Solar Battery Built-in Fountain Pump_SPB4-320606

140LPH Flow 0.65M Head Solar Battery Built-in Fountain Pump_SPB4-320606

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Works longer on a daily basis with built-in FeLi battery and can work on demand on overcast days or at nights.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Works longer on a daily basis with built-in FeLi battery and can work on demand on overcast days or at nights.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

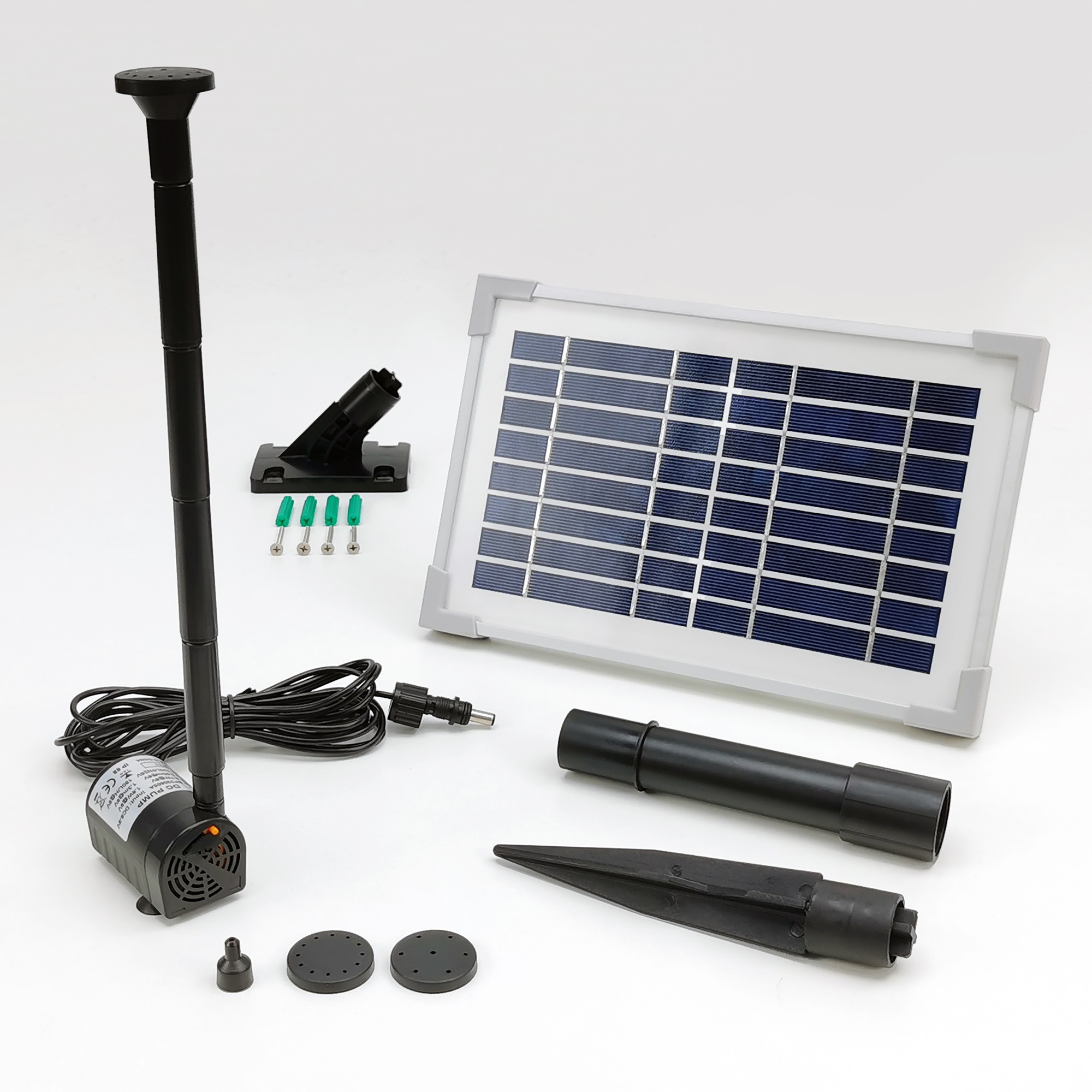

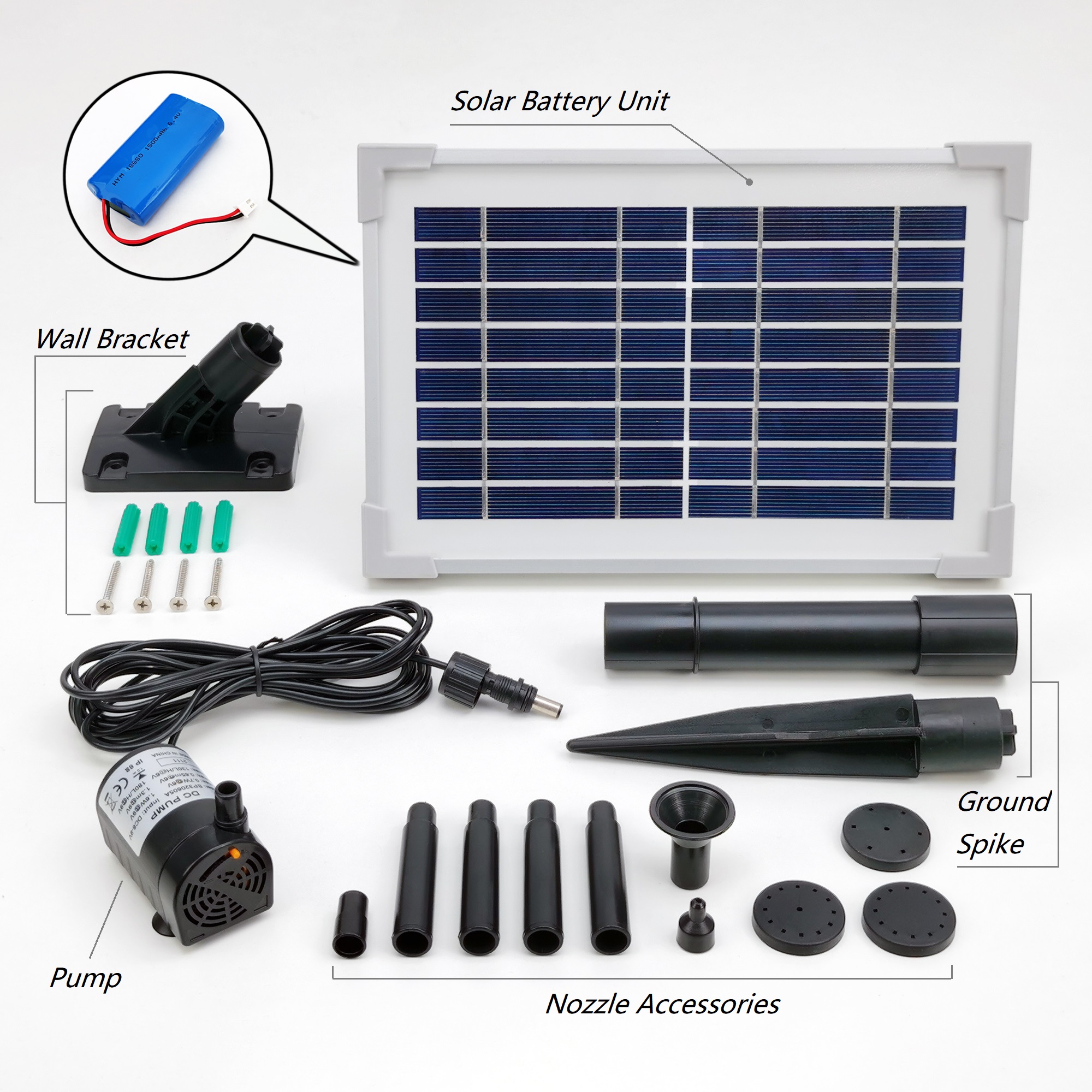

Components

Parameters

Item No.

BP320606

Maximum pump head

0.65 M (2.1 FT)

Maximum flow rate

140 LPH (37.0 GPH)

Working voltage

6.4 V

Maximum power

0.7 W

Cable length

3 M (9.8 FT)

Material

Plastic

 Engineering Drawings






Parameters

Item No.

GSP4-16

Peak power

4 W

Peak power voltage

8.16 V

Peak power current

0.49 A

Rechargeable battery

Fe-Li, 6.4V, 1500mAh

Min.running time with fully charged battery

10 hours

Average running time per sunny day

18 hours

Material

Polycrystalline

Engineering Drawings

A. Dimension:

B. Angle adjustment:

  1. Ground installation:

  2. Wall installation:

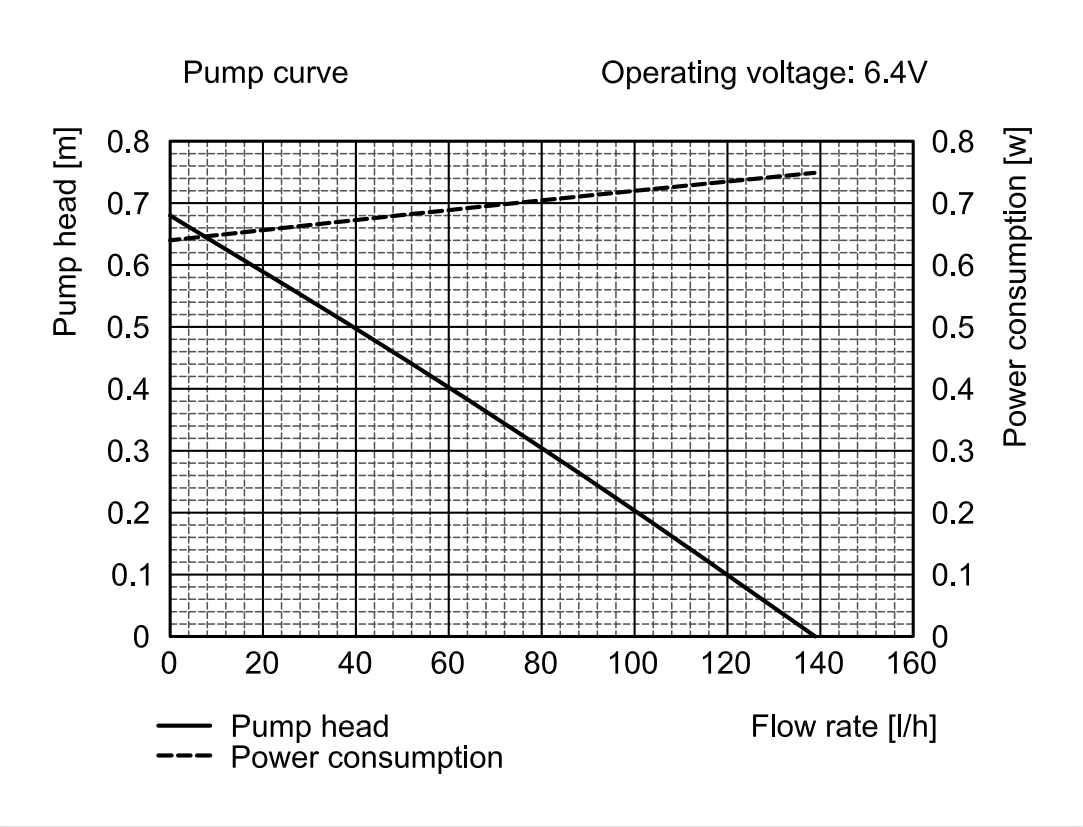

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.1m

@0.2m

@0.3m

@0.4m

@0.5m

Max. height

6.4V

140LPH

120LPH

100LPH

80LPH

60LPH

40LPH

0.65M
