5050LPH Flow 3M Head Solar Dry Run Protected Fountain Pump_SP100-801830F

5050LPH Flow 3M Head Solar Dry Run Protected Fountain Pump_SP100-801830F

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.

*Electrically safe, thanks to its low working voltage.
*Ceramic shaft, runs steadily and quietly.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.

*Electrically safe, thanks to its low working voltage.
*Ceramic shaft, runs steadily and quietly.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

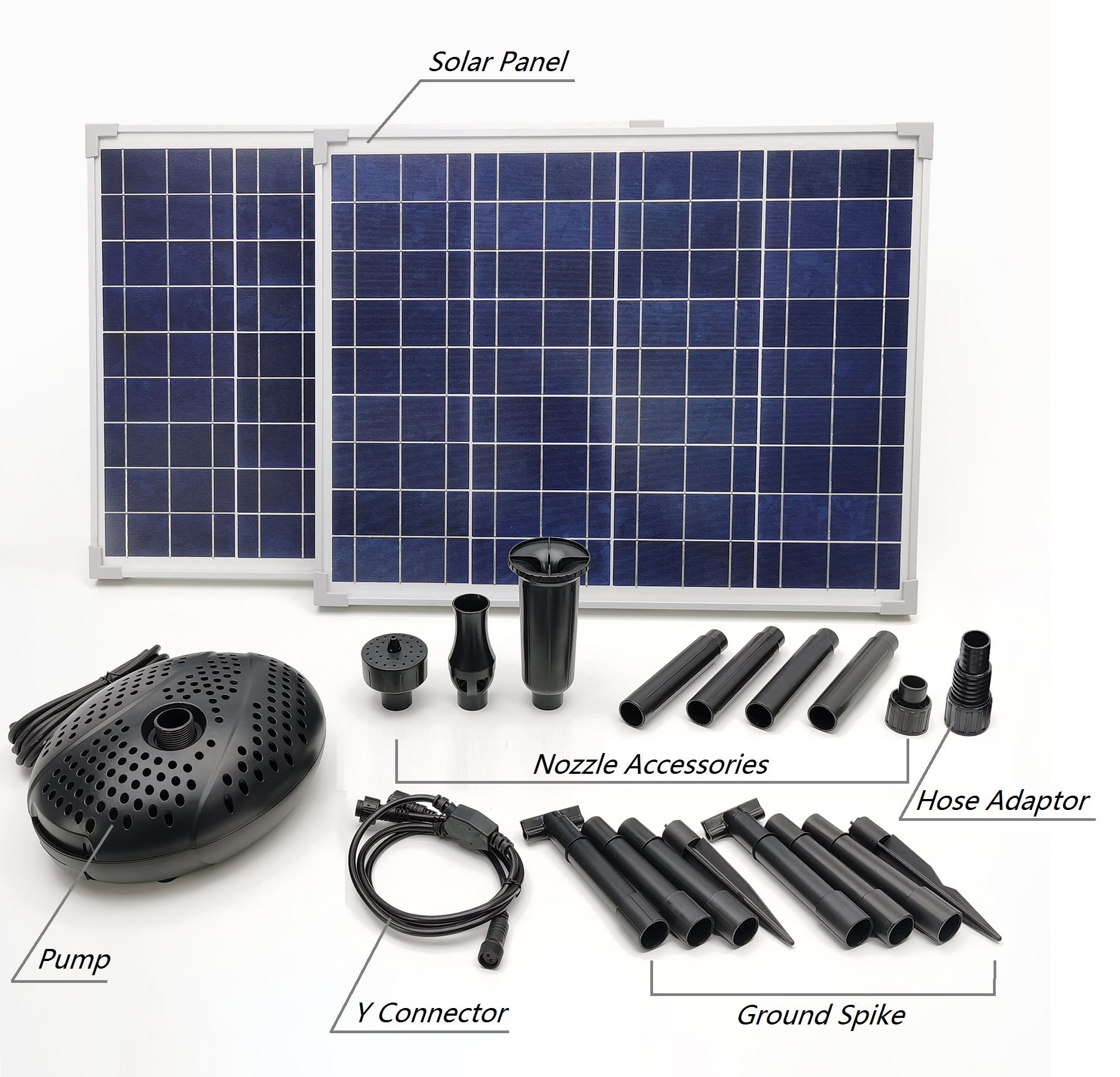

Components

Parameters

Item No.

BP801830F

Maximum pump head

3.0 M (9.84 FT)

Maximum flow rate

5050 LPH (1346.67GPH)

Working voltage

18 V

Maximum power

48 W

Connection outlet

    Φ26 MM / Φ32 MM / Φ38 MM

Cable length

5 M (16.4 FT)

Material

Plastic

Engineering Drawings

A. Dimension:

B. Explosive:

Parameters

Item No.

GSP50-36

Peak power

100 W (50 W*2)

Solar panel size

670*530*30 MM

Peak power voltage

18.36 V

Peak power current

5.44  A

Open-circuit voltage

22.32 V

Short-circuit current

5.68 A

Material

Polycrystalline

 Engineering Drawings

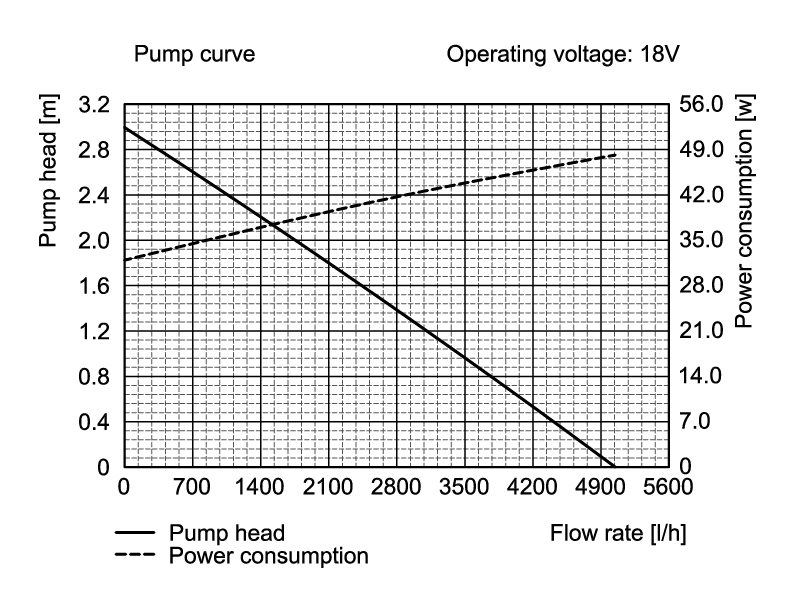

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.4m

@1.2m

@2.0m

@3.0m

Max. height

18V

5050LPH

4400PH3080LPH1750LPH0

3.0M
