220LPH Flow 0.75M Head Solar Battery Fountain Pump with Fountain LED_SPBL6-320607

220LPH Flow 0.75M Head Solar Battery Fountain Pump with Fountain LED_SPBL6-320607

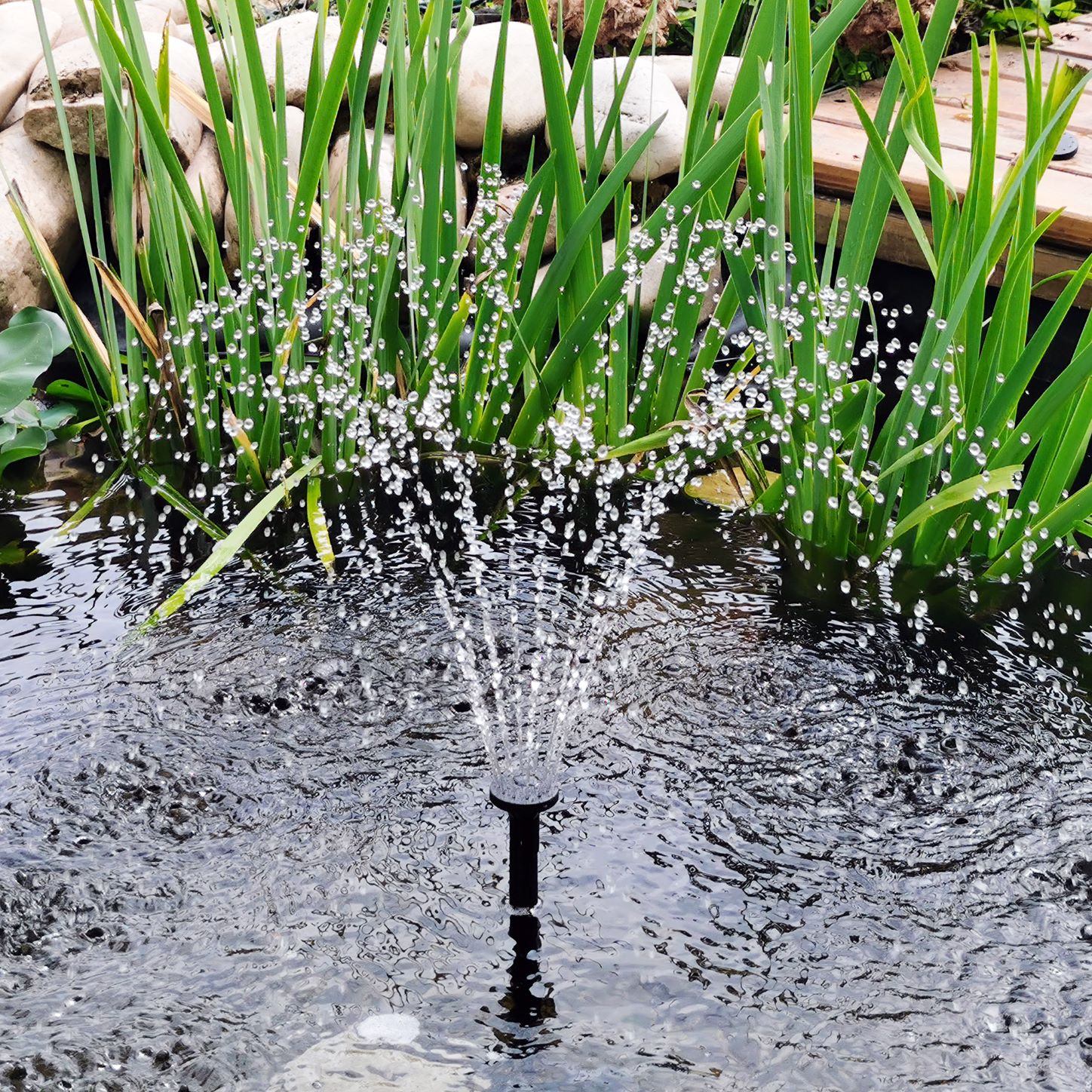

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Works longer on a daily basis with FeLi battery and can work on demand on overcast days or at nights.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Decorative fountain LED automatically switches on at night.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

0.00
0.00
Item Number:

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Works longer on a daily basis with FeLi battery and can work on demand on overcast days or at nights.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Decorative fountain LED automatically switches on at night.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

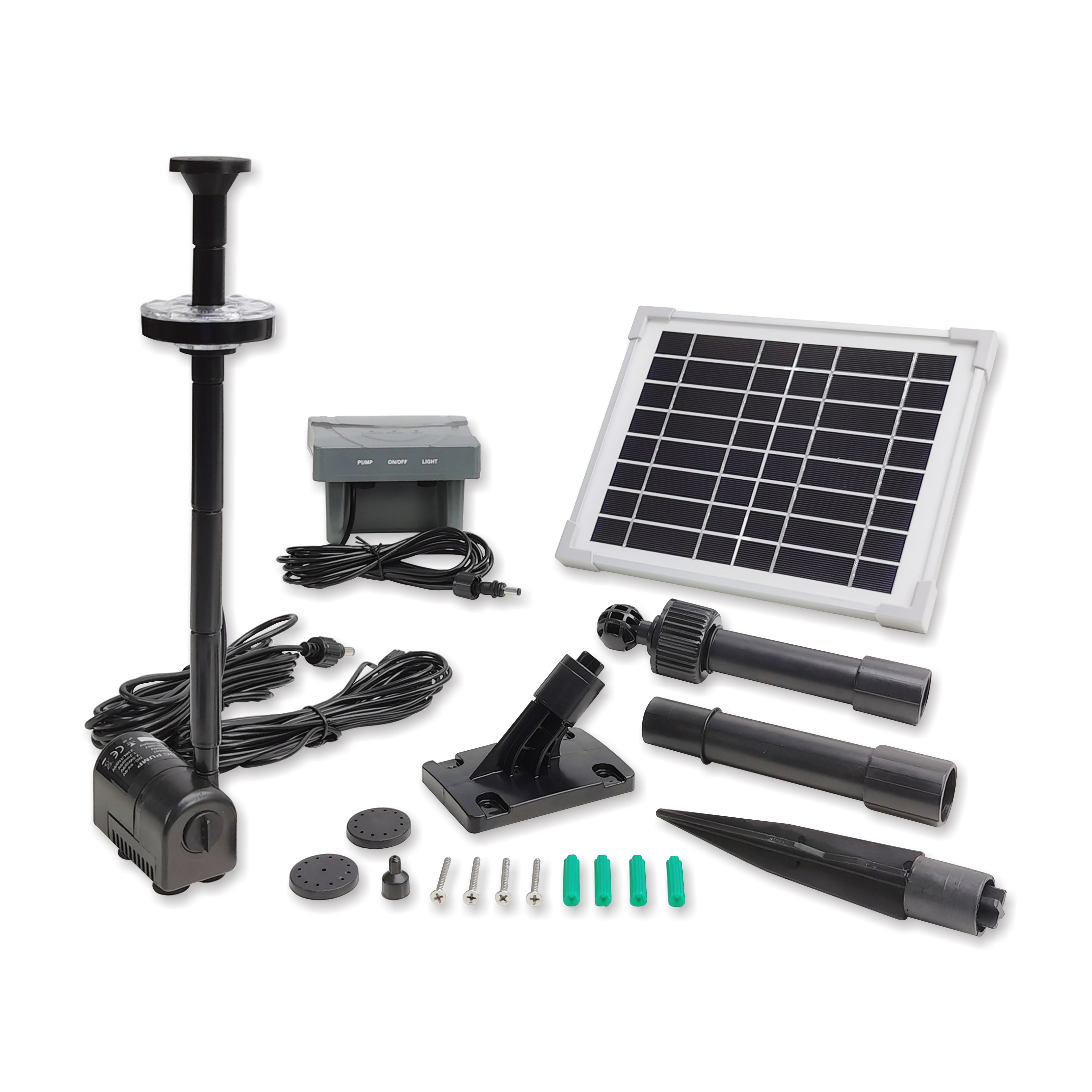

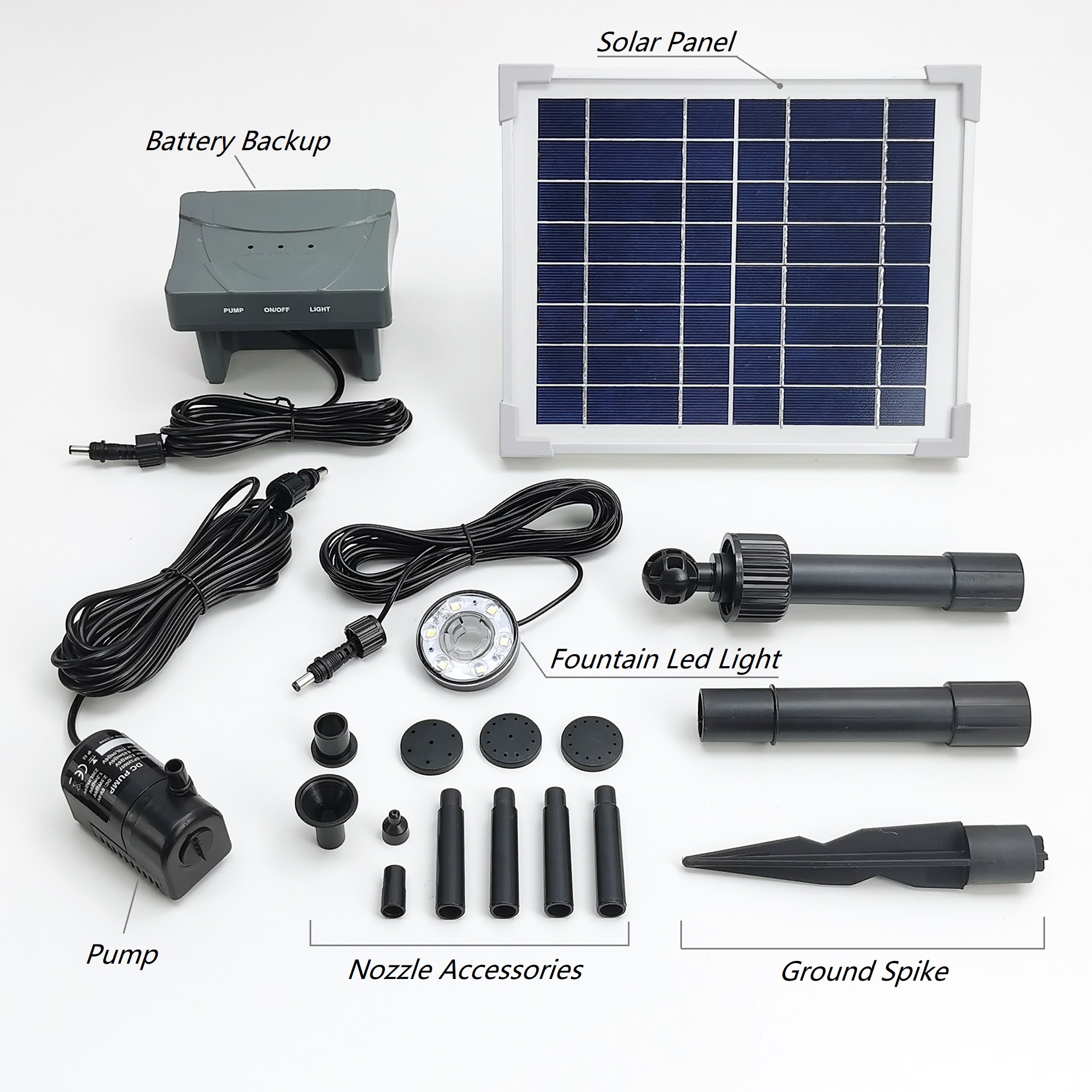

Components

Parameters

Item No.

BP320607

Maximum pump head

0.75 M (2.5 FT)

Maximum flow rate

220 LPH (58.0 GPH)

Working voltage

6.4 V

Maximum power

1 W

Cable length

5 M (16.4 FT)

Material

Plastic

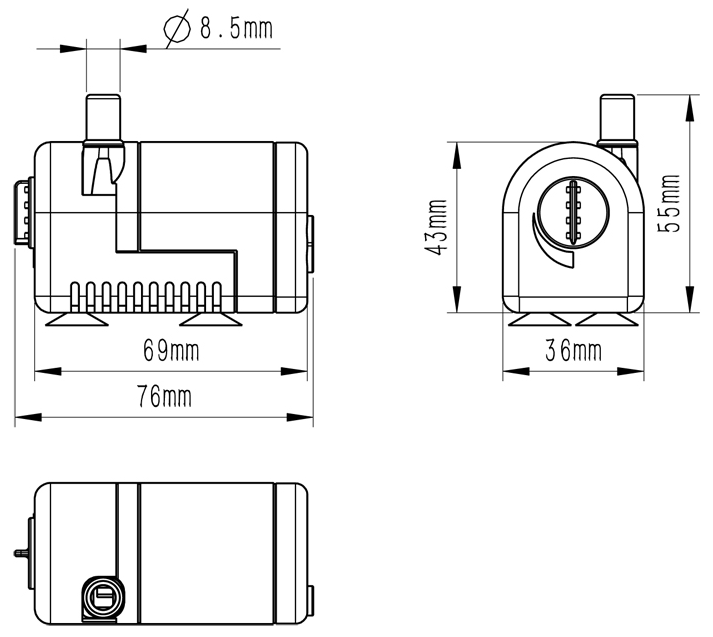

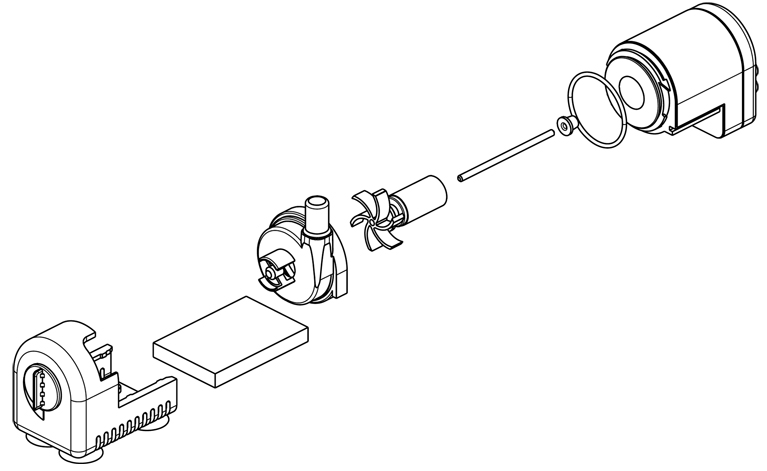

Engineering Drawings









Parameters

Item No.

GSP6-16

Peak power

6 W

Peak power voltage

8.16 V

Peak power current

0.74 A

Open-circuit voltage

9.92 V

Short-circuit current

0.77 A

Material

Polycrystalline

Engineering Drawings

A. Dimension:

B. Angle adjustment:

  1. Ground installation:

  2. Wall installation:




Parameters

Item No.

SBB6.4-3F

   Rechargeable     battery type

LiFePO4

   Rechargeable   battery capacity

   6.4   V, 3000 mAh

   Charging     voltage

   DC  8 V

   Output voltage

   DC 6.4 V

   Maximum   input power

   12 W

   Maximum     power for pump output port

    3 W

   Maximum power for light output port

    1 W


Engineering Drawing

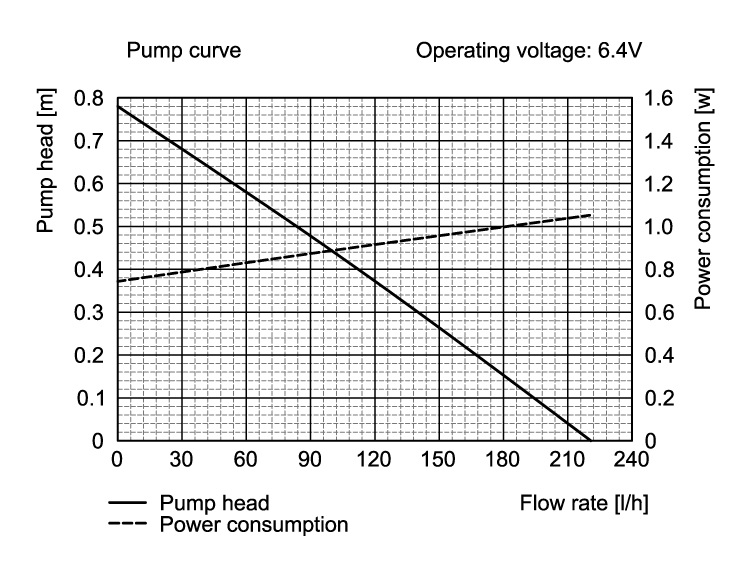

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.1m

@0.3m

@0.4m

@0.5m

@0.6m

Max. height

6.4V

220LPH

195LPH

140LPH

115LPH

85LPH

55LPH

0.75M
