2800LPH Flow 1.8M Head Solar Dry Run Protected Battery Fountain Pump with Fountain LED_SPBL70-801220F

2800LPH Flow 1.8M Head Solar Dry Run Protected Battery Fountain Pump with Fountain LED_SPBL70-801220F

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with LiFe battery and can work on demand on overcast days or at nights.

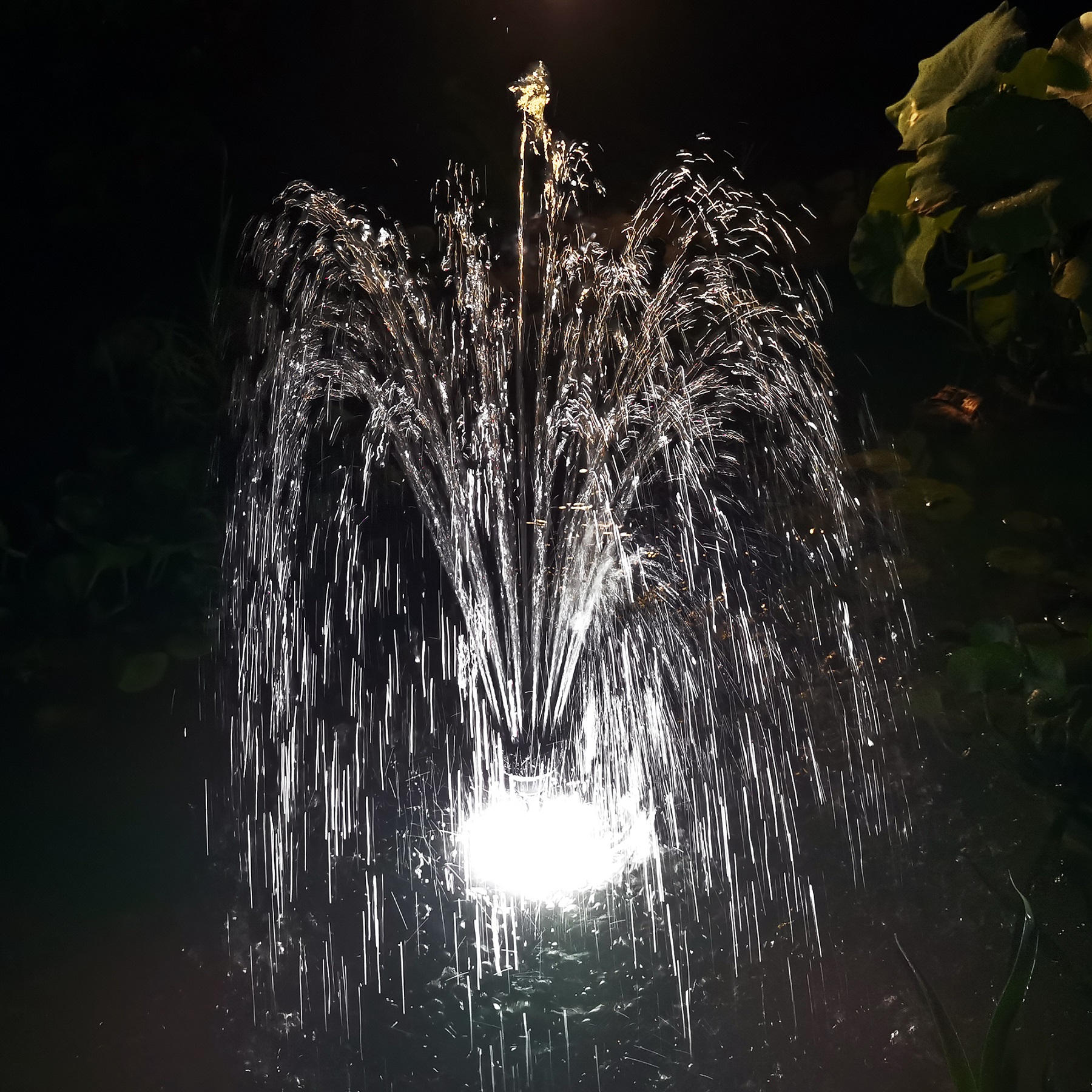

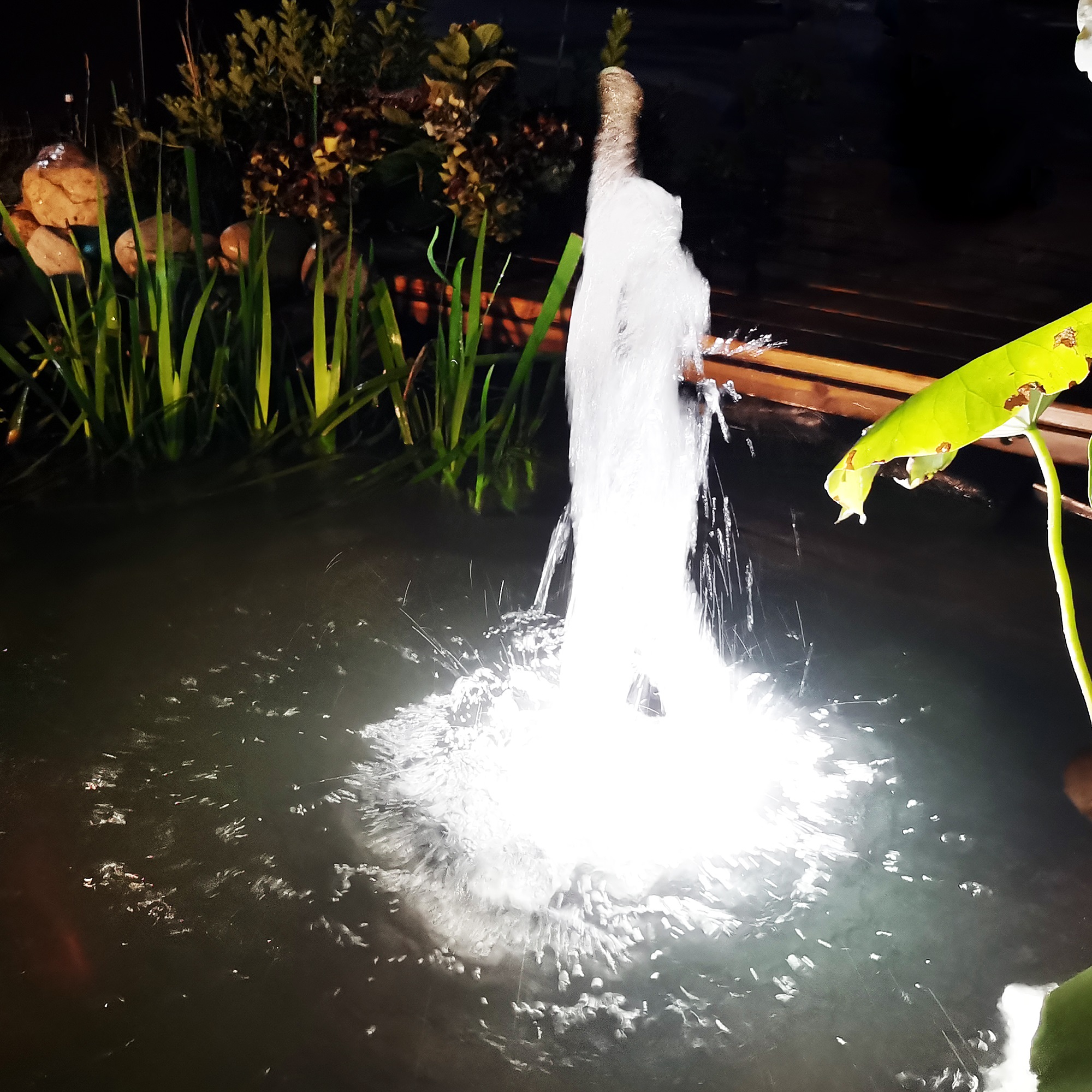

*Decorative fountain LED automatically switches on at night.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.

*Electrically safe, thanks to its low working voltage.

*Ceramic shaft, runs steadily and quietly.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.


￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with LiFe battery and can work on demand on overcast days or at nights.
*Decorative fountain LED automatically switches on at night.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.

*Electrically safe, thanks to its low working voltage.

*Ceramic shaft, runs steadily and quietly.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

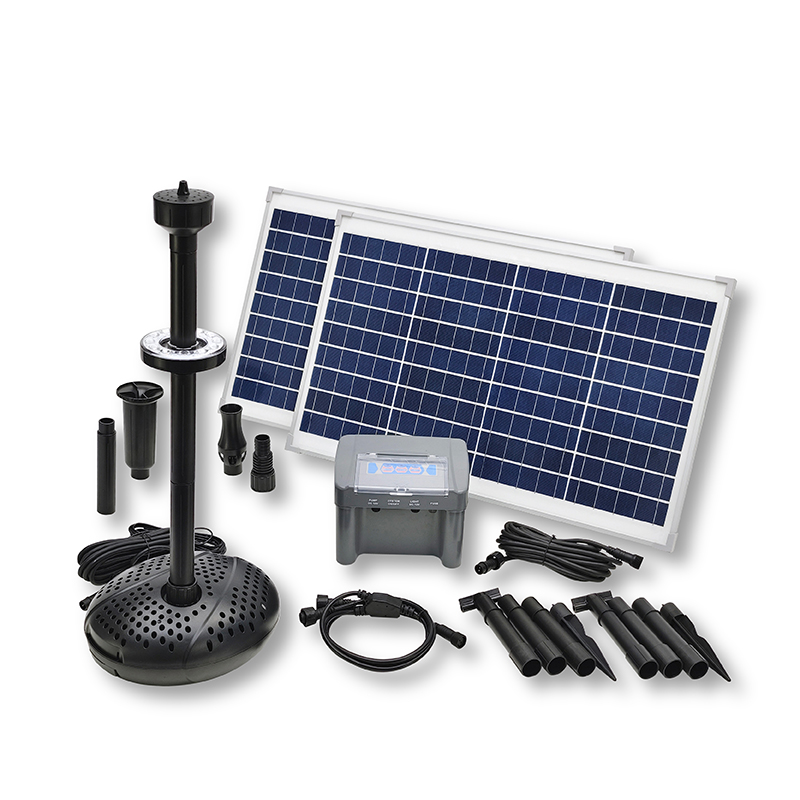

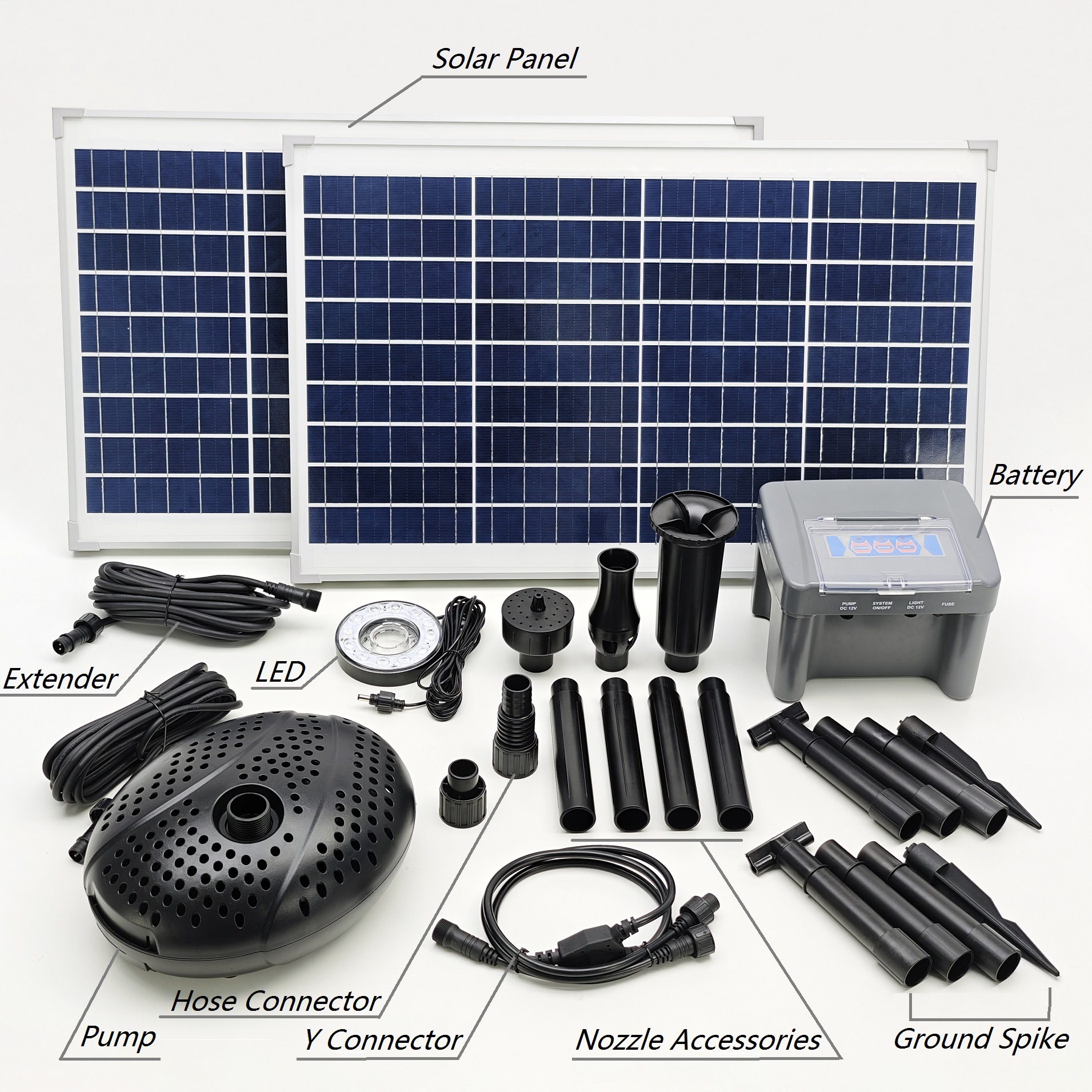

Components

Parameters

Item No.

BP801220F

Maximum pump head

1.8 M (5.9 FT)

Maximum flow rate

2800 LPH (740 GPH)

Working voltage

12.8 V

Maximum power

14.5 W

Pump outlet

26mm / 32mm / 38mm

Cable length

5 M (16.4 FT)

Net weight

2.7 KGS

Material

Plastic

 Engineering Drawings

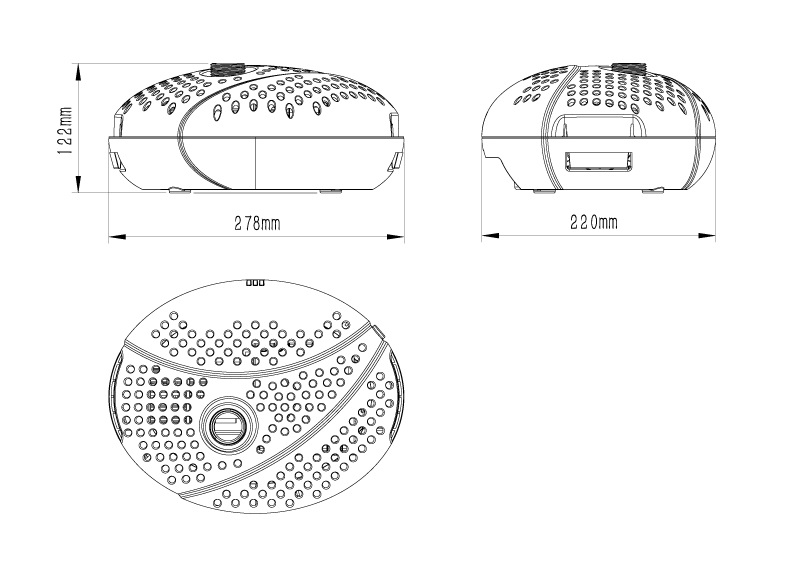

A. Dimension:

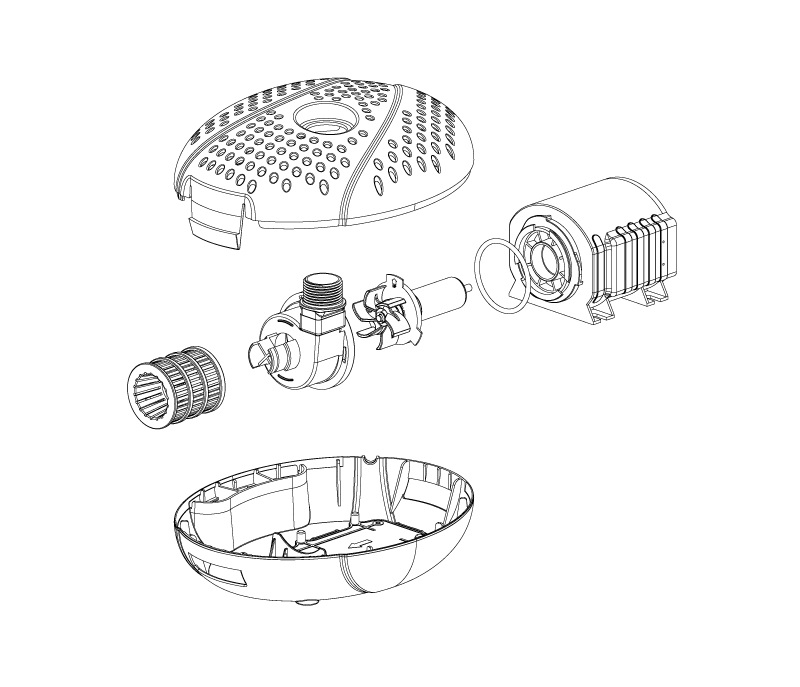

B. Explosive:

Parameters

Item No.

GSP35-36

Peak power

70W (35W*2)

Peak power voltage

18.36 V

Peak power current

3.82 A

Open-circuit voltage

22.32 V

Short-circuit current

3.98 A

Material

Polycrystalline

Engineering Drawings






Parameters

 Item No.

SBB12.8-12F

    Rechargeable   battery type

LiFePO4

    Rechargeable battery capacity

  12.8V, 12Ah

    Charging   voltage

   DC  15V to 18V

    Output voltage

   DC 12V

    Maximum input power

   70 W

    Maximum power for pump output port

   24 W

    Maximum power for light output port

   12 W

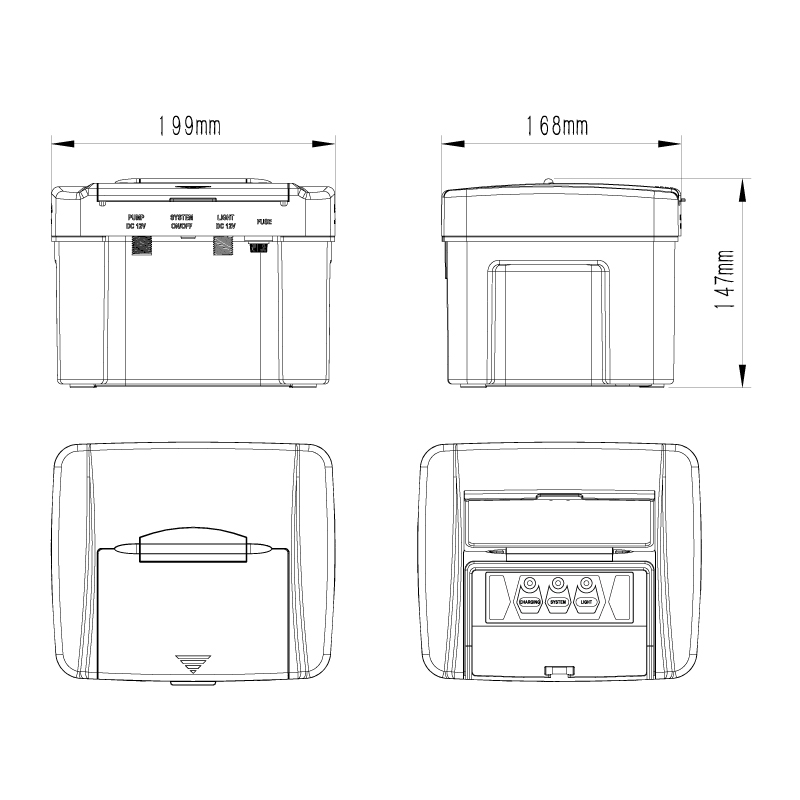

Engineering Drawing

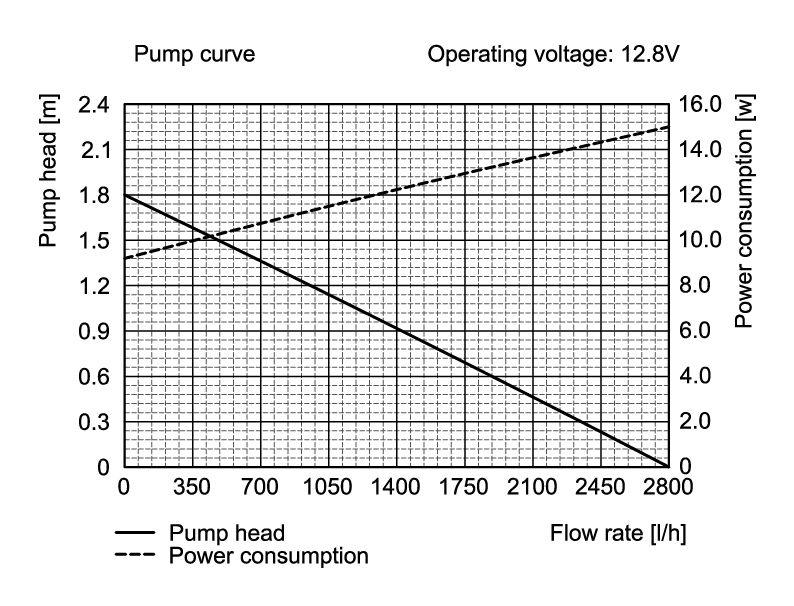

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.3m

@0.9m

@1.2m

@1.5m

@1.8m

Max. height

12.8V

2800LPH

2300LPH

1400LPH

900LPH

450LPH

0

1.8M
