1400LPH Flow 2M Head Solar E-type Dry Run Protected Battery Fountain Pump with Fountain LED_SPBL40-501218E

1400LPH Flow 2M Head Solar E-type Dry Run Protected Battery Fountain Pump with Fountain LED_SPBL40-501218E

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Works longer on a daily basis with FeLi battery and can work on demand on overcast days or at nights.
*Decorative fountain LED automatically switches on at night.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

0.00
0.00
Item Number:

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Works longer on a daily basis with FeLi battery and can work on demand on overcast days or at nights.
*Decorative fountain LED automatically switches on at night.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

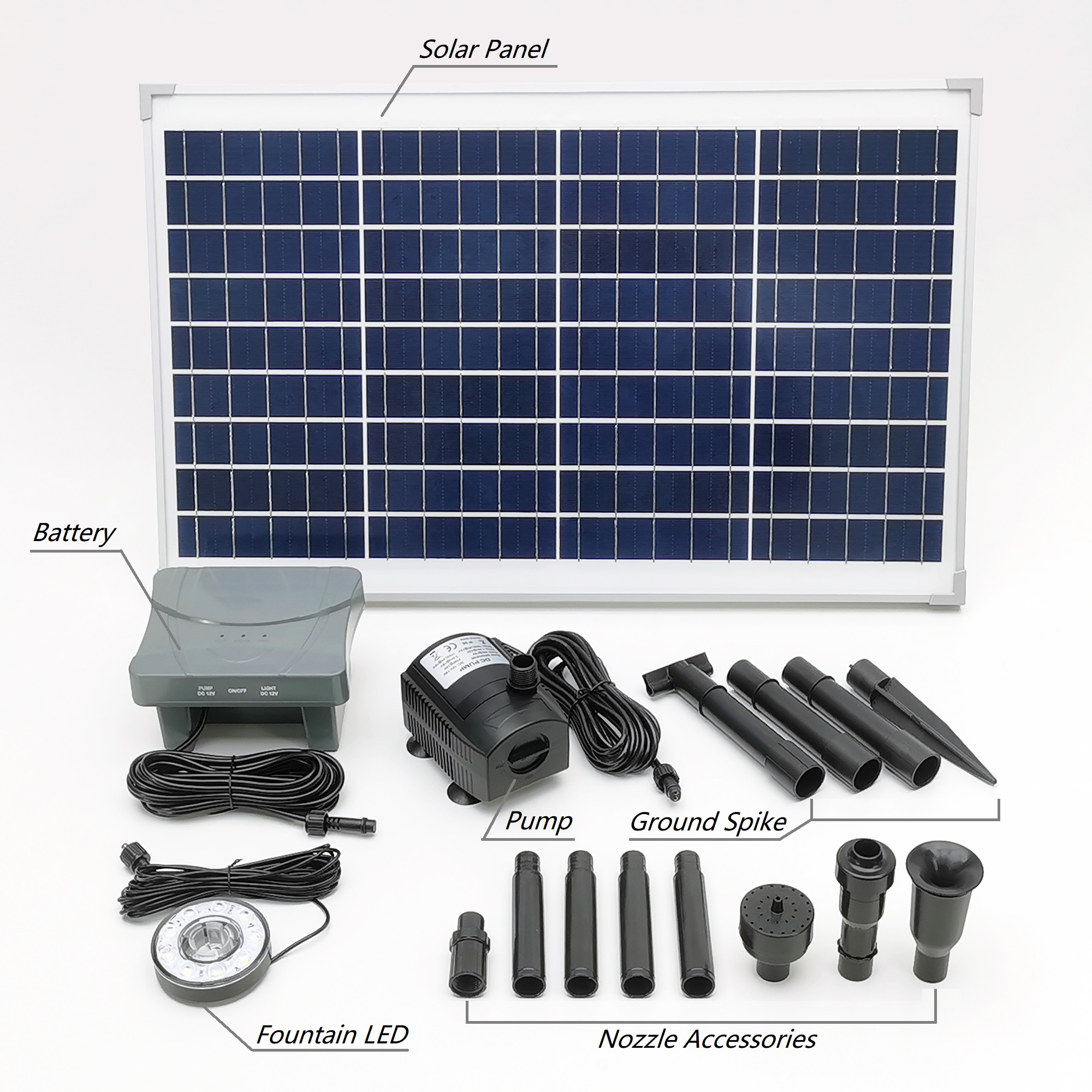

Components

Parameters

Item No.

BP501218E

Maximum pump head

2 M (6.6 FT)

Maximum flow rate

1400 LPH (370 GPH)

Working voltage

12.8 V

Maximum power

9 W

Cable length

5 M (16.4 FT)

Material

Plastic

Engineering Drawings

A. Dimension:

B. Explosive:

Parameters

Item No.

GSP40-36

Peak power

40 W

Peak power voltage

18.36 V

Peak power current

2.18 A

Open-circuit voltage

22.32 V

Short-circuit current

2.28 A

Material

Polycrystalline

Engineering Drawing






Parameters

 Item No.

SBB12.8-8F

    Rechargeable   battery type

LiFePO4

    Rechargeable battery capacity

  12.8 V,   8000mAh

    Charging   voltage

   DC   15V to 18V

    Output voltage

   DC 12.8 V

    Maximum input power

   50 W

    Maximum   power for pump output port

   20   W

    Maximum power for light output port

    5 W

Engineering Drawing




Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.3m

@0.6m

@0.9m

@1.2m

@1.5m

Max. height

12.8V

1400LPH

1200LPH

980LPH

760LPH

560LPH

350LPH

2.0M
