*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with lead acid battery and can work on demand on overcast days or at nights.
*Decorative fountain LED automatically switches on at night.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection prevents the pump from damage when water dries out.
*Electrically safe, thanks to its low working voltage.
*Ceramic shaft, runs steadily and quietly.
*RoHs, REACH and CE, UKCA certified.
*1 year warranty.
*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with lead acid battery and can work on demand on overcast days or at nights.
*Decorative fountain LED automatically switches on at night.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection prevents the pump from damage when water dries out.
*Electrically safe, thanks to its low working voltage.
*Ceramic shaft, runs steadily and quietly.
*RoHs, REACH and CE, UKCA certified.
*1 year warranty.

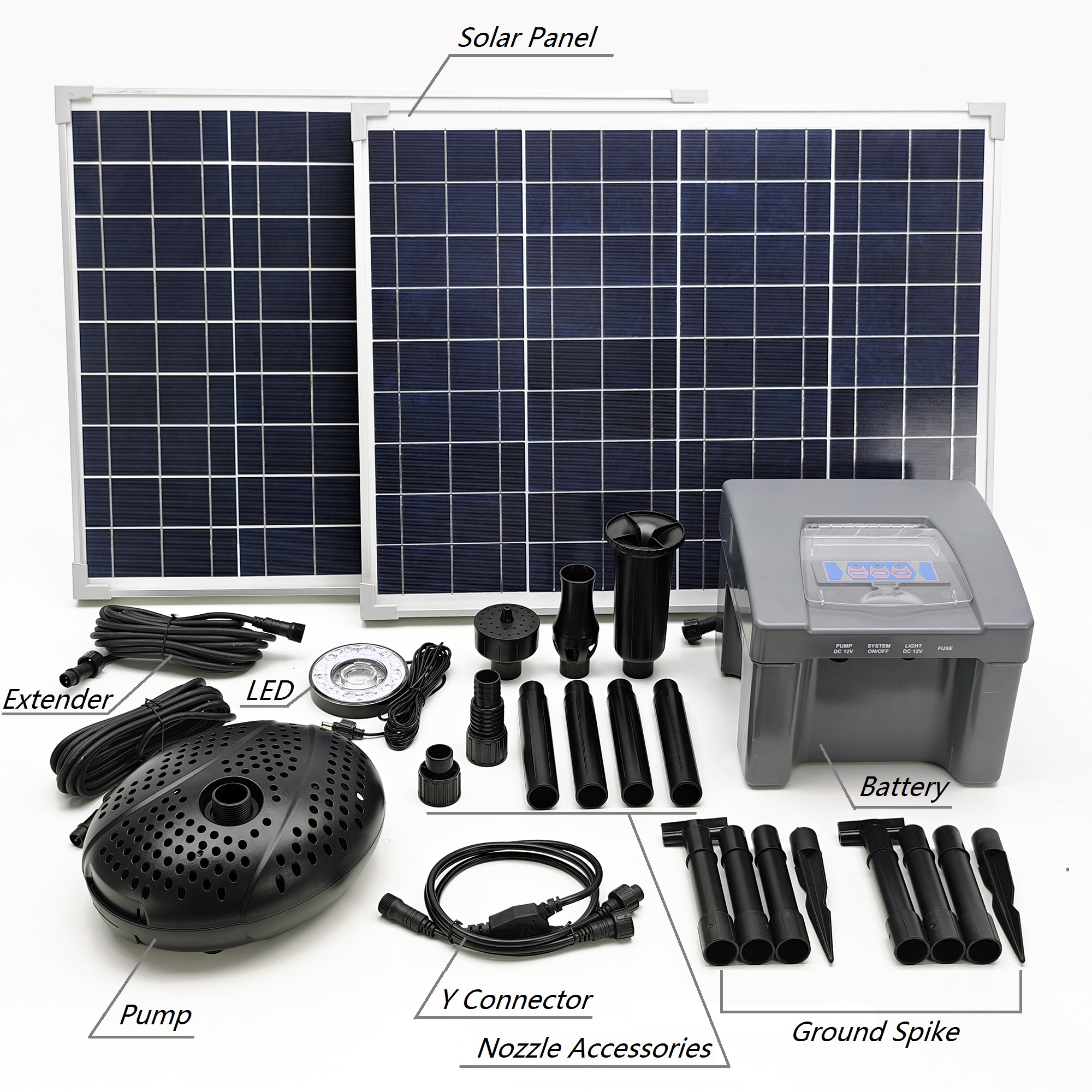

Components
Parameters
Item No. | BP801830F |
Maximum pump head | 1.8 M (5.9 FT) |
Maximum flow rate | 3950 LPH (1043.6GPH) |
Working voltage | 12.8 V |
Maximum power | 23.5 W |
Pump outlet | 26mm / 32mm / 38mm |
Net weight | 2.7 kgs |
Cable length | 5 M (16.4 FT) |
Material | Plastic |
Engineering Drawings
A. Dimension:
B. Explosive:
Parameters
Item No. | GSP50-36 |
Peak power | 100W (50W*2) |
Peak power voltage | 18.36 V |
Peak power current | 5.44 A |
Open-circuit voltage | 22.32 V |
Short-circuit current | 5.68 A |
Material | Polycrystalline |
Engineering Drawings
Parameters
Item No. | SBB12.8-24F |
Rechargeable battery type | LiFePO4 |
Rechargeable battery capacity | 12.8V, 24Ah |
Charging voltage | DC 15V to 18V |
Output voltage | DC 12V |
Maximum input power | 150 W |
Maximum power for pump output port | 48 W |
Maximum power for light output port | 12 W |
Maximum power for universal output port | 12 W |
Engineering Drawing

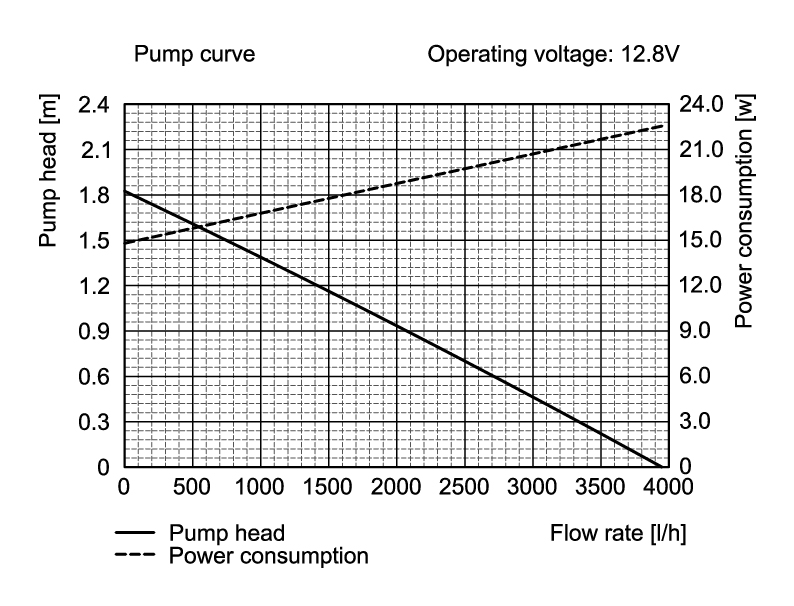

Litres per hour - At various pumping heights (Pump head)
Operating Voltage | @0m | @0.3m | @0.6m | @1.2m | @1.5m | @1.8m | Max. height |
12.8V | 3950LPH | 3300LPH | 2700LPH | 1400LPH | 750LPH | 0 | 1.8M |
