*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.
*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.

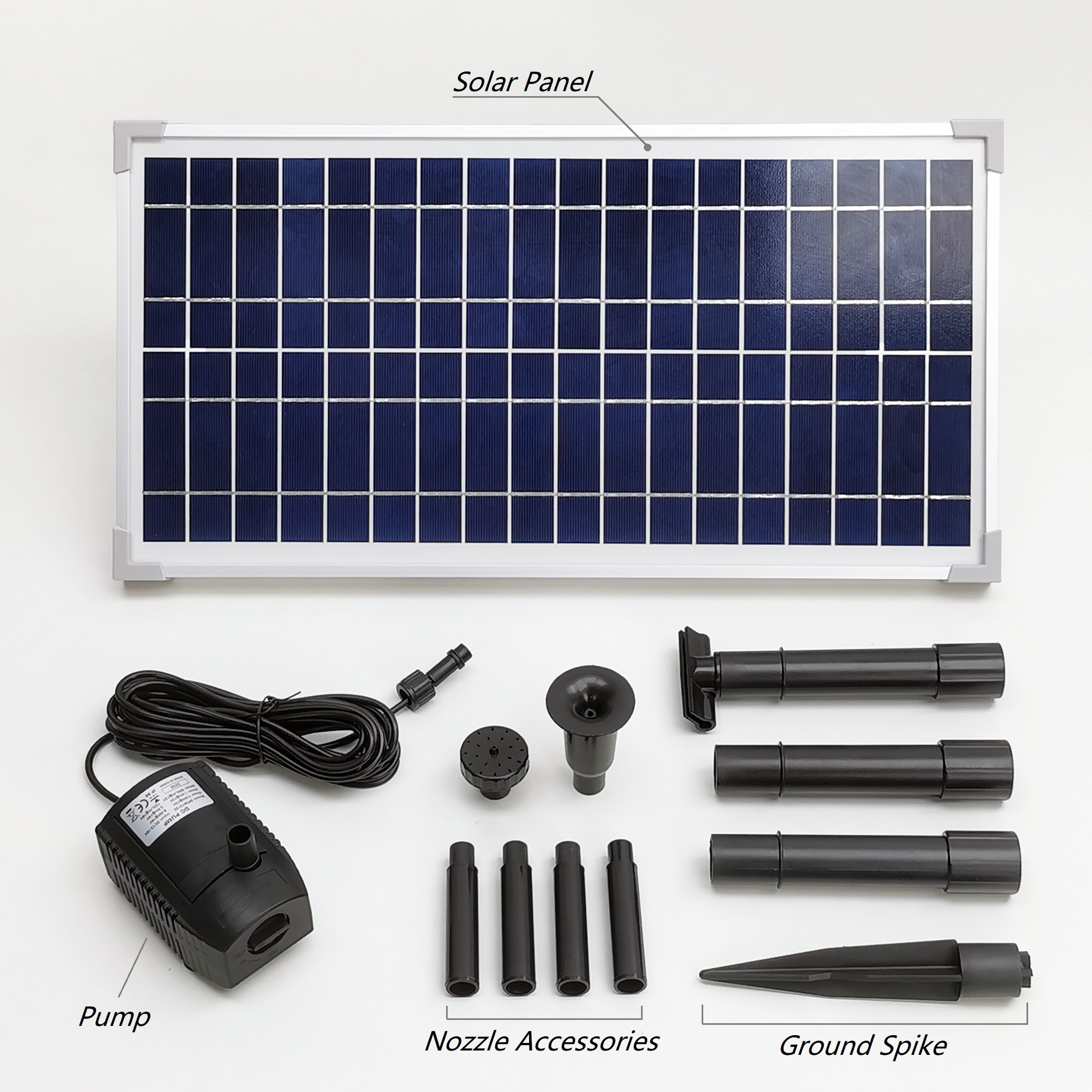

Components
Parameters
Item No. | BP361212E |
Maximum pump head | 2.6 M (8.53 FT) |
Maximum flow rate | 730 LPH (194.7 GPH) |
Working voltage | 18 V |
Maximum power | 8.1 W |
Connection outlet | 13 MM |
Cable length | 5 M (16.4 FT) |
Material | Plastic |
Engineering Drawings
A. Dimension:
B. Explosive:
Parameters
Item No. | GSP15-36 |
Peak power | 15 W |
Solar panel size | 492*250*23 MM |
Peak power voltage | 18.36 V |
Peak power current | 0.82 A |
Open-circuit voltage | 22.32 V |
Short-circuit current | 0.85 A |
Material | Polycrystalline |
Engineering Drawings
A. Dimension:

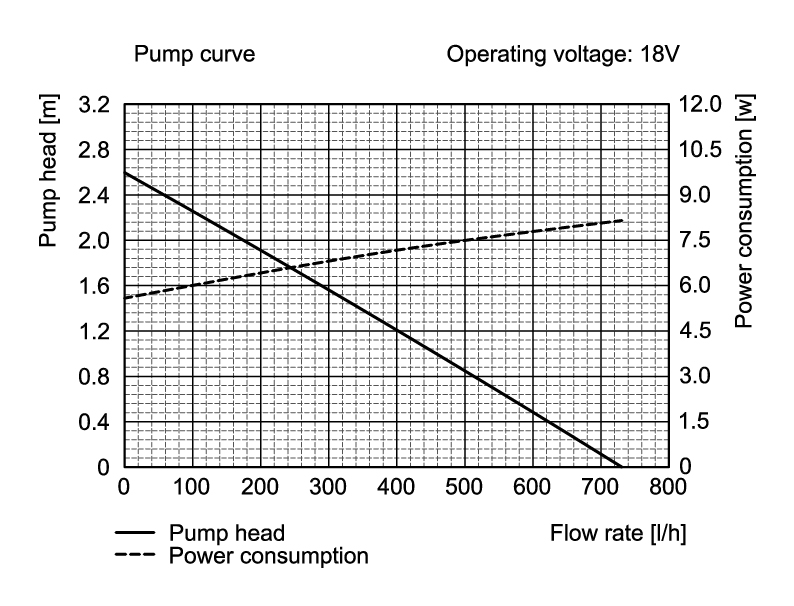

Litres per hour - At various pumping heights (Pump head)
Operating Voltage | @0m | @0.4m | @1.2m | @2.0m | @2.6m | Max. height |
18V | 730LPH | 620LPH | 400LPH | 160LPH | 0 | 2.6M |
