550LPH Flow 1.5M Head E-type Solar Dry Run Protected Fountain Pump_SP8-361212E

550LPH Flow 1.5M Head E-type Solar Dry Run Protected Fountain Pump_SP8-361212E

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

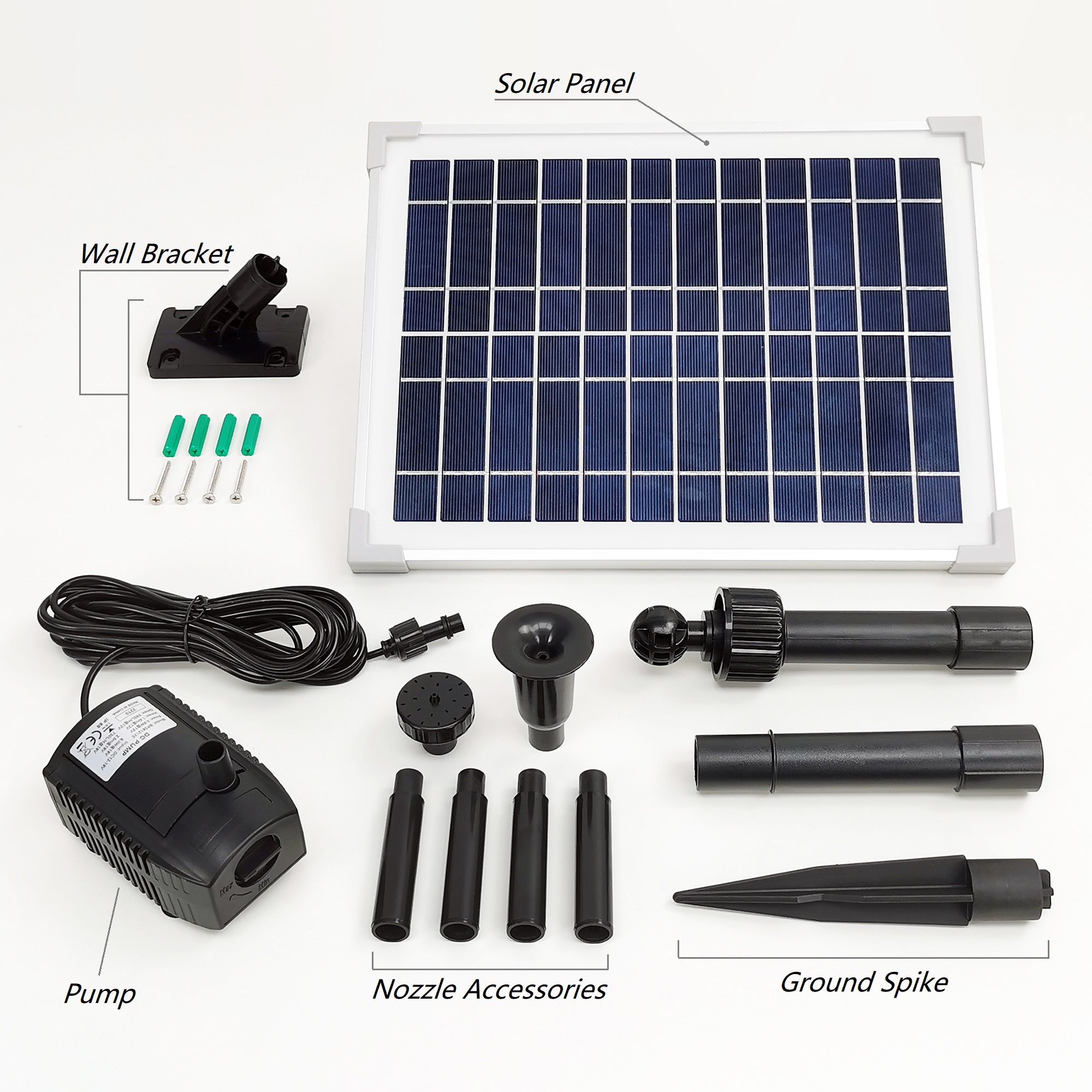

Components

Parameters

Item No.

BP361212E

Maximum pump head

1.5 M (4.9 FT)

Maximum flow rate

550 LPH (145 GPH)

Working voltage

12 V

Maximum power

3.5 W

Connection outlet

13 MM

Cable length

5 M (16.4 FT)

Material

Plastic

Engineering Drawings

A. Dimension:

B. Explosive:




Parameters

Item No.

GSP8-16

Peak power

8 W

Solar panel size

348*200*17 MM

Peak power voltage

8.16 V

Peak power current

0.98  A

Open-circuit voltage

9.92 V

Short-circuit current

1.02 A

Material

Polycrystalline

Engineering Drawings

A. Dimension:

B. Angle adjustment:

   1. Ground installation:

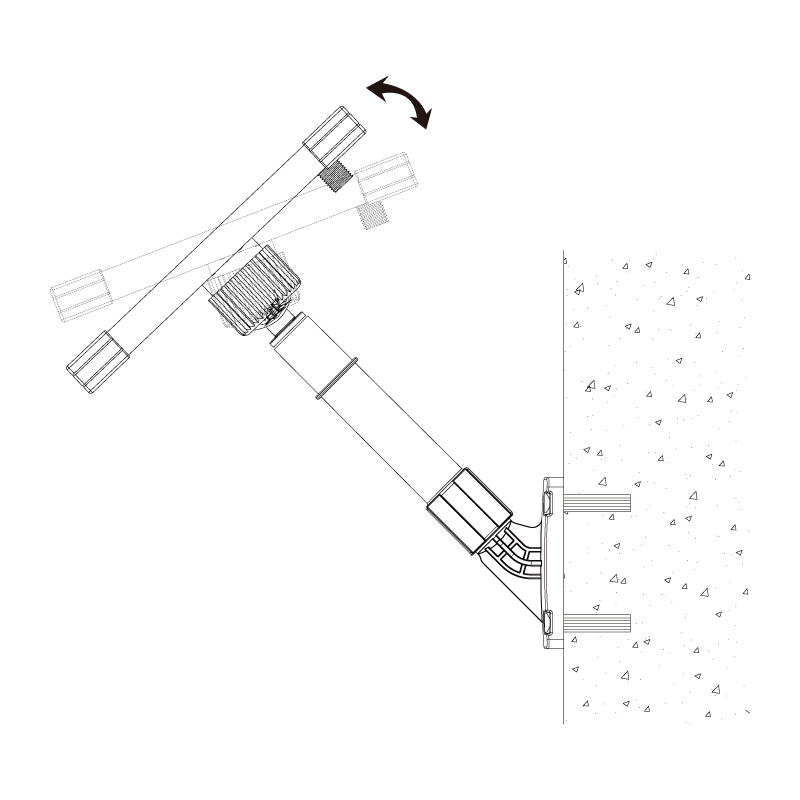

   2. Wall installation:




Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.4m

@0.8m

@1.2m

@1.4m

Max. height

12V

550LPH

405LPH250LPH85LPH0

1.5M
