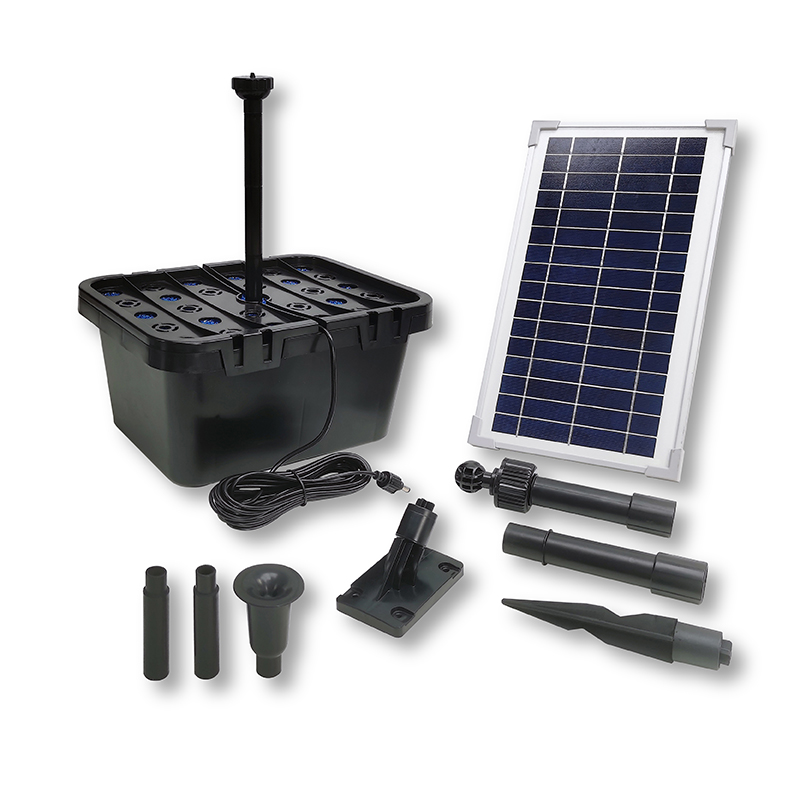

500LPH Flow 1.25M Head E-type Solar Dry Run Protected Fountain Pump with Filter Box_SP8-360608E-F

500LPH Flow 1.25M Head E-type Solar Dry Run Protected Fountain Pump with Filter Box_SP8-360608E-F

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Filter box protects pump from being blocked by pond debris and helps keep pond water clean.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside pump further keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Filter box protects pump from being blocked by pond debris and helps keep pond water clean.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside pump further keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

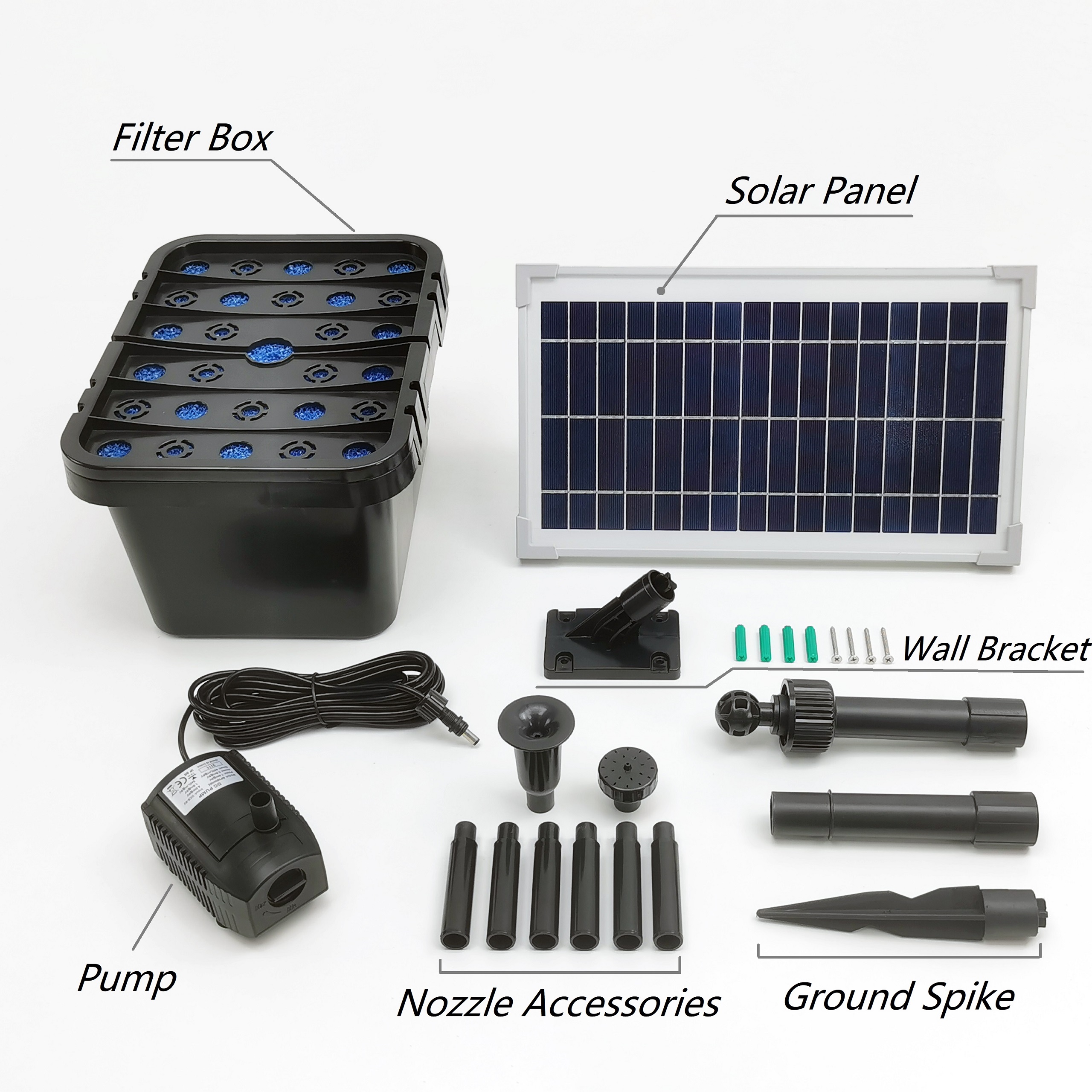

Components

Parameters

Item No.

BP360608E

Maximum pump head

1.25 M (4.10 FT)

Maximum flow rate

500 LPH (133.3 GPH)

Working voltage

8 V

Maximum power

3.0 W

Connection outlet

13 MM

Cable length

5 M (16.4 FT)

Material

Plastic

Engineering Drawings

A. Dimension:

B. Explosive:




Parameters

Item No.

GSP8-16

Peak power

8 W

Solar panel size

348*200*17 MM

Peak power voltage

8.16 V

Peak power current

0.98  A

Open-circuit voltage

9.92 V

Short-circuit current

1.02 A

Material

Polycrystalline

Engineering Drawings

A. Dimension:


B. Angle adjustment:

   1. Ground installation:



   2. Wall installation:




Parameters

Item No.

SPF-6.5

Quantity of side foam filters

   Two pieces
    Quantity of flat foam filters   Two pieces

Quantity of mesh bags for biofiltration material

Two pieces

Biofiltration material

 Not available, to be obtained from a

 third party

Engineering Drawings

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.2m

@0.6m

@0.8m

@1.0m

Max. height

8V

500LPH

425LPH270LPH195LPH110LPH

1.25M
