500LPH Flow 0.9M Head Solar Fountain Pump_SP5-401209

500LPH Flow 0.9M Head Solar Fountain Pump_SP5-401209

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

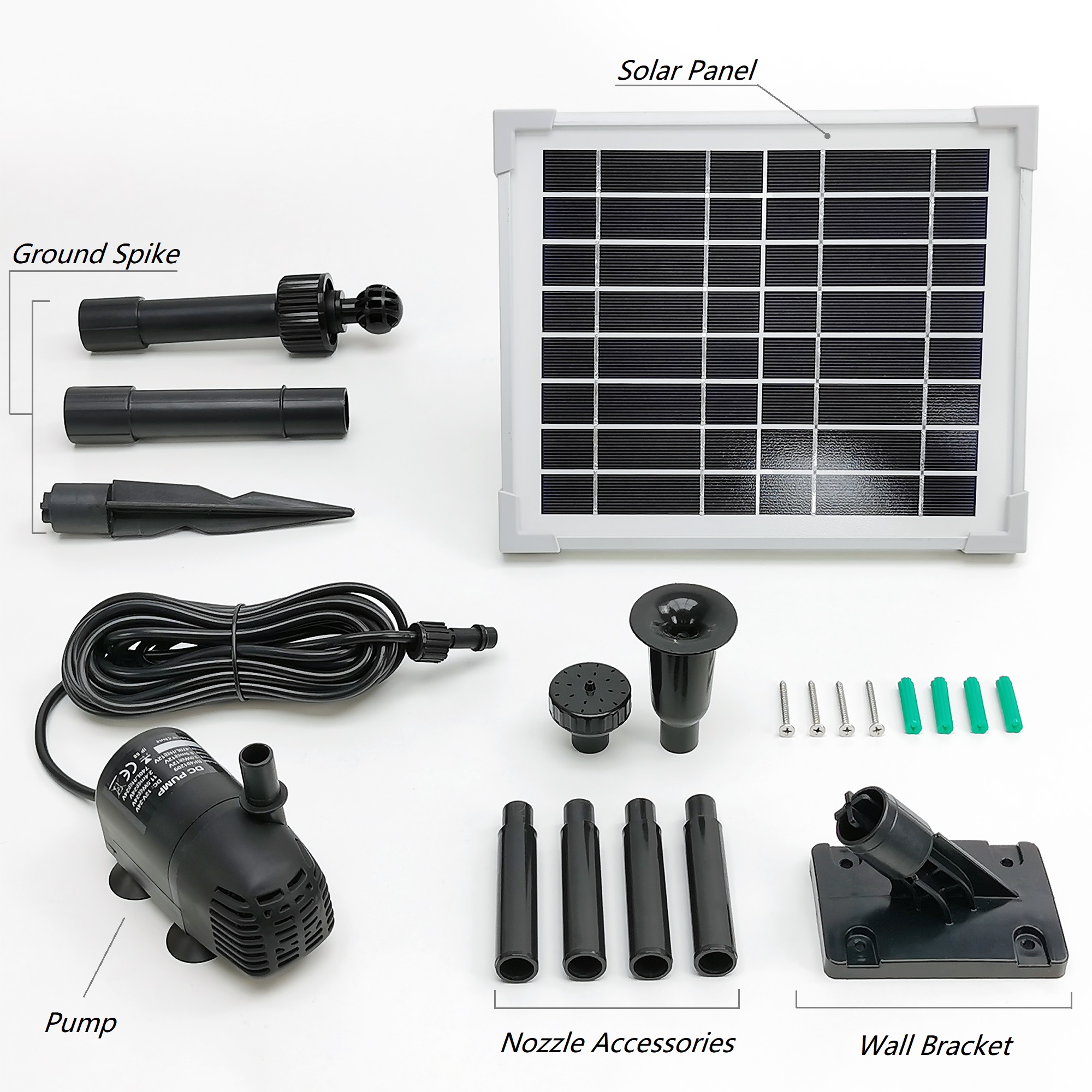

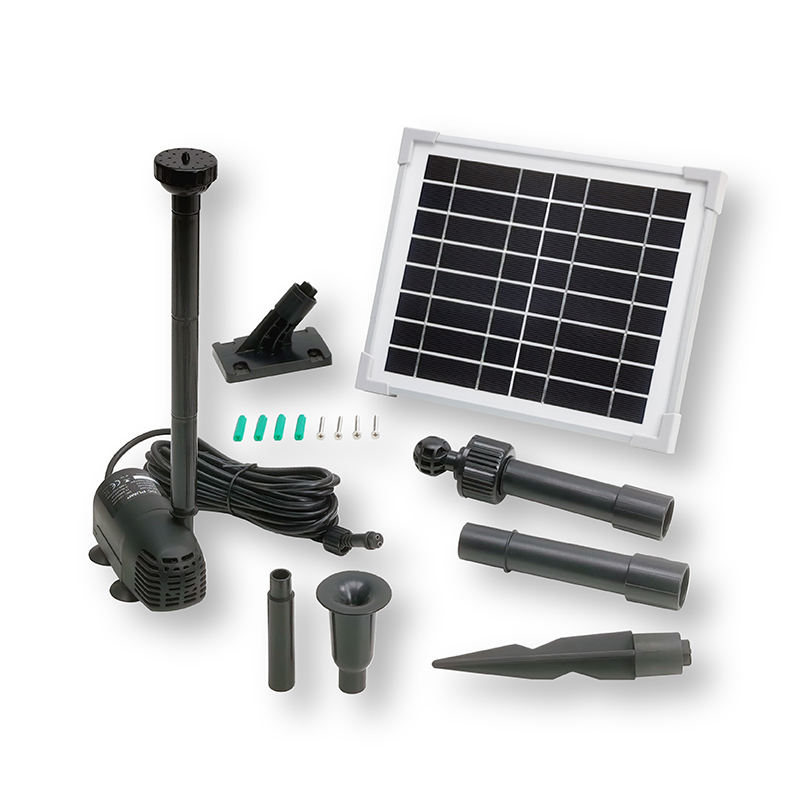

Components

Parameters

Item No.

BP401209

Maximum pump head

0.9M (2.9 FT)

Maximum flow rate

500 LPH (132 GPH)

Working voltage

12 V

Maximum power

2.2 W

Cable length

5 M (16.4 FT)

Material

Plastic

Engineering Drawings

A. Dimension:

B. Explosive:


Parameters

Item No.

GSP5-24

Peak power

5 W

Peak power voltage

12.24 V

Peak power current

0.41  A

Open-circuit voltage

14.88 V

Short-circuit current

0.43  A

Material

Polycrystalline

Engineering Drawings

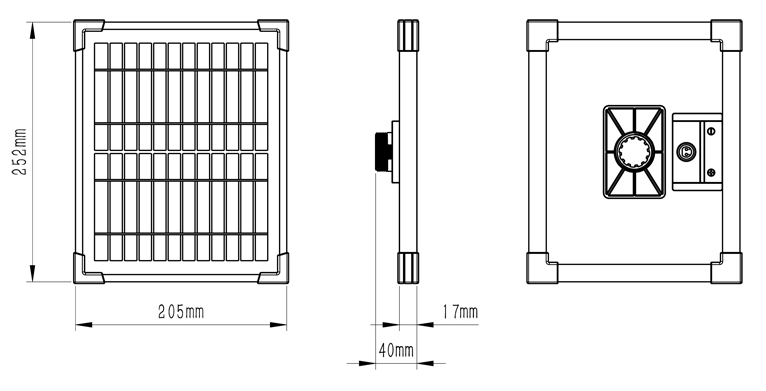

 A. Dimension:

B. Angle adjustment:

   1. Ground installation:

   2. Wall installation:

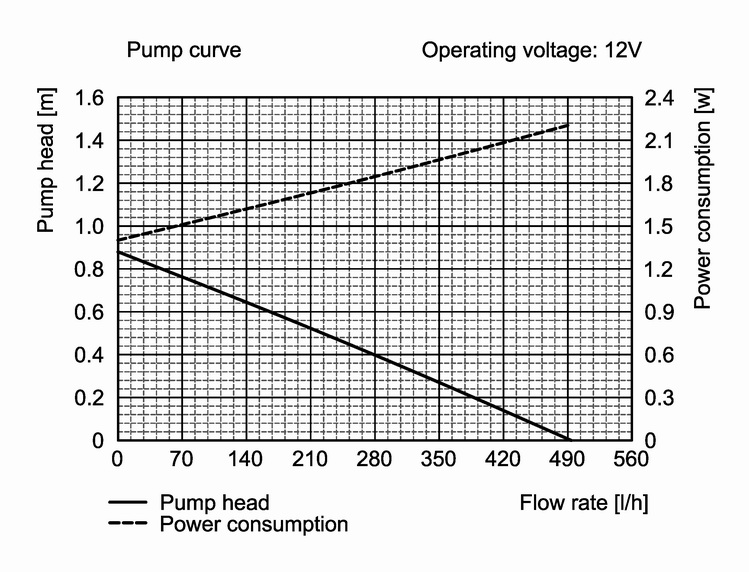

Litres per hour - At various pumping heights (Pump head)


Operating Voltage

@0m

@0.2m

@0.4m

@0.6m

@0.8m

Max. height

12V

500LPH

395LPH280LPH

165LPH

40LPH

0.9M
