*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.
*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.

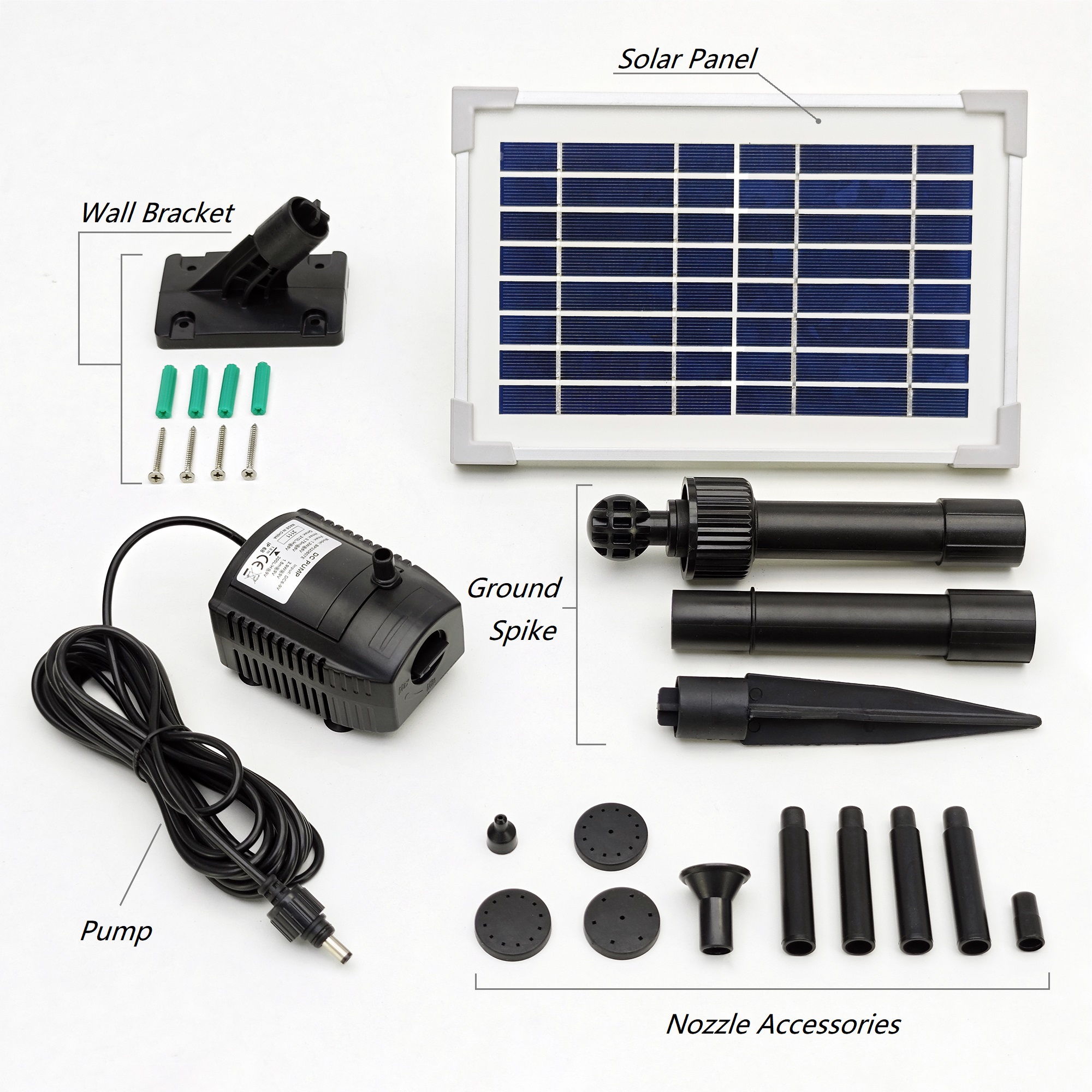

Components
Parameters
Item No. | BP320607E |
Maximum pump head | 1.25 M (4.10 FT) |
Maximum flow rate | 270 LPH (72 GPH) |
Working voltage | 8 V |
Maximum power | 2.2 W |
Connection outlet | 8.5 MM |
Cable length | 5 M (16.4 FT) |
Material | Plastic |
Engineering Drawings

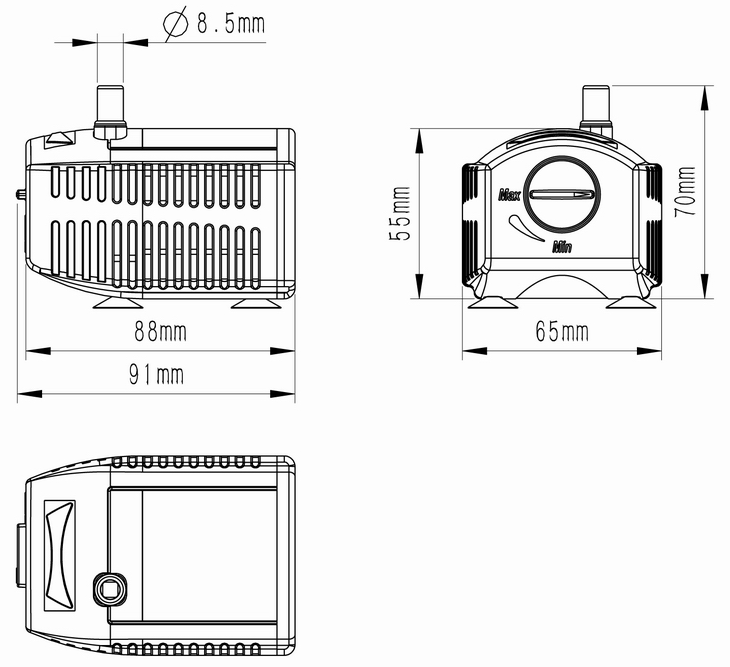

A. Dimension:

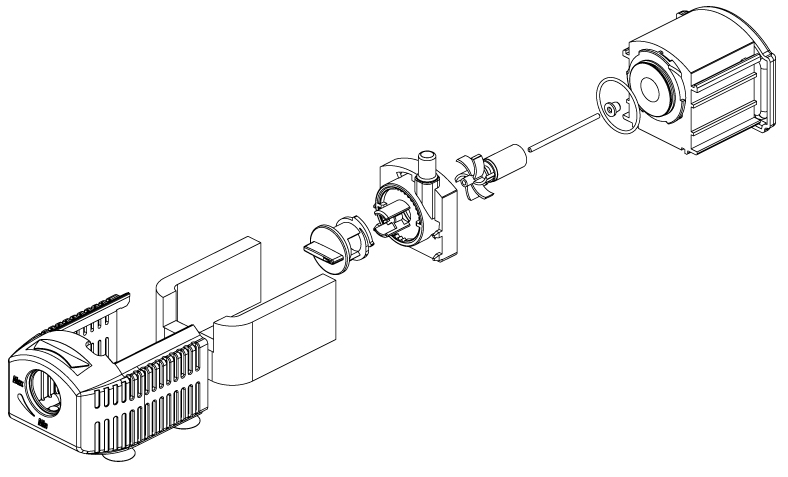

B. Explosive:
Parameters
Item No. | GSP4-16 |
Peak power | 4 W |
Solar panel size | 252*165*17 MM |
Peak power voltage | 8.16 V |
Peak power current | 0.49 A |
Open-circuit voltage | 9.92 V |
Short-circuit current | 0.51 A |
Material | Polycrystalline |
Engineering Drawings
A. Dimension:
B. Angle adjustment:

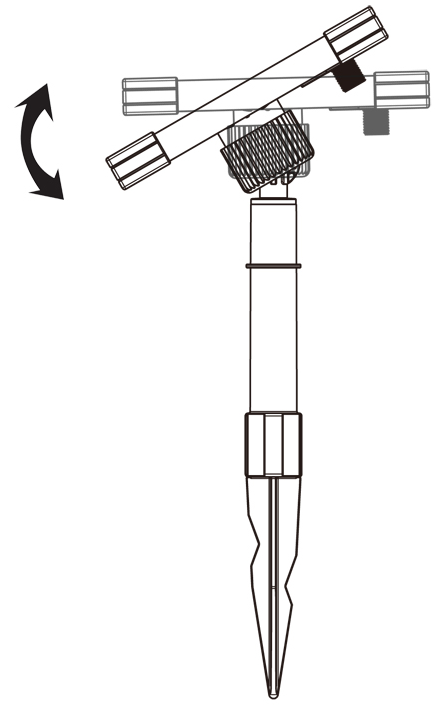

1. Ground installation:

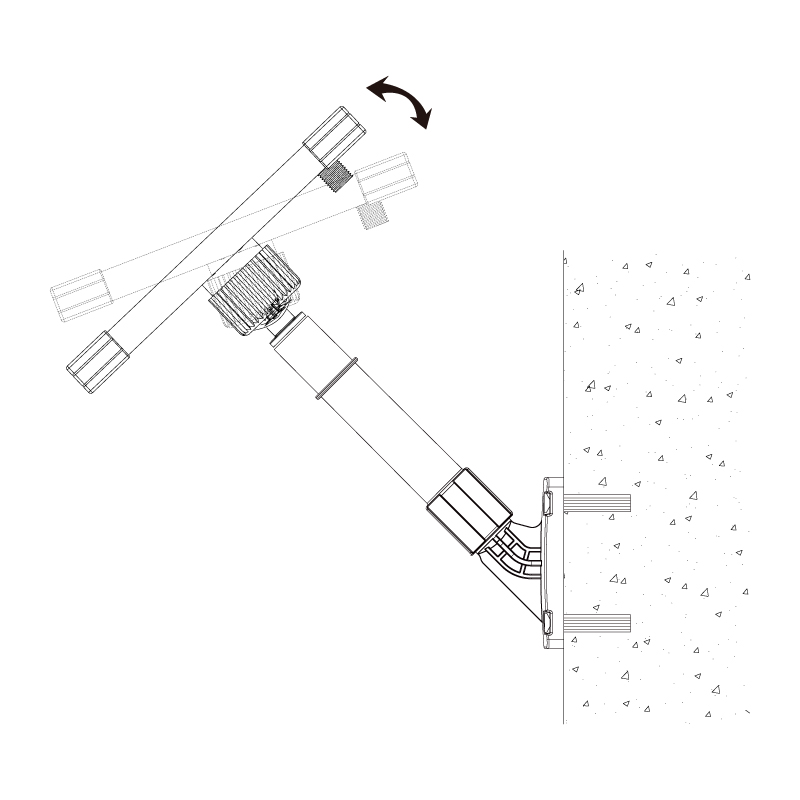

2. Wall installation:

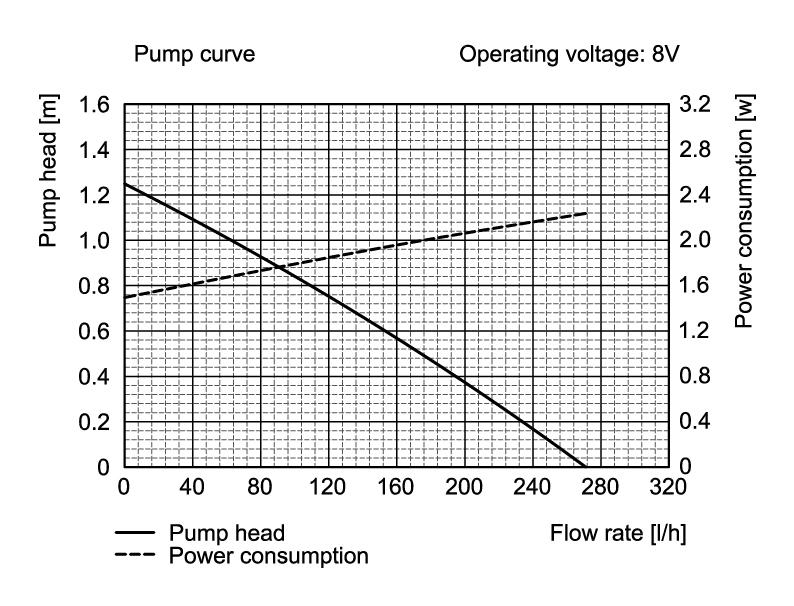

Litres per hour - At various pumping heights (Pump head)
Operating Voltage | @0m | @0.4m | @0.8m | @1.0m | @1.2m | Max. height |
8V | 270LPH | 195LPH | 110LPH | 65LPH | 10LPH | 1.25M |
