390LPH Flow 0.8M Head E-type Solar Dry Run Protected Fountain Pump_SP4-360608E

390LPH Flow 0.8M Head E-type Solar Dry Run Protected Fountain Pump_SP4-360608E

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

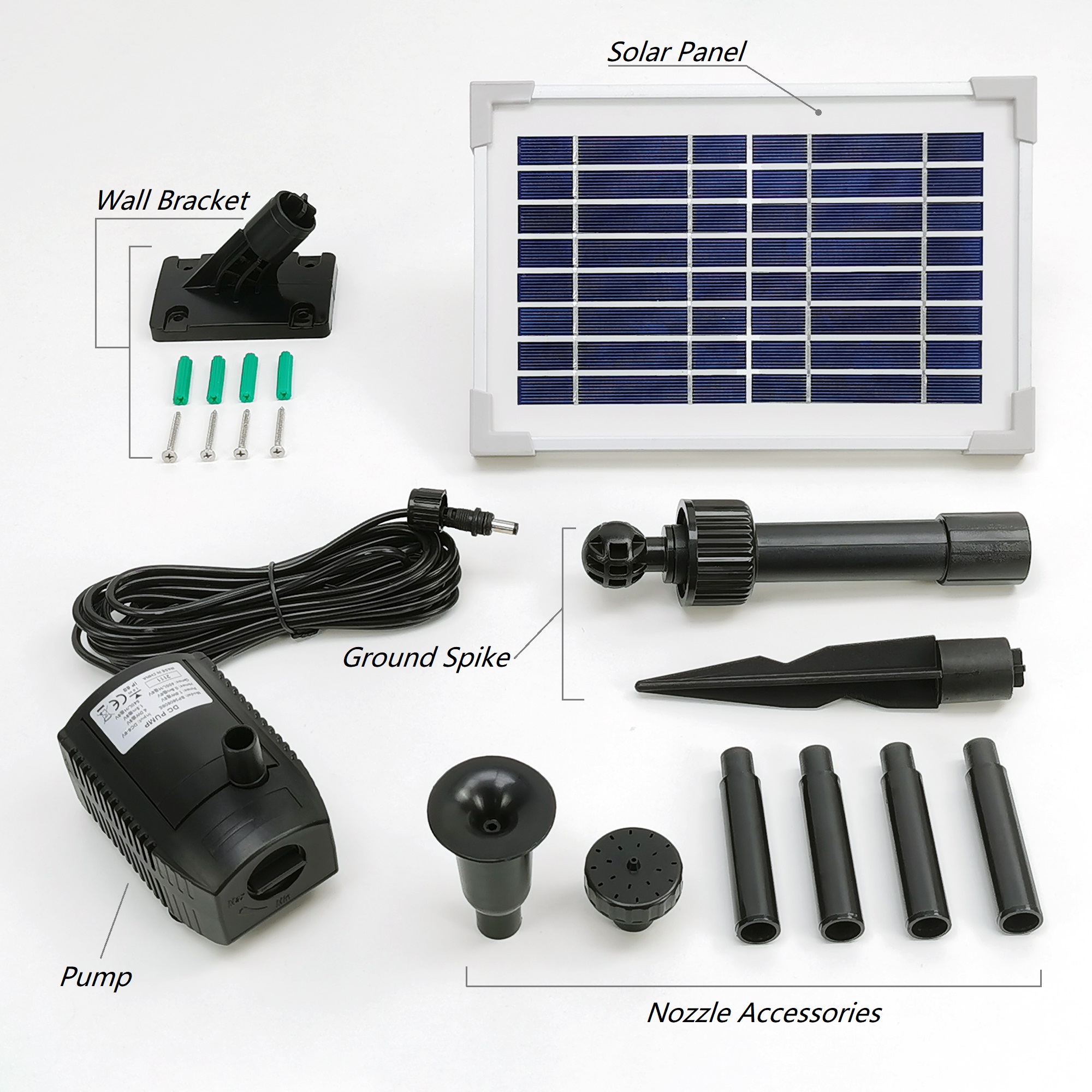

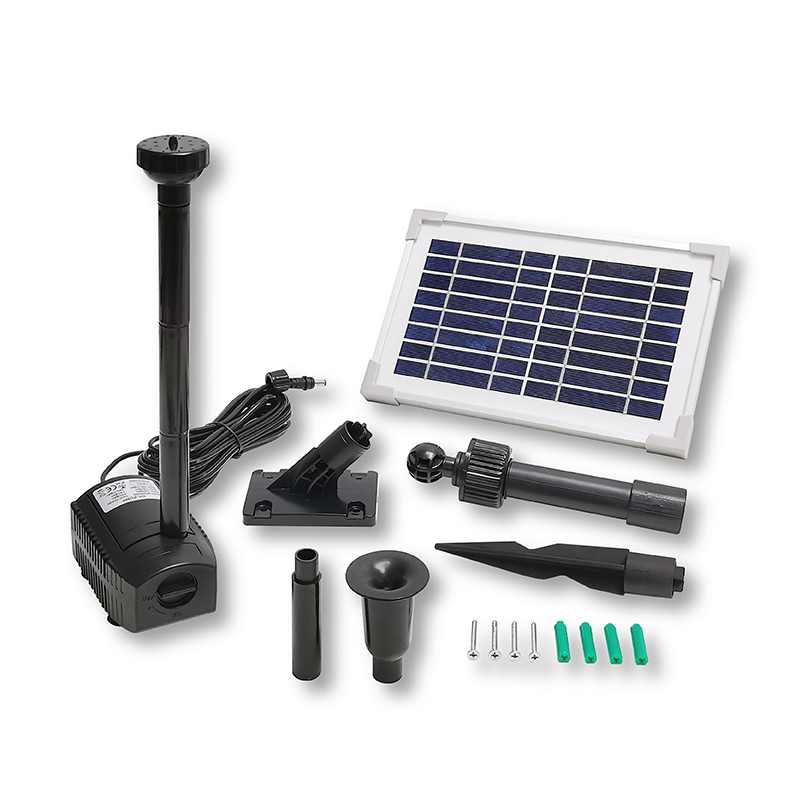

Components

Parameters

Item No.

BP360608E

Maximum pump head

0.8 M (2.62 FT)

Maximum flow rate

390 LPH (104 GPH)

Working voltage

6 V

Maximum power

1.65 W

Connection outlet

13 MM

Cable length

5 M (16.4 FT)

Material

Plastic

Engineering Drawings

A. Dimension:

B. Explosive:




Parameters

Item No.

GSP4-16

Peak power

4 W

Solar panel size

252*165*17 MM

Peak power voltage

8.16 V

Peak power current

0.49  A

Open-circuit voltage

9.92 V

Short-circuit current

0.51  A

Material

Polycrystalline


Engineering Drawings

A. Dimension:


B. Angle adjustment:

   1. Ground installation:



   2. Wall installation:




Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.2m

@0.4m

@0.6m

@0.8m

Max. height

6V

390LPH

305LPH210LPH110LPH0

0.8M
