210LPH Flow 0.75M Head E-type Solar Dry Run Protected Fountain Pump_SP2.5-320607E

210LPH Flow 0.75M Head E-type Solar Dry Run Protected Fountain Pump_SP2.5-320607E

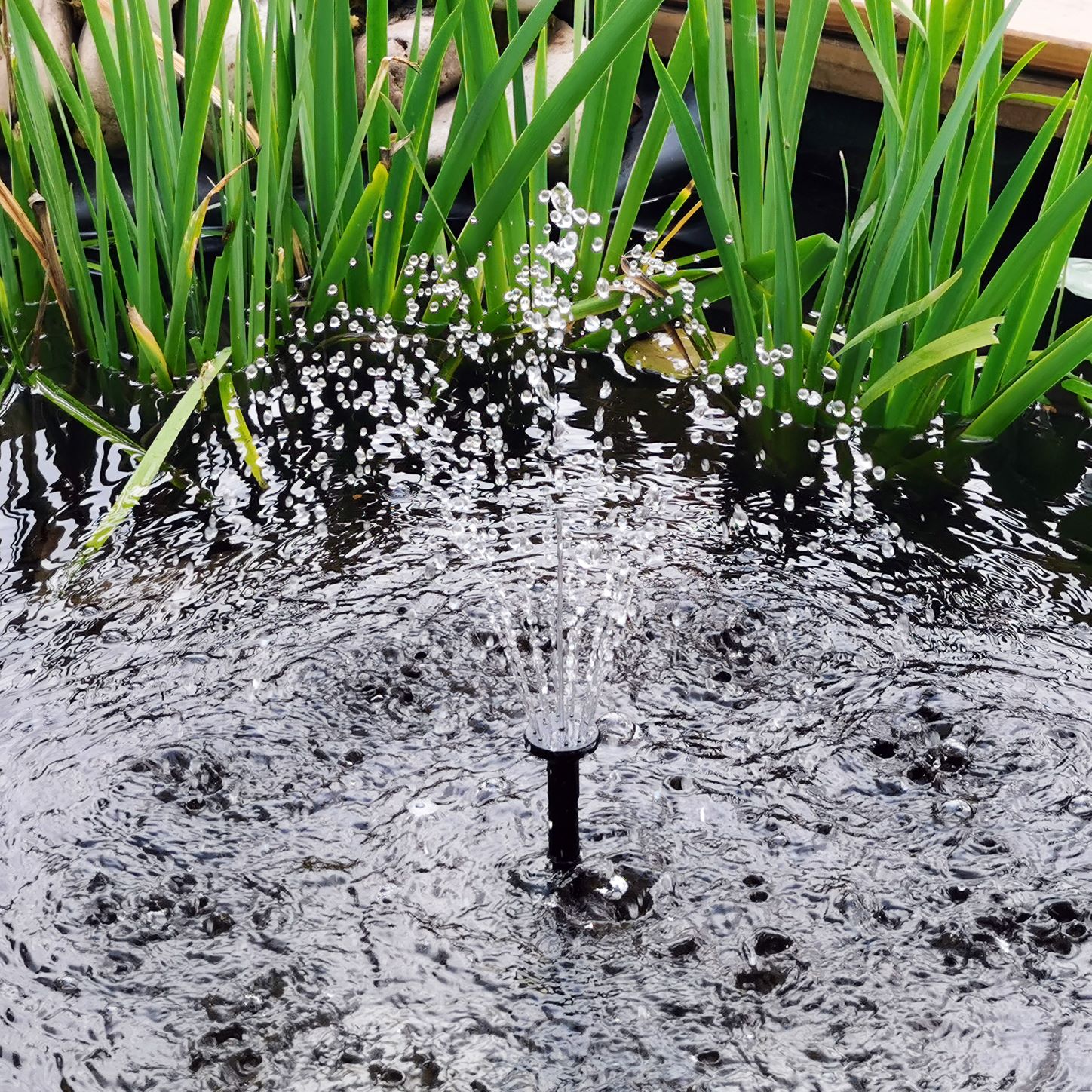

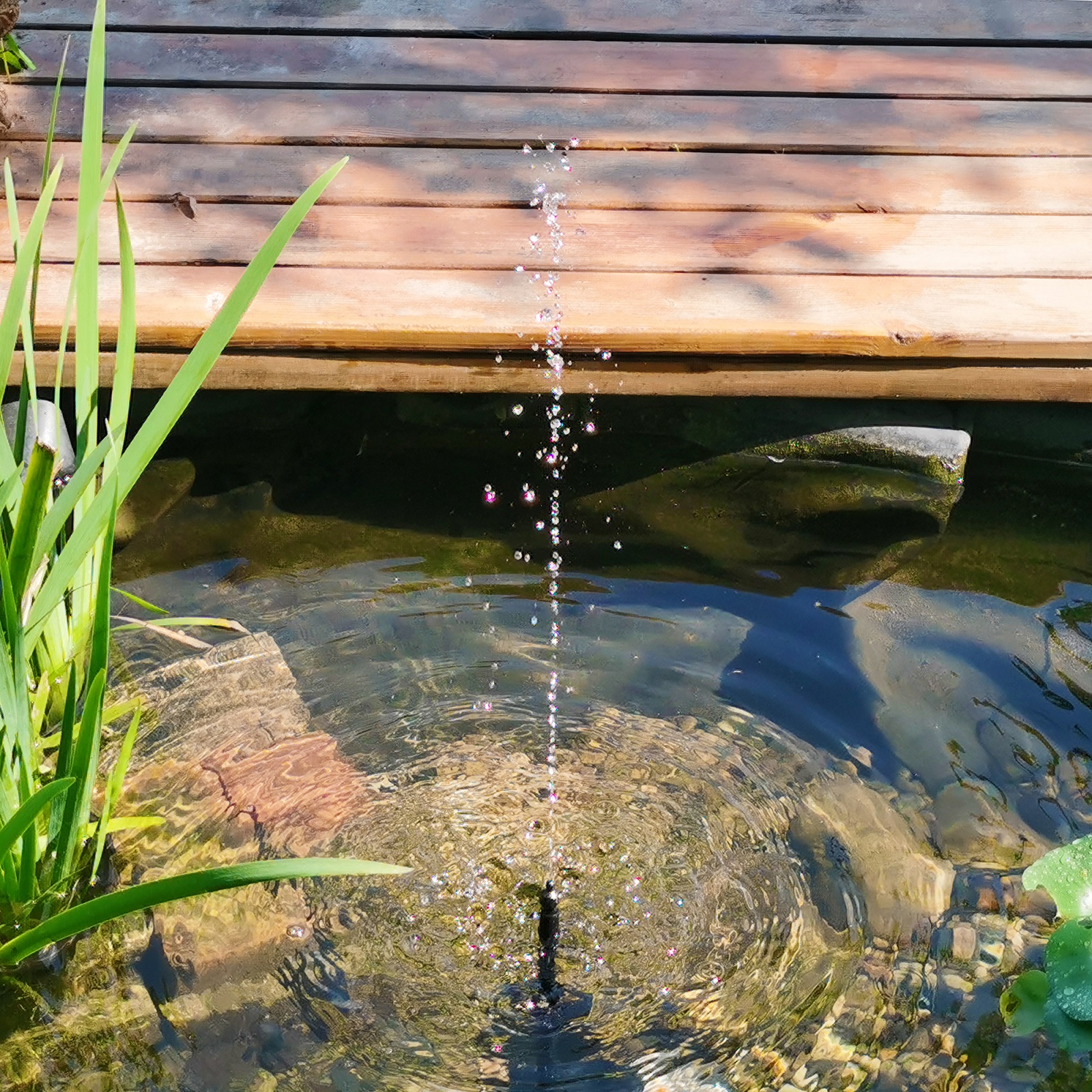

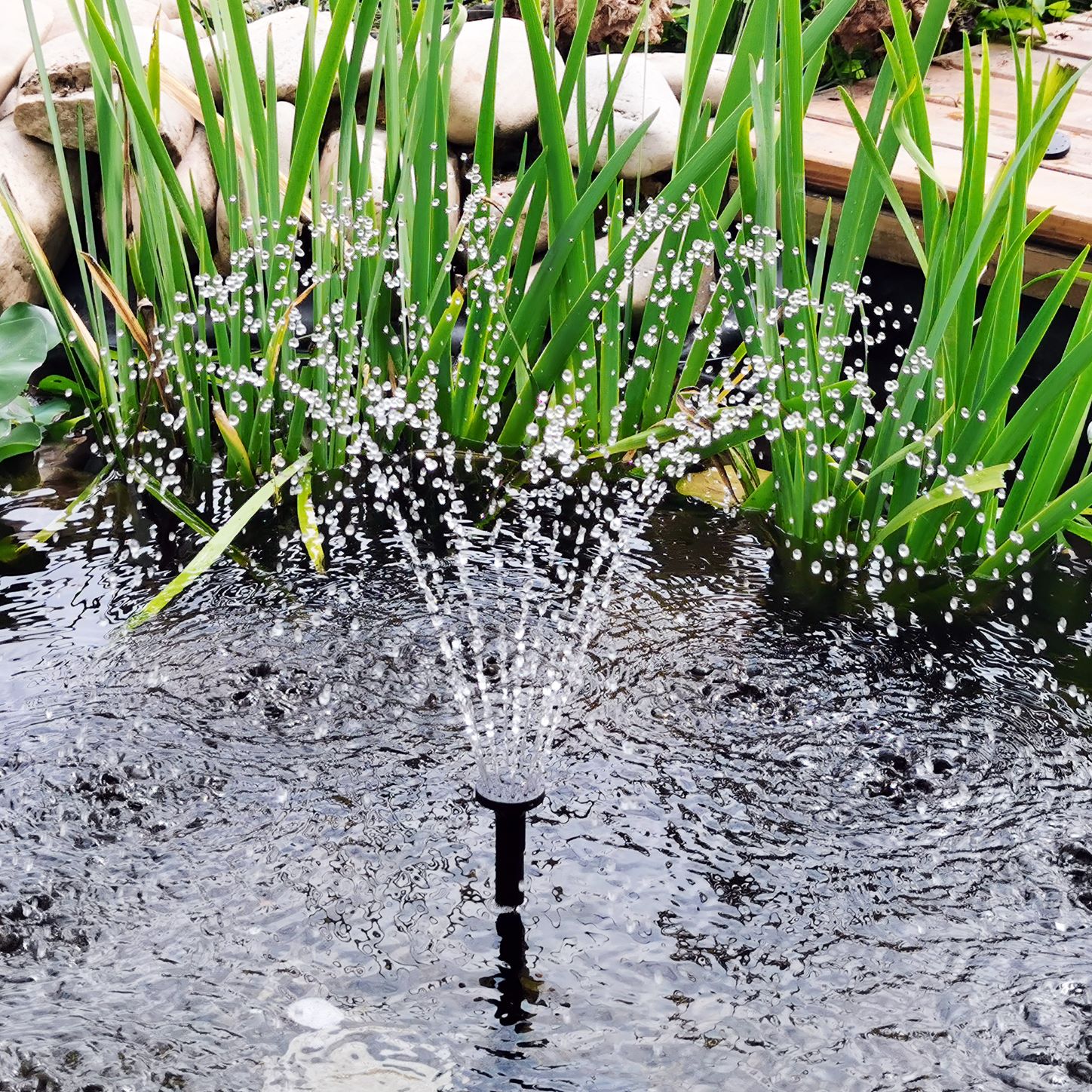

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

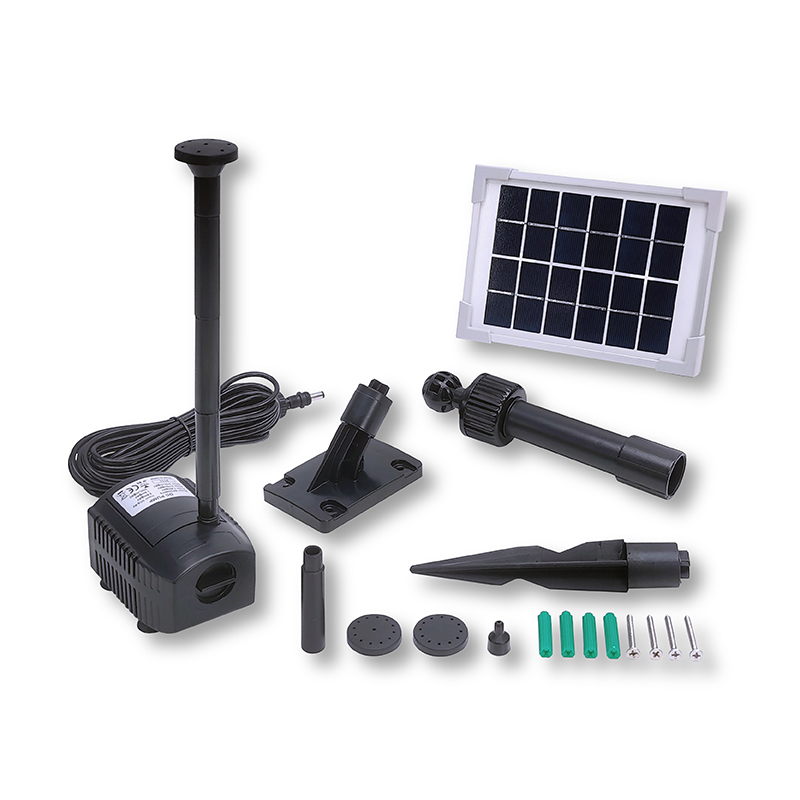

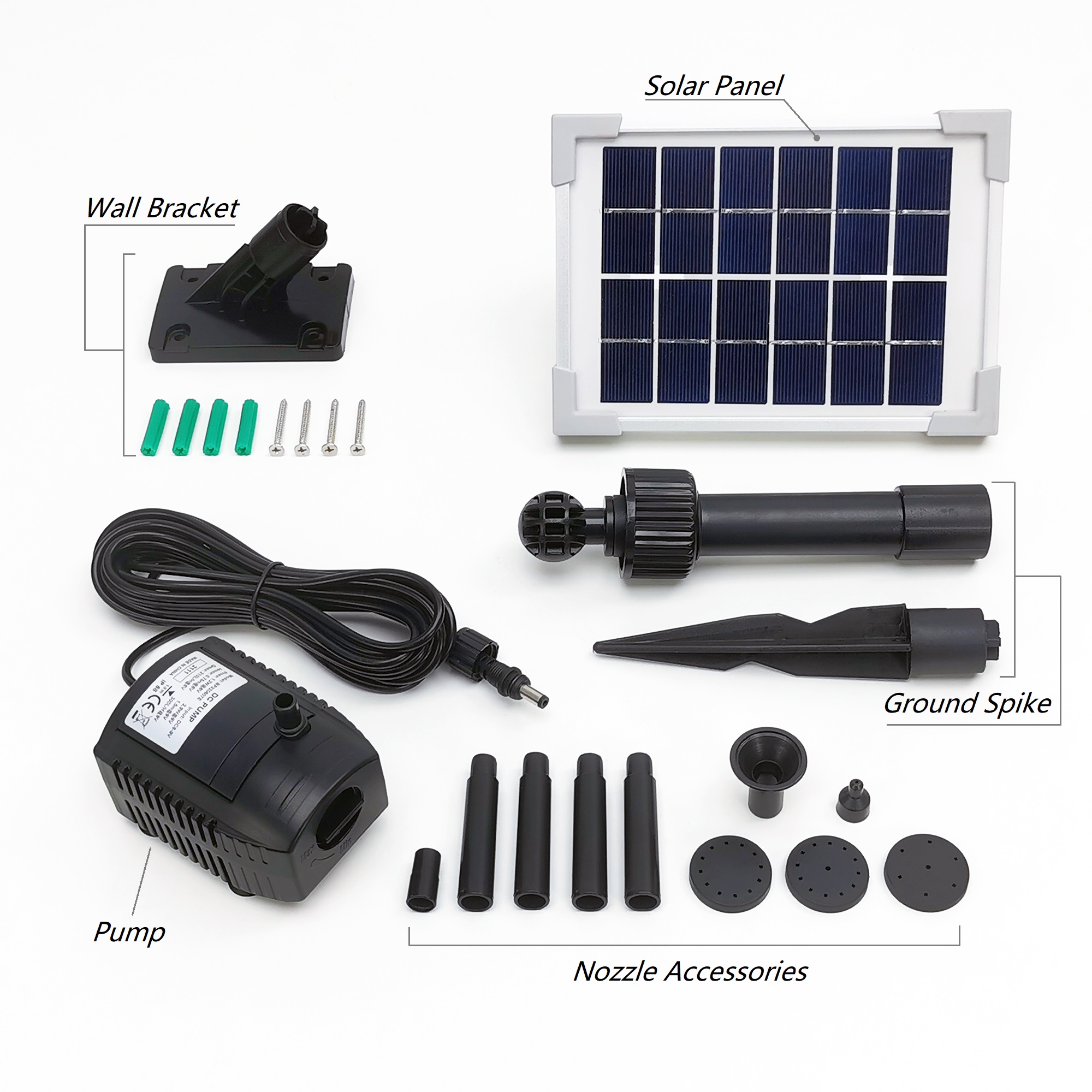

Components

Parameters

Item No.

BP320607E

Maximum pump head

0.75 M (2.46 FT)

Maximum flow rate

210 LPH (55 GPH)

Working voltage

6 V

Maximum power

1.2 W

Connection outlet

8.5 MM

Cable length

5 M (16.4 FT)

Material

Plastic


Engineering Drawings

A. Dimension:

B. Explosive:




Parameters

Item No.

GSP2.5-12

Peak power

2.5 W

Peak power voltage

6.12 V

Peak power current

0.41  A

Open-circuit voltage

7.44 V

Short-circuit current

0.43  A

Material

Polycrystalline

Engineering Drawings

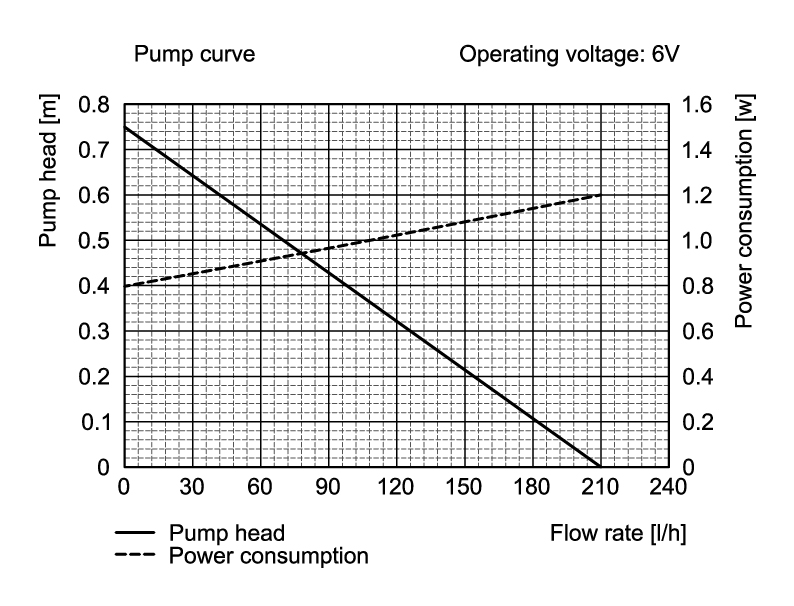

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.2m

@0.4m

@0.6m

@0.8m

Max. height

6V

210LPH

165LPH110LPH50LPH0

0.75M
