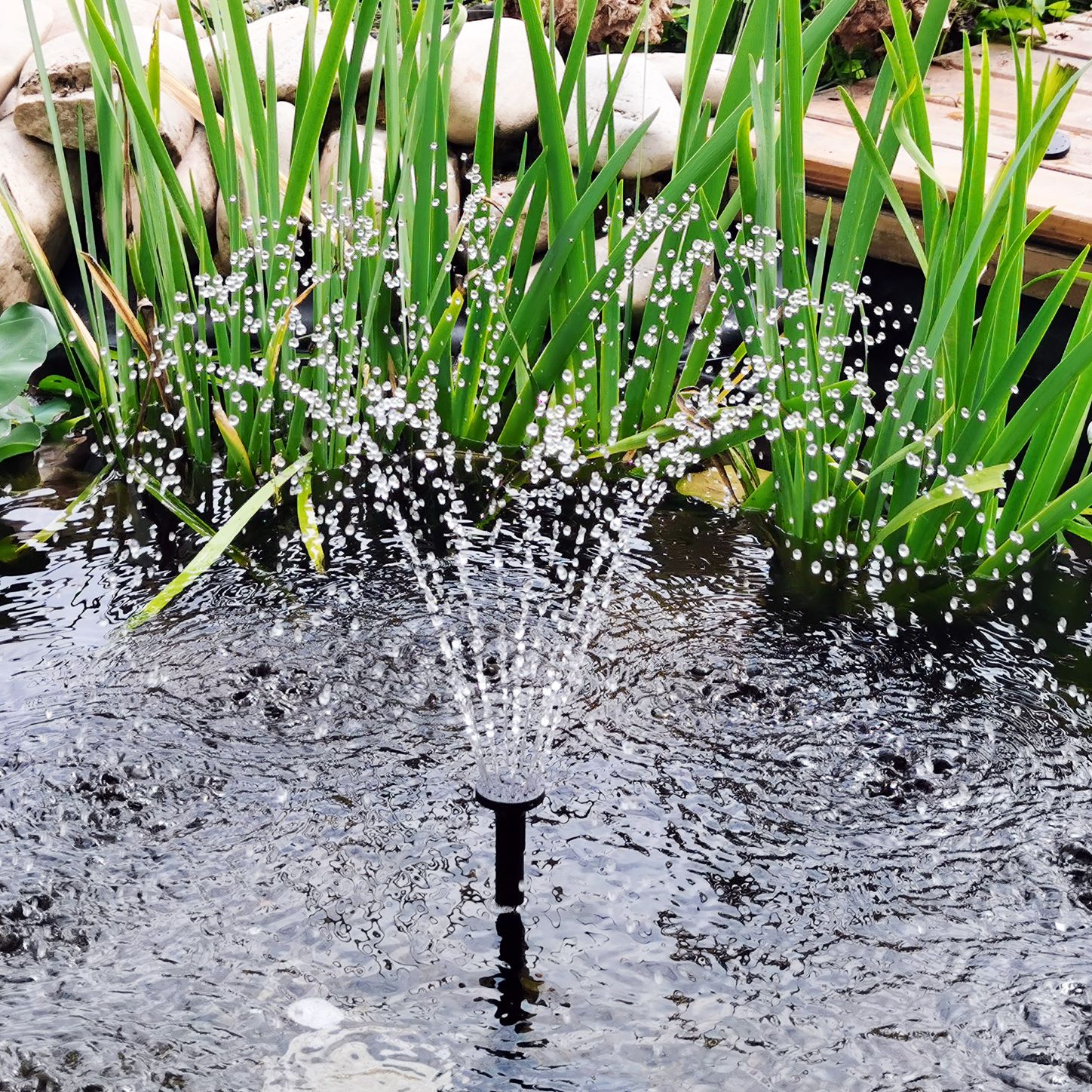

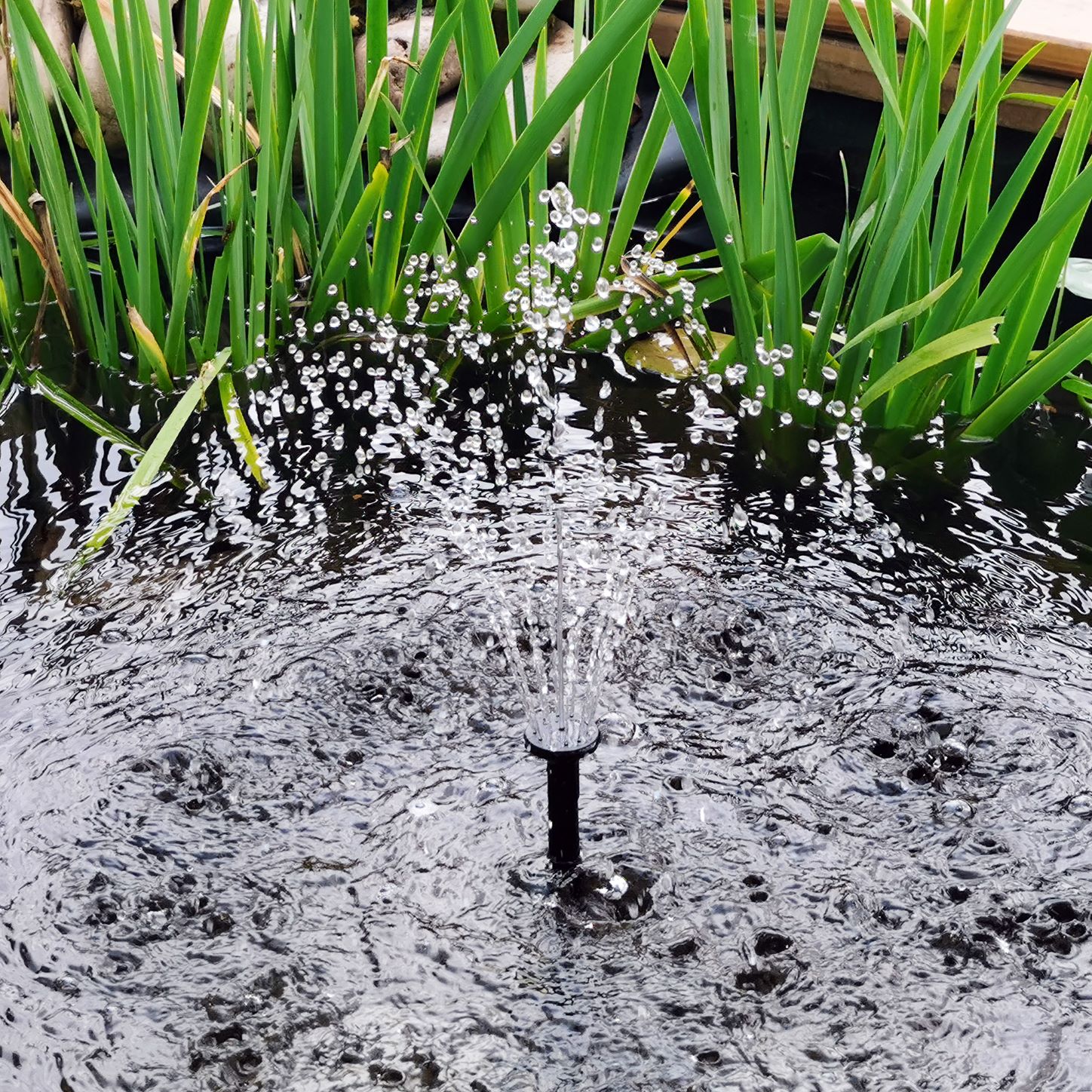

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection to avoid pump burning when running dry.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.
*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection to avoid pump burning when running dry.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.

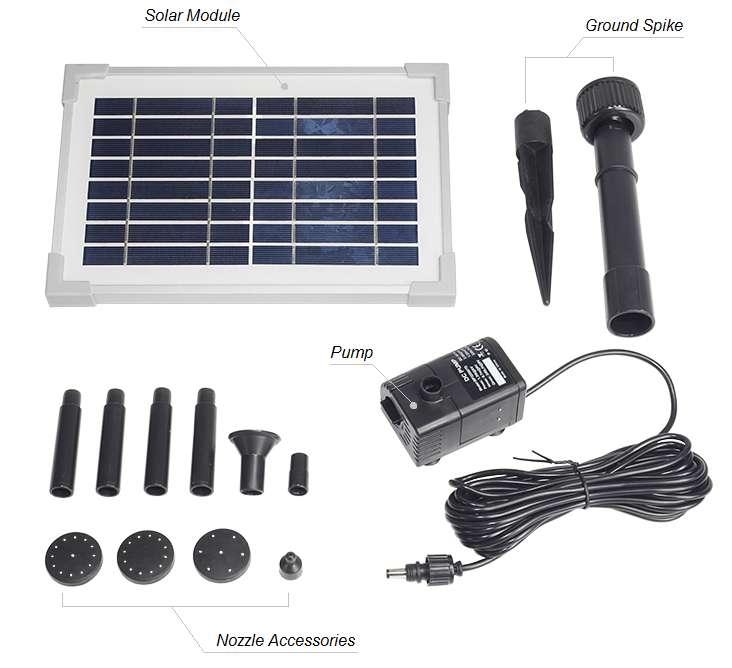

Components:
Parameters:
Item No. | BP320607D |
Maximum pump head | 1.2 M (47.2 INCHES) |
Maximum flow rate | 310 L/H (81.9 GPH) |
Working voltage | 8 V |
Maximum power | 2.3 W |
Cable length | 5 M (16.4 FT) |
Material | Plastic |
Engineering Drawings

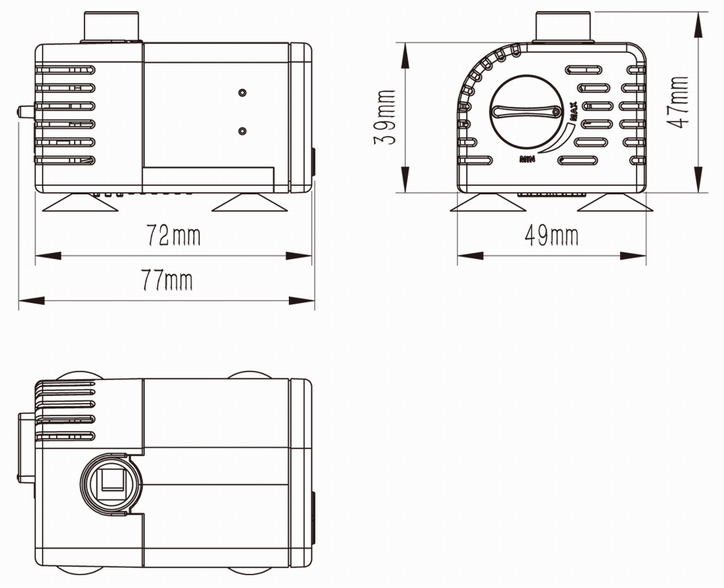

A. Dimensions:

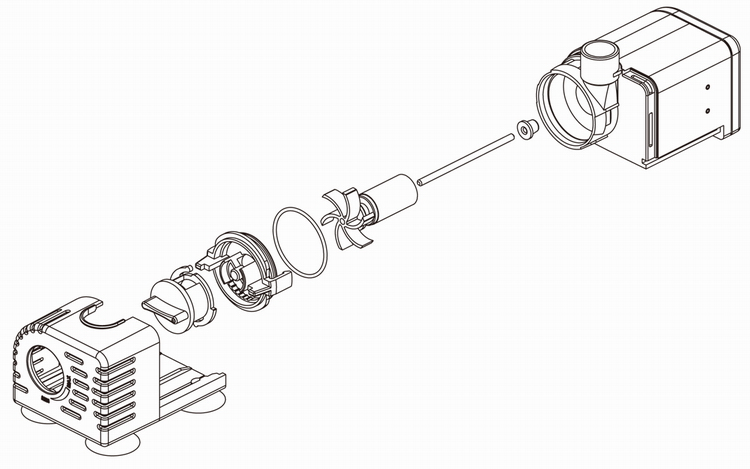

B. Explosive:

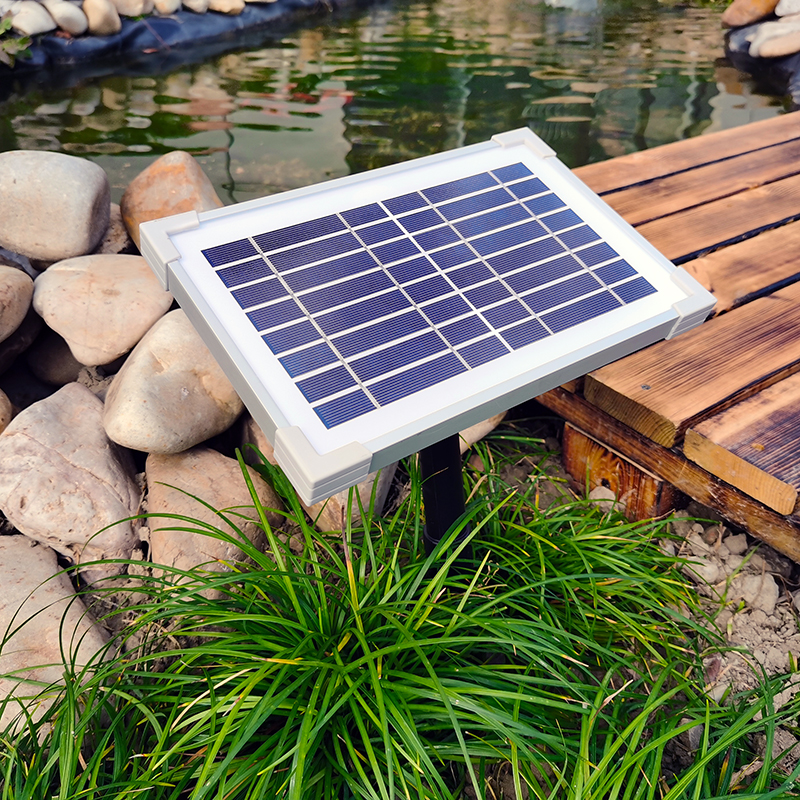

Parameters:
Item No. | GSP3.5-16 |
Peak power | 3.5 W |
Peak power voltage | 8.16 V |
Peak power current | 0.43 A |
Open-circuit voltage | 9.92 V |
Short-circuit current | 0.45 A |
Material | Polycrystalline |
Engineering Drawings
A: Dimensions:

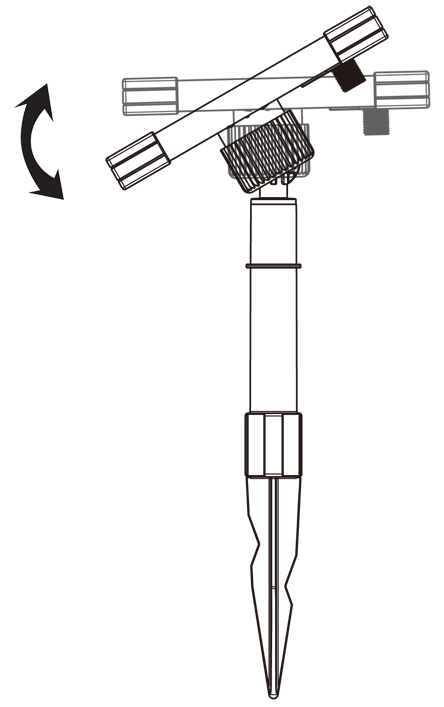

B. Angle Adjustment:

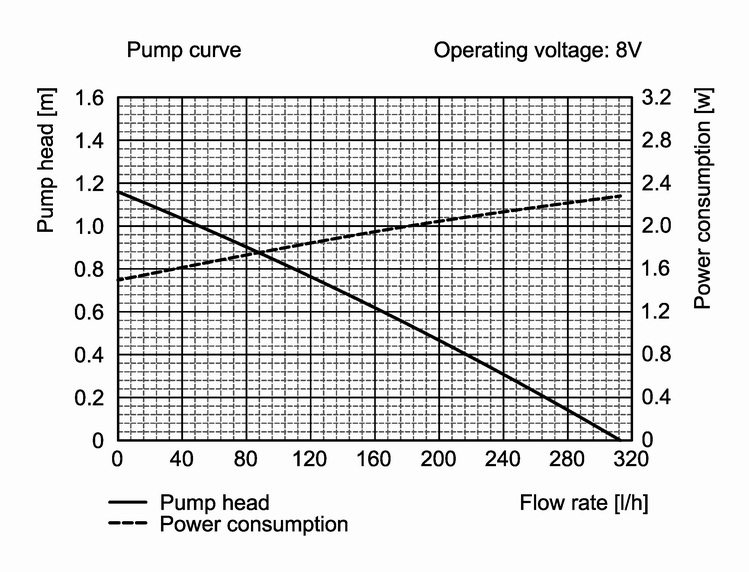

Litres per hour - At various pumping heights (Pump head)
Operating Voltage | @0m | @0.2m | @0.4m | @0.6m | @0.8m | @1.0m | Max. height |
8V | 310LPH | 268LPH | 220LPH | 165LPH | 110LPH | 50LPH | 1.15M |
