890LPH Flow 3M Head D-type Solar Dry Run Protected Fountain Pump_SP25-401215D

890LPH Flow 3M Head D-type Solar Dry Run Protected Fountain Pump_SP25-401215D

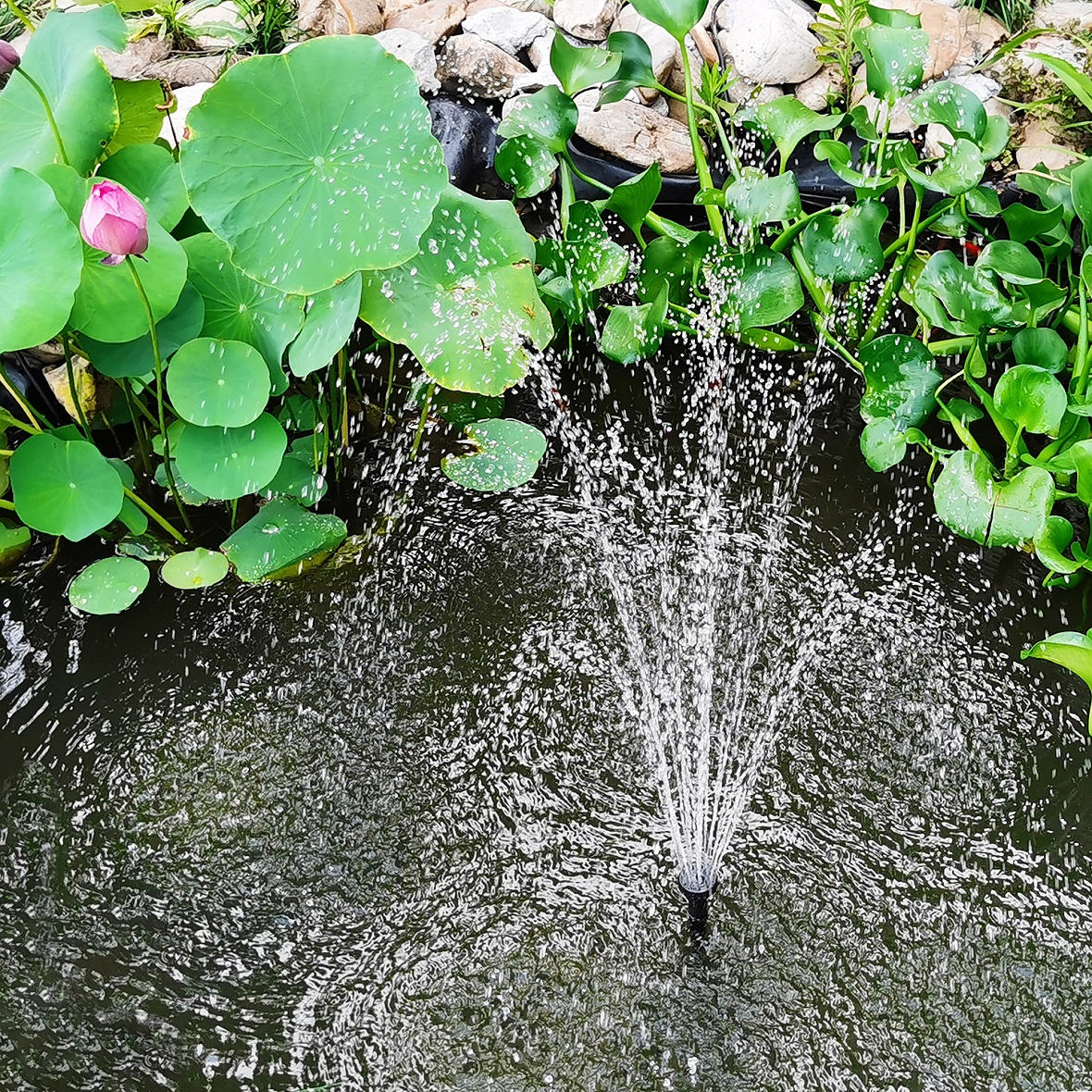

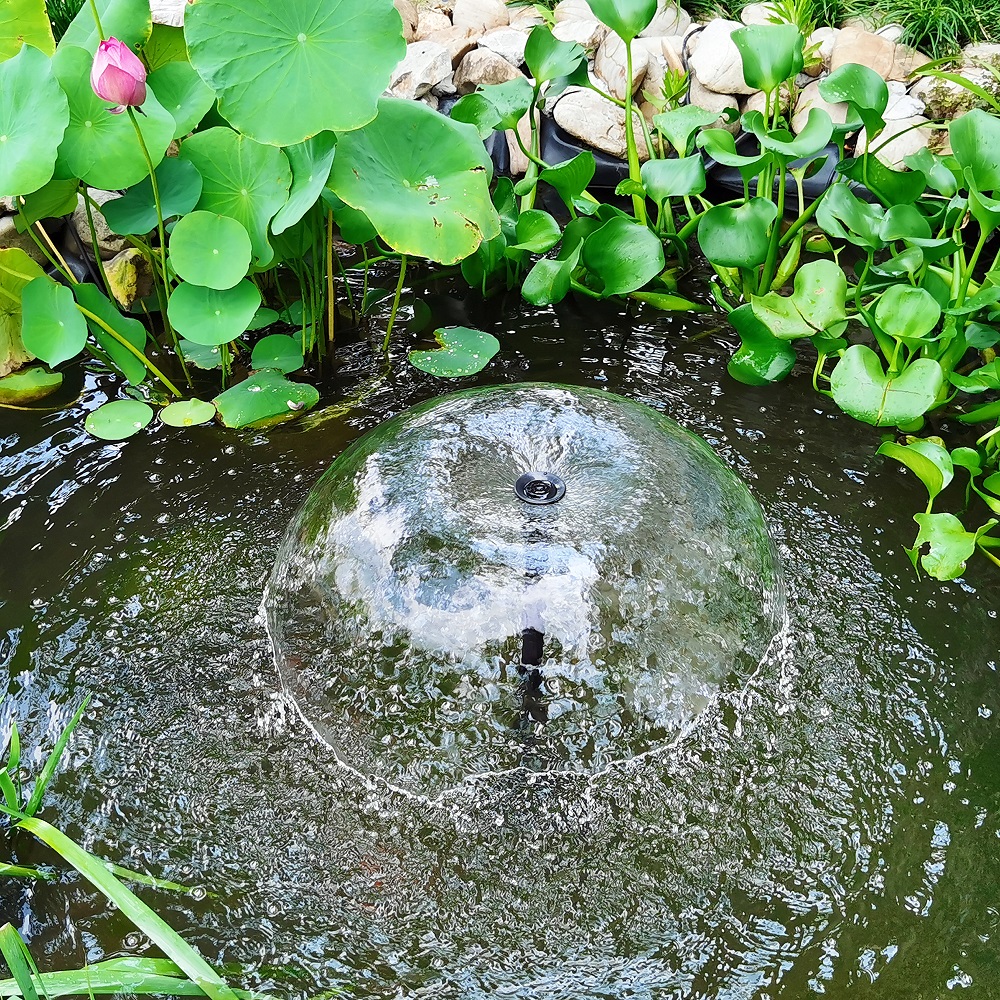

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection to avoid pump burning when running dry.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection to avoid pump burning when running dry.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

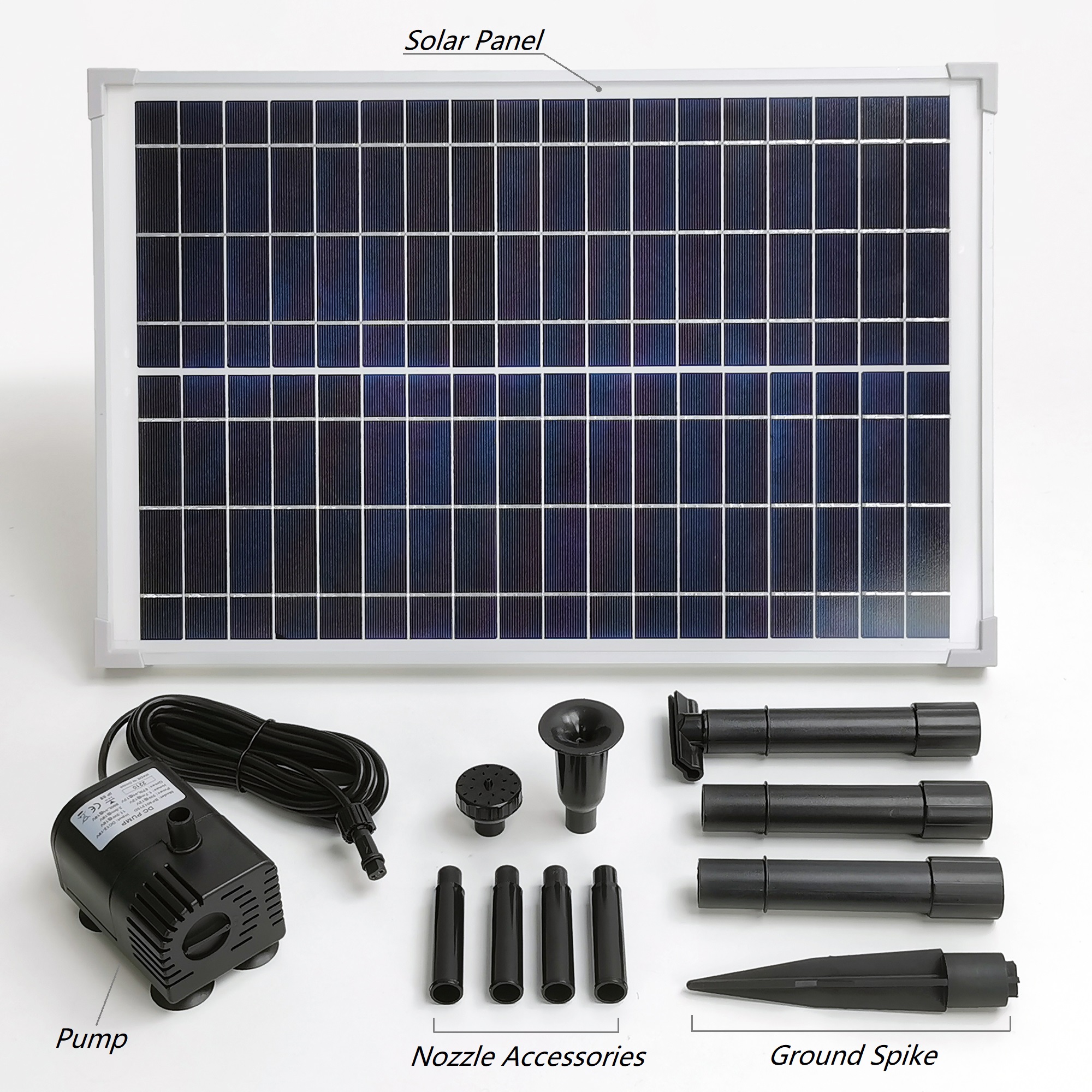

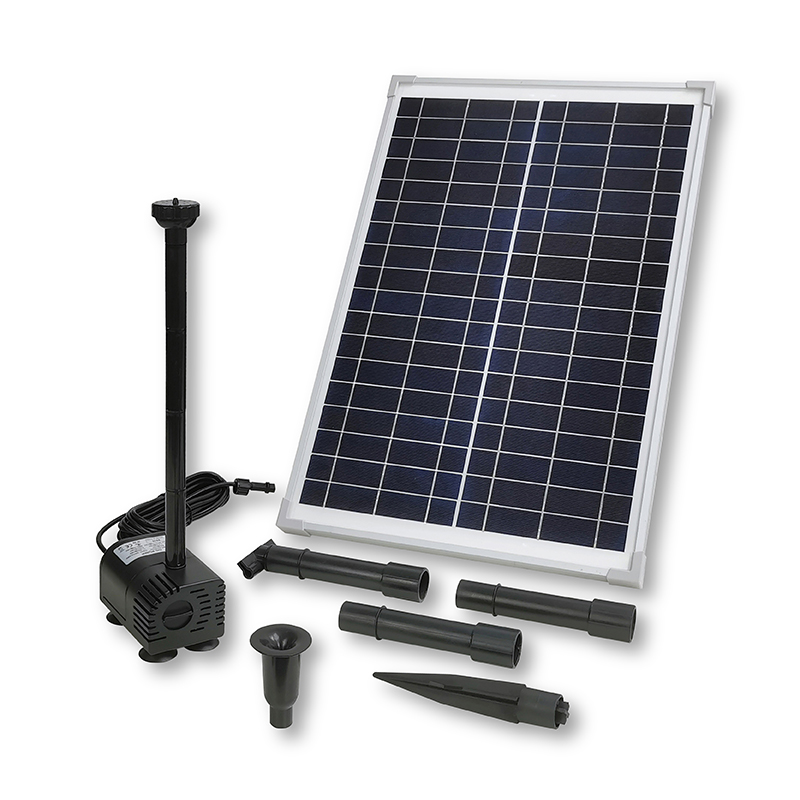

Components

Parameters

Item No.

BP401215D

Maximum pump head

3 M (9.84 FT)

Maximum flow rate

890 LPH ( 235 GPH)

Working voltage

18 V

Maximum power

11.5 W

Cable length

5 M (16.4 FT)

Material

Plastic

Engineer Drawings

A. Dimension:

B. Explosive:

Parameters

Item No.

GSP25-36

Peak power

25 W

Peak power voltage

18.36 V

Peak power current

1.36 A

Open-circuit voltage

22.32 V

Short-circuit current

1.42 A

Material

Polycrystalline

 Engineering Drawing

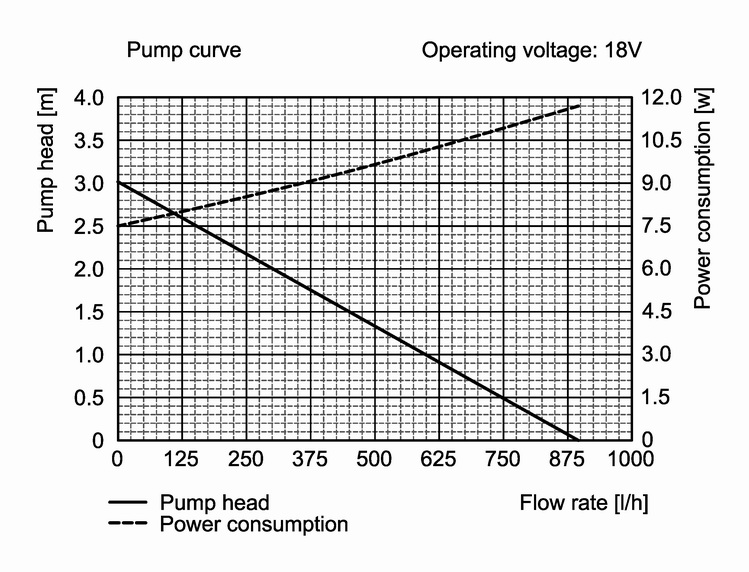

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.5m

@1.0m

@1.5m

@2.0m

@2.5m

Max. height

18V

890LPH

750LPH600LPH

450LPH

300LPH

150LPH

3M
