670LPH Flow 1.7M Head E-type Solar Dry Run Protected Fountain Pump_SP12-401215E

670LPH Flow 1.7M Head E-type Solar Dry Run Protected Fountain Pump_SP12-401215E

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection to avoid pump burning when running dry.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection to avoid pump burning when running dry.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

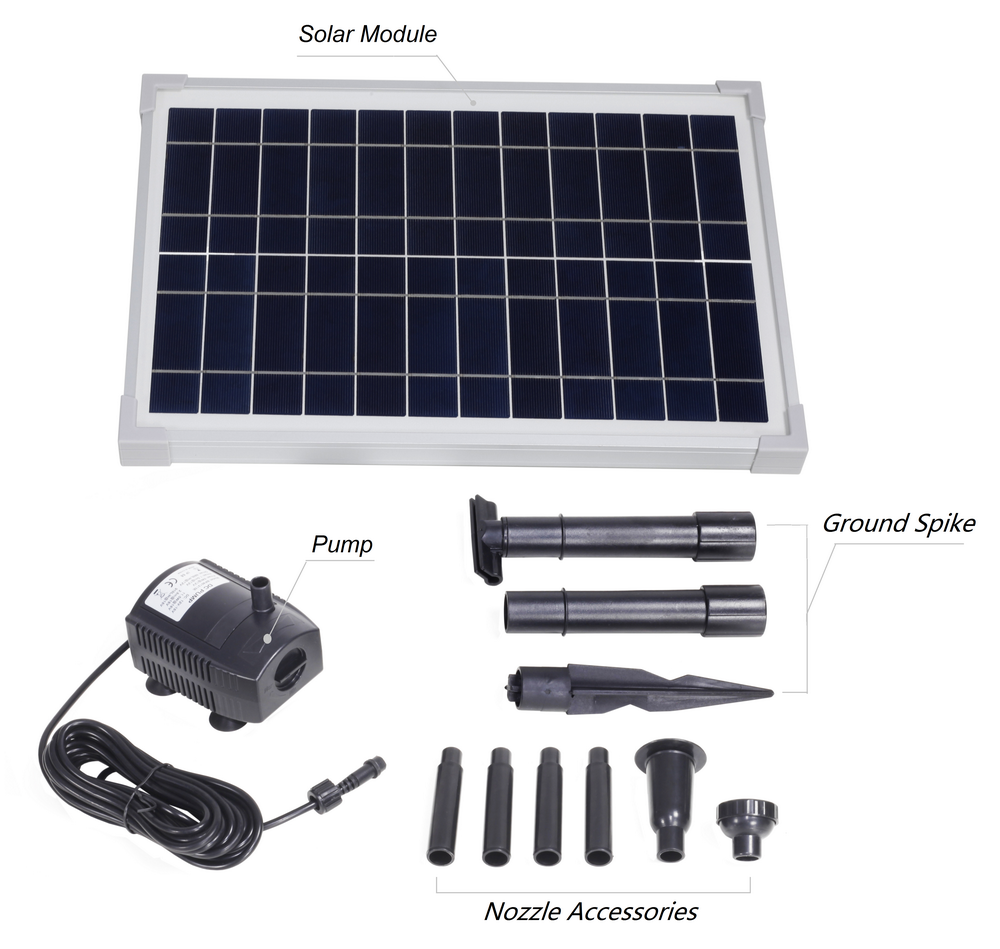

Components

Parameters

Item No.

BP401215E

Maximum pump head

1.7 M (5.6 FT)

Maximum flow rate

670 LPH (177 GPH)

Working voltage

12 V

Maximum power

5.0 W

Connection outlet

13 MM

Cable length

5 M (16.4 FT)

Material

Plastic

Engineering Drawings

A. Dimension:

B. Explosive:

Parameters

Item No.

GSP12-36

Peak power

12 W

Peak power voltage

18.36 V

Peak power current

0.65 A

Open-circuit voltage

22.32 V

Short-circuit current

0.68 A

Material

Polycrystalline

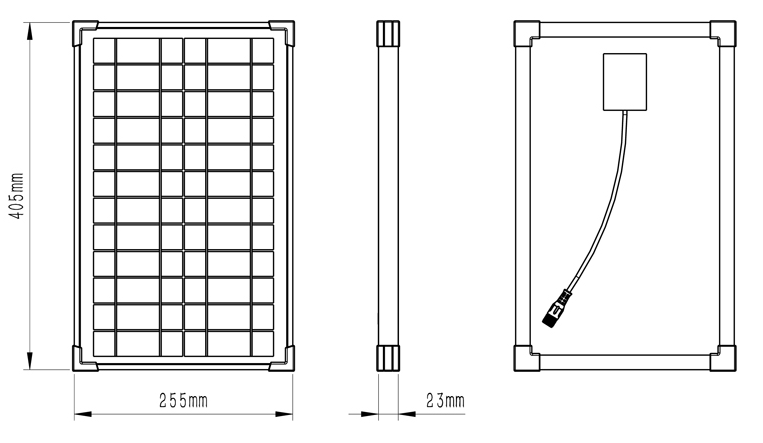

Engineering Drawings

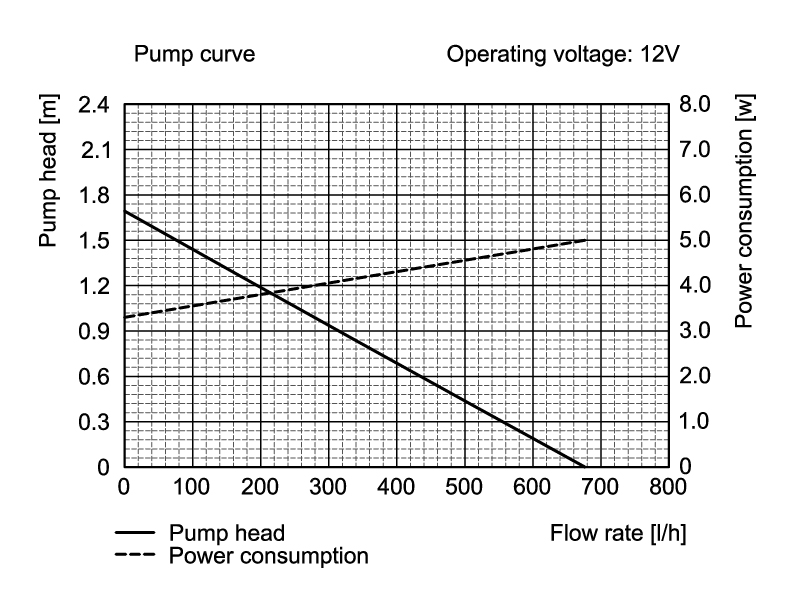

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.3m

@0.6m

@0.9m

@1.2m

@1.5m

Max. height

12V

670LPH

550LPH430LPH310LPH190LPH70LPH

1.7M
