700LPH Flow 1.6M Head D-type Solar Dry Run Protected Fountain Pump with Filter Box

700LPH Flow 1.6M Head D-type Solar Dry Run Protected Fountain Pump with Filter Box_SP12-401209D-F

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Filter box protects pump from being blocked by pond debris and helps keep pond water clean.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection to avoid pump burning when running dry.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

List price：￥ 0.00

Price：￥ 0.00

Item Number：

SP12-401209D-F

Product overview

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection to avoid pump burning when running dry.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

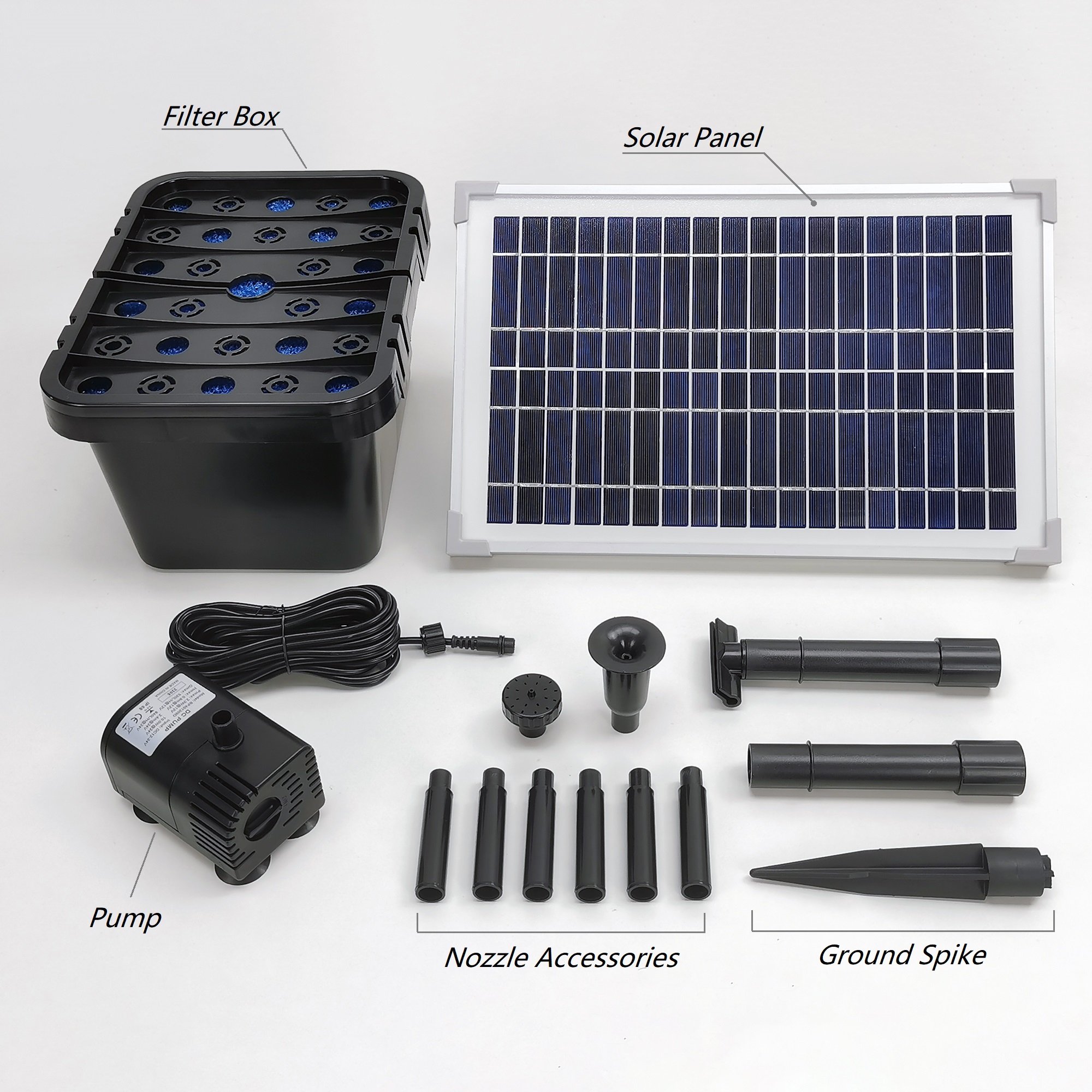

Components

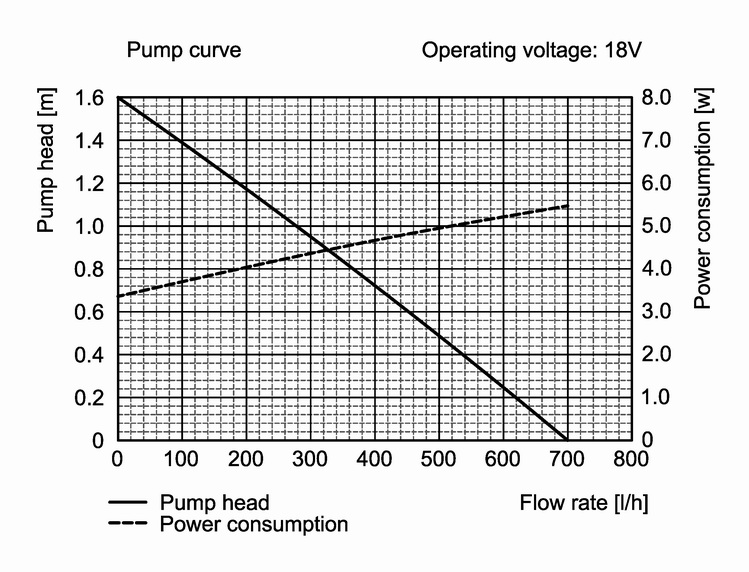

Parameters

Item No.	BP401209D
Maximum pump head	1.6 M (5.2 FT)
Maximum flow rate	700 LPH ( 184.9 GPH)
Working voltage	18 V
Maximum power	5.5 W
Cable length	5 M (16.4 FT)
Material	Plastic

Engineering Drawings

A. Dimension:

B. Explosive:

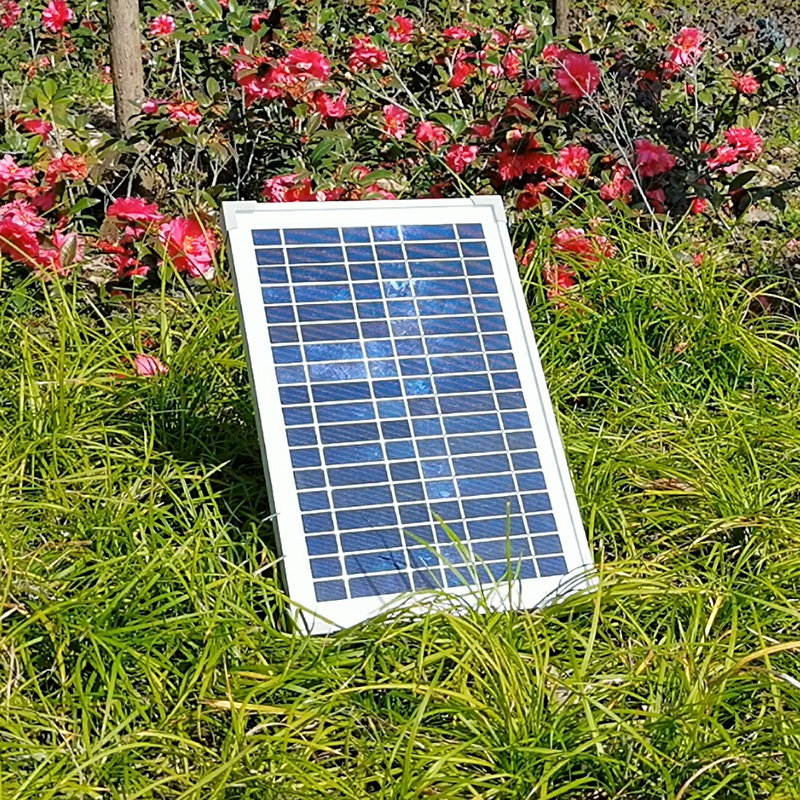

Parameters

Item No.	GSP12-36
Peak power	12 W
Peak power voltage	18.36 V
Peak power current	0.65 A
Open-circuit voltage	22.32 V
Short-circuit current	0.68 A
Material	Polycrystalline

Engineering Drawings

Parameters

Item No.	SPF-6.5
Quantity of side foam filters	Two pieces
Quantity of flat foam filters	Two pieces
Quantity of mesh bags for biofiltration material	Two pieces
Biofiltration material	Not available, to be obtained from a third party
