700LPH Flow 1.6M Head D-type Solar Dry Run Protected Fountain Pump_SP12-401209D

700LPH Flow 1.6M Head D-type Solar Dry Run Protected Fountain Pump_SP12-401209D

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection to avoid pump burning when running dry.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection to avoid pump burning when running dry.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

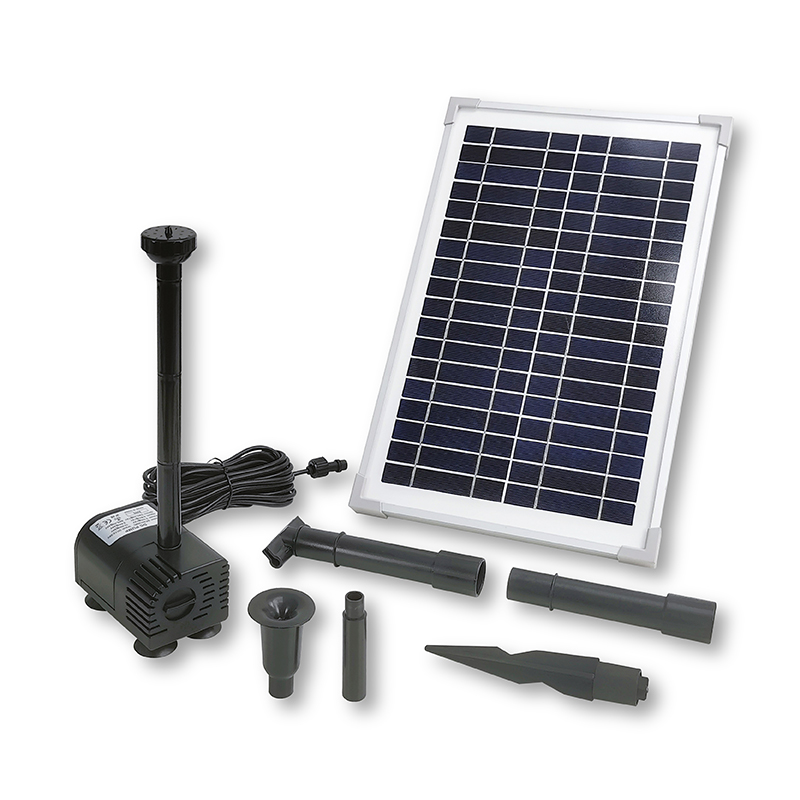

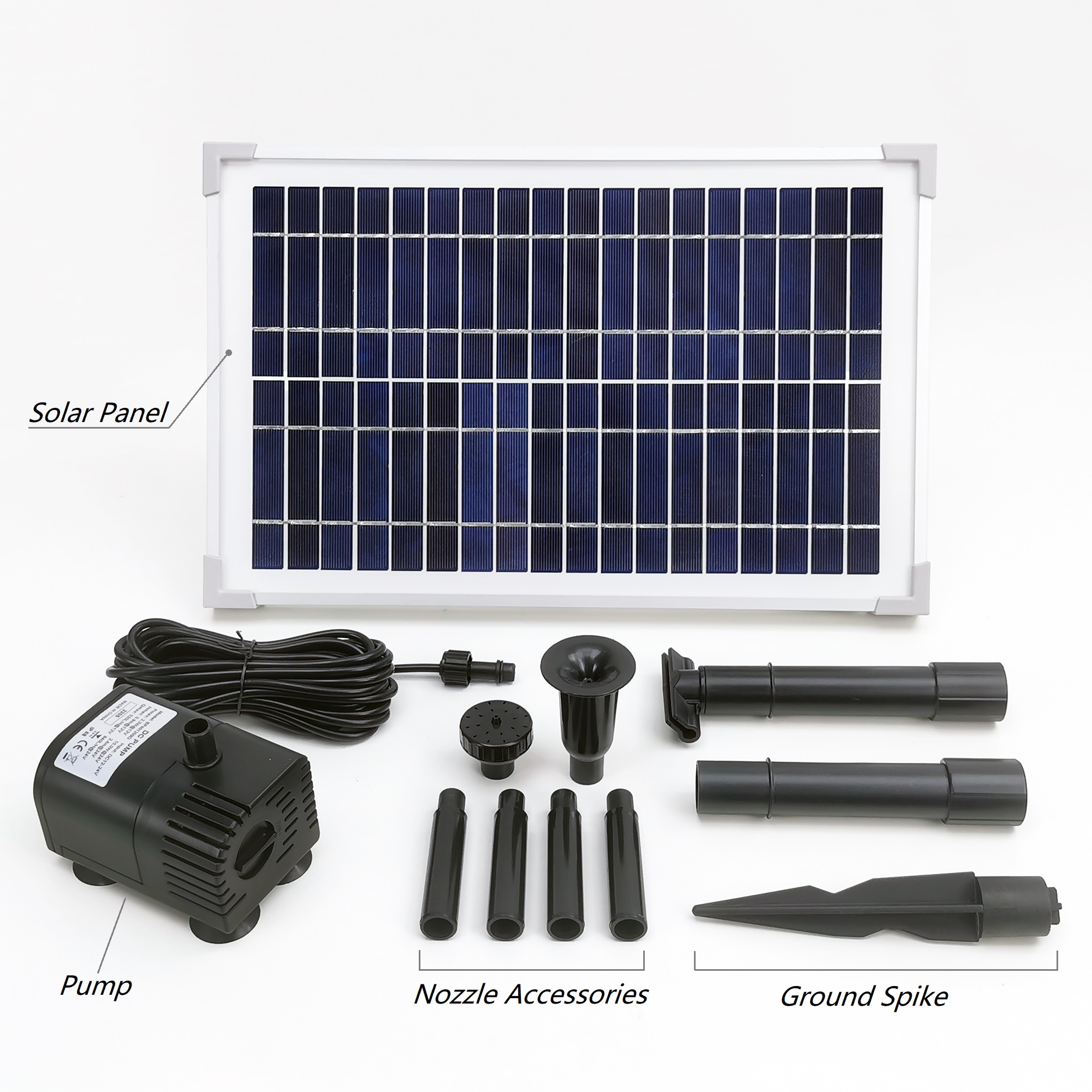

Components

Parameters

Item No.

BP401209D

Maximum pump head

1.6 M (5.2 FT)

Maximum flow rate

700 LPH ( 185 GPH)

Working voltage

18 V

Maximum power

5.5 W

Cable length

5 M (16.4 FT)

Material

Plastic


Engineering Drawings

A. Dimension:

B. Explosive:

Parameters

Item No.

GSP12-36

Peak power

12 W

Peak power voltage

18.36 V

Peak power current

0.65 A

Open-circuit voltage

22.32 V

Short-circuit current

0.68 A

Material

Polycrystalline

Engineering Drawings


Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.2m

@0.4m

@0.8m

@1.2m

      @1.4m

Max. height

18V

700LPH

620LPH540LPH

360LPH

180LPH

100LPH

1.6M
