200LPH Flow 0.7M Head Solar Fountain Pump with Economical Solar Panel_SP2-320607A

200LPH Flow 0.7M Head Solar Fountain Pump with Economical Solar Panel_SP2-320607A

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Solar panel with economical plastic frame.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Solar panel with economical plastic frame.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

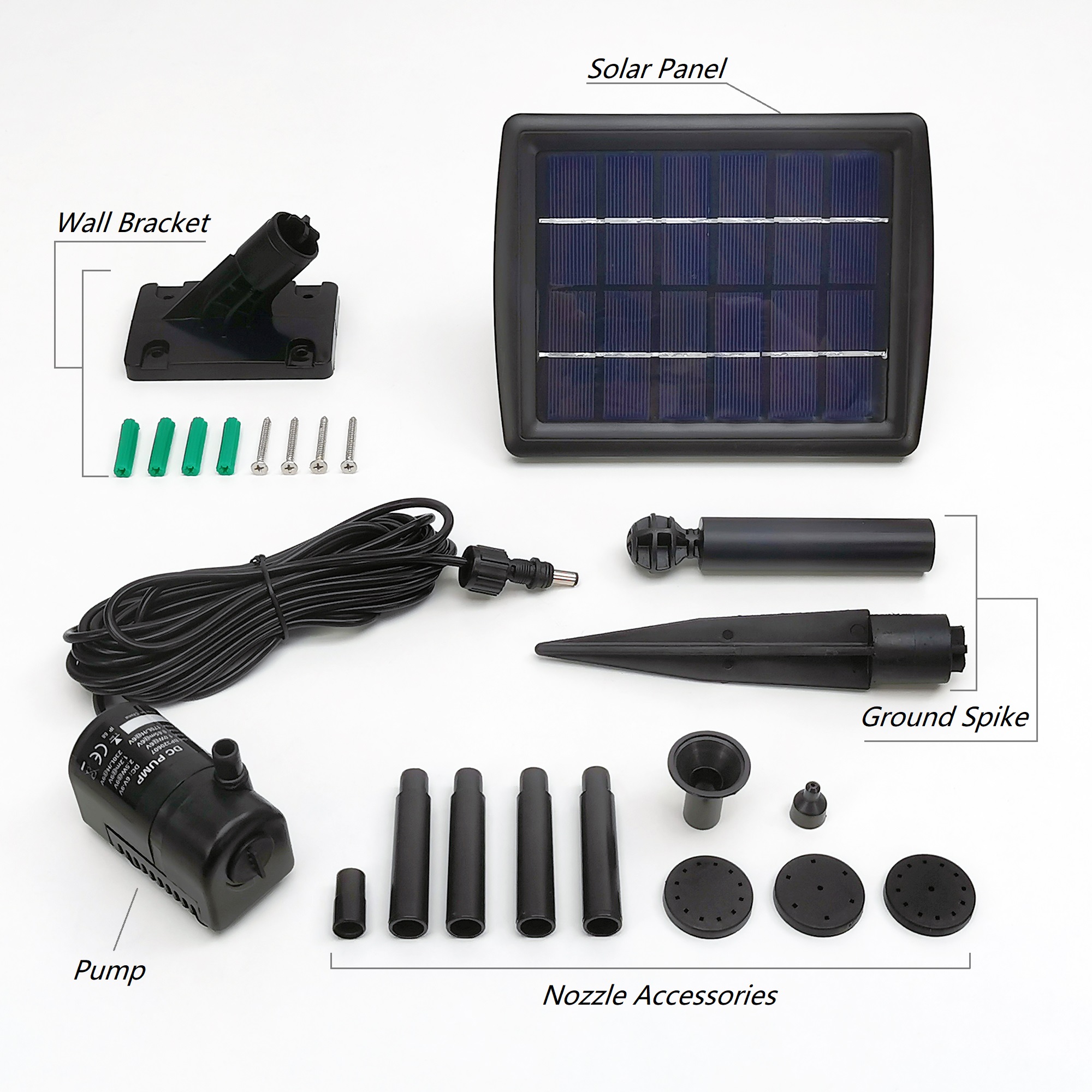

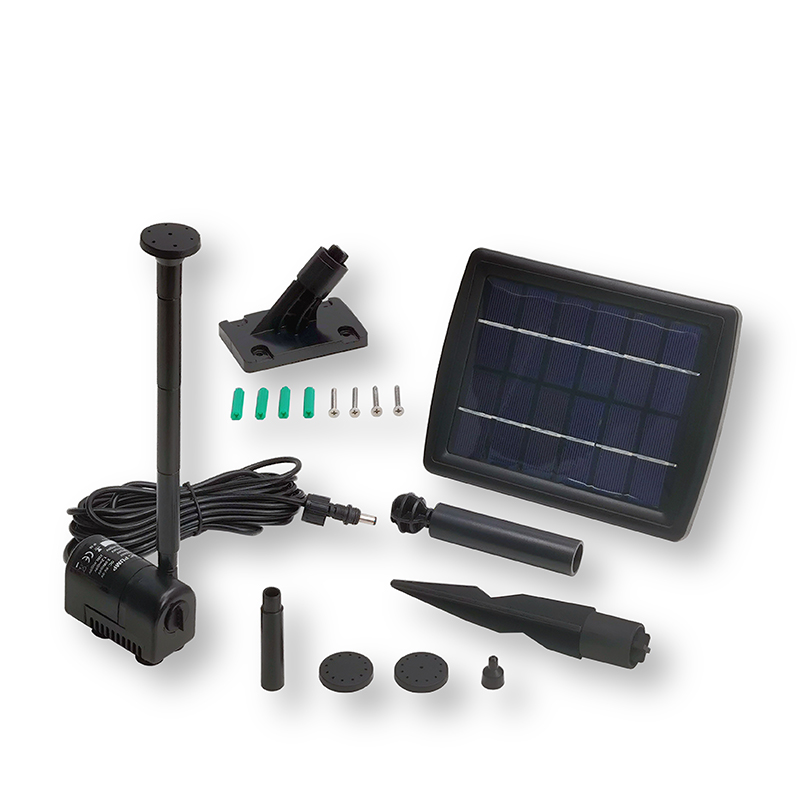

Components

Parameters

Item No.

BP320607

Maximum pump head

0.7M (2.3 FT)

Maximum flow rate

200 LPH (52.8 GPH)

Working voltage

6 V

Maximum power

0.9 W

Cable length

5 M (16.4 FT)

Material

Plastic


Engineering Drawings




Parameters

Item No.

GSP2-12A

Peak power

2 W

Peak power voltage

6.12 V

Peak power current

0.33  A

Open-circuit voltage

7.44 V

Short-circuit current

0.34  A

Material

Polycrystalline

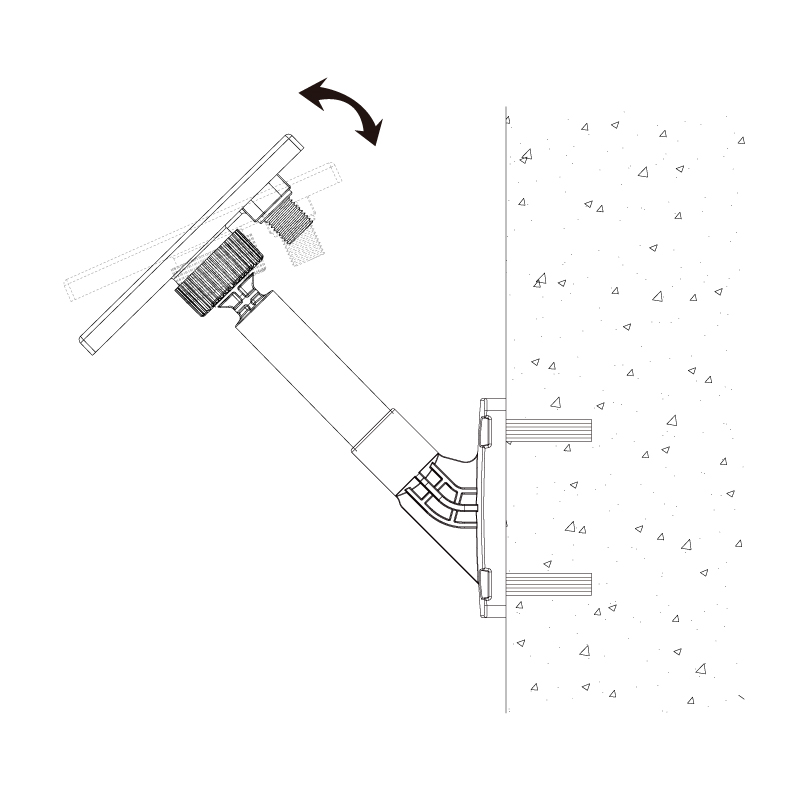

 Engineering Drawings

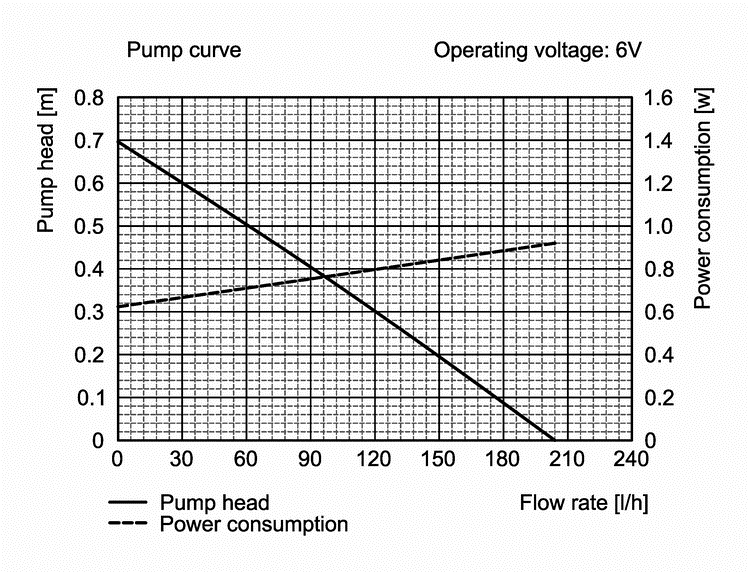

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.2m

@0.4m

@0.6m

     @0.8m

Max. height

6V

200LPH

150LPH90LPH30LPH0

0.7M
