*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.
*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.

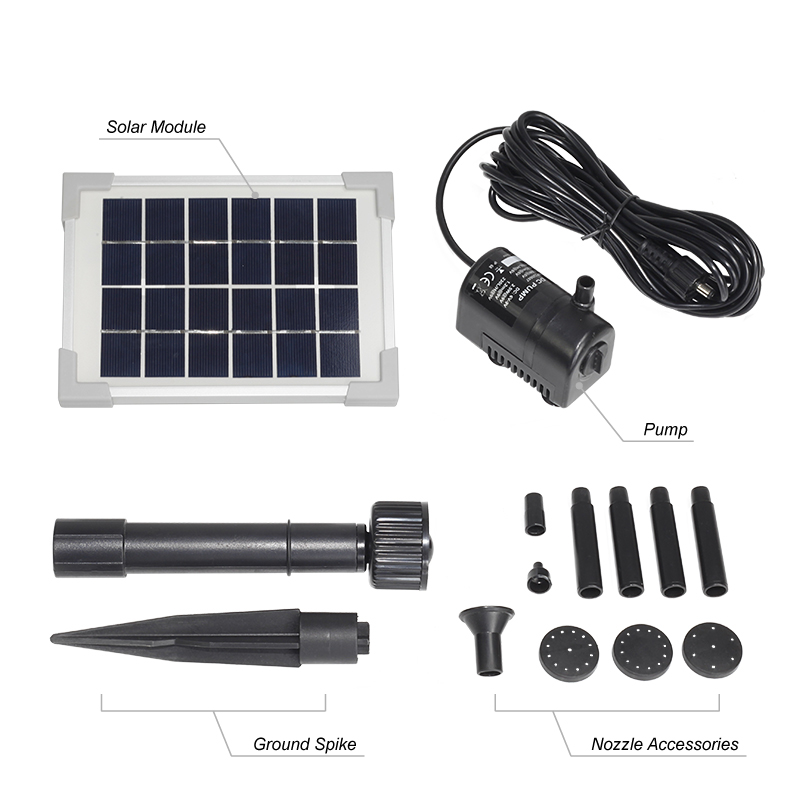

Components:
Parameters
Item No. | BP320607 |
Maximum pump head | 0.7 M (27.5 INCHES) |
Maximum flow rate | 200 L/H (52.8 GPH) |
Working voltage | 6 V |
Maximum power | 0.9 W |
Cable length | 5 M (16.4 FT) |
Material | Plastic |
Engineer Drawings
A. Dimension:
B. Explosive:
Parameters
Item No. | GSP2.5-12 |
Peak power | 2.5 W |
Peak power voltage | 6.12 V |
Peak power current | 0.41 A |
Open-circuit voltage | 7.44 V |
Short-circuit current | 0.43 A |
Material | Polycrystalline |
Engineering Drawing

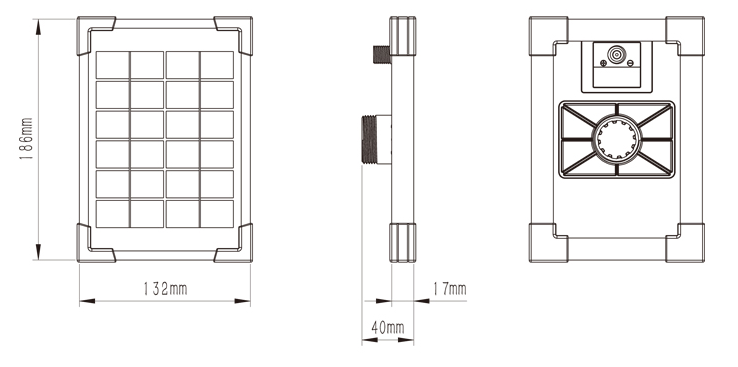

A. Dimension:

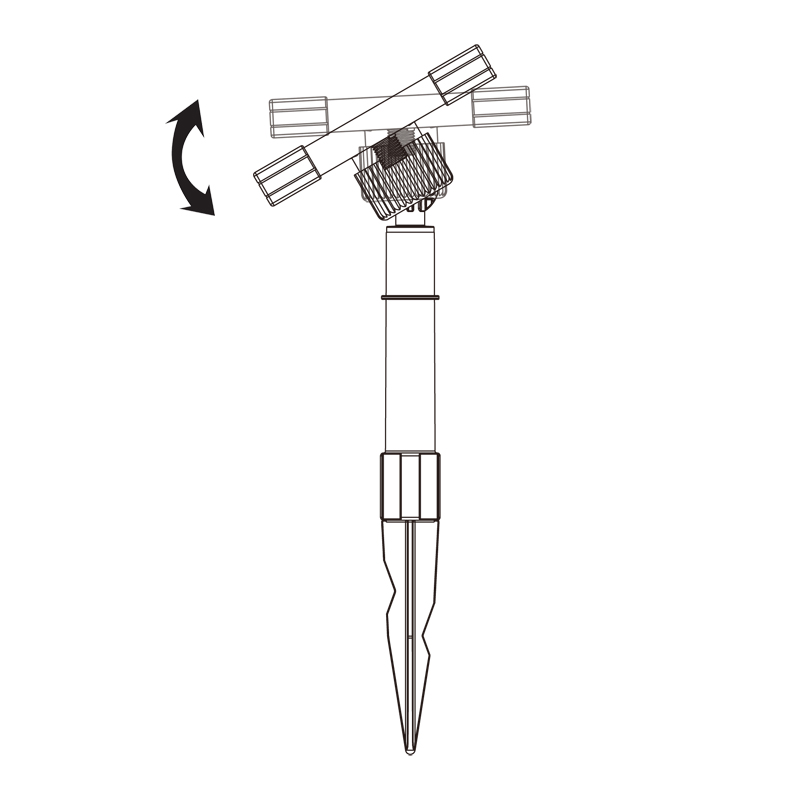

B. Angle adjustment:

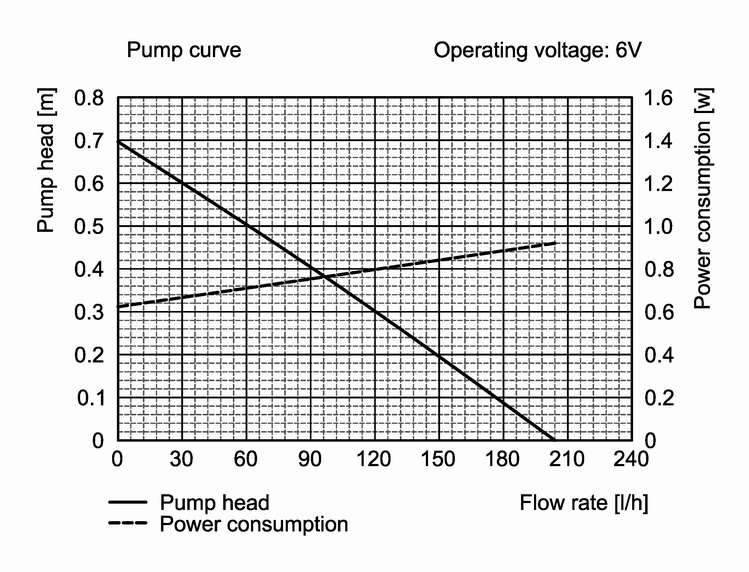

Litres per hour - At various pumping heights (Pump head)
Operating Voltage | @0m | @0.2m | @0.4m | Max. height |
6V | 200LPH | 150LPH | 90LPH | 0.7M |
