130LPH Flow 0.65M Head Solar Fountain Pump_SP1.8-320606

130LPH Flow 0.65M Head Solar Fountain Pump_SP1.8-320606

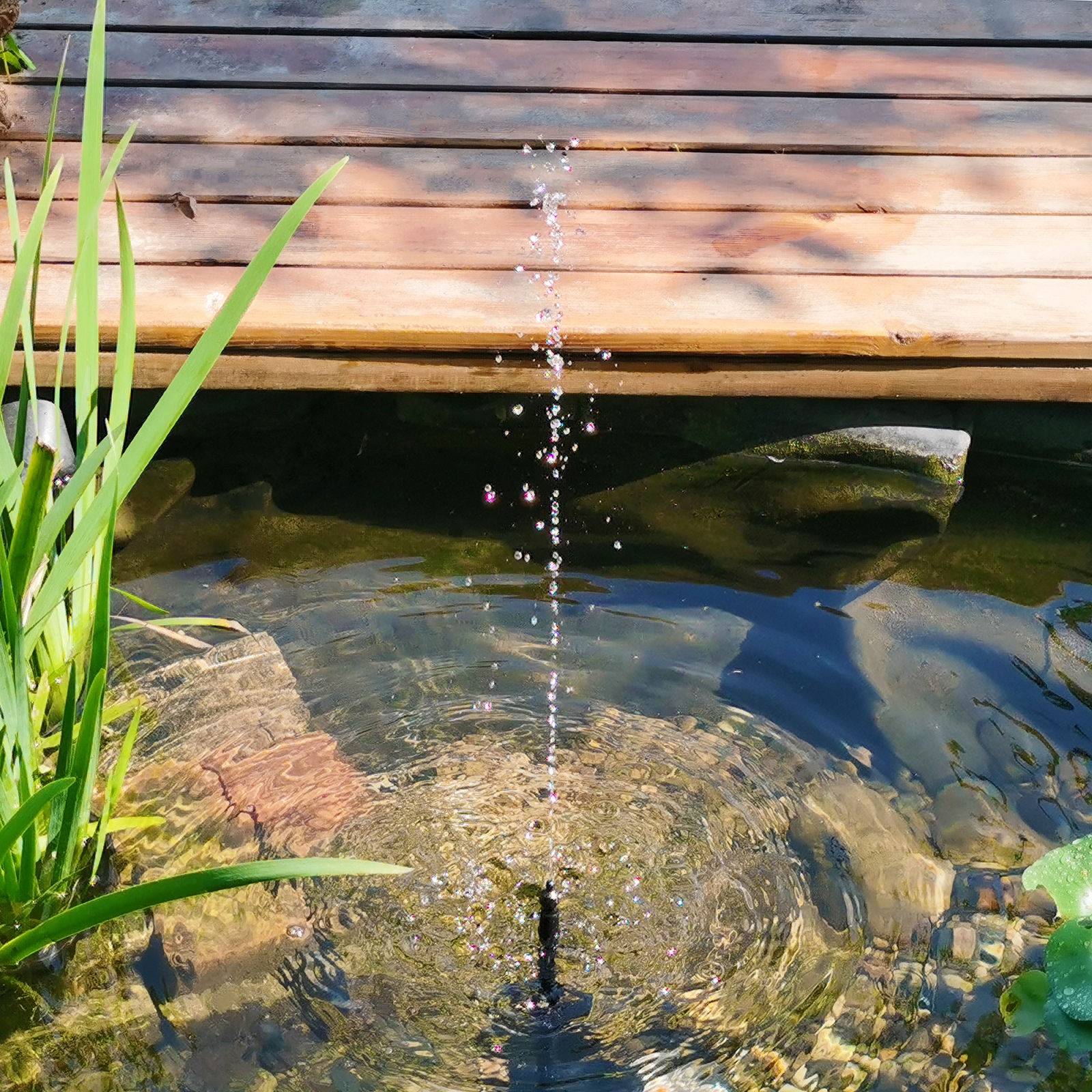

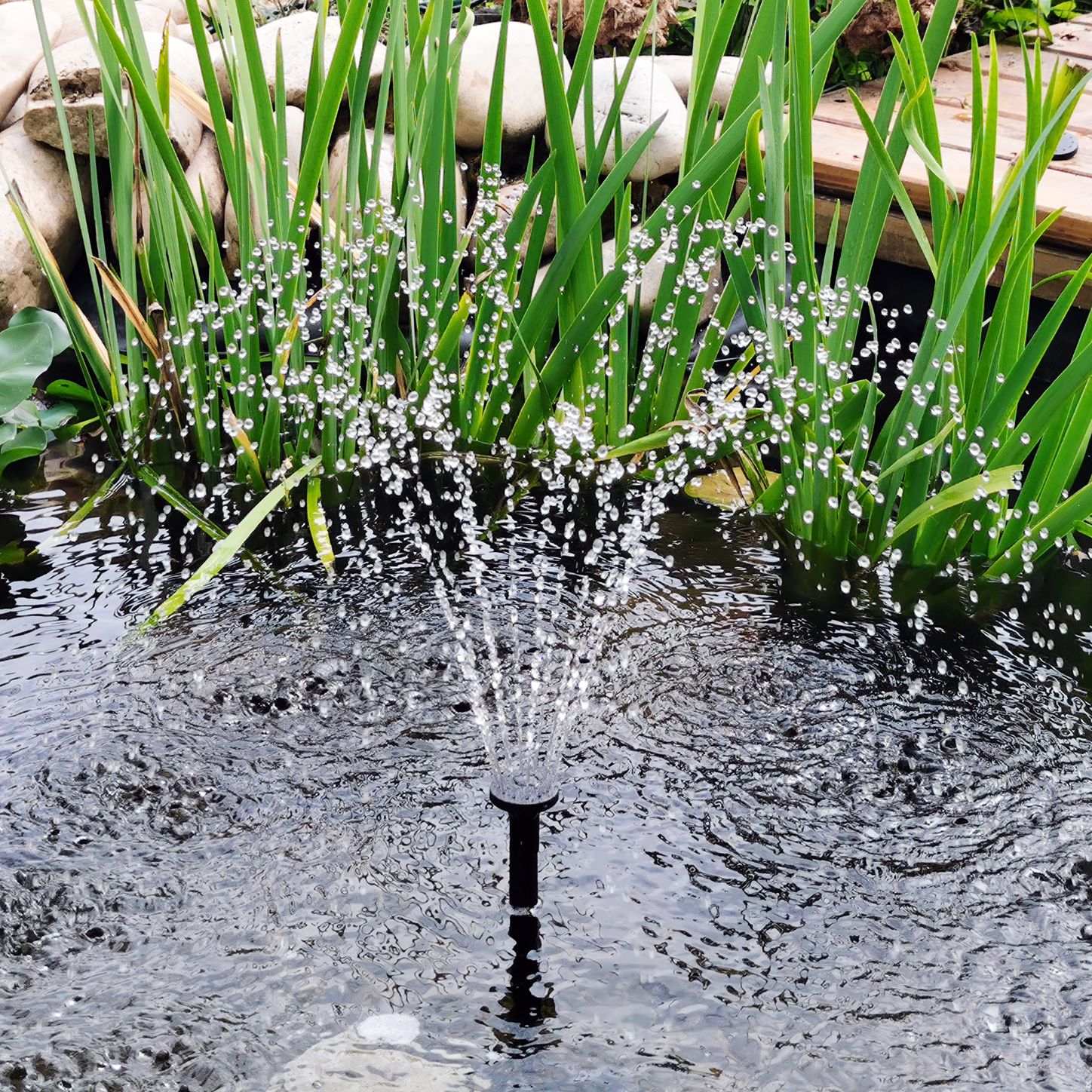

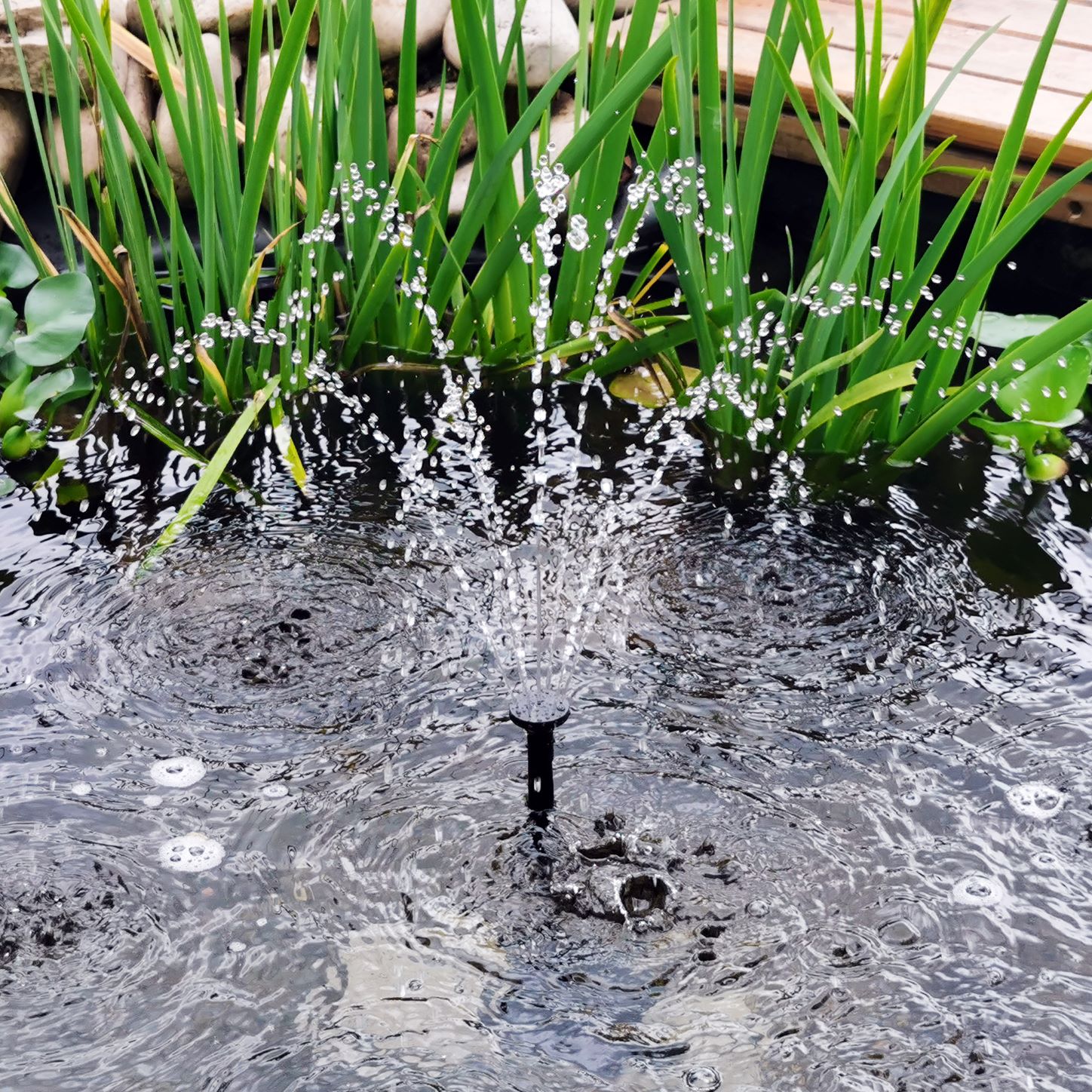

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Solar panel with economical plastic frame.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

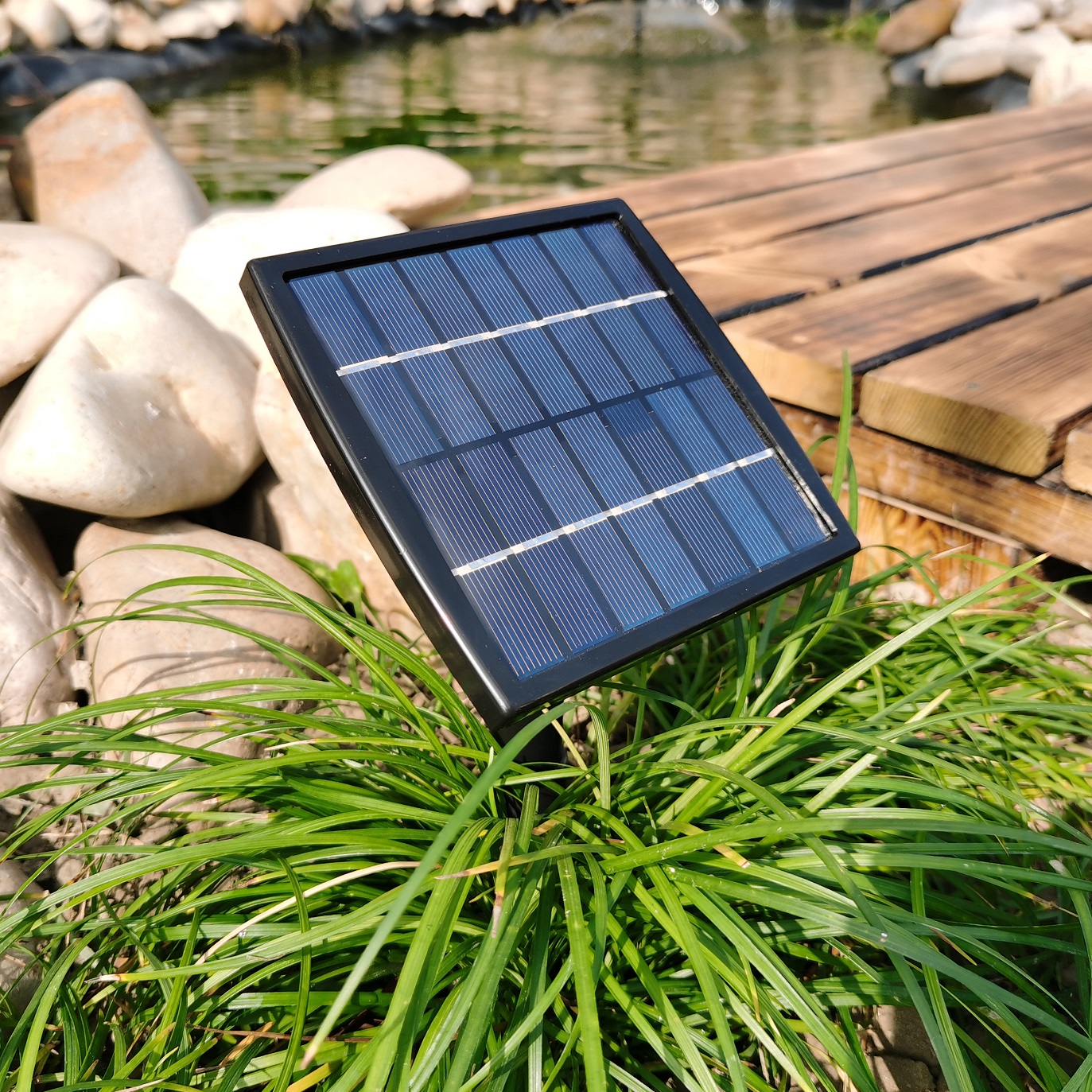

*Solar panel with economical plastic frame.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

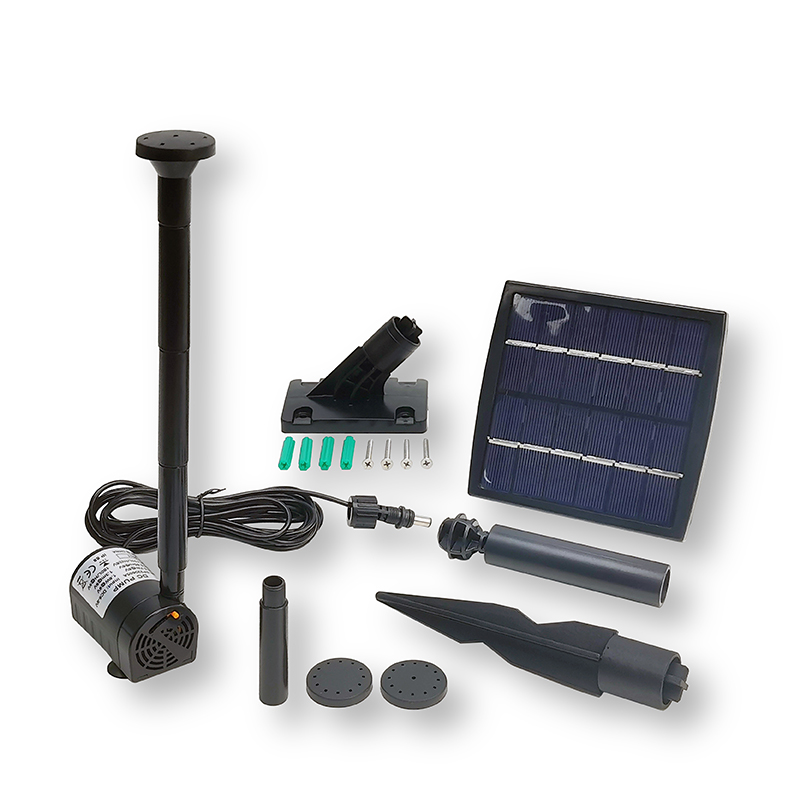

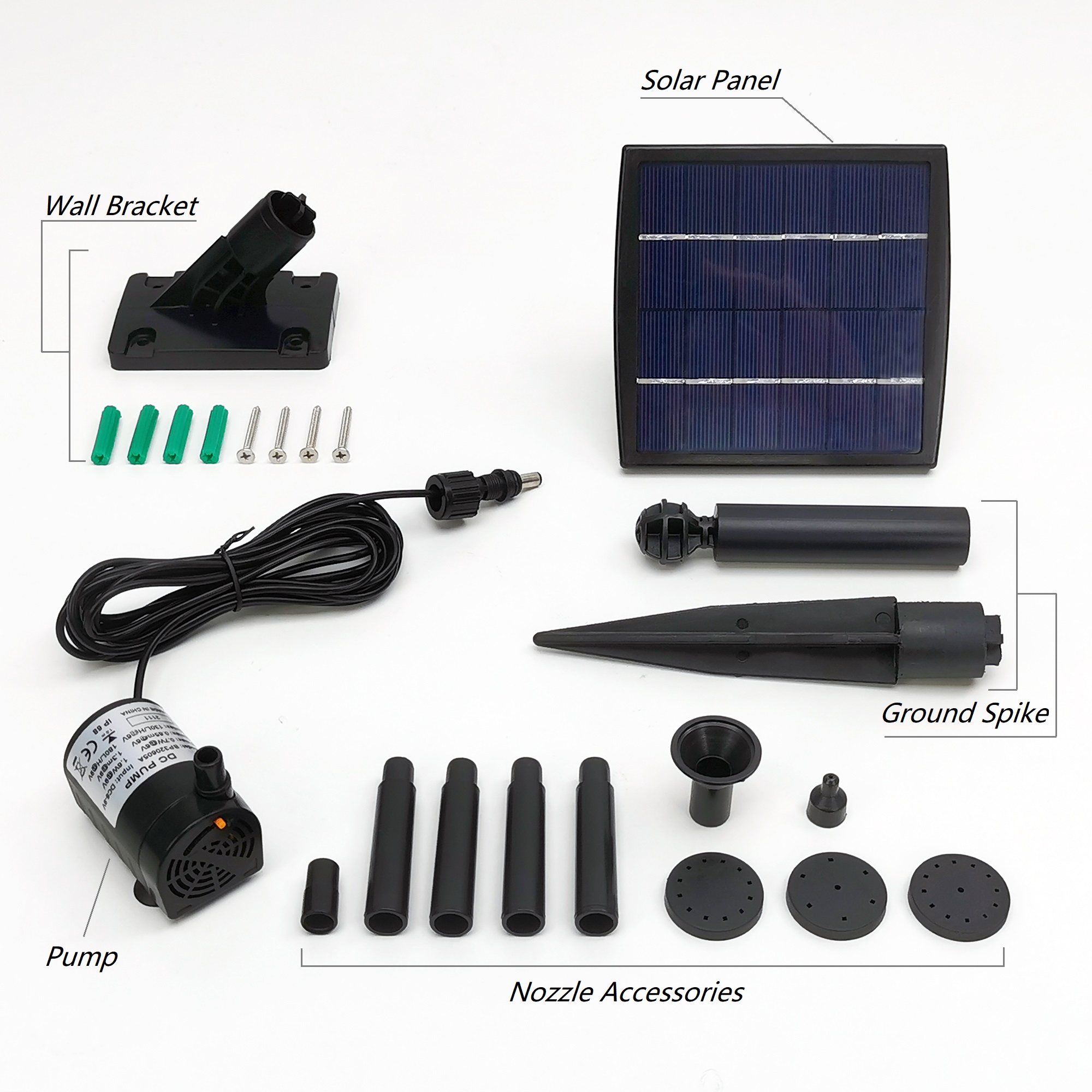

Components

Parameters

Item No.

BP320606

Maximum pump head

0.65M (2.1 FT)

Maximum flow rate

130 LPH (34.3 GPH)

Working voltage

6 V

Maximum power

0.7 W

Cable length

3 M (9.8 FT)

Material

Plastic

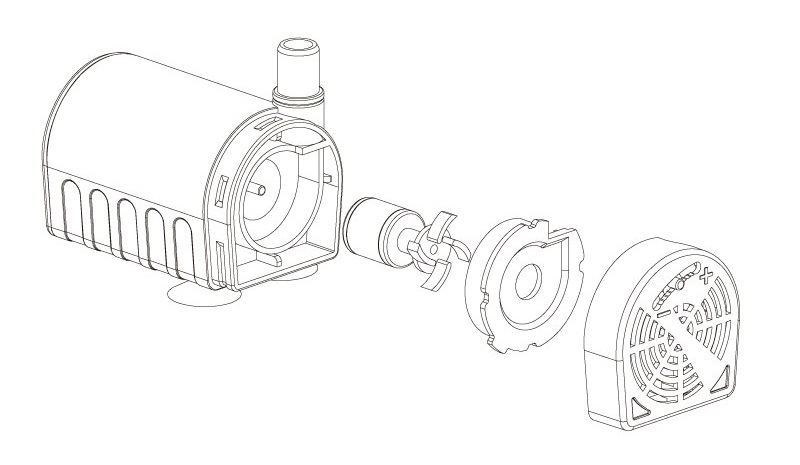

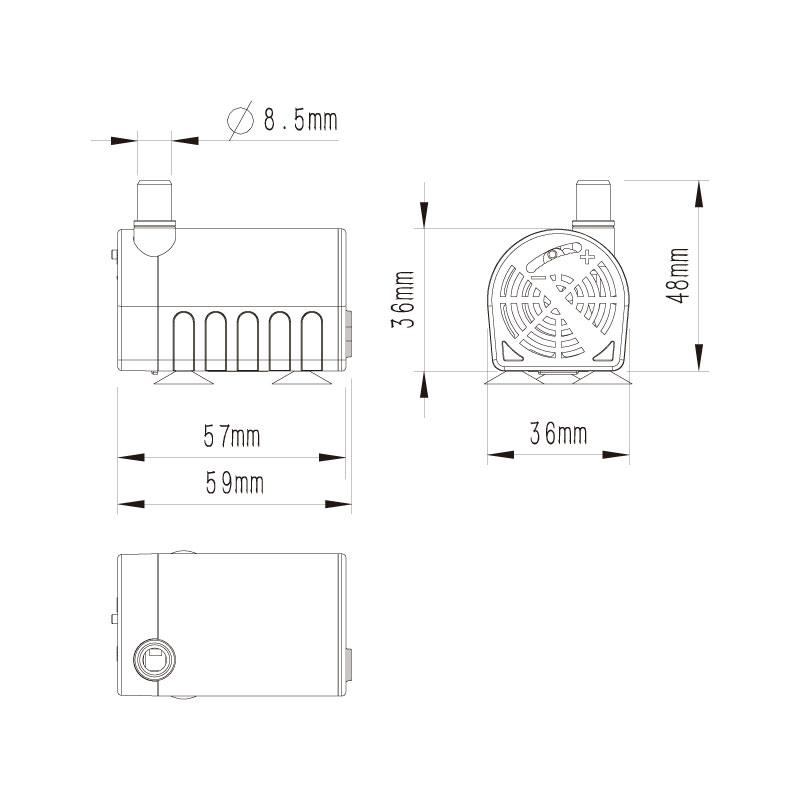

Engineering Drawings






Parameters

Item No.

GSP1.8-12

Peak power

1.8 W

Peak power voltage

6.12 V

Peak power current

0.29  A

Open-circuit voltage

7.44 V

Short-circuit current

0.31  A

Material

Polycrystalline


Engineering Drawings

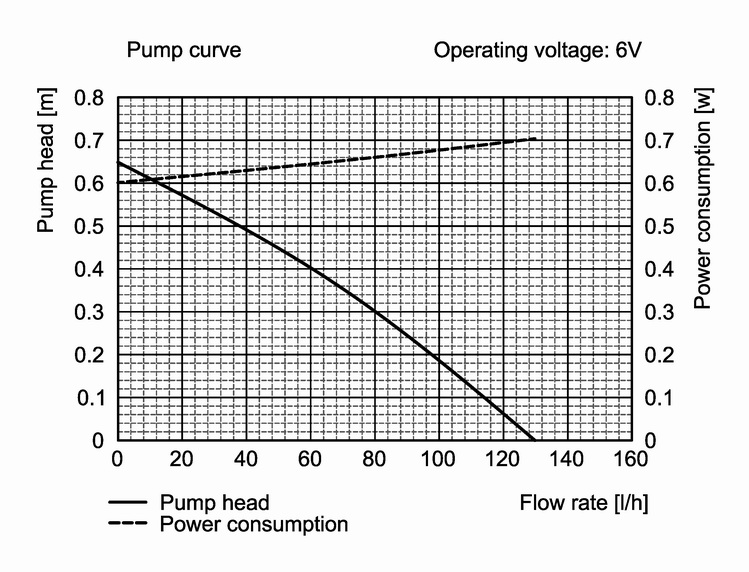

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.2m

@0.4m

@0.6m

Max. height

6V

130LPH

96LPH60LPH

12LPH

0.65M
