130LPH Flow 0.65M Head Solar Floating Pond Fountain_SP1.8-320605A

130LPH Flow 0.65M Head Solar Floating Pond Fountain_SP1.8-320605A

*Ideal for pumping pond floating fountain to areate and landscape small ponds.

*Solar powered with solar cells embedded on the aesthetically appealing housing, environmental friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Installation free,runs whenever floating on water if there is enough sun shine.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.


￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping pond floating fountain to areate and landscape small ponds.

*Solar powered with solar cells embedded on the aesthetically appealing housing, environmental friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Installation free,runs whenever floating on water if there is enough sun shine.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.


Components



Parameters

Item No.

BP320606

Maximum pump head

0.65M (2.1 FT)

Maximum flow rate

130 LPH (34.3 GPH)

Working voltage

6 V

Maximum power

0.7 W

Cable length

3 M (9.8 FT)

Material

Plastic


Engineering Drawings






Embedded Solar Panel Parameters:

Peak power

1.8 W

Peak power voltage

6.12 V

Peak power current

0.29  A

Open-circuit voltage

7.44 V

Short-circuit current

0.31  A

Material

Polycrystalline

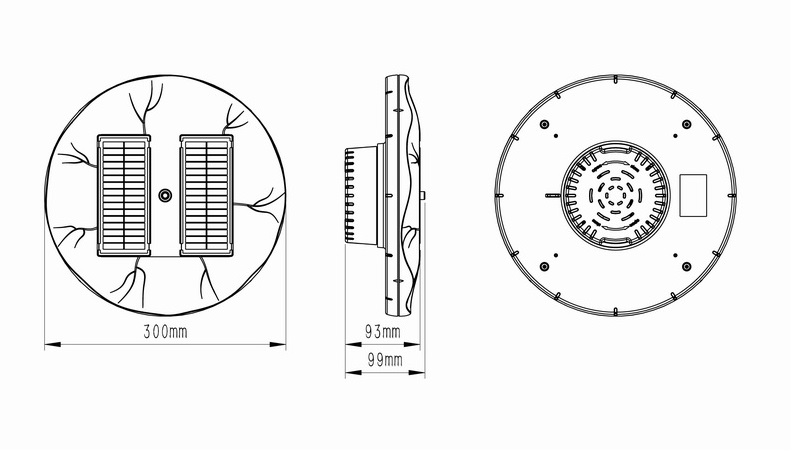

Engineering Drawing:






Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.2m

@0.4m

@0.6m

Max. height

6V

130LPH

96LPH60LPH

12LPH

0.65M
