*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with built-in LiFe battery and can work on demand on overcast days or at nights.
*Robust and durable brushless motor.
*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.
*RoHs, REACH and CE, UKCA certified.
*1 year warranty.
*Ideal for oxygenating ponds distanced from mains power to help build up a healthy eco-system.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Works longer on a daily basis with built-in LiFe battery and can work on demand on overcast days or at nights.
*Robust and durable brushless motor.
*DC diaphragm air pump working at low voltage, born to be safe and power-efficient.
*RoHs, REACH and CE, UKCA certified.
*1 year warranty.

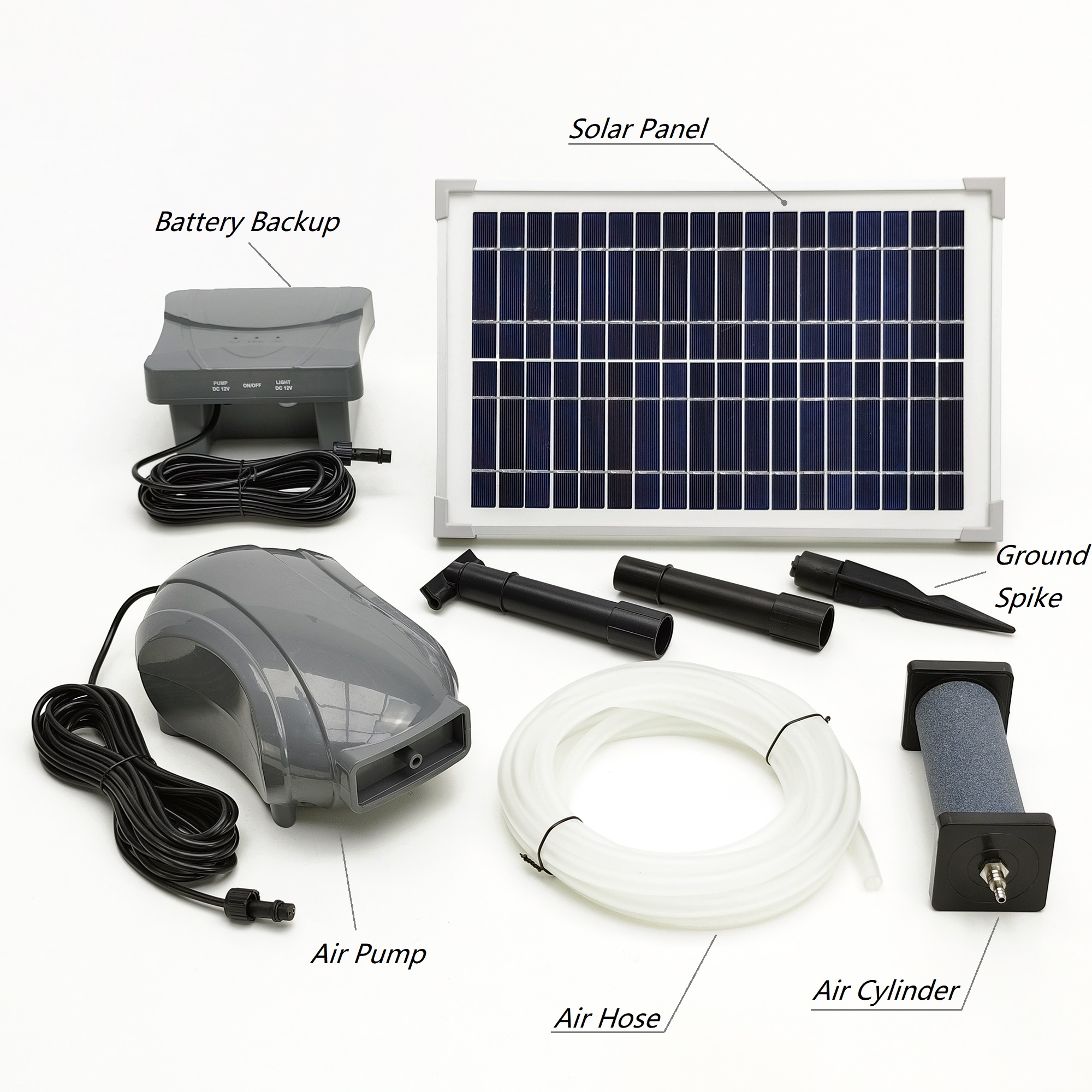

Components
Parameters
Item No. | AP10-5 |
Maximum pressure | 250 mmHg |
Maximum flow rate | 10 LPM |
Operating voltage | 12.8 V |
Motor | Brushless motor |
Pump Cable length | 5 M (16.4 FT) |
Air stone | 30 mm * 5 pcs |
Hose length | 3 M * 5 pcs |
Material | Plastic |
Engineering Drawings
Parameters
Item No. | GSP12-36 |
Peak power | 12 W |
Peak power voltage | 18.36 V |
Peak power current | 0.65 A |
Open-circuit voltage | 22.32 V |
Short-circuit current | 0.68 A |
Material | Polycrystalline |
Engineering Drawings
Parameters
Item No. | SBB12.8-4F |
Rechargeable battery type | LiFePO4 |
Rechargeable battery capacity | 12.8 V, 4000mAh |
Charging voltage | DC 15V to 18V |
Output voltage | DC 12.8 V |
Maximum input power | 50 W |
Maximum power for pump output port | 20 W |
Maximum power for light output port | 5 W |
Engineering Drawing
