*Ideal for watering plants in the plant bed, green house and on the balcony.
*Solar powered with no need for wiring work, environmental friendly and safe.
*Automatic watering twice a day for a configurable duration.

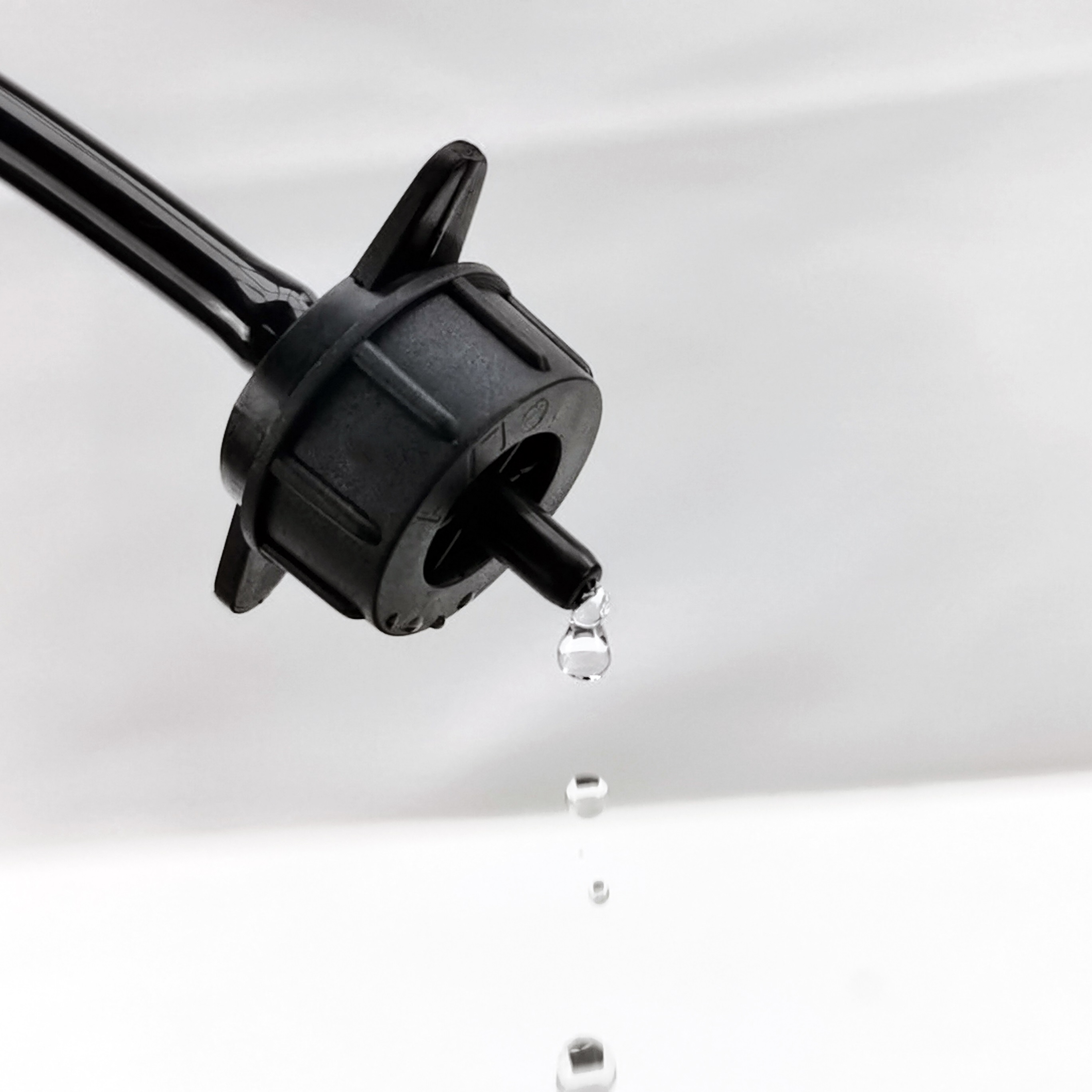

*20 to 50 trickle irrigation drippers, minimize the water consumption.
*RoHs, REACH and CE, UKCA certified.
*1 year warranty.
*Ideal for watering plants in the plant bed, green house and on the balcony.
*Solar powered with no need for wiring work, environmental friendly and safe.
*Automatic watering twice a day for a configurable duration.
*20 to 50 trickle irrigation drippers, minimize the water consumption.
*RoHs, REACH and CE, UKCA certified.
*1 year warranty.
Parameters
Maximum pressure | 60PSI |
Maximum drippers | 50 pcs |
Minimum drippers | 20 pcs |
Suitable irrigating area | 10 to 20 SQM |
Max. daily watering volume per dripper | 0.67 Liters per day |
Max. daily watering volume all drippers | 21.3 Liters per day |

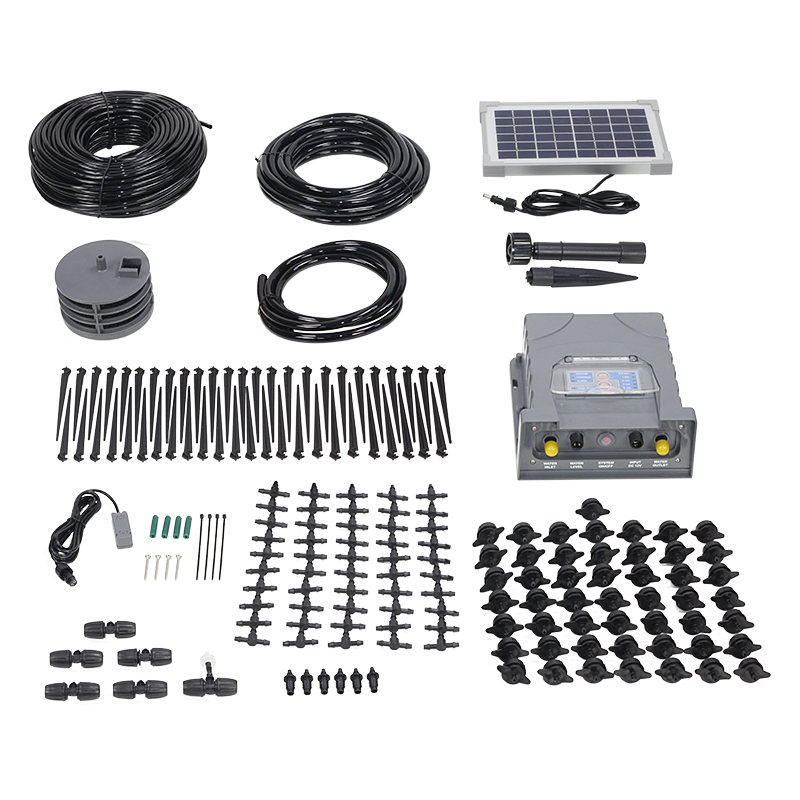

Components
Parameters
Pump type | Diaphragm pump |
Maximum pressure | 65 PSI |
Maximum flow rate | 180 LPH |
Working voltage | 12 V |
Maximum power | 36 W |
Material | Plastic |
Parameters
Item No. | GSP4-24 |
Peak power | 4 W |
Peak power voltage | 12.24 V |
Peak power current | 0.33 A |
Open-circuit voltage | 14.88V |
Short-circuit current | 0.34 A |
Material | Polycrystalline |

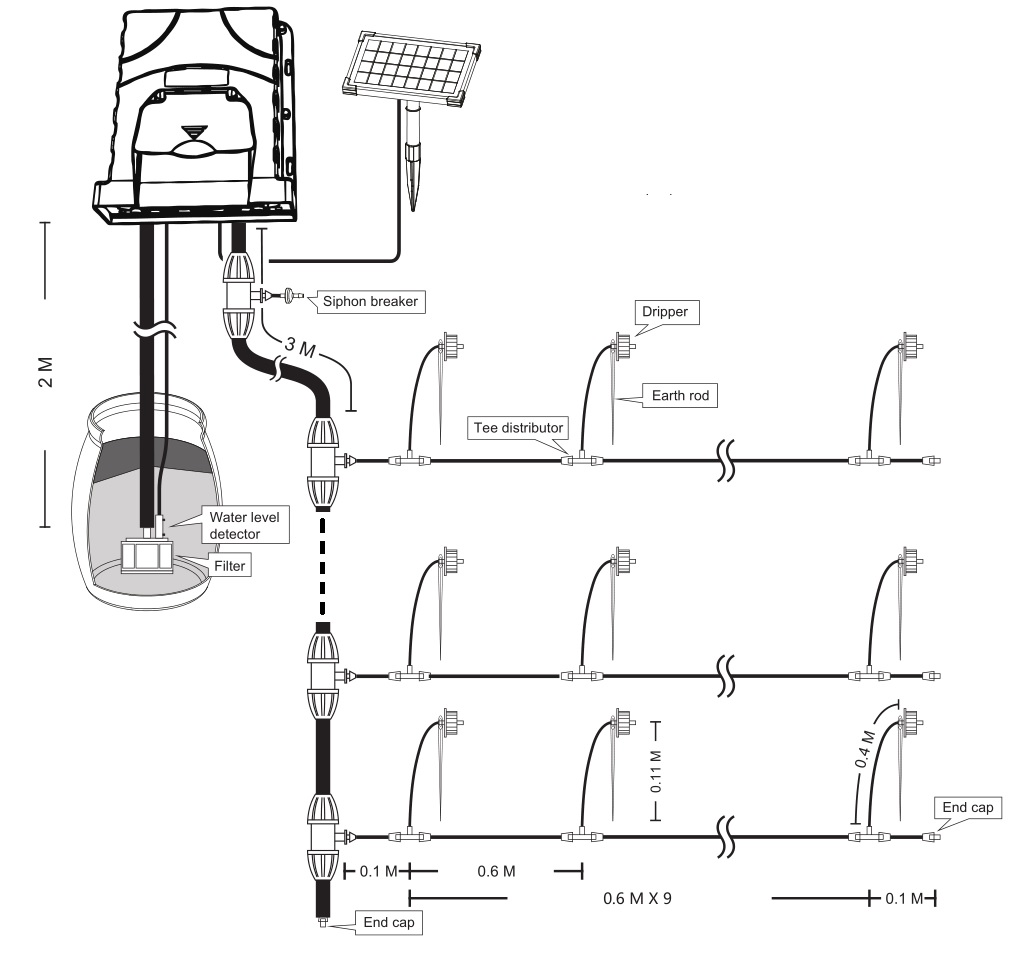

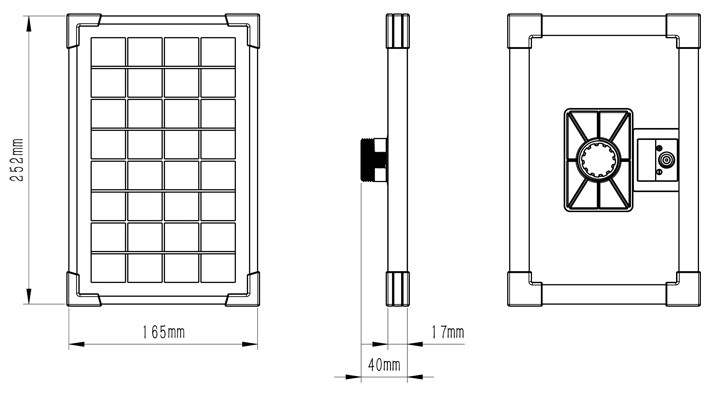

Engineering Drawings
