5250LPH Flow 3M Head E-type Solar Dry Run Protected Pond Pump_SP100-801830E

5250LPH Flow 3M Head E-type Solar Dry Run Protected Pond Pump_SP100-801830E

*Ideal for pumping water for waterfalls, large garden fountains and water features as well as pond filtration and circulation.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside pump further keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.
*Convenient pump housing, easy to open.
*Ceramic shaft, runs steadily and quietly.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.


0.00
0.00
Item Number:

Product overview

*Ideal for pumping water for waterfalls, large garden fountains and water features as well as pond filtration and circulation.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside pump further keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.
*Convenient pump housing, easy to open.
*Ceramic shaft, runs steadily and quietly.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

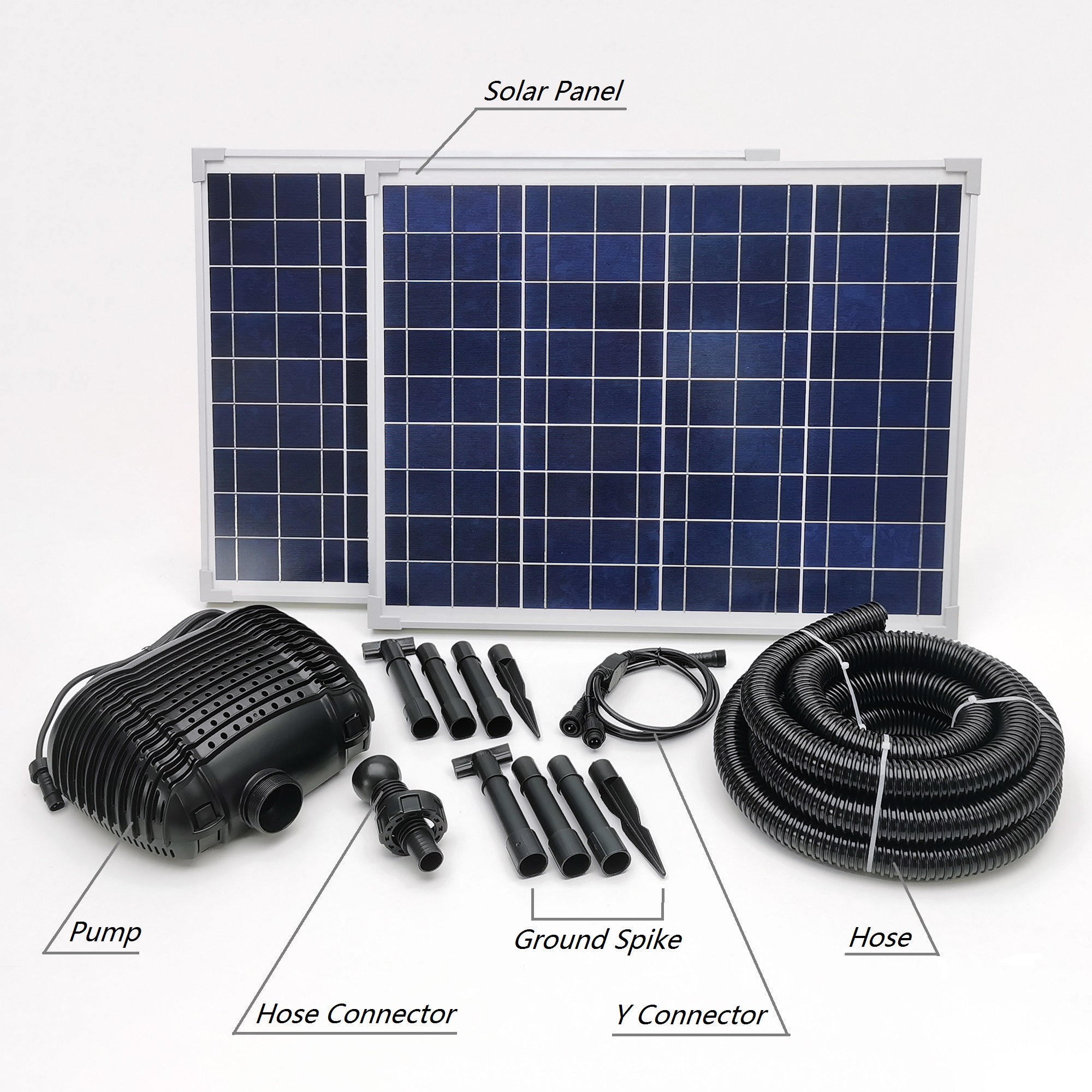

Components

Parameters

Item No.

BP801830E

Maximum pump head

3.0 M (9.84 FT)

Maximum flow rate

5250 LPH (1400 GPH)

Working voltage

18 V

Maximum power

50 W

Connection outlet

    Φ26 MM / Φ32 MM / Φ38 MM

Cable length

5 M (16.4 FT)

Material

Plastic

Engineering Drawings

A. Dimension:

B. Explosive:

Parameters

Item No.

GSP50-36

Peak power

100W (50W*2)

Peak power voltage

18.36 V

Peak power current

5.44 A

Open-circuit voltage

22.32 V

Short-circuit current

5.68 A

Material

Polycrystalline



Engineering Drawings

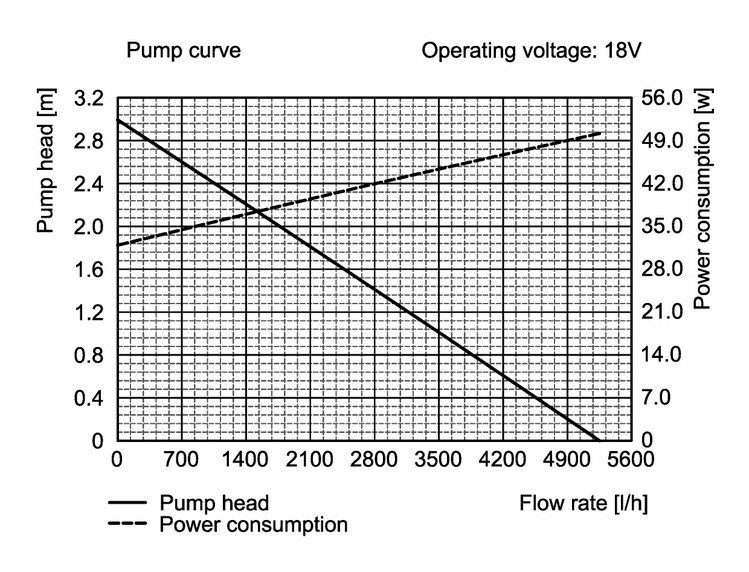

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.8m

@1.2m

@1.6m

@2.4m

@2.8m

Max. height

18V

5250LPH

3850LPH

3150LPH

2450LPH

1050LPH

350LPH

3.0M
