*Ideal for pumping water for waterfalls, large garden fountains and water features as well as pond filtration and circulation.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection prevents the pump from damage when water dries out.
*Electrically safe, thanks to its low working voltage.
*Convenient pump housing, easy to open.
*Ceramic shaft, runs steadily and quietly.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.
*Ideal for pumping water for waterfalls, large garden fountains and water features as well as pond filtration and circulation.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection prevents the pump from damage when water dries out.
*Electrically safe, thanks to its low working voltage.
*Convenient pump housing, easy to open.
*Ceramic shaft, runs steadily and quietly.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.

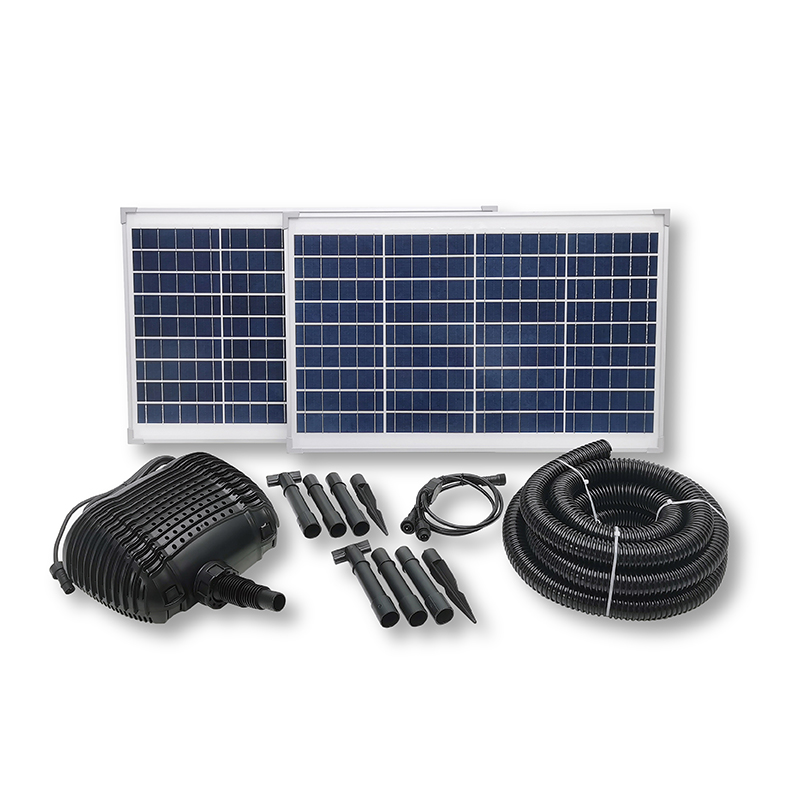

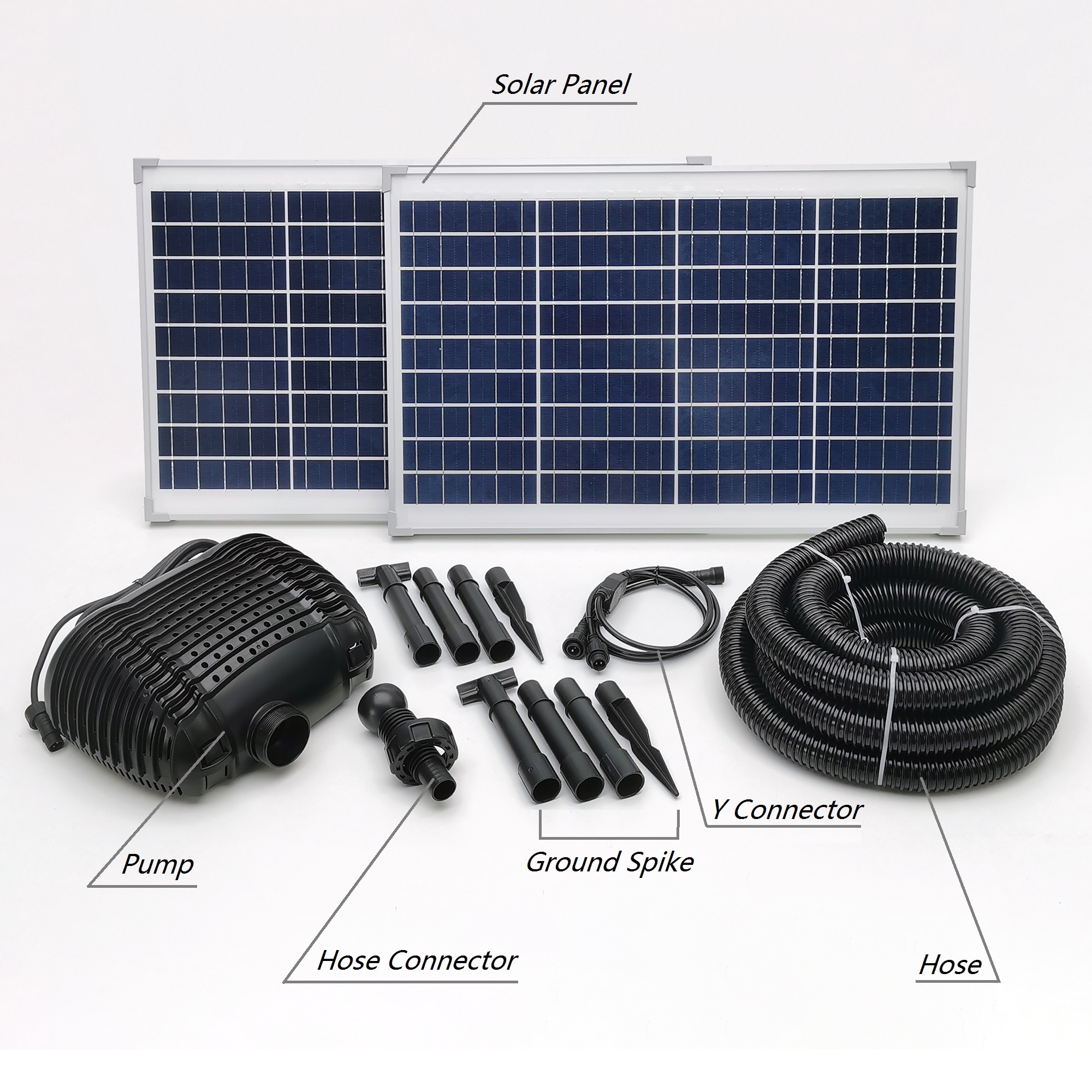

Components
Parameters
Item No. | BP801220E |
Maximum pump head | 3.1 M (10.17 FT) |
Maximum flow rate | 3500 LPH (933.33 GPH) |
Working voltage | 18 V |
Maximum power | 32 W |
Connection outlet | Φ26 MM / Φ32 MM / Φ38 MM |
Cable length | 5 M (16.4 FT) |
Material | Plastic |
Engineering Drawings
A. Dimension:
B. Explosive:

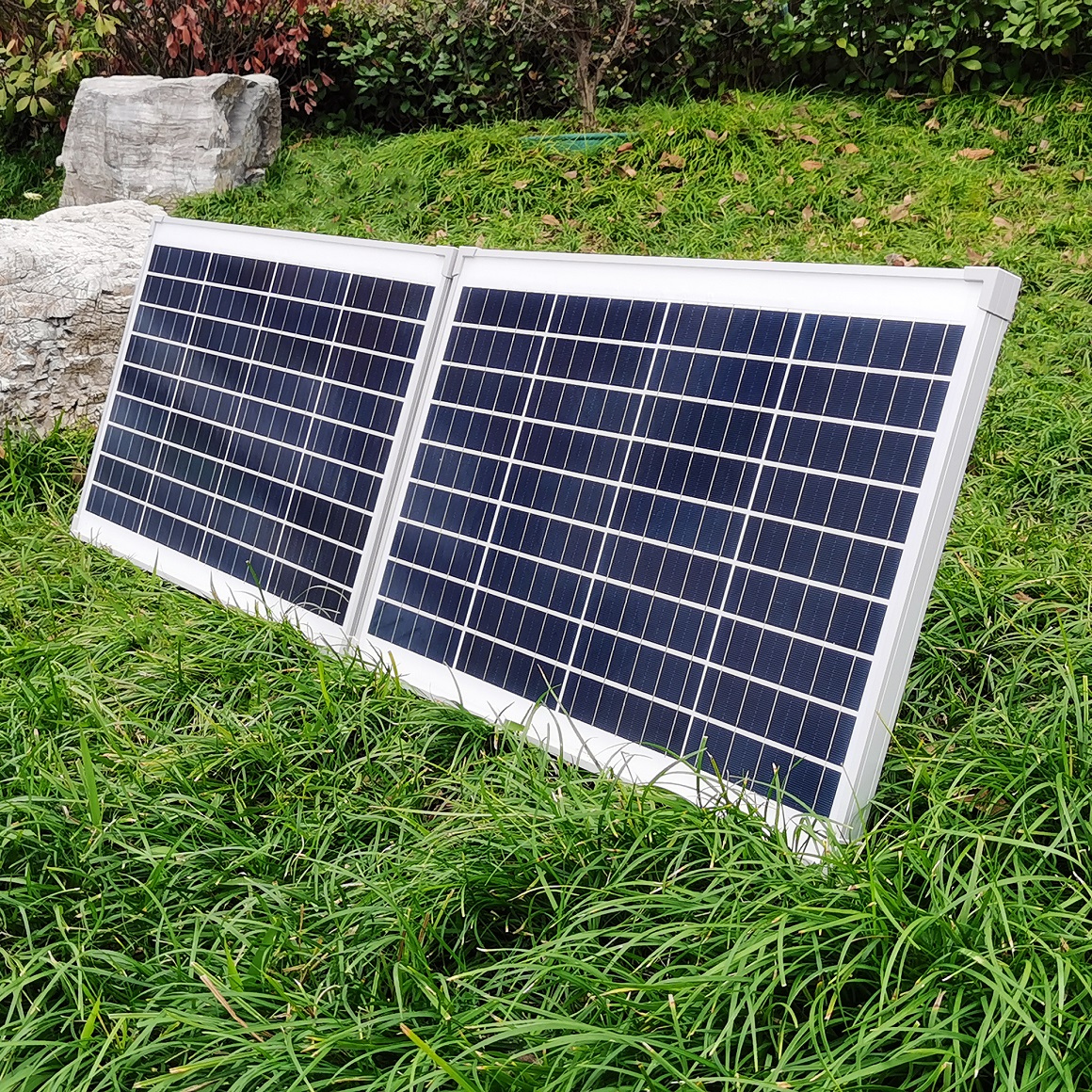

Parameters
Item No. | GSP35-36 |
Peak power | 70W (35W*2) |
Peak power voltage | 18.36 V |
Peak power current | 3.82 A |
Open-circuit voltage | 22.32 V |
Short-circuit current | 3.98 A |
Material | Polycrystalline |

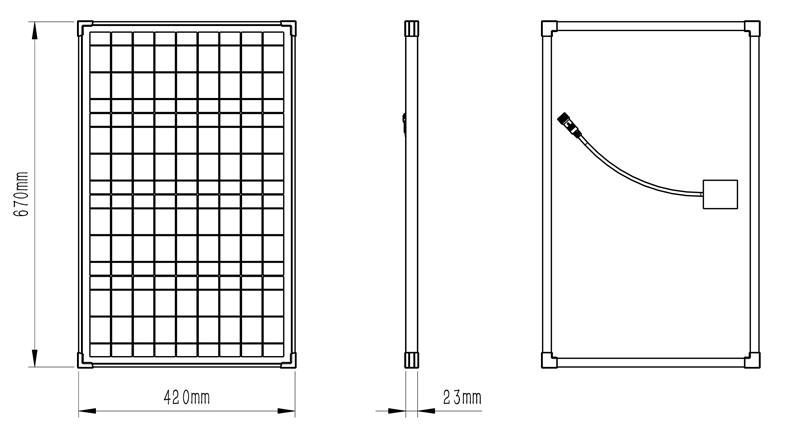

Engineering Drawings

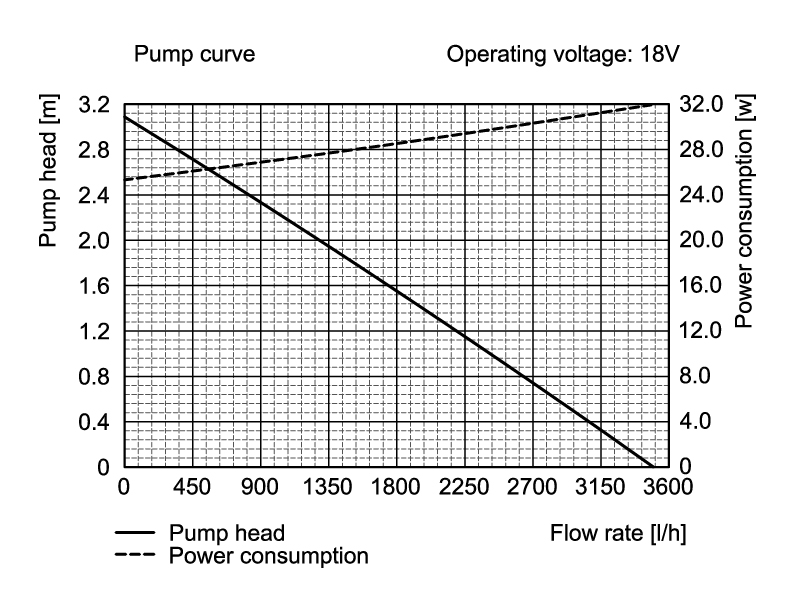

Litres per hour - At various pumping heights (Pump head)
Operating Voltage | @0m | @0.8m | @1.6m | @2.4m | @3.1m | Max. height |
18V | 3500LPH | 2520LPH | 1530LPH | 590LPH | 0 | 3.1M |
