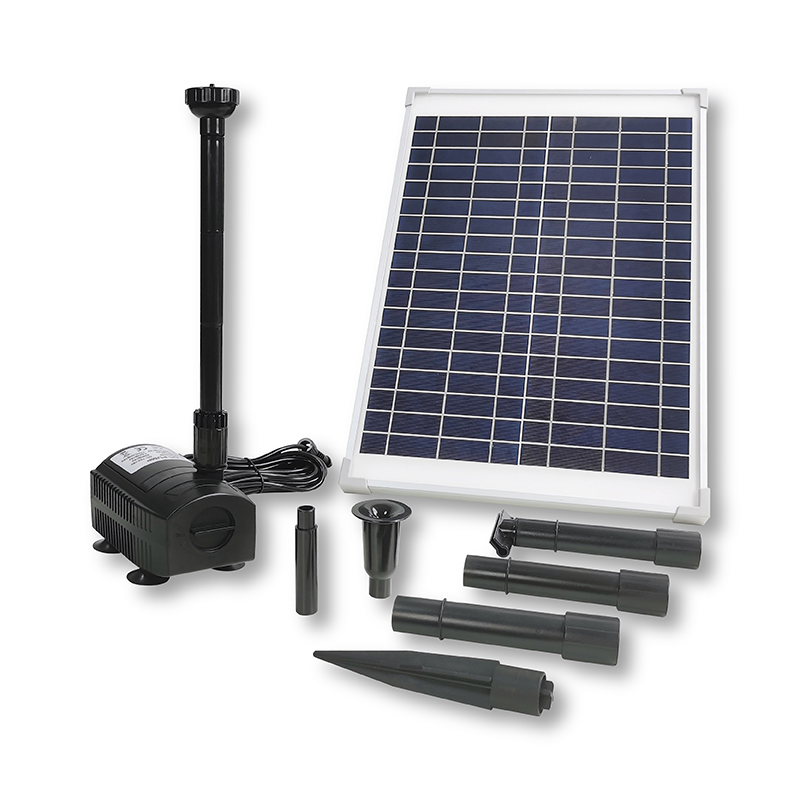

1360LPH Flow 1.8M Head E-type Solar Dry Run Protected Fountain Pump_SP25-501218E

1360LPH Flow 1.8M Head E-type Solar Dry Run Protected Fountain Pump_SP25-501218E

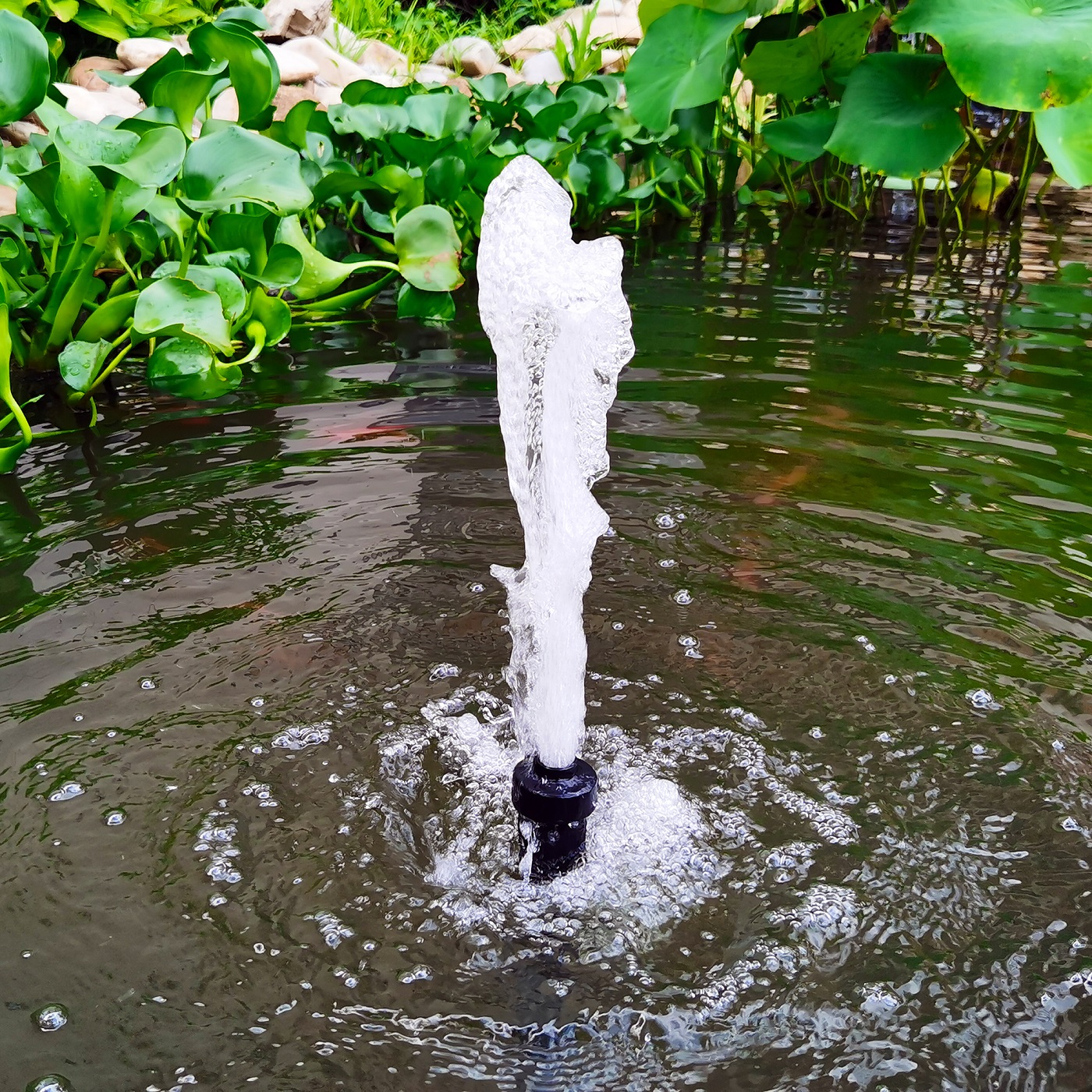

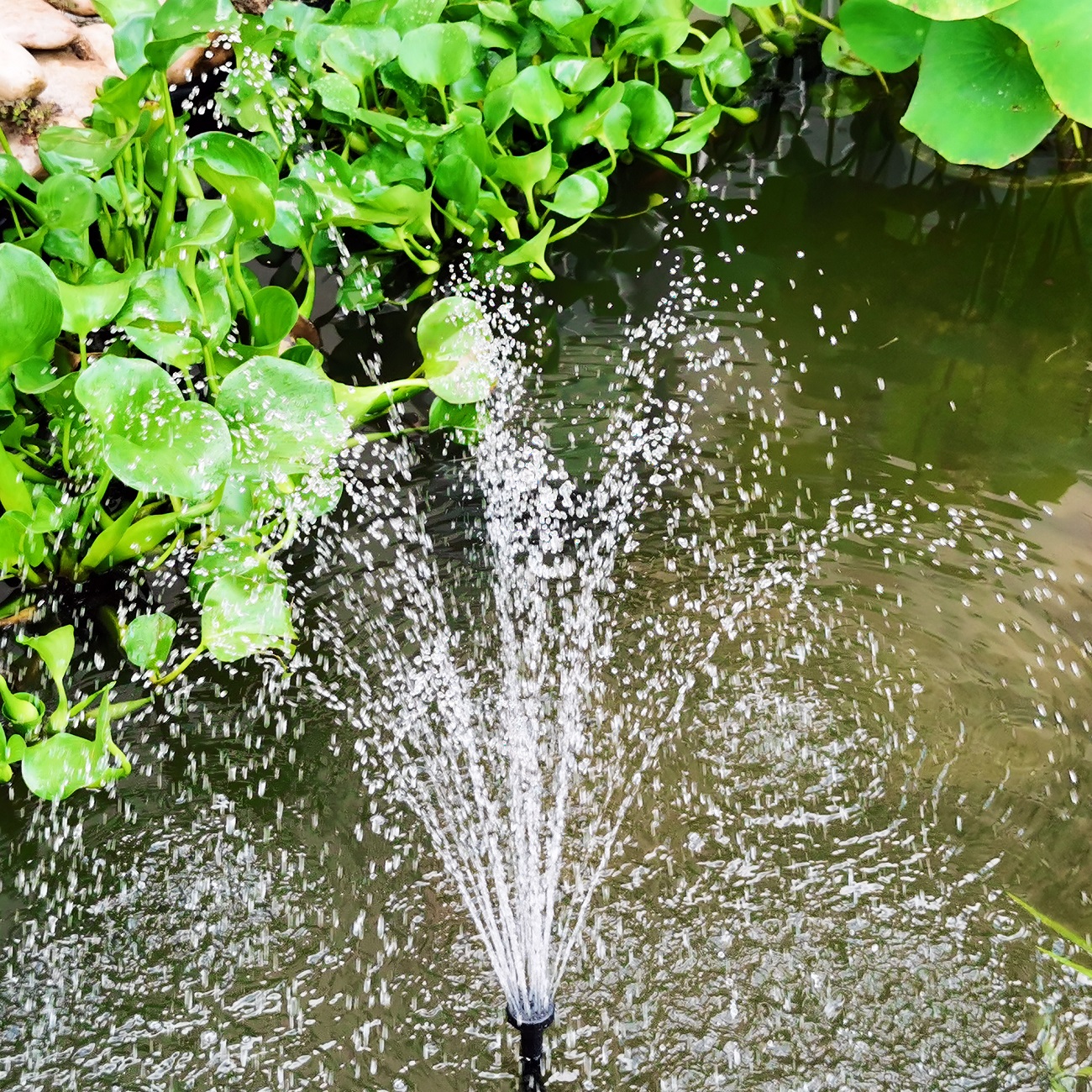

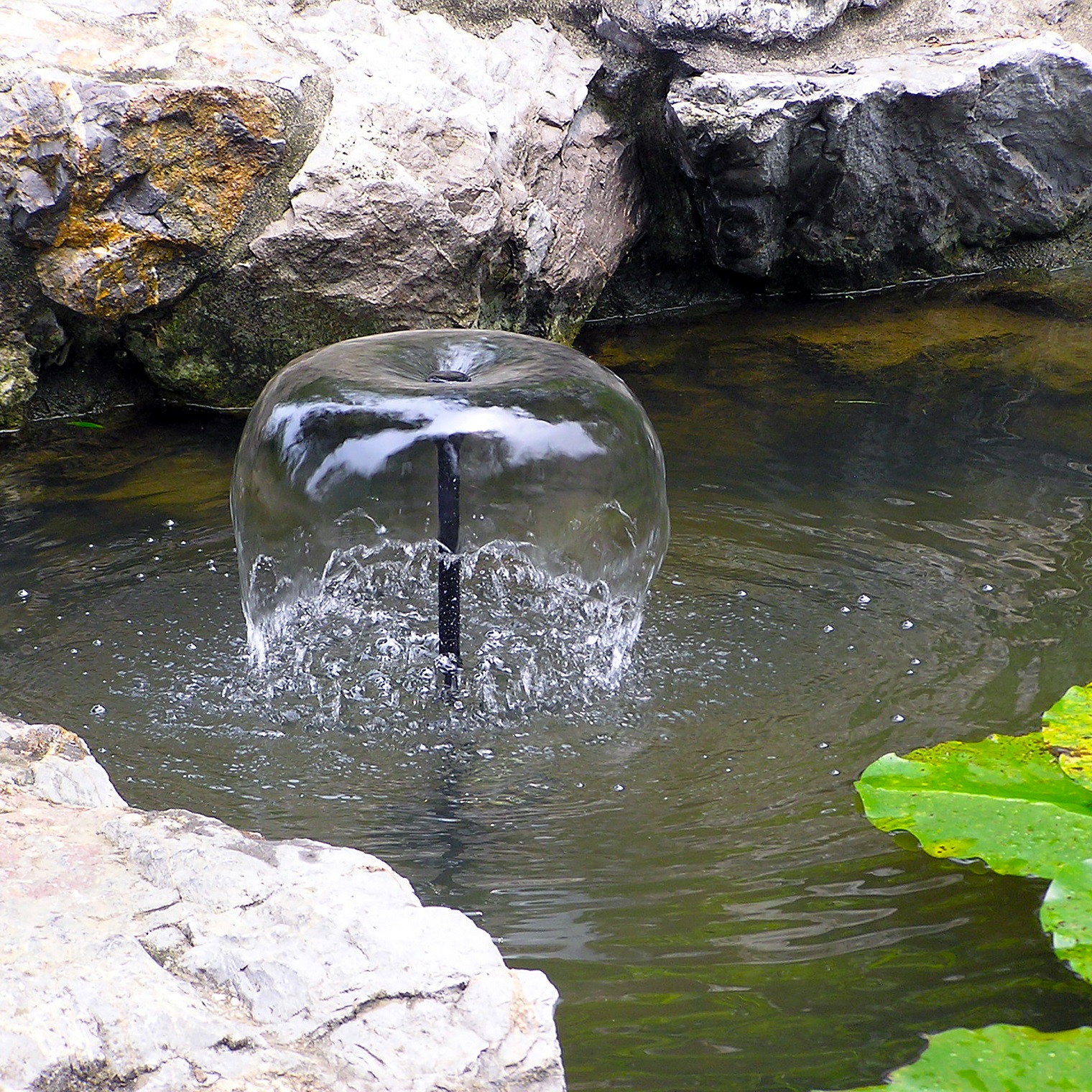

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection to avoid pump burning when running dry.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection to avoid pump burning when running dry.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

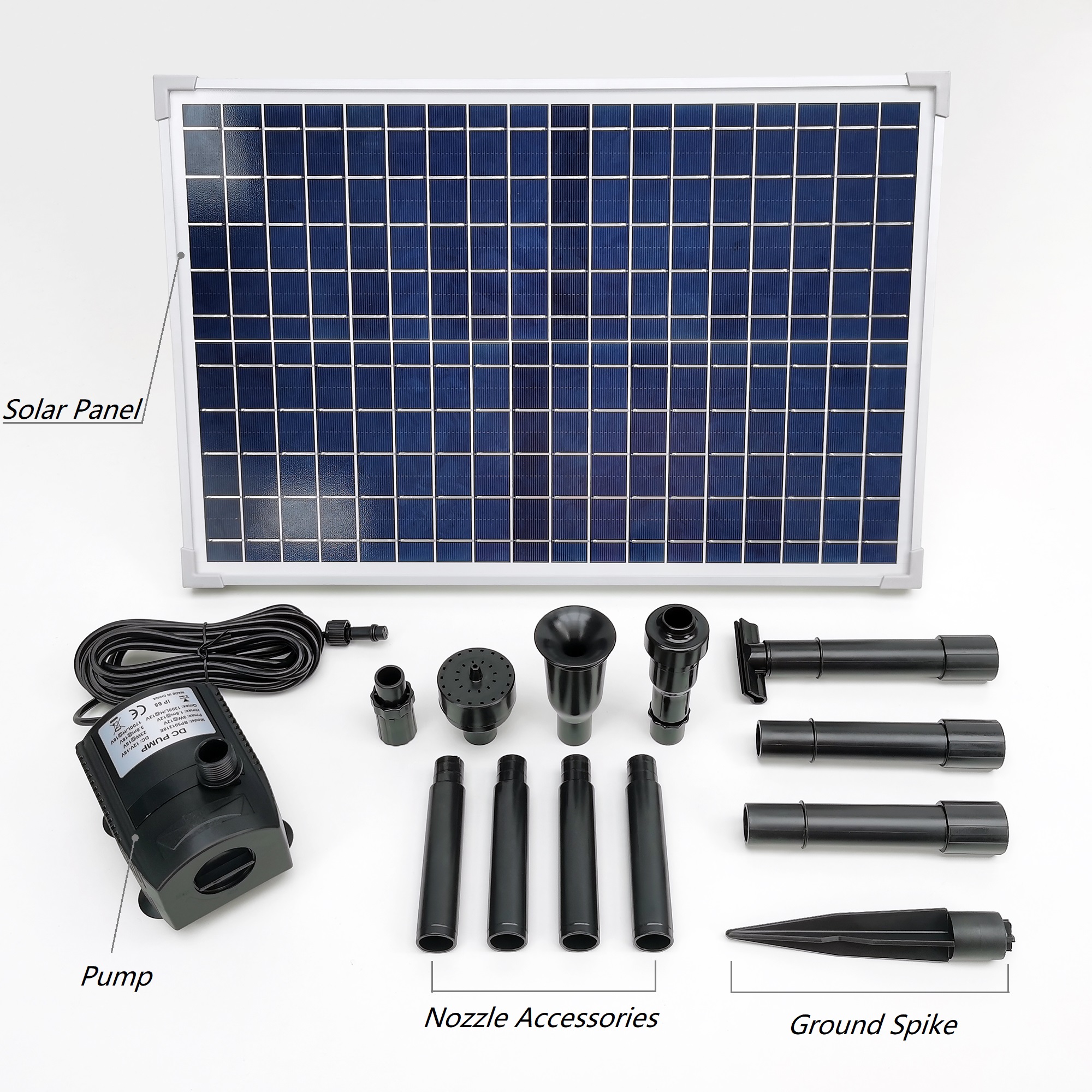

Components

Parameters

Item No.

BP501218E

Maximum pump head

1.8 M (5.91 FT)

Maximum flow rate

1360 LPH (362.67 GPH)

Working voltage

12 V

Maximum power

8.9 W

Connection outlet

13 MM

Cable length

5 M (16.4 FT)

Material

Plastic

Engineering Drawings

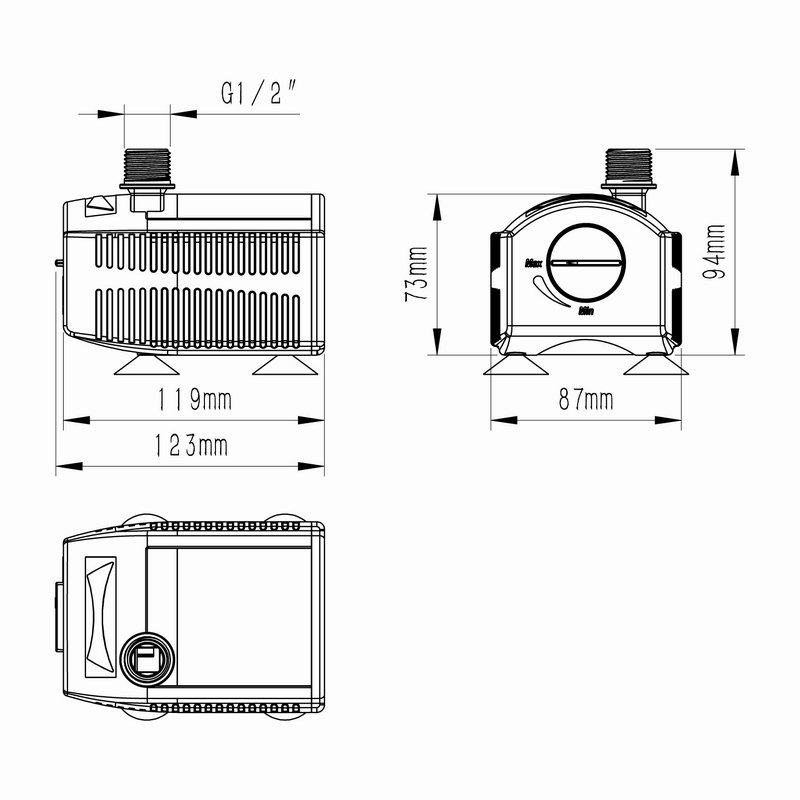

A. Dimension:

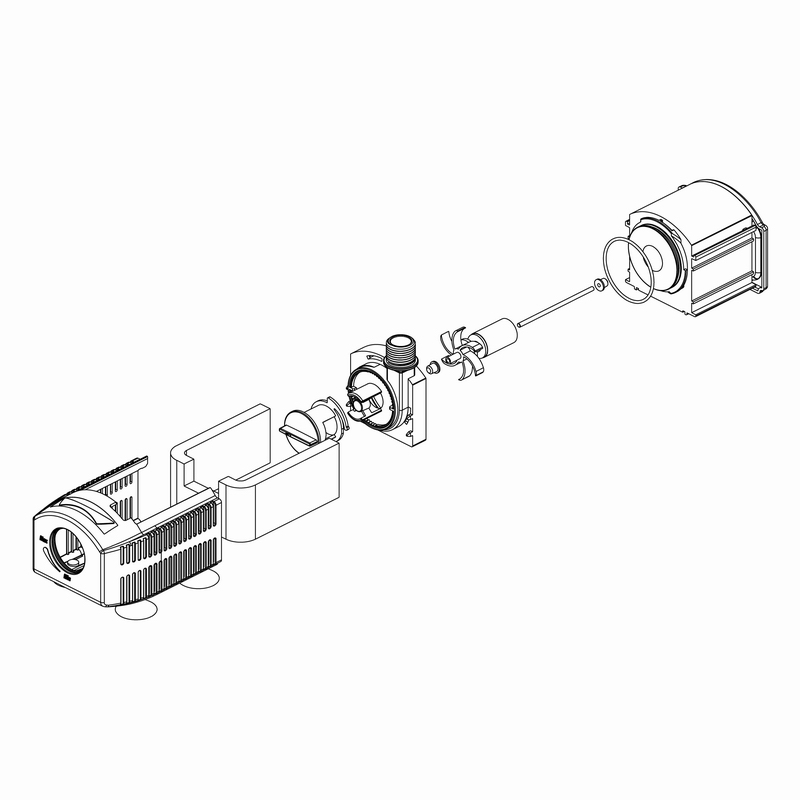

B. Explosive:

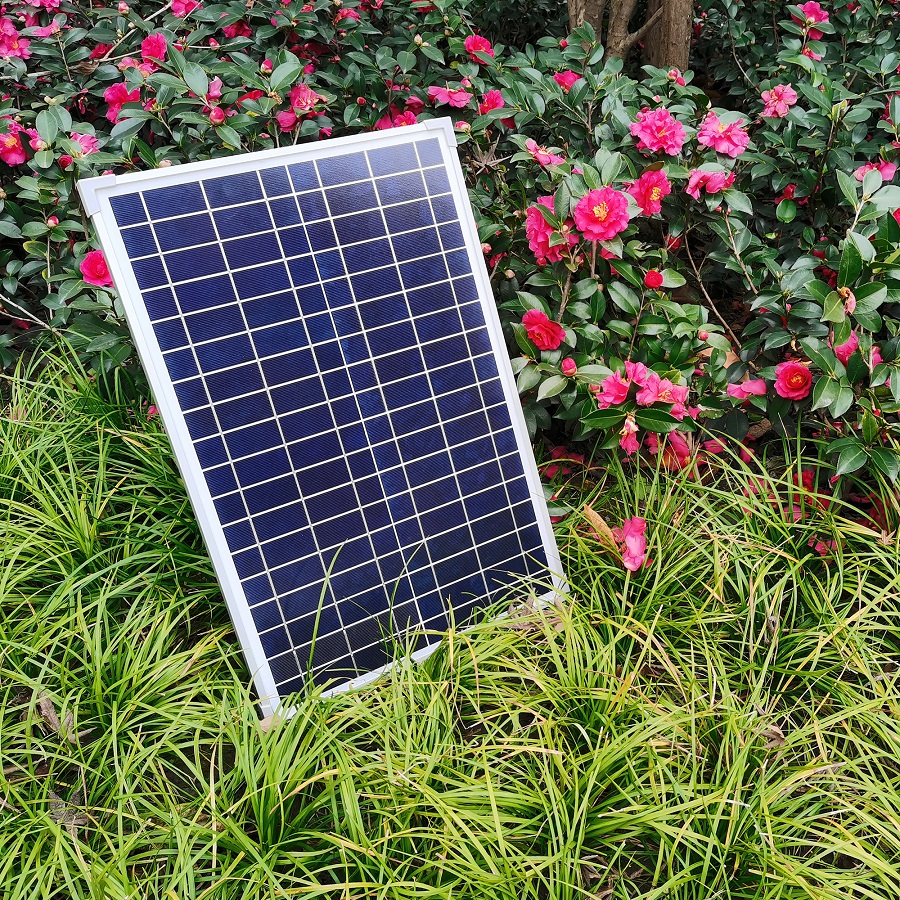

Parameters

Item No.

GSP25-36

Peak power

25 W

Solar panel size

514*349*23 MM

Peak power voltage

18.36 V

Peak power current

1.36  A

Open-circuit voltage

22.32 V

Short-circuit current

1.42 A

Material

Polycrystalline

Engineering Drawings

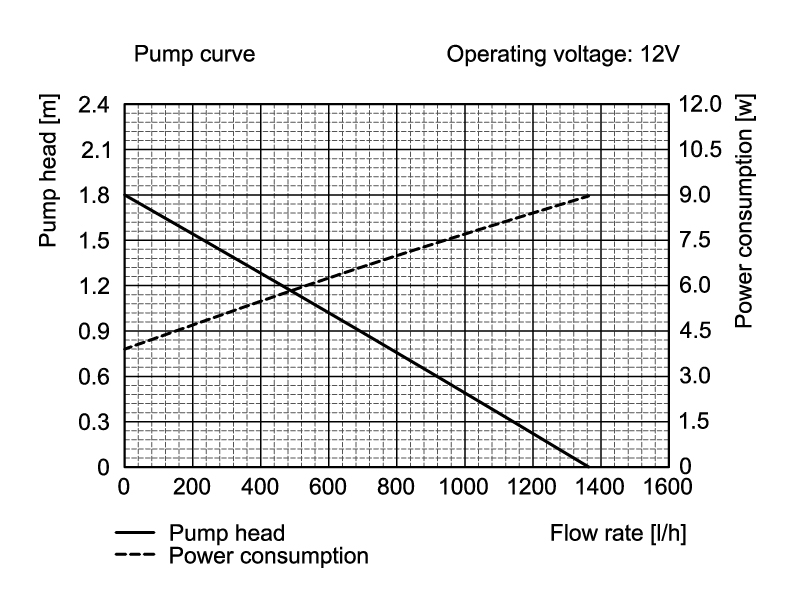

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.3m

@0.6m

@1.2m

@1.5m

Max. height

12V

1360LPH

1120LPH900LPH450LPH240LPH

1.8M
