*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection to avoid pump burning when running dry.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.
*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection to avoid pump burning when running dry.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.

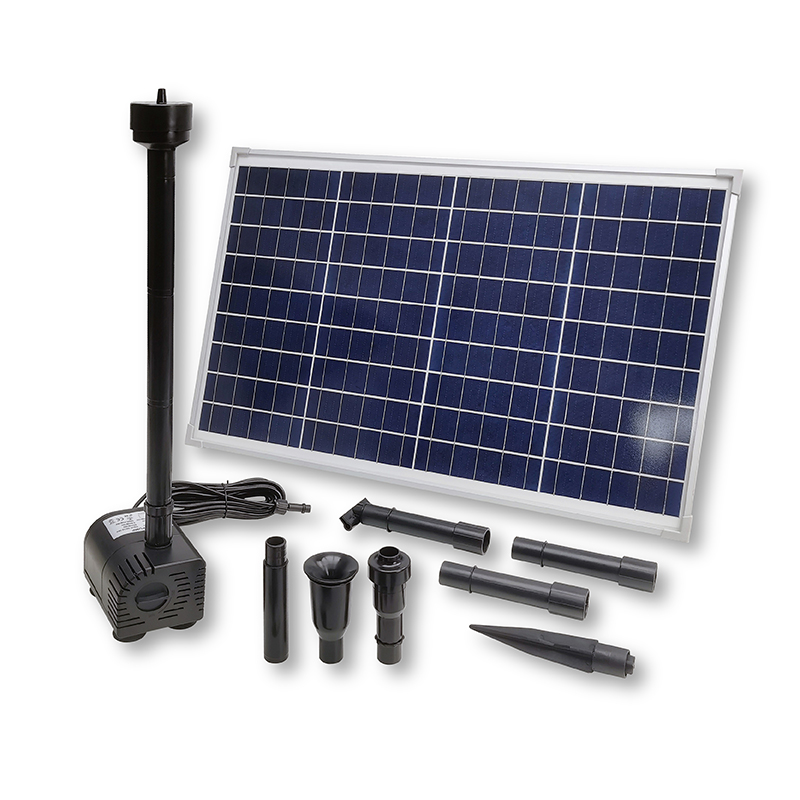

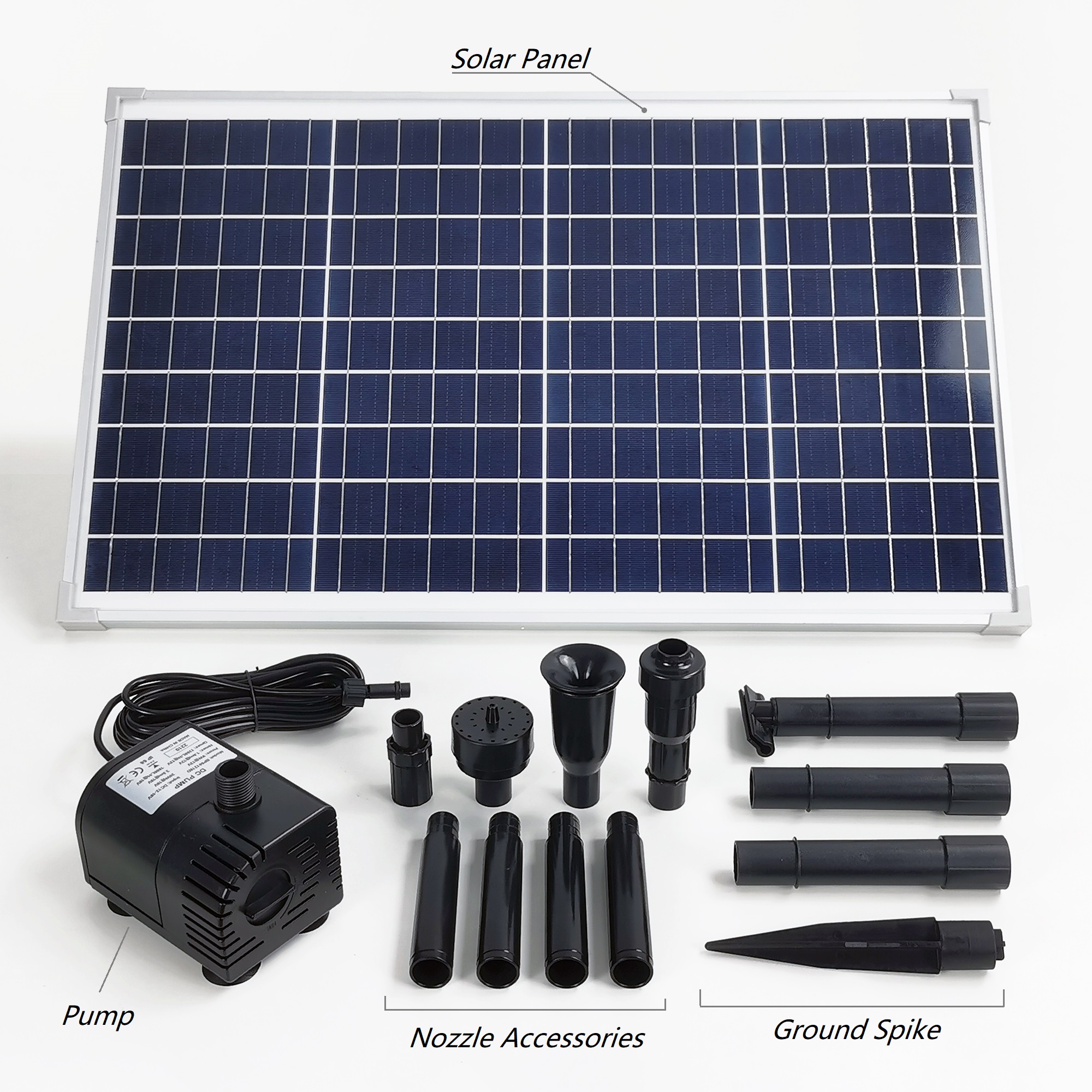

Components
Parameters
Item No. | BP501218D |
Maximum pump head | 3.5 M (11.5 FT) |
Maximum flow rate | 1800 LPH (476 GPH) |
Working voltage | 18 V |
Maximum power | 20 W |
Cable length | 5 M (16.4 FT) |
Material | Plastic |
Engineering Drawings
A. Dimension:
B. Explosive:
Parameters
Item No. | GSP40-36 |
Peak power | 40 W |
Peak power voltage | 18.36 V |
Peak power current | 2.18 A |
Open-circuit voltage | 22.32 V |
Short-circuit current | 2.28 A |
Material | Polycrystalline |
Engineering Drawings
Litres per hour - At various pumping heights (Pump head)
Operating Voltage | @0m | @0.5m | @1.5m | @2.0m | @2.5m | @3.0m | Max. height |
18V | 1800LPH | 1500LPH | 1000LPH | 700LPH | 450LPH | 200LPH | 3.5M |
