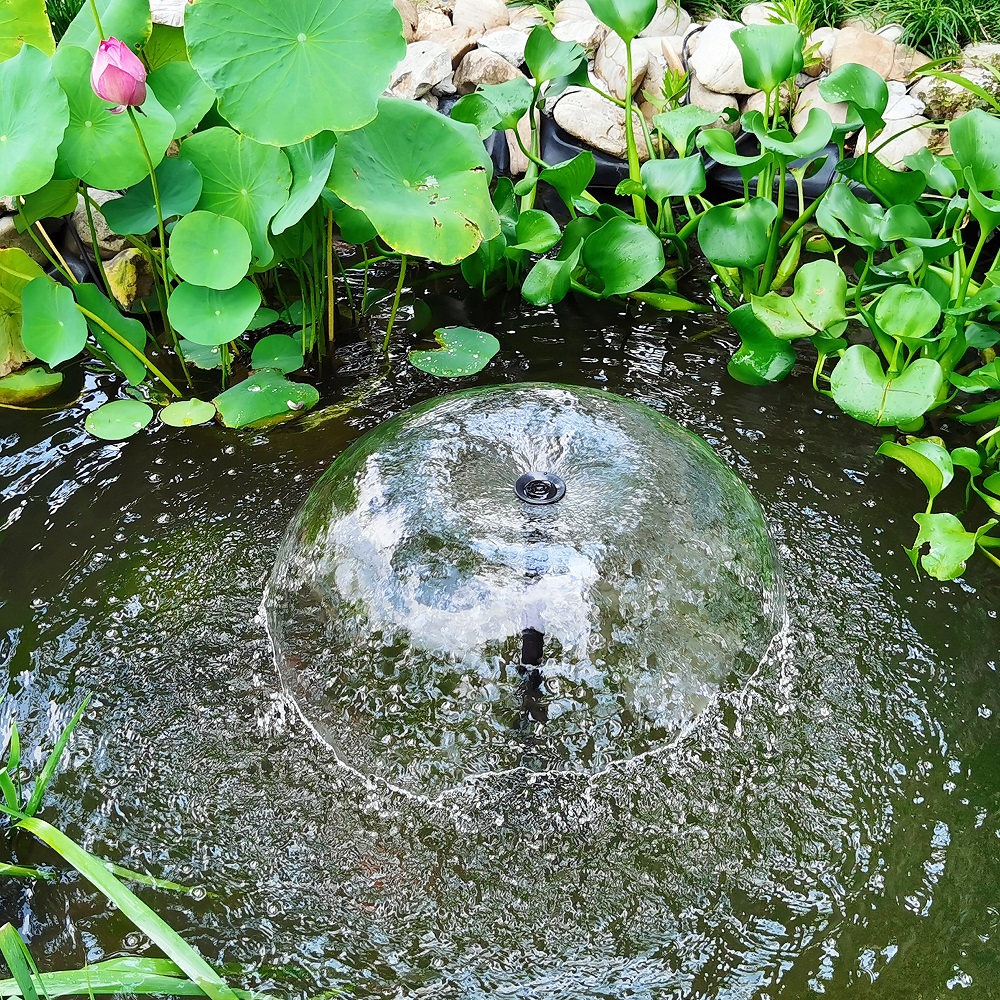

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection to avoid pump burning when running dry.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.
*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection to avoid pump burning when running dry.
*Electrically safe, thanks to its low working voltage.
*RoHs, REACH and CE, UKCA certified.
*2 years warranty.

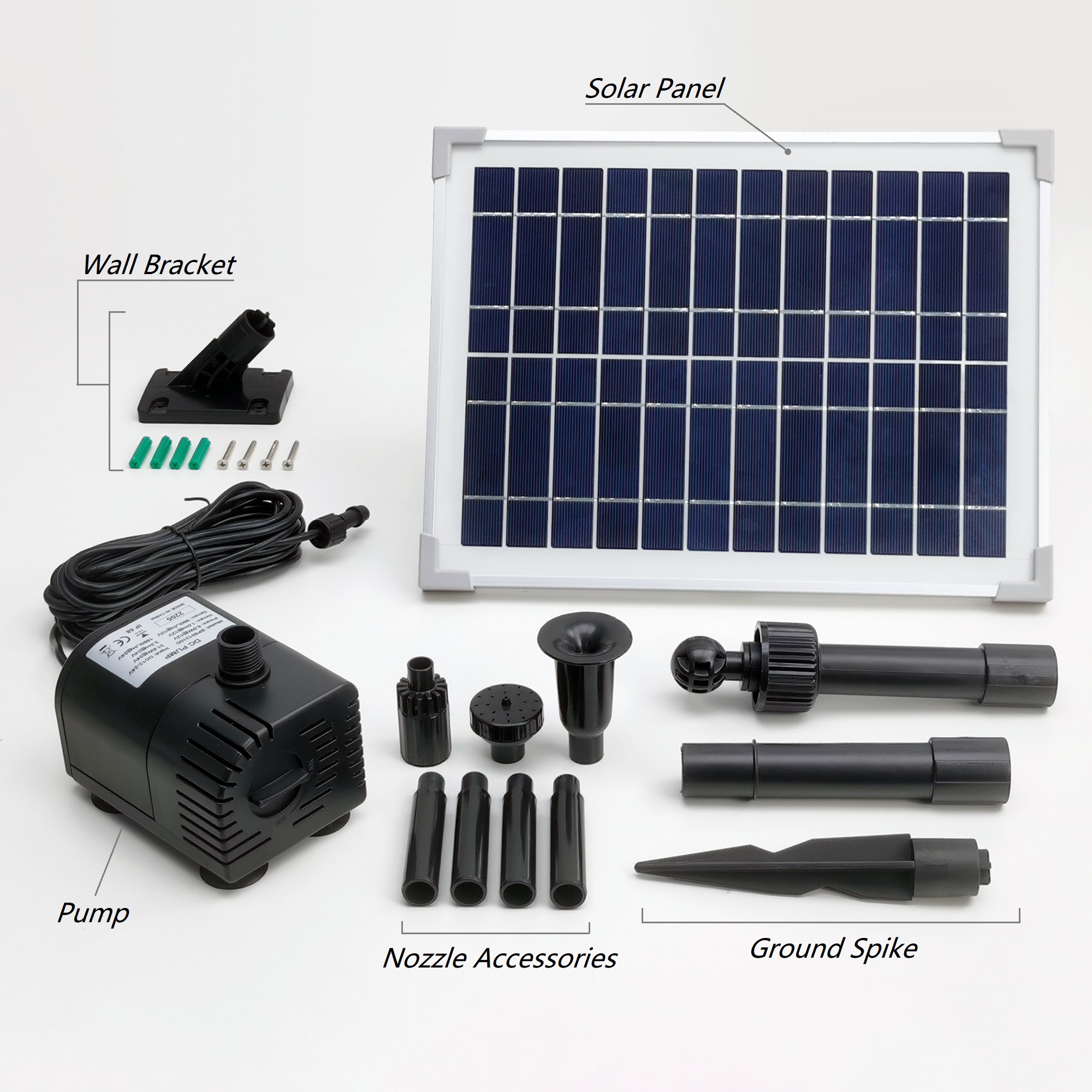

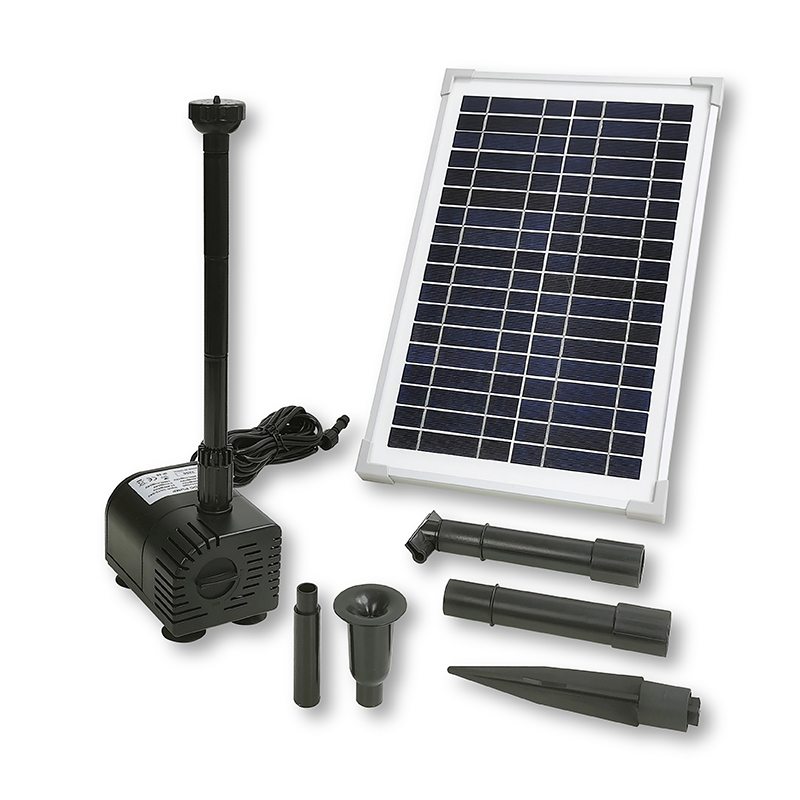

Components
Parameters
Item No. | BP501210D |
Maximum pump head | 1.0 M (3.3 FT) |
Maximum flow rate | 1000 LPH (264 GPH) |
Working voltage | 12 V |
Maximum power | 4.4 W |
Cable length | 5 M (16.4 FT) |
Material | Plastic |
Engineering Drawings

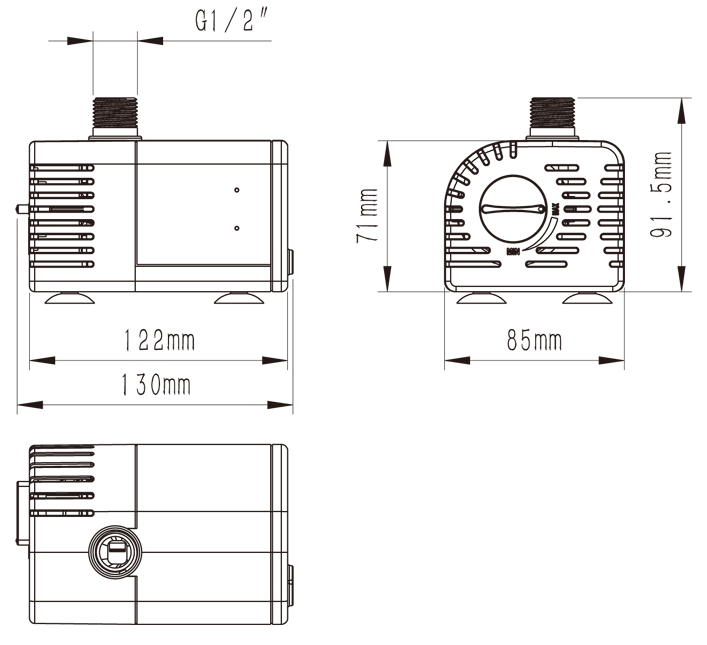

A. Dimension:

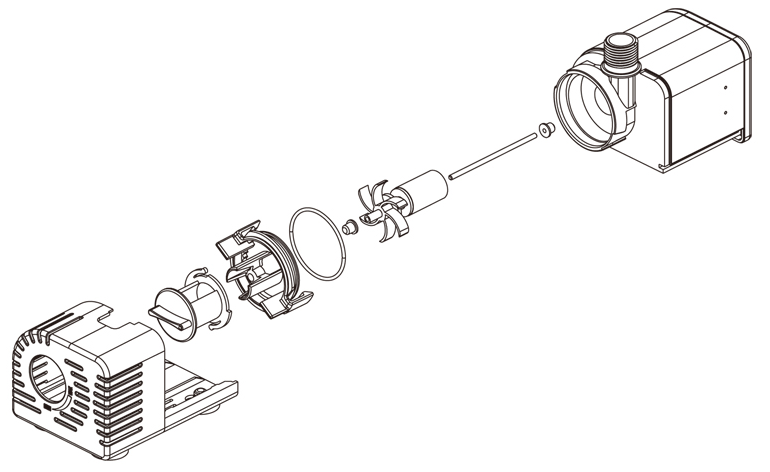

B. Explosive:
Parameters
Item No. | GSP10-24 |
Peak power | 10 W |
Peak power voltage | 12.24 V |
Peak power current | 0.82 A |
Open-circuit voltage | 14.88 V |
Short-circuit current | 0.85 A |
Material | Polycrystalline |
Engineering Drawings

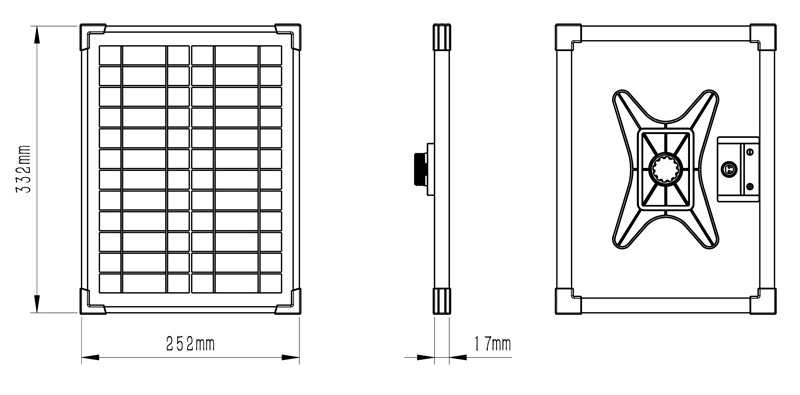

A. Dimension:

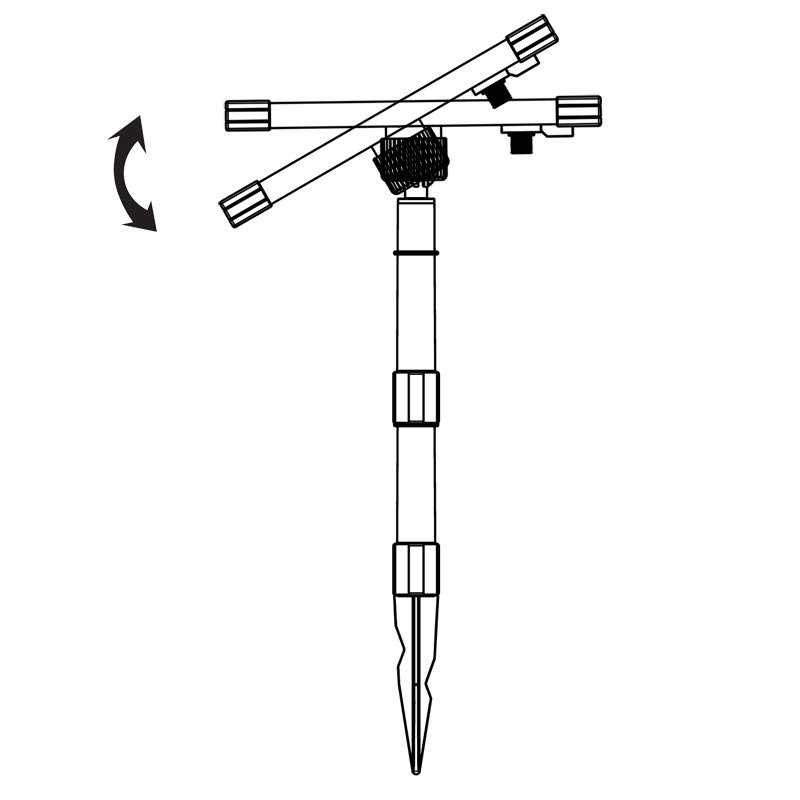

B. Adjustment on Ground:
C. Adjustment on Wall:

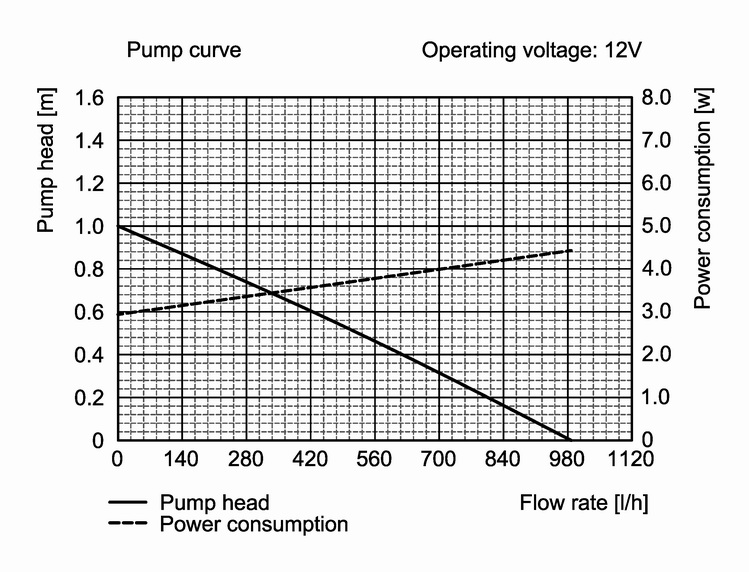

Litres per hour - At various pumping heights (Pump head)
Operating Voltage | @0m | @0.2m | @0.4m | @0.6m | @0.8m | @1.0m | Max. height |
12V | 1000LPH | 810LPH | 610LPH | 420LPH | 220LPH | 0 | 1M |
