1800LPH Flow 3.5M Head Solar Fountain Pump_SP40-501218

1800LPH Flow 3.5M Head Solar Fountain Pump_SP40-501218

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

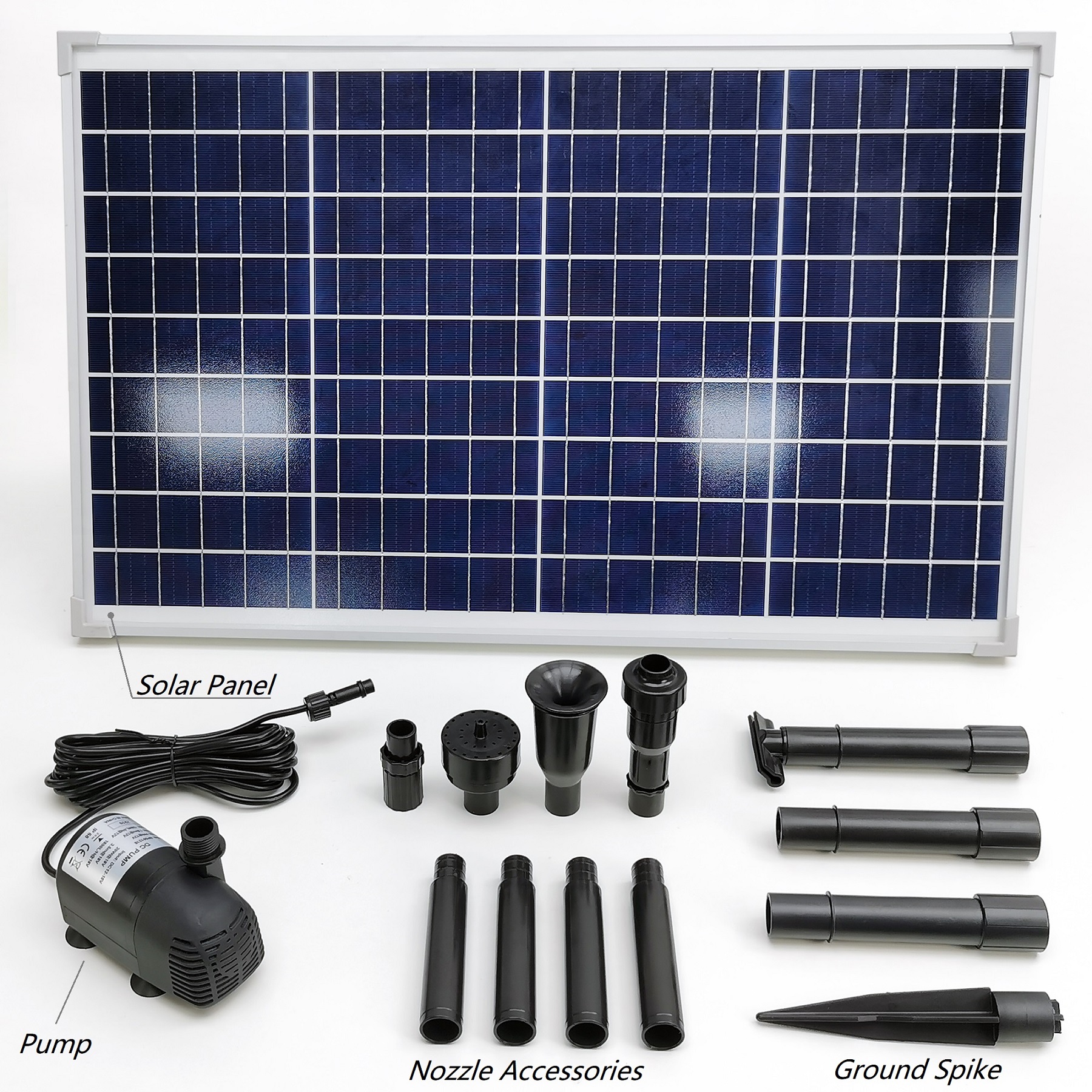

Components

Parameters

Item No.

BP501218

Maximum pump head

3.5 M (11.5 FT)

Maximum flow rate

1800 LPH (476 GPH)

Working voltage

18 V

Maximum power

20 W

Cable length

5 M (16.4 FT)

Material

Plastic



Engineering Drawings

A. Dimension:

B. Explosive:

Parameters

Item No.

GSP40-36

Peak power

40 W

Peak power voltage

18.36 V

Peak power current

2.18 A

Open-circuit voltage

22.32 V

Short-circuit current

2.28 A

Material

Polycrystalline

Engineering Drawings

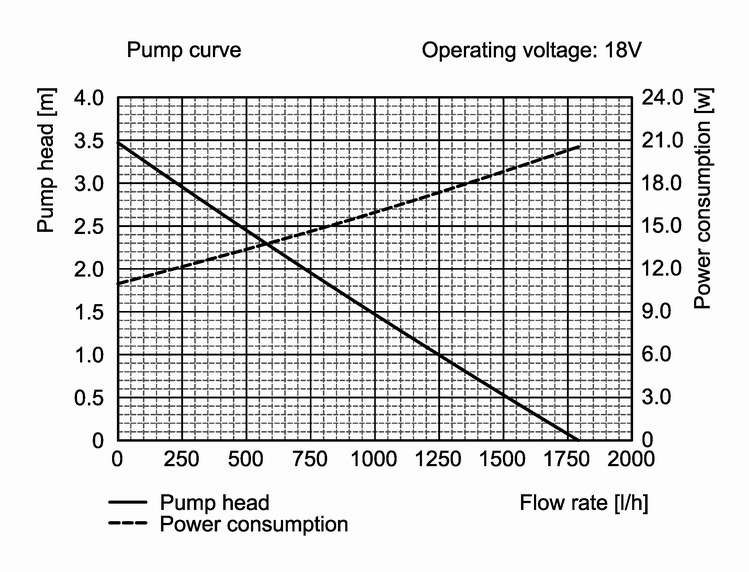

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.5m

@1.5m

@2.0m

@2.5m

@3.0m

Max. height

18V

1800LPH

1500LPH

1000LPH

700LPH

450LPH

200LPH

3.5M
