1400LPH Flow 2.1M Head Solar Fountain Pump_SP25-501210

1400LPH Flow 2.1M Head Solar Fountain Pump_SP25-501210

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

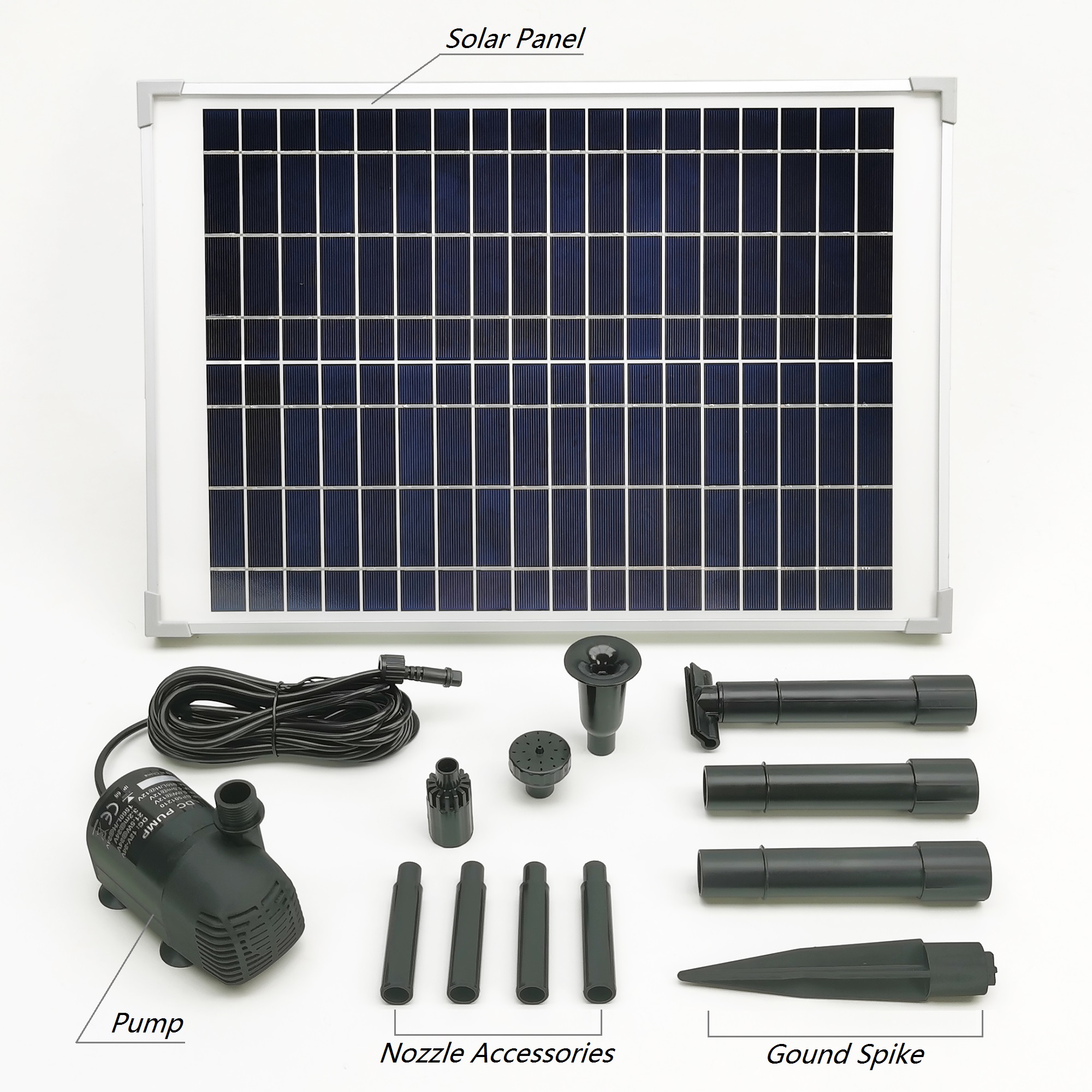

Components

Parameters

Item No.

BP501210

Maximum pump head

2.1 M (6.9 FT)

Maximum flow rate

1400 LPH (370 GPH)

Working voltage

18 V

Maximum power

10 W

Cable length

5 M (16.4 FT)

Material

Plastic



Engineering Drawings

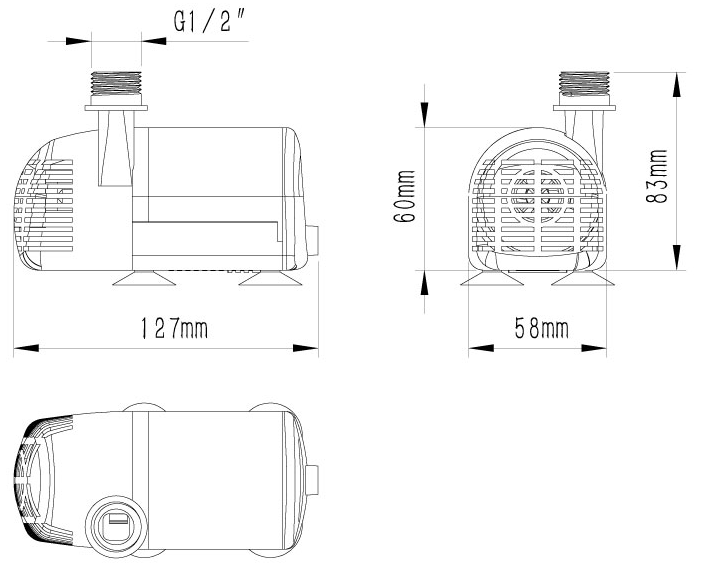

A. Dimension:

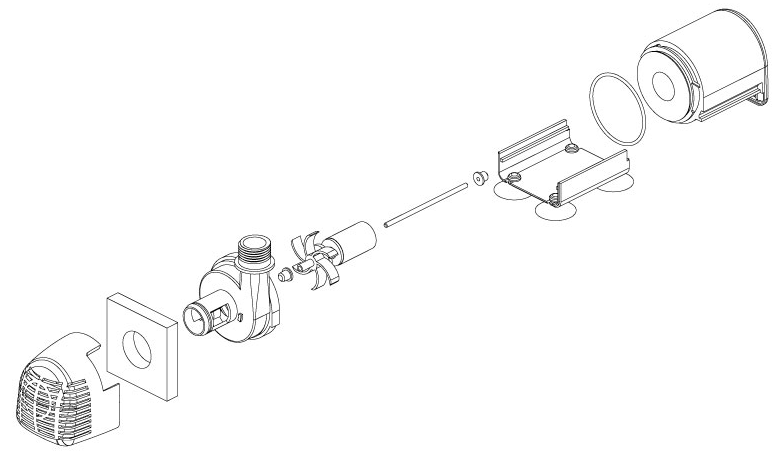

B. Explosive:

Parameters

Item No.

GSP25-36

Peak power

25 W

Peak power voltage

18.36 V

Peak power current

1.36 A

Open-circuit voltage

22.32 V

Short-circuit current

1.42 A

Material

Polycrystalline

Engineering Drawings

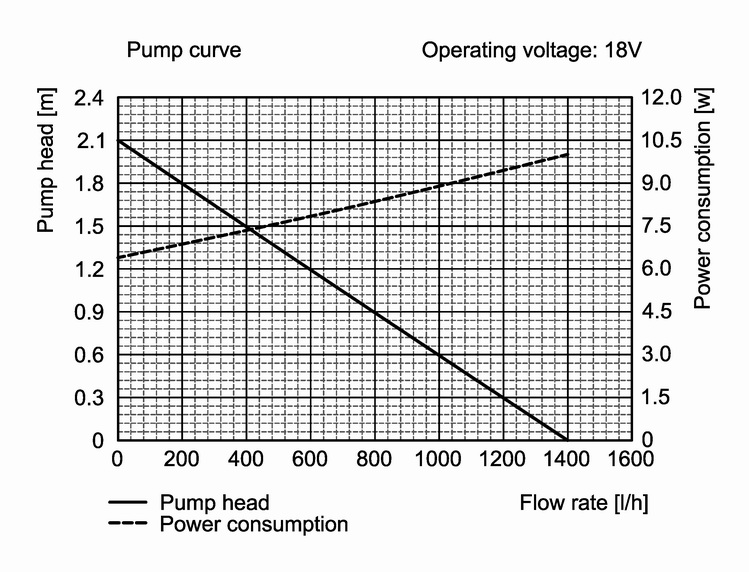

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.6m

@1.2m

@1.8m

Max. height

18V

1400LPH

1000LPH600LPH

200LPH

2.1M
