1000LPH Flow 1M Head Solar Fountain Pump_SP10-501210

1000LPH Flow 1M Head Solar Fountain Pump_SP10-501210

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.
*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

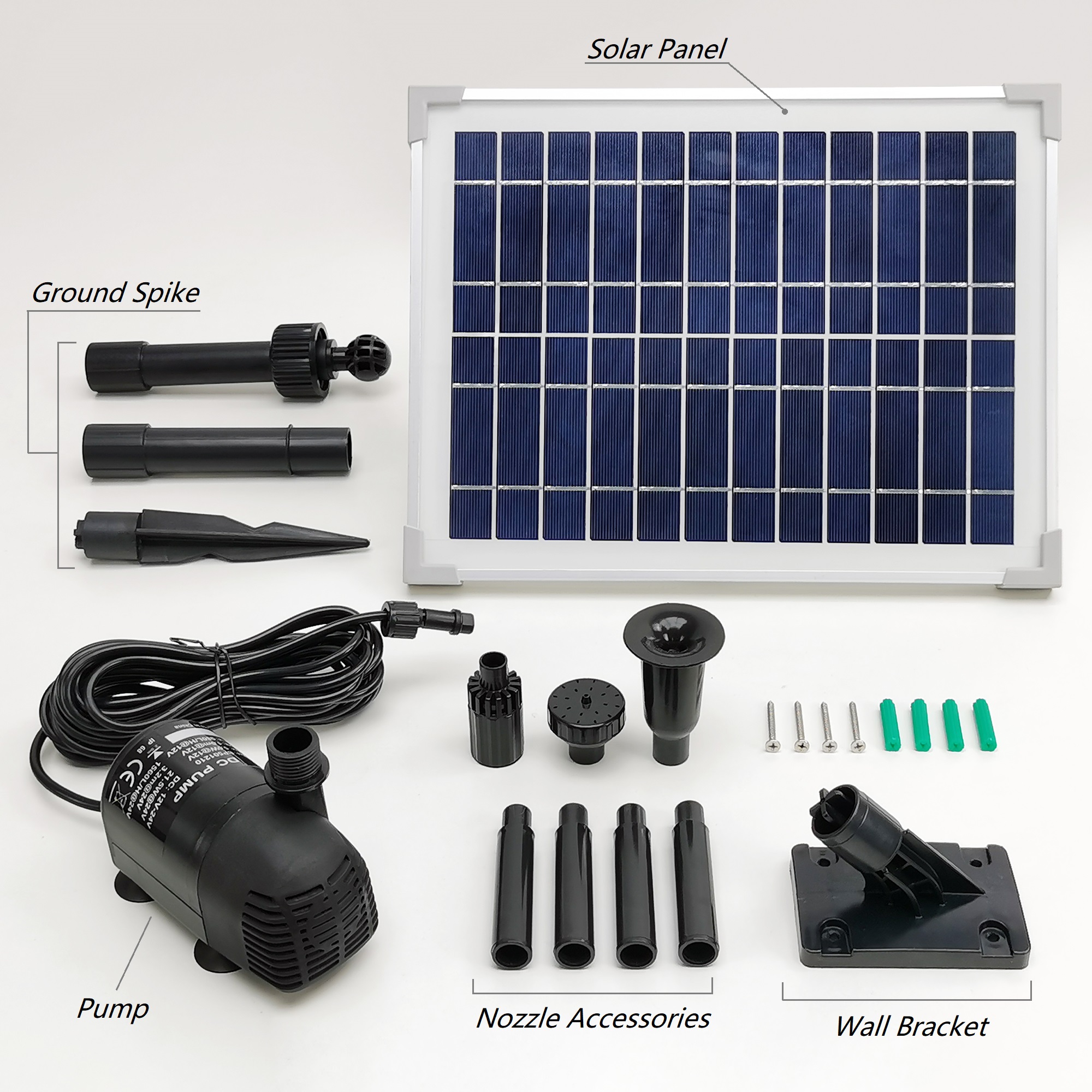

Components

Parameters

Item No.

BP501210

Maximum pump head

1.0 M (3.3 FT)

Maximum flow rate

1000 LPH (264 GPH)

Working voltage

12 V

Maximum power

4.5 W

Cable length

5 M (16.4 FT)

Material

Plastic



Engineering Drawings

A. Dimension:

B. Explosive:

Parameters

Item No.

GSP10-24

Peak power

10 W

Peak power voltage

12.24 V

Peak power current

0.82  A

Open-circuit voltage

14.88 V

Short-circuit current

0.85  A

Material

Polycrystalline



Engineering Drawings

A. Dimension:

B. Adjustment on Ground:


C. Adjustment on Wall:





Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.2m

@0.4m

@0.6m

     @0.8m     @1.0m

Max. height

12V

1000LPH

810LPH610LPH420LPH220LPH0

1M
