400LPH Flow 0.9M Head E-type Solar Dry Run Protected Battery Fountain Pump with Fountain LED_SPBL8-360608E

400LPH Flow 0.9M Head E-type Solar Dry Run Protected Battery Fountain Pump with Fountain LED_SPBL8-360608E

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Filter box protects pump from being blocked by pond debris and helps keep pond water clean.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside pump further keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

￥ 0.00
0.00
Item number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.
*Filter box protects pump from being blocked by pond debris and helps keep pond water clean.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside pump further keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

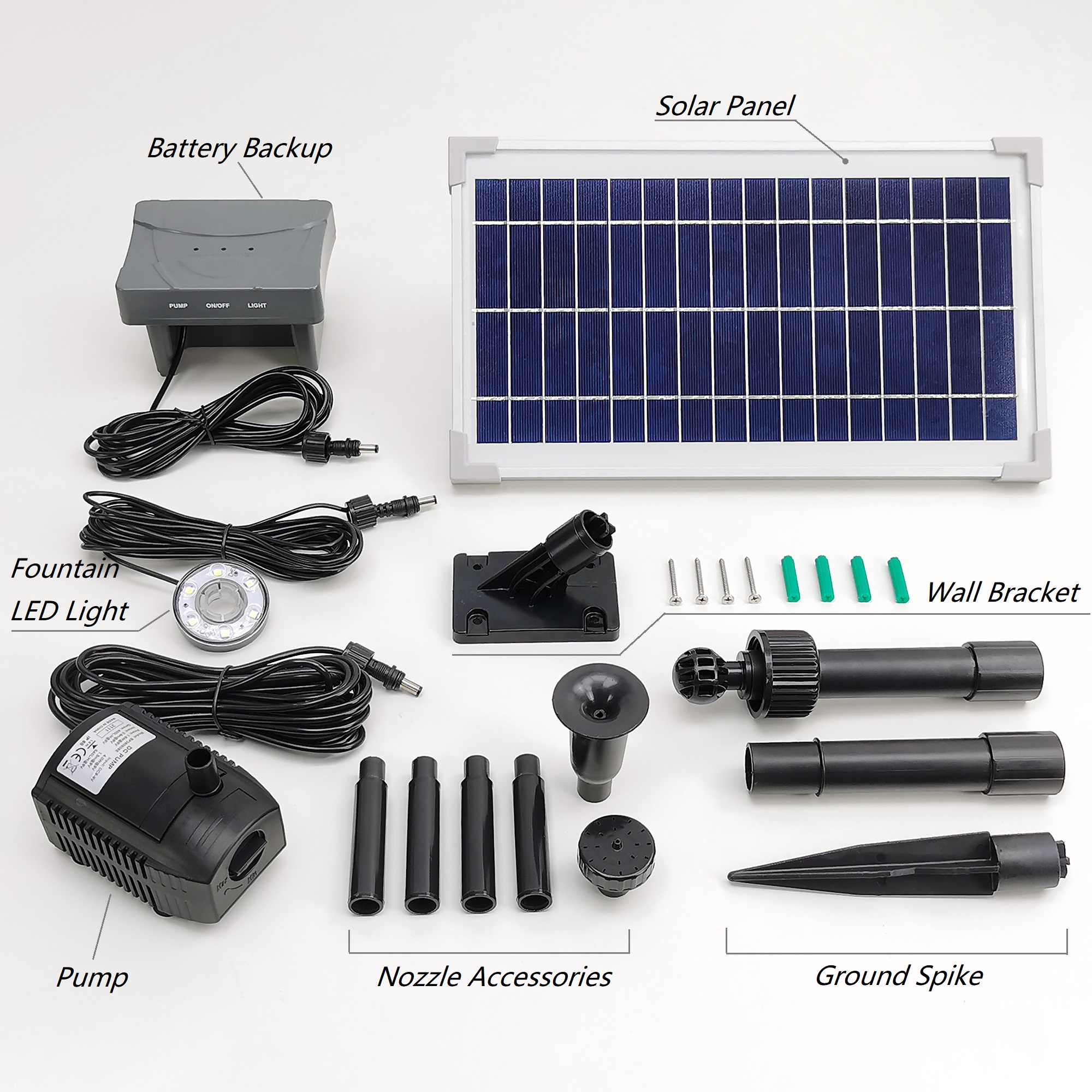

Components

Parameters

Item No.

BP360608E

Maximum pump head

0.8 M (2.6 FT)

Maximum flow rate

400 LPH (105.68 GPH)

Working voltage

6.4 V

Maximum power

1.6 W

Cable length

5 M (16.4 FT)

Material

Plastic

Engineering Drawings

A. Dimension:

B. Explosive:




Parameters

Item No.

GSP8-16

Peak power

8 W

Solar panel size

348*200*17 MM

Peak power voltage

8.16 V

Peak power current

0.98  A

Open-circuit voltage

9.92 V

Short-circuit current

1.02 A

Material

Polycrystalline

Engineering Drawings

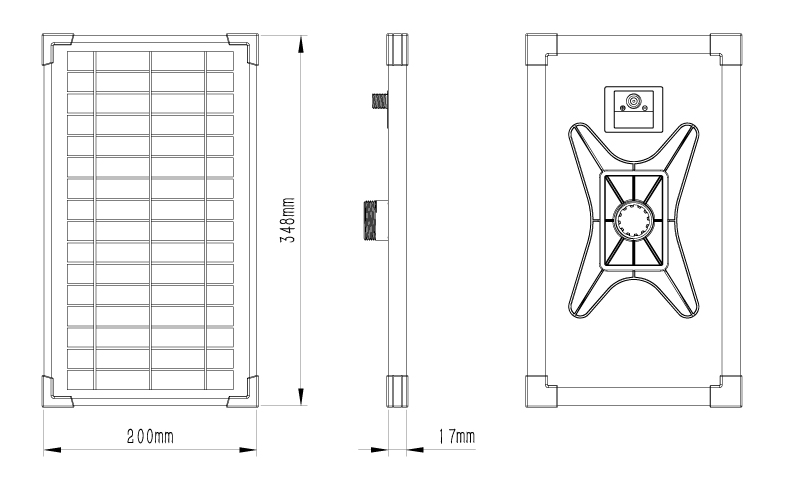

A. Dimension:

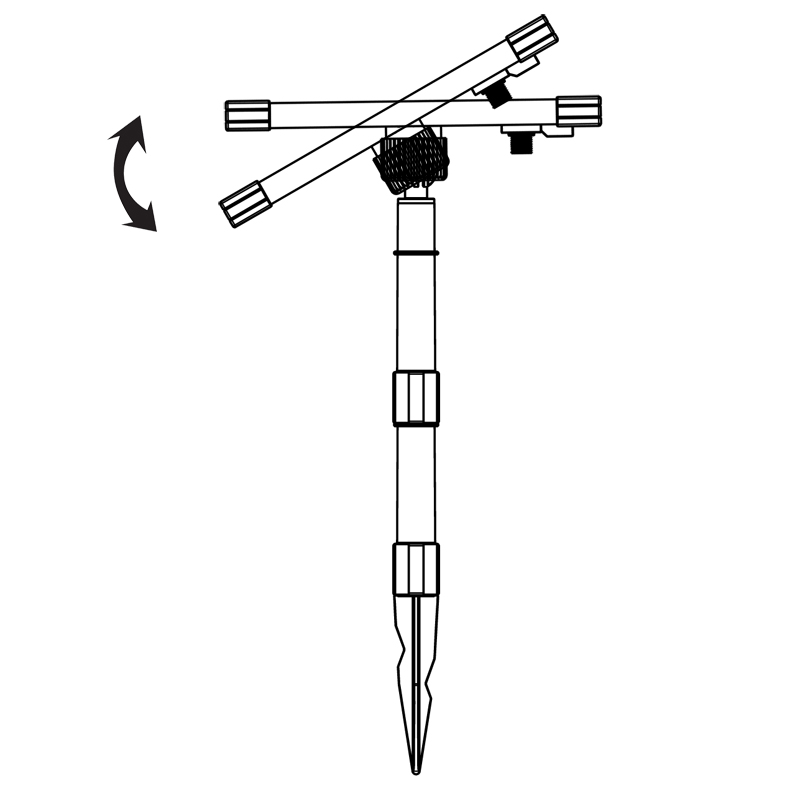

B. Angle adjustment:

   1. Ground installation:



   2. Wall installation:

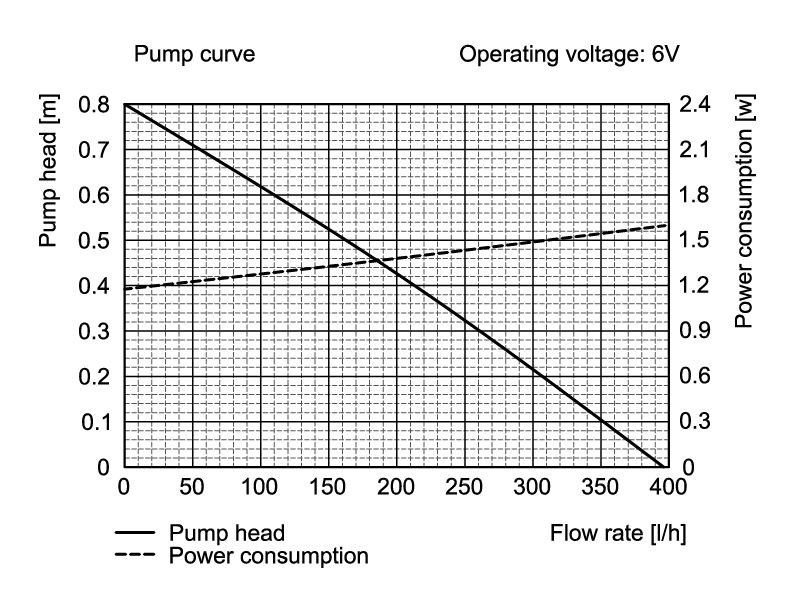

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.1m

@0.3m

@0.5m

@0.6m

@0.7m

Max. height

6.4V

400LPH

350LPH

260LPH

160LPH

110LPH

55LPH

0.8M
