700LPH Flow 1.9M Head E-type Solar Dry Run Protected Battery Fountain Pump with Fountain LED_SPBL25-401215E

700LPH Flow 1.9M Head E-type Solar Dry Run Protected Battery Fountain Pump with Fountain LED_SPBL25-401215E

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Works longer on a daily basis with FeLi battery and can work on demand on overcast days or at nights.
*Decorative fountain LED automatically switches on at night.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

0.00
0.00
Item Number:

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Works longer on a daily basis with FeLi battery and can work on demand on overcast days or at nights.
*Decorative fountain LED automatically switches on at night.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.
*Dry run protection prevents the pump from damage when water dries out.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

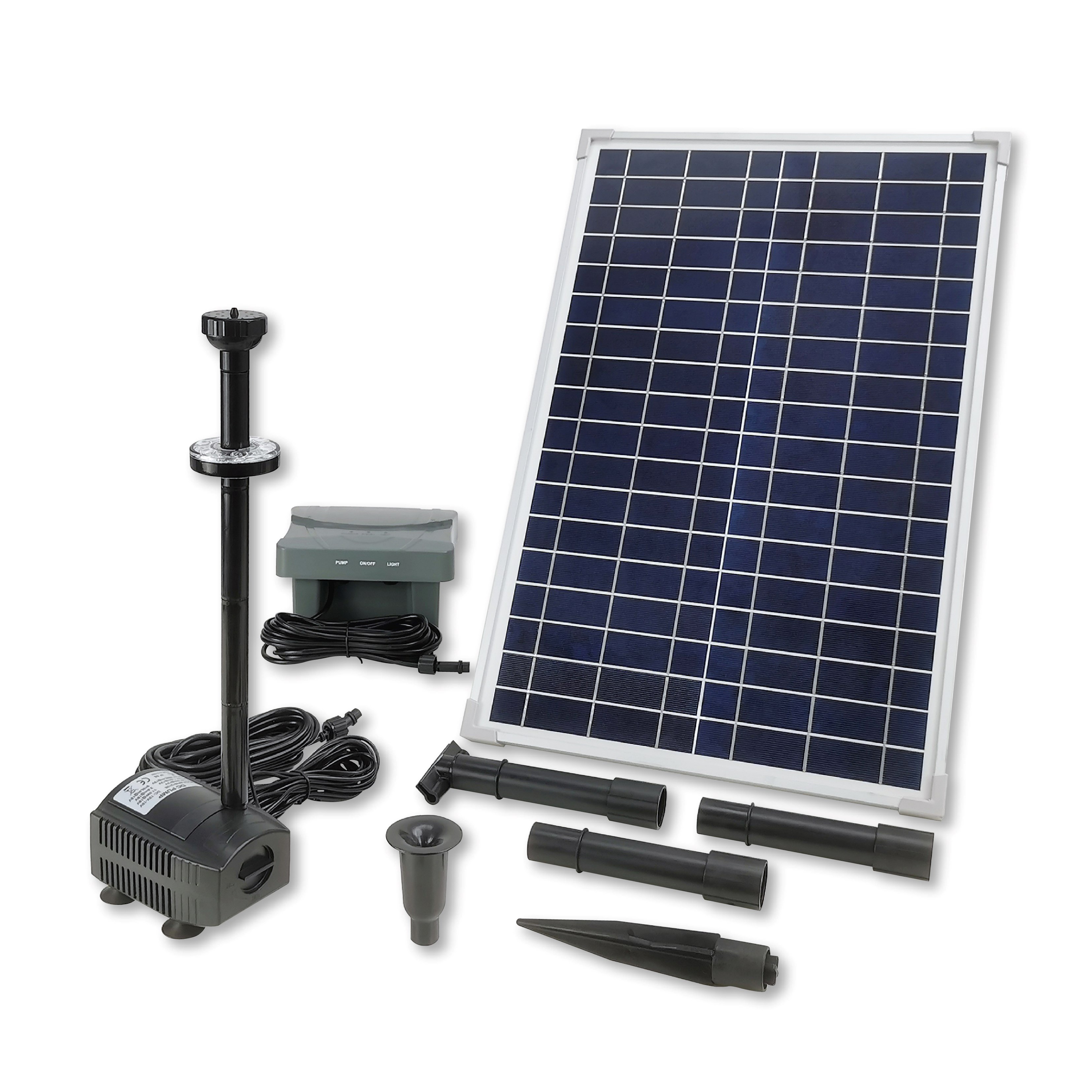

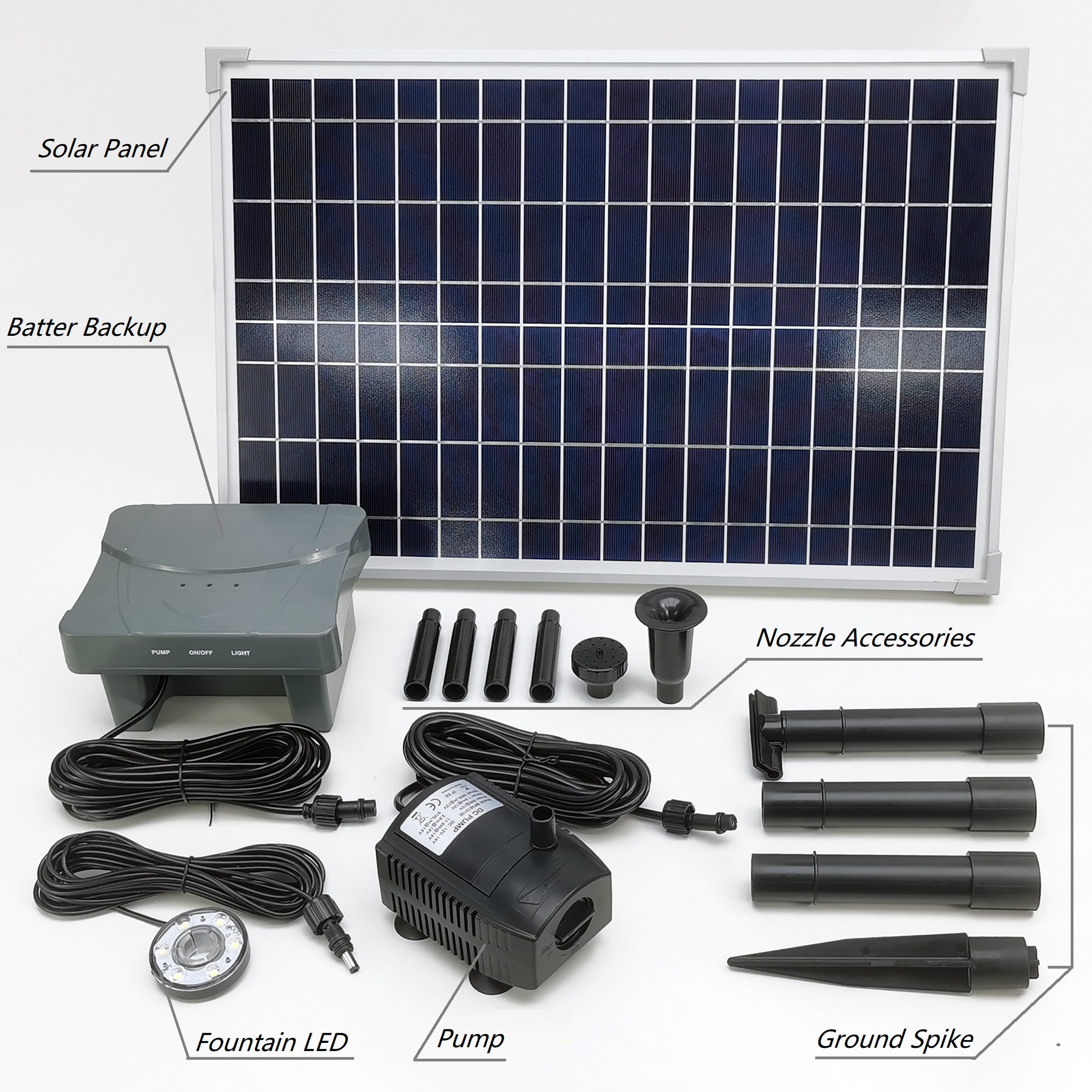

Components

Parameters

Item No.

BP401215E

Maximum pump head

1.9 M (6.2 FT)

Maximum flow rate

700 LPH (185 GPH)

Working voltage

12.8 V

Maximum power

5.8 W

Cable length

5 M (16.4 FT)

Material

Plastic

Engineer Drawings

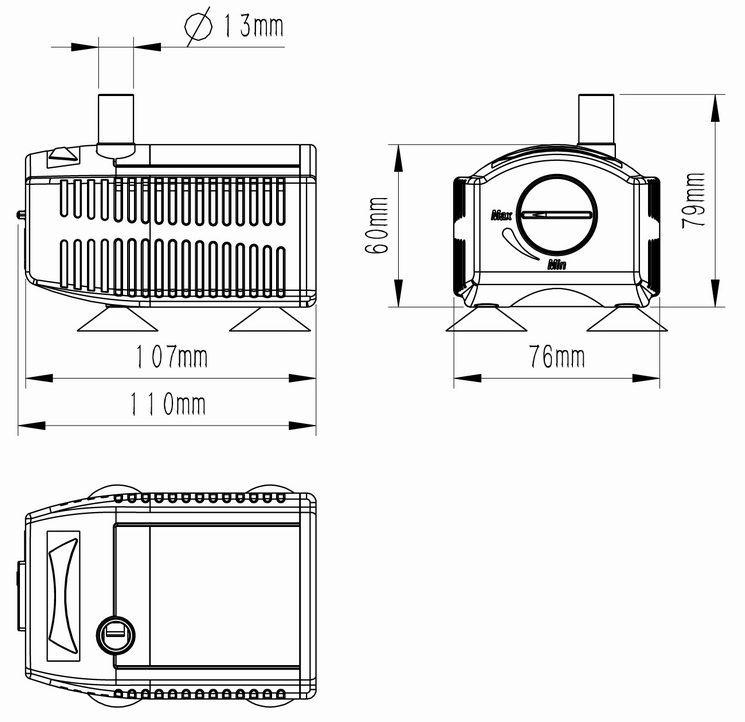

A. Dimension:

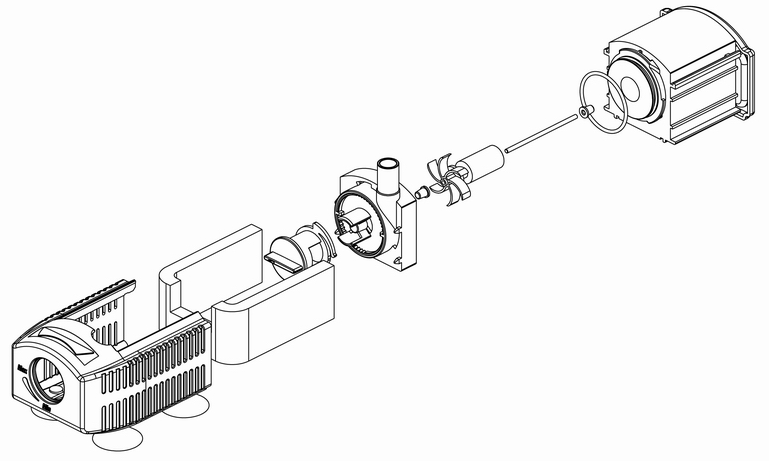

B. Explosive:

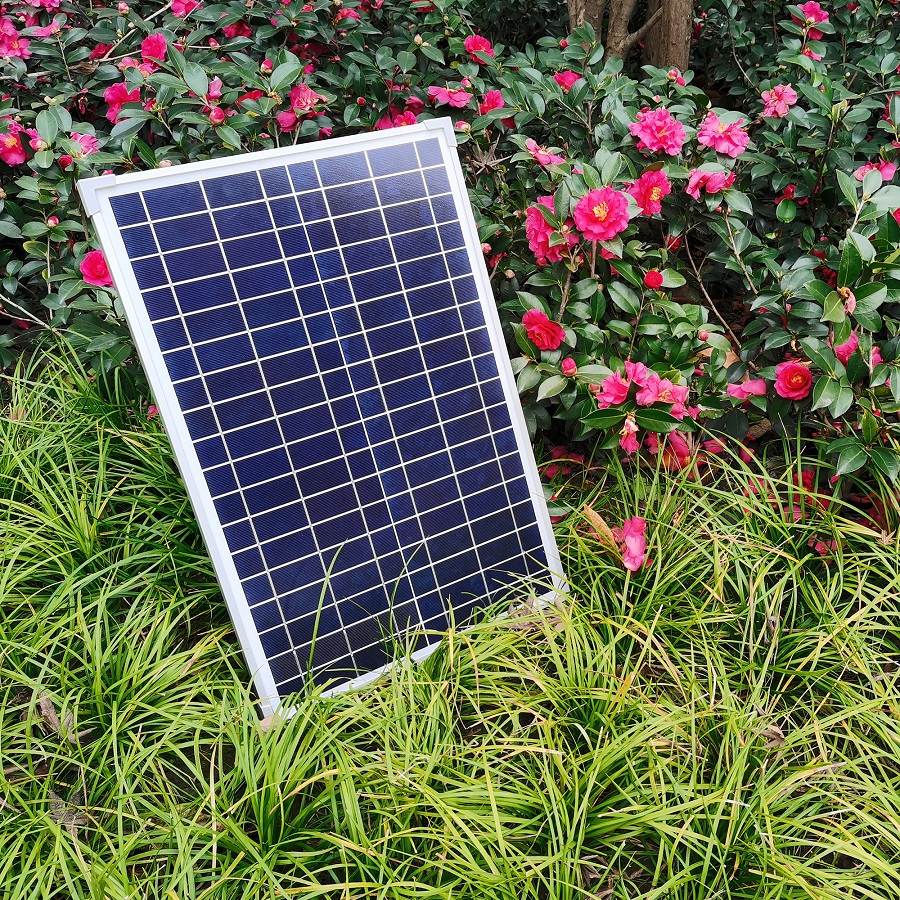

Parameters

Item No.

GSP25-36

Peak power

25 W

Peak power voltage

18.36 V

Peak power current

1.36 A

Open-circuit voltage

22.32 V

Short-circuit current

1.42 A

Material

Polycrystalline

 Engineering Drawing



Parameters

  Item No.

SBB12.8-6F

      Rechargeable   battery type

LiFePO4

      Rechargeable battery capacity

   12.8 V,   6000 mAh

      Charging   voltage

    DC 15V to 18V

      Output voltage

    DC 12.8 V

      Maximum input power

    50 W

      Maximum   power for pump output port

    20  W

      Maximum power for light output port

    5 W


Engineering Drawing

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.3m

@0.6m

@0.9m

@1.2m

@1.5m

Max. height

12.8V

700LPH

590LPH

480LPH

360LPH

250LPH

140LPH

1.9M
