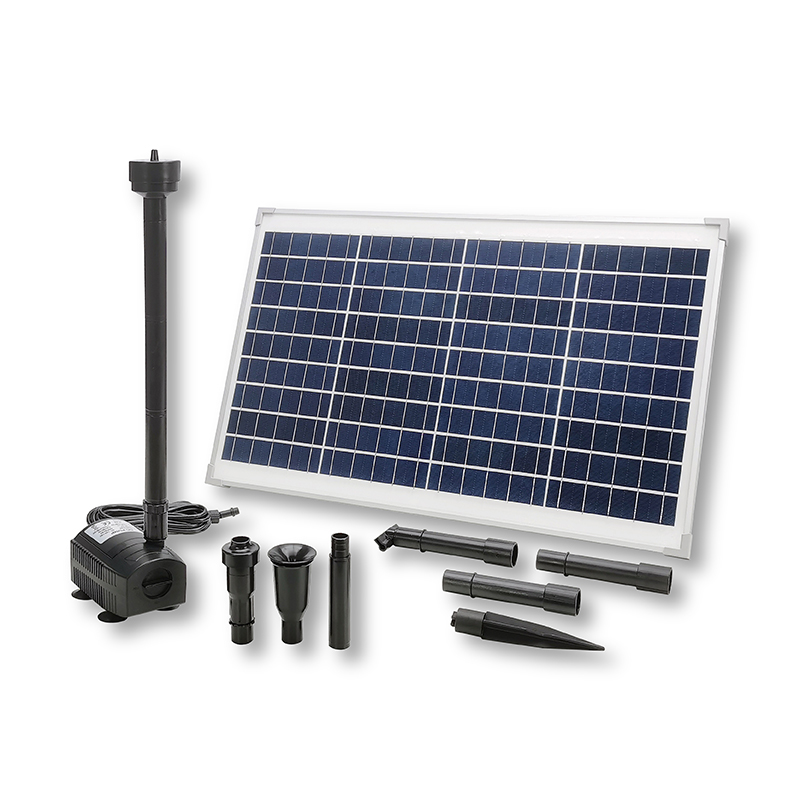

1800LPH Flow 3.5M Head E-type Solar Dry Run Protected Fountain Pump_SP40-501218E

1800LPH Flow 3.5M Head E-type Solar Dry Run Protected Fountain Pump_SP40-501218E

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection to avoid pump burning when running dry.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Dry run protection to avoid pump burning when running dry.
*Foam filter inside keeps the pond debris out.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*2 years warranty.

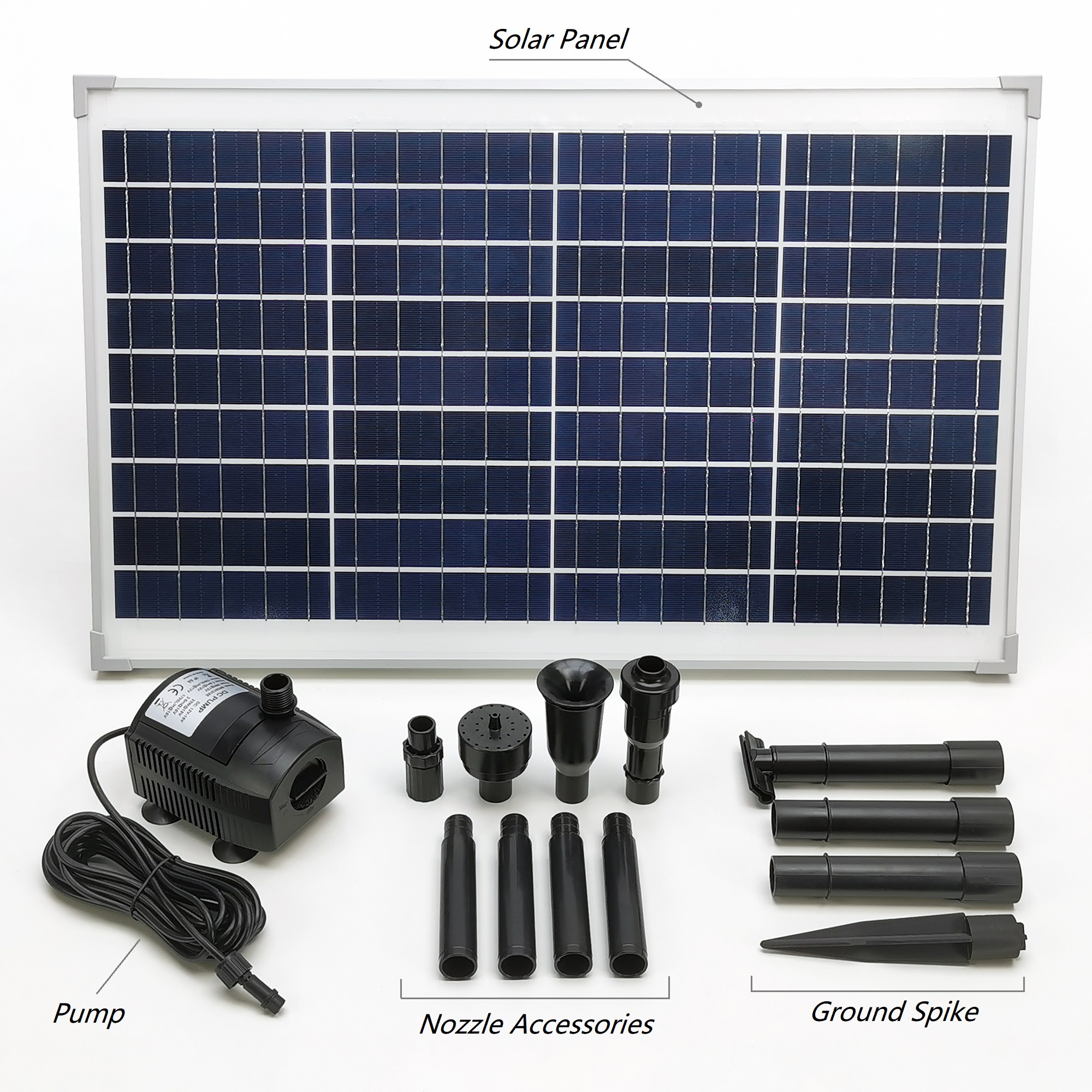

Components

Parameters

Item No.

BP501218E

Maximum pump head

3.5 M (11.5 FT)

Maximum flow rate

1800 LPH (476GPH)

Working voltage

18 V

Maximum power

20.5 W

Connection outlet

G1/2"

Cable length

5 M (16.4 FT)

Material

Plastic

Engineering Drawings

A. Dimension:

B. Explosive:

Parameters

Item No.

GSP40-36

Peak power

40 W

Solar panel size

670*420*23 MM

Peak power voltage

18.36 V

Peak power current

2.18  A

Open-circuit voltage

22.32 V

Short-circuit current

2.28 A

Material

Polycrystalline

Engineering Drawings


Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.5m

@1.0m

@2.0m

@3.0m

Max. height

18V

1800LPH

1500LPH1250LPH725LPH225LPH

3.5M
