700LPH Flow 1.9M Head Solar Battery Fountain Pump with Fountain LED_SPBL25-401215

700LPH Flow 1.9M Head Solar Battery Fountain Pump with Fountain LED_SPBL25-401215

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Works longer on a daily basis with FeLi battery and can work on demand on overcast days or at nights.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

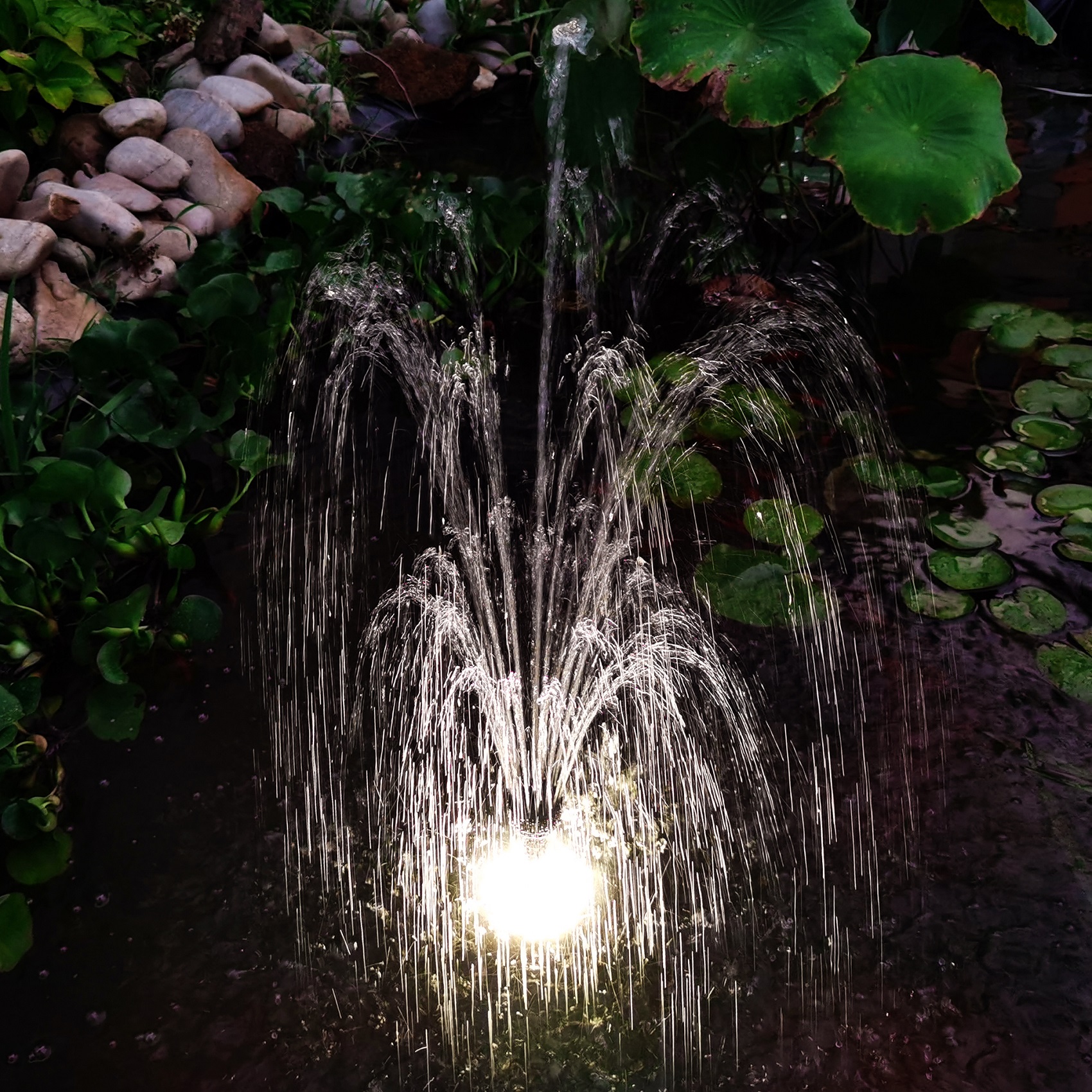

*Decorative fountain LED automatically switches on at night.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

￥ 0.00
0.00
Item Number：

Product overview

*Ideal for pumping water for spray fountains, garden fountains and water features as well as aerating small ponds.

*Solar powered with no operation cost and no need for wiring work, eco-friendly with no carbon emission.

*Works longer on a daily basis with FeLi battery and can work on demand on overcast days or at nights.

*Brushless motor with locked rotor protection, maintenance free with a robust and long service life.

*Decorative fountain LED automatically switches on at night.

*Electrically safe, thanks to its low working voltage.

*RoHs, REACH and CE, UKCA certified.

*1 year warranty.

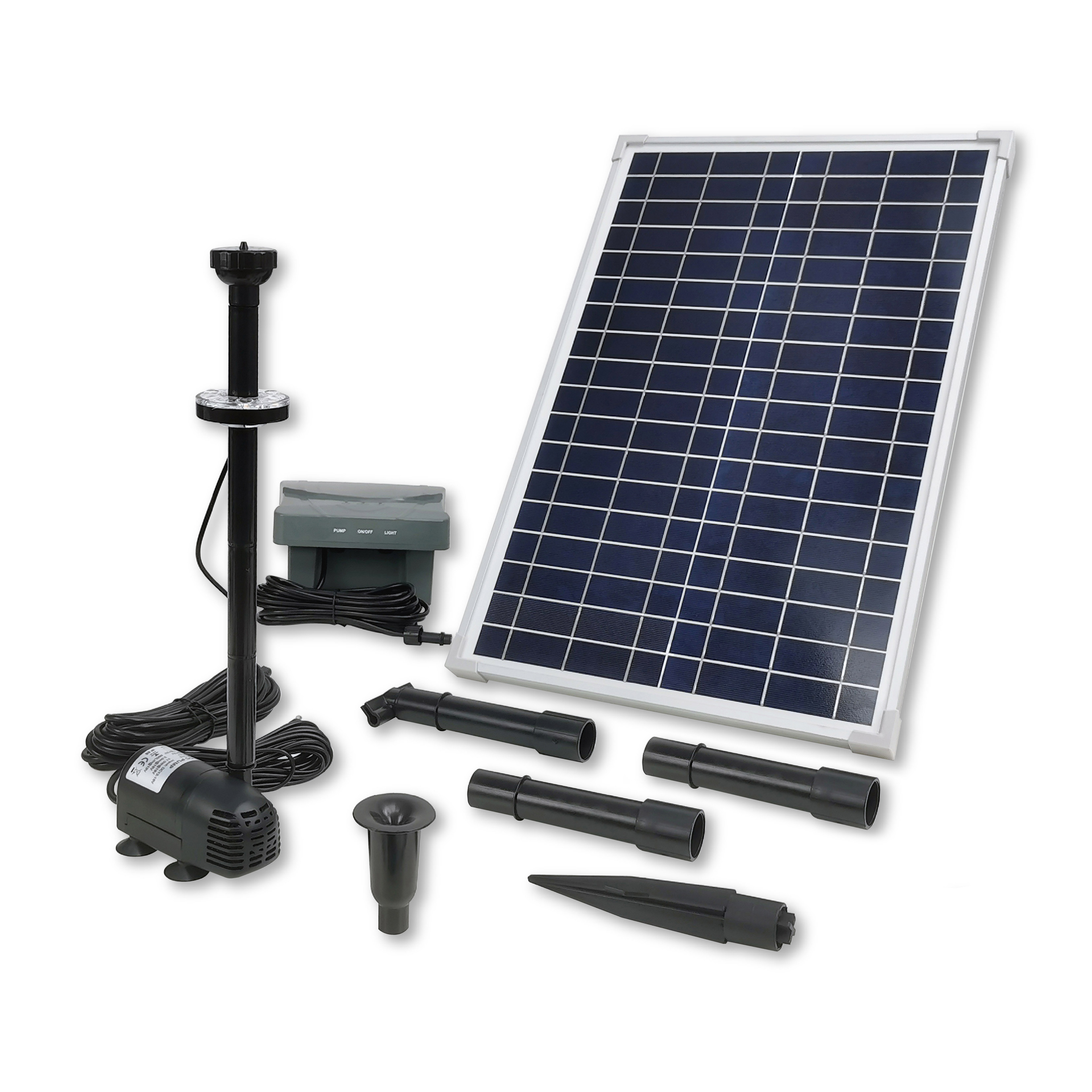

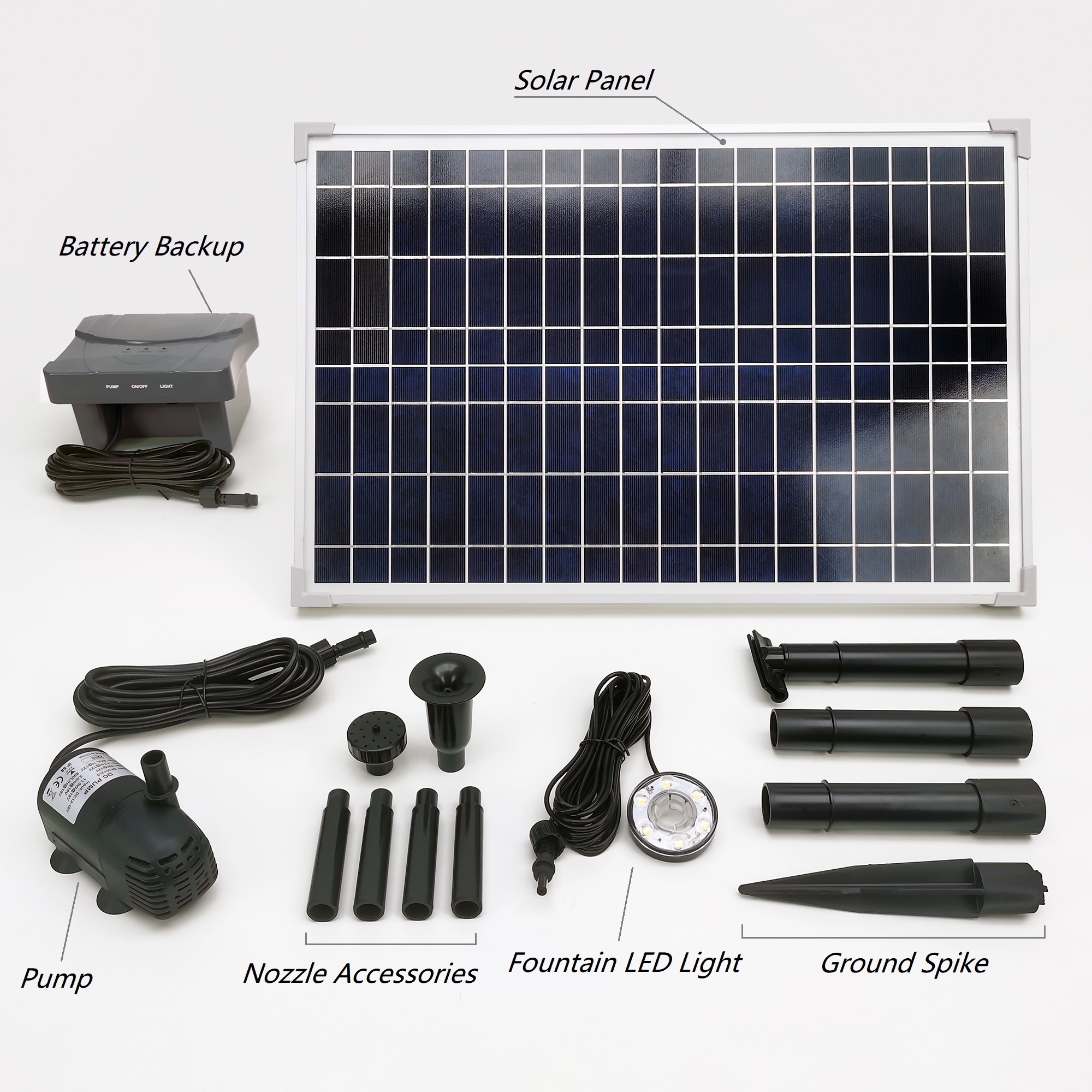

Components

Parameters

Item No.

BP401215

Maximum pump head

1.9 M (6.2 FT)

Maximum flow rate

700 LPH (185 GPH)

Working voltage

12.8 V

Maximum power

5.0 W

Cable length

5 M (16.4 FT)

Material

Plastic

Engineer Drawings

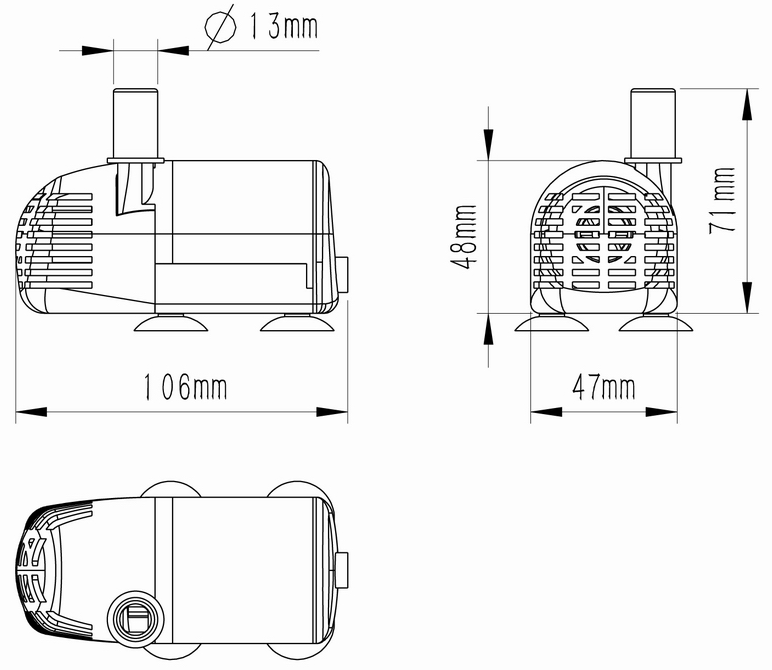

A. Dimension:

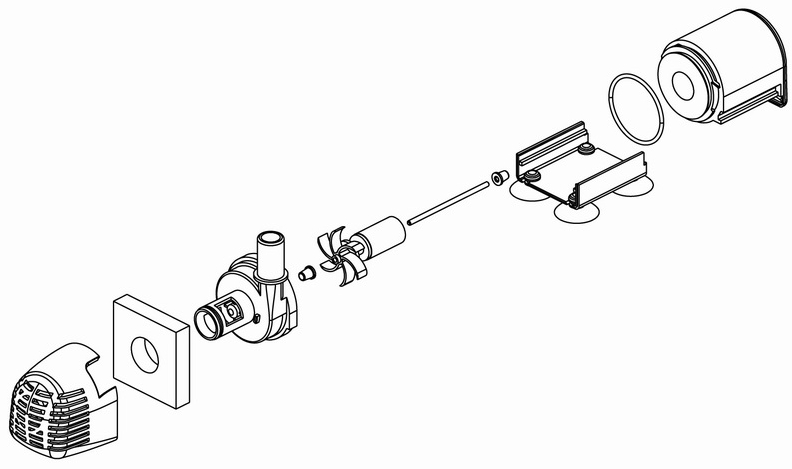

B. Explosive:

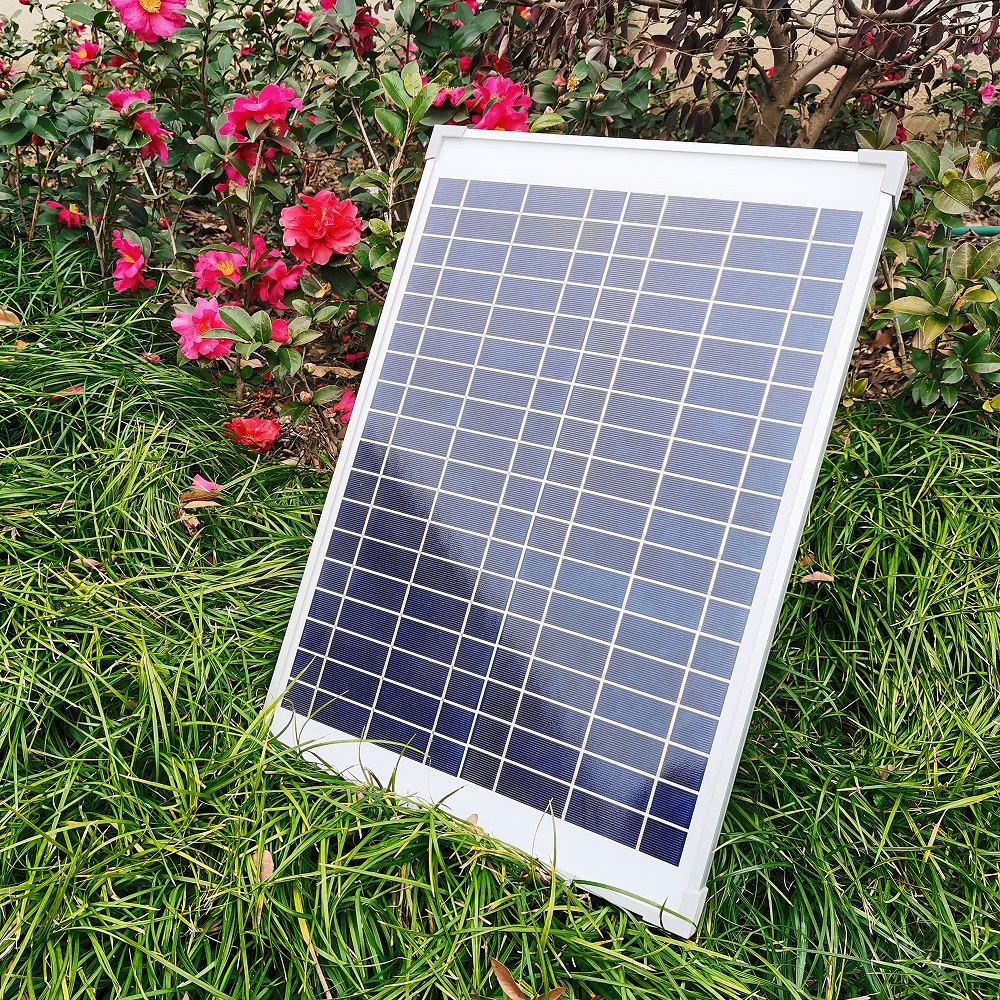

Parameters

Item No.

GSP25-36

Peak power

25 W

Peak power voltage

18.36 V

Peak power current

1.36 A

Open-circuit voltage

22.32 V

Short-circuit current

1.42 A

Material

Polycrystalline

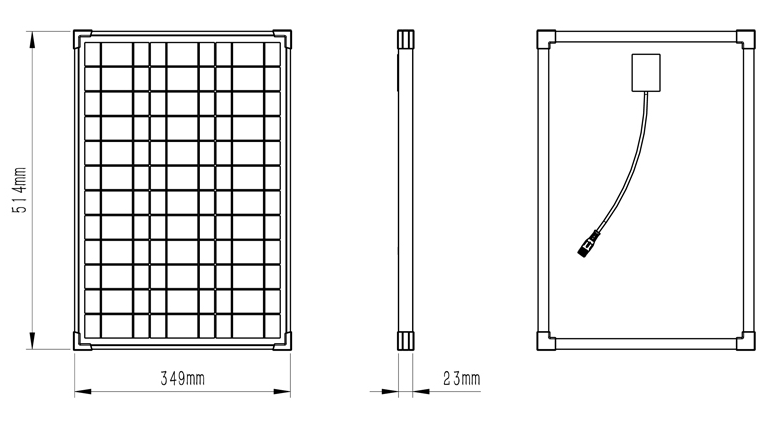

 Engineering Drawing



Parameters

 Item No.

SBB12.8-6F

    Rechargeable   battery type

LiFePO4

    Rechargeable battery capacity

  12.8 V,   6000mAh

    Charging   voltage

   DC   15V to 18V

    Output   voltage

  DC 12.8 V

    Maximum   input power

  50 W

    Maximum   power for pump output port

   20   W

    Maximum power for light output port

   5 W

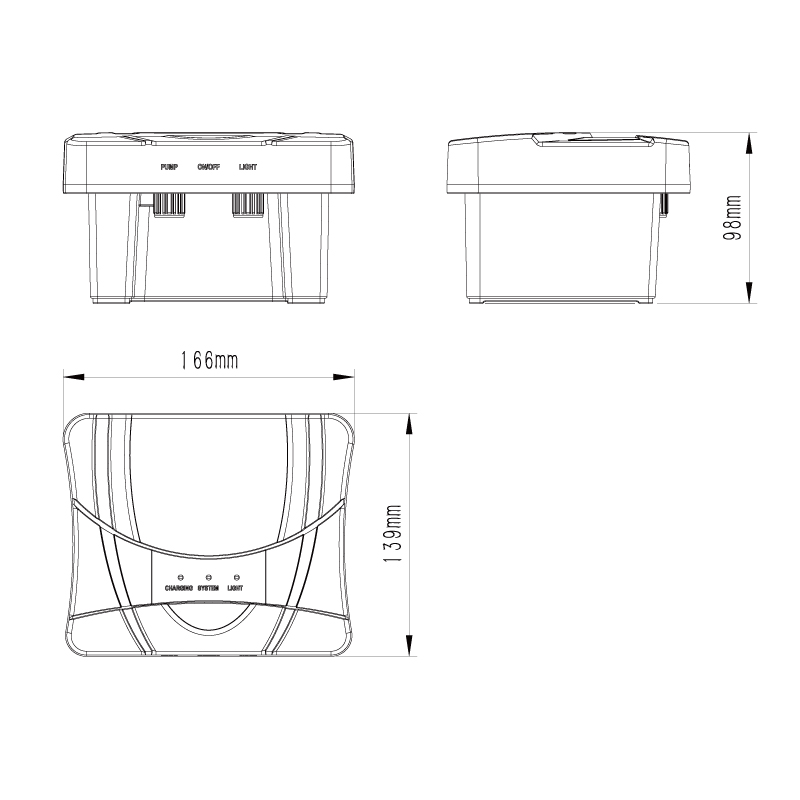

Engineering Drawing

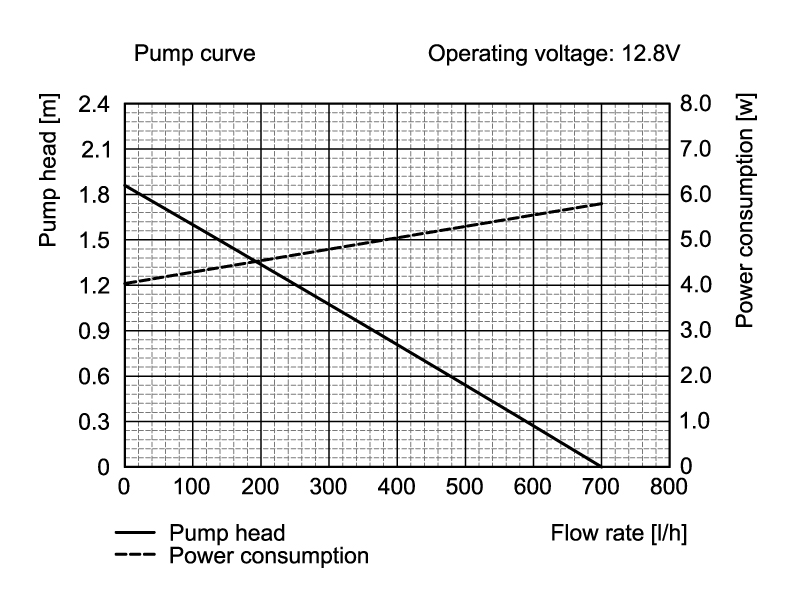

Litres per hour - At various pumping heights (Pump head)

Operating Voltage

@0m

@0.3m

@0.6m

@0.9m

@1.2m

@1.5m

Max. height

12.8V

700LPH

590LPH

480LPH

360LPH

250LPH

140LPH

1.9M
